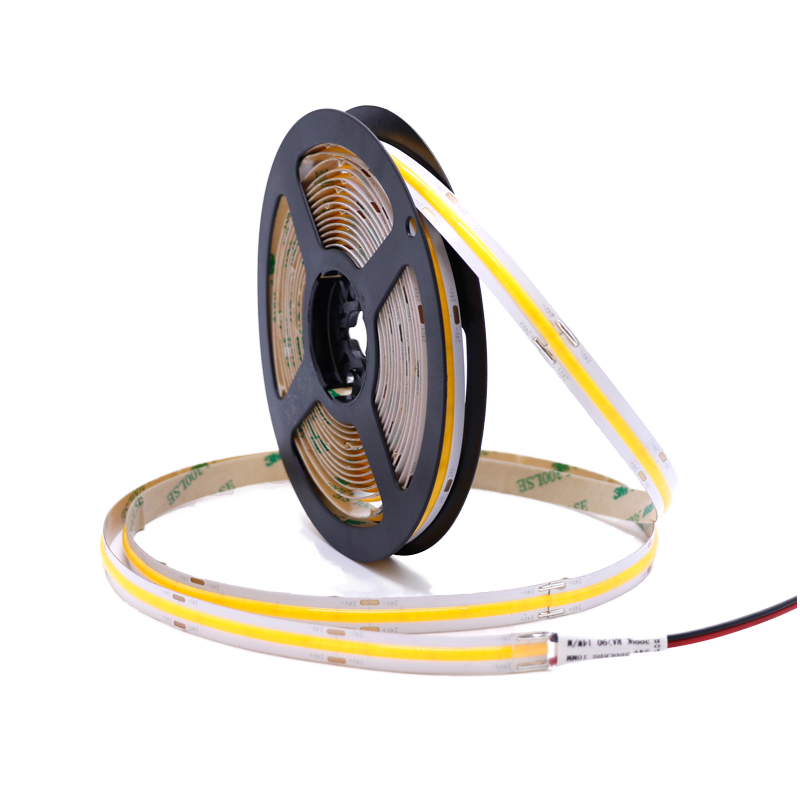

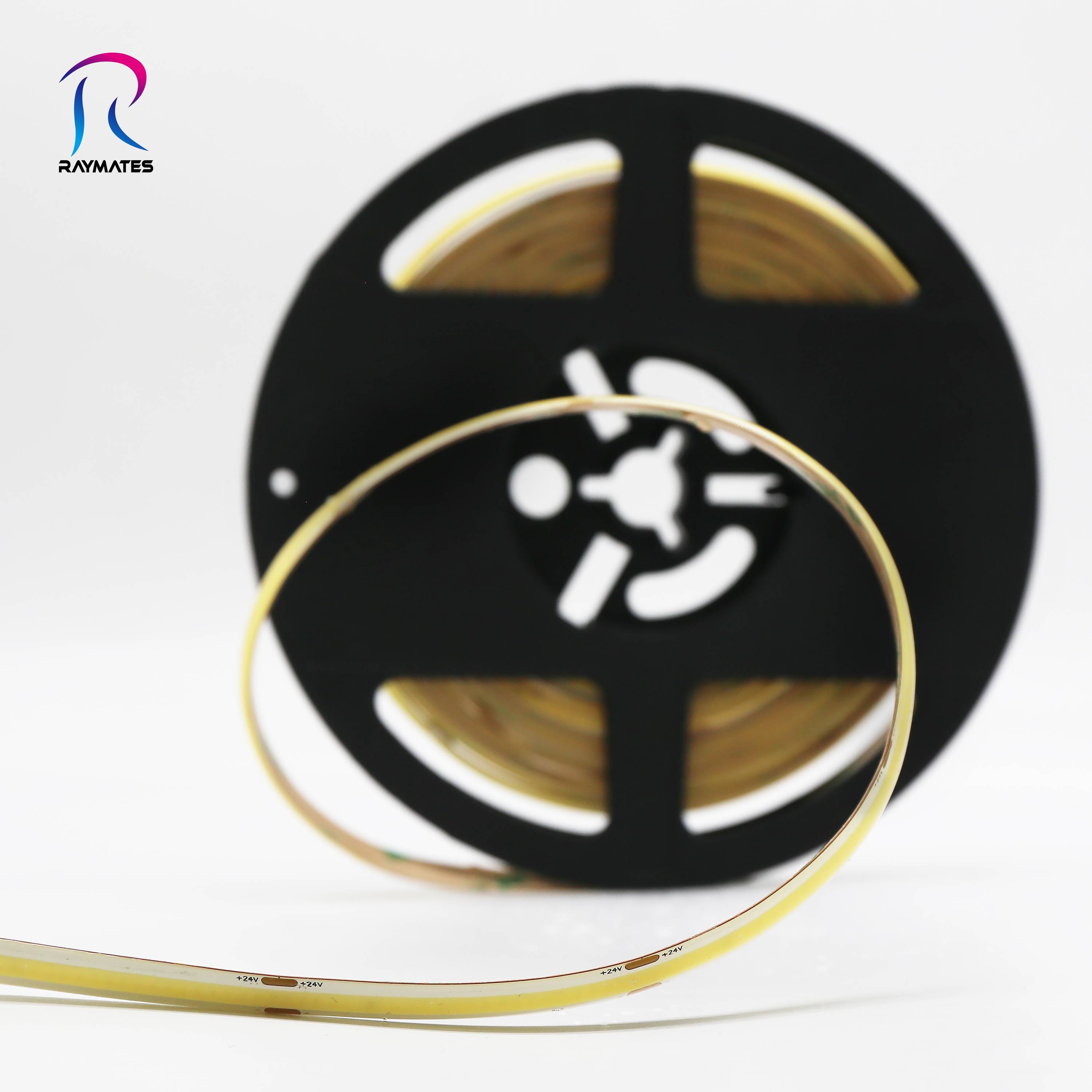

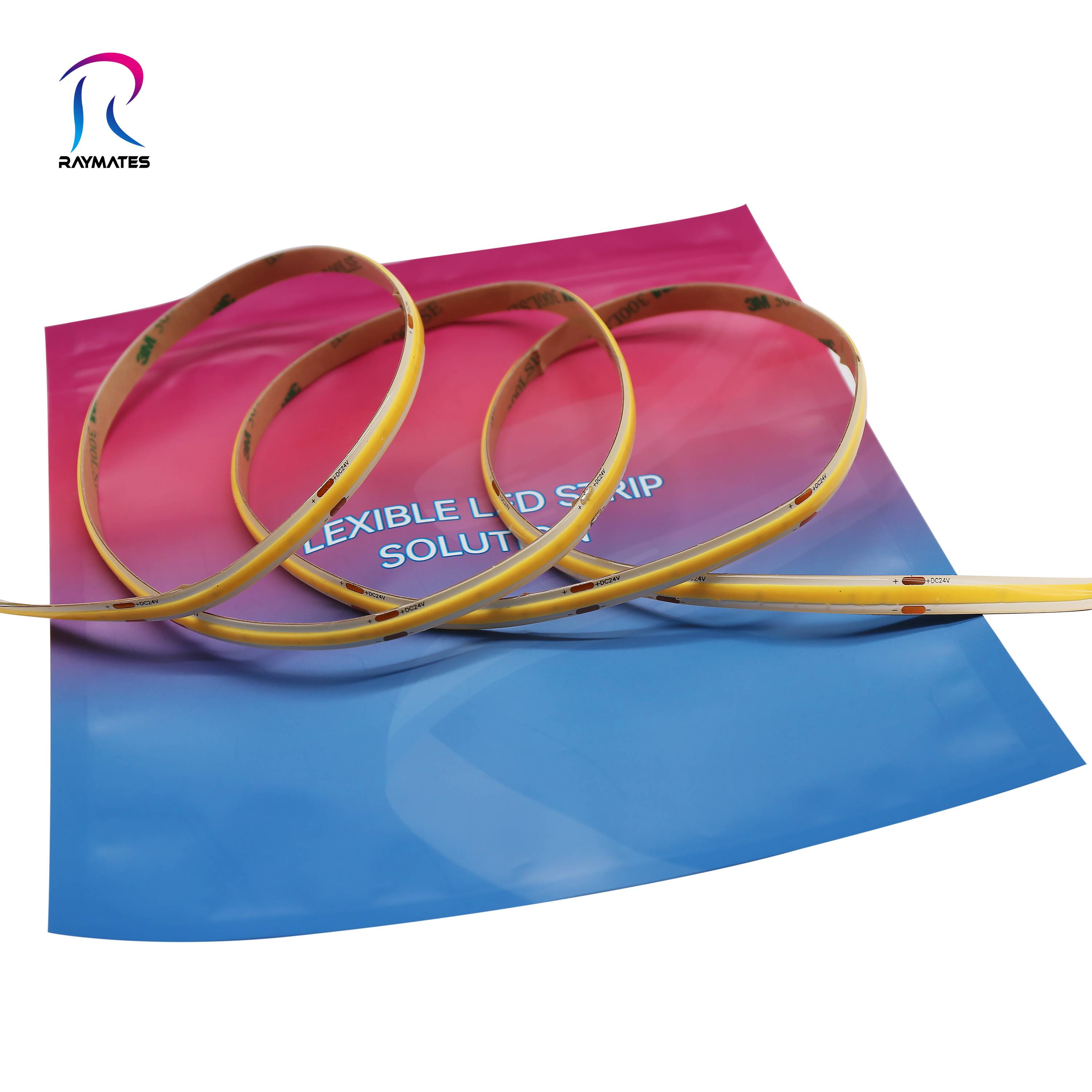

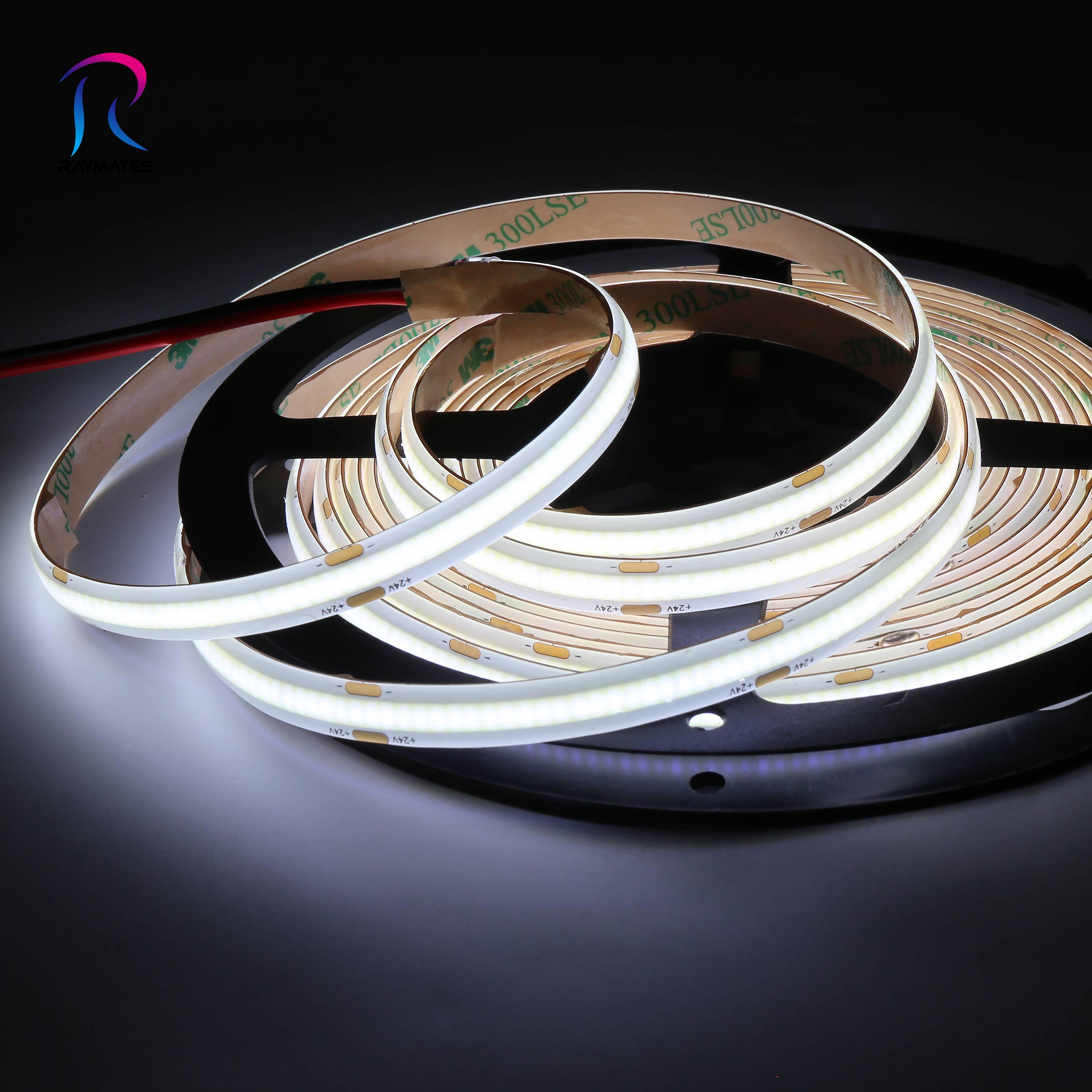

Raymates IP65 Drop Glue Seamless Linear Lighting Strip, 480 LEDs/m COB 8mm , for Architectural, Retail, Cabinet Commercial Light

Product Description

Product Parameters

Model No. RM-COBW480-24V8-GD
LED Type COB
LEDs Qty 480
Voltage 24v
Color Temperature 2700K/3000K/4000K/6000K
Wattage 10w/m
CRI 90
Beam Angle 180

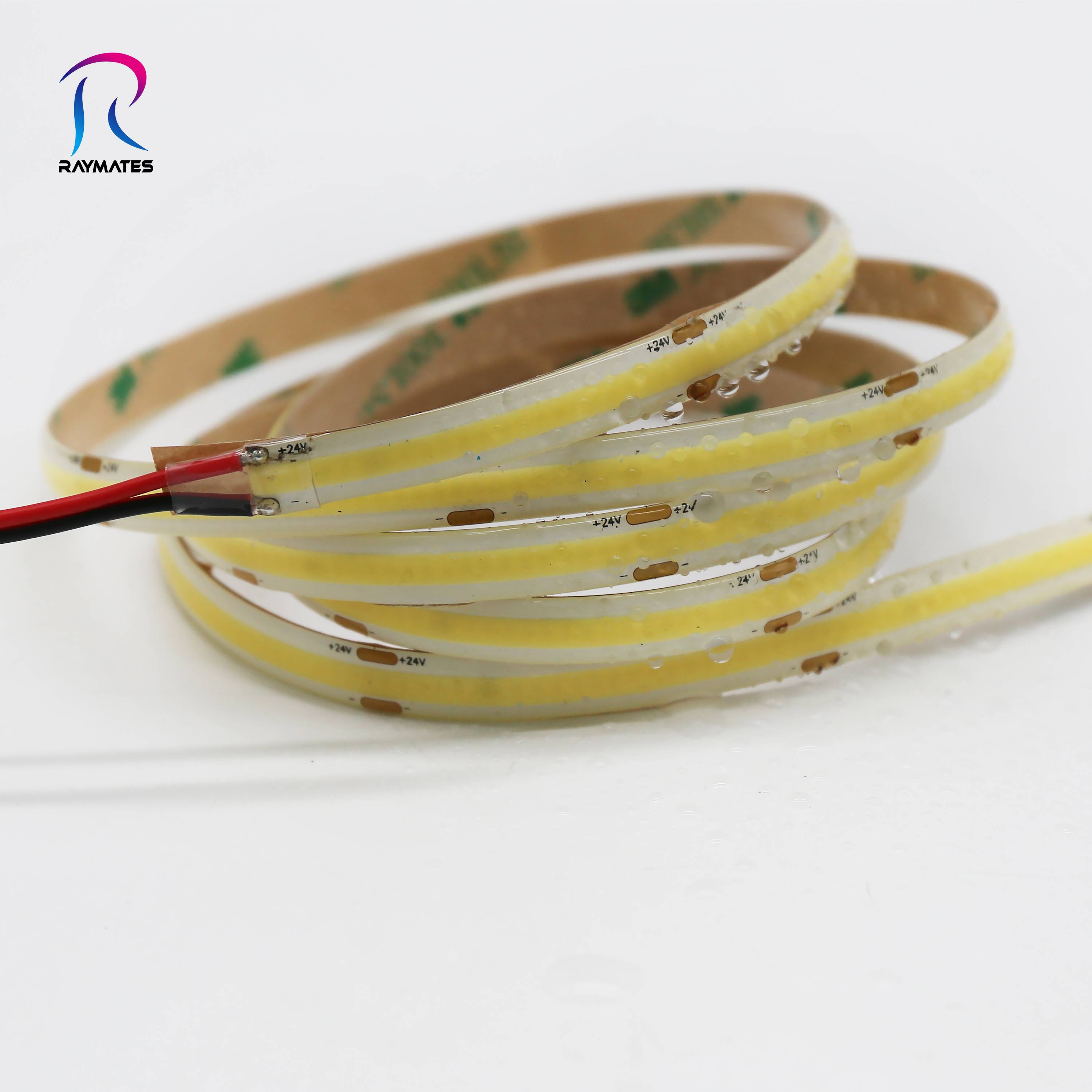

Waterproof Level IP65
Dimension L5000*W8*H2.2mm 3M 300LSE
Certification UL, PSE, UKCA, CE, TUV
Warranty 3
Place of Origin Guangdong
COB LED Strip Parameter Details
COB LED Strip Specification Details

Advantages

1
Flip-chip, new technology against traditional strip.
2
High density LEDs, no darkness.
3
Beam angle 180°, homogeneous illumination.
4
Extremely flexible, bending diameter >10mm.
5
Excellent heat dissipation.
COB LED Lighting Effect 1
COB LED Lighting Effect 2
COB LED Lighting Effect 3
COB LED Lighting Structure
COB LED Application Details

Frequently Asked Questions

What are the main benefits of Flip-chip technology in COB LED strips?
Flip-chip technology bonds the LED chips directly to the substrate, eliminating the need for gold wire connections. This results in superior heat dissipation, better durability, and a lower failure rate compared to traditional SMD strip lights.
How does the 180° beam angle improve lighting quality?
Traditional strips have a narrower beam angle that can cause glare or spotting. The 180° beam angle of this COB strip distributes light wider and more evenly, creating a homogeneous, dot-free, and comfortable illumination effect.
Can this COB LED strip be cut and modified?
Yes, the strip is designed to be highly flexible and can be cut at marked intervals along the strip. It features a genuine 3M 300LSE adhesive tape on the back for easy mounting on clean, dry, and flat surfaces.
What voltage driver does this light strip require?
This COB LED strip operates at 24V DC. It requires a compatible constant voltage 24V power supply (transformer) corresponding to the total wattage consumption of the strip length you install.
Is this COB LED strip waterproof?
Yes, this product has an IP65 waterproof rating, protecting it against dust ingress and low-pressure water sprays. This makes it ideal for kitchen cabinets, bathrooms, and sheltered outdoor installations.
What international certifications does this strip possess?
Our product is certified by leading worldwide testing organizations, holding UL, PSE, UKCA, CE, and TUV certificates, which guarantees its electrical safety, reliability, and performance.
