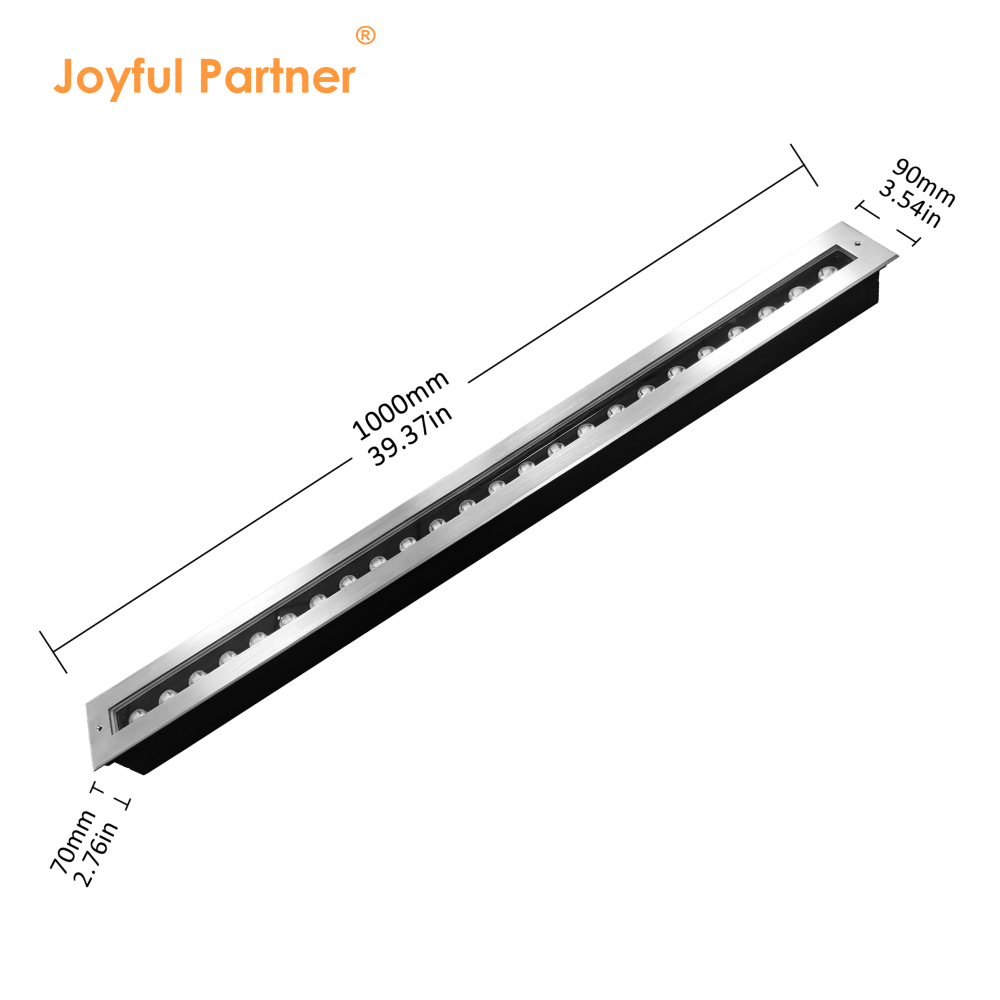

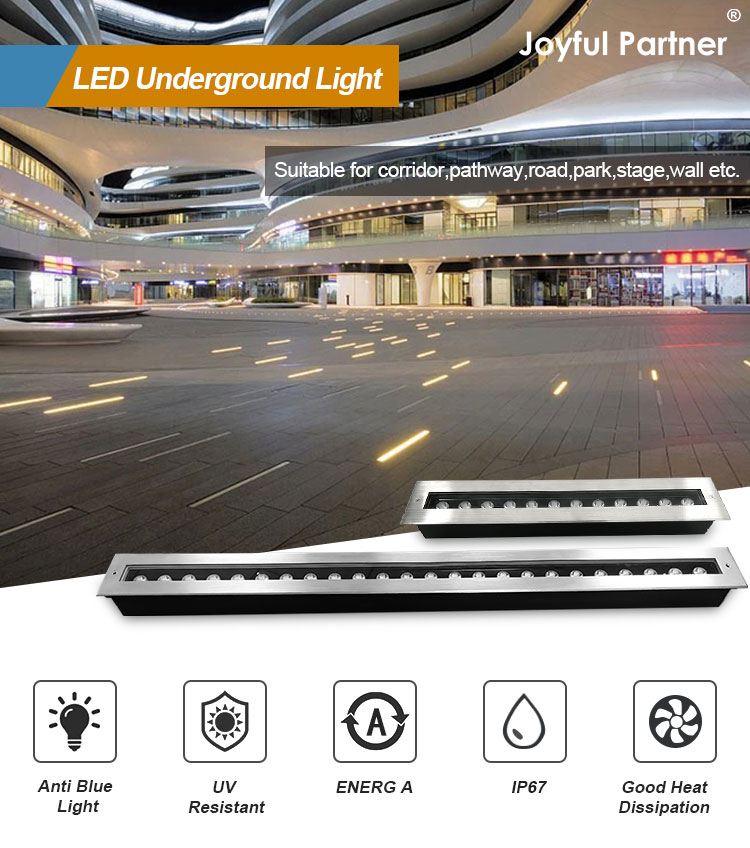

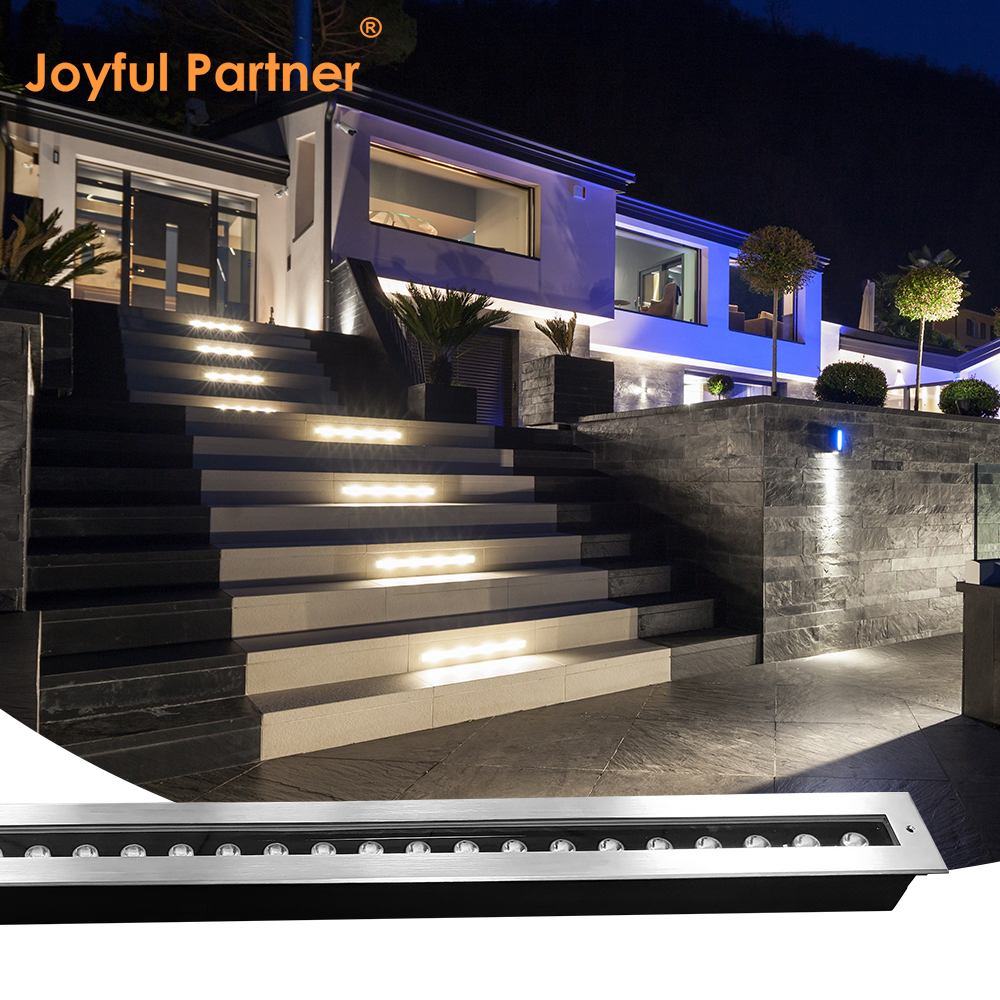

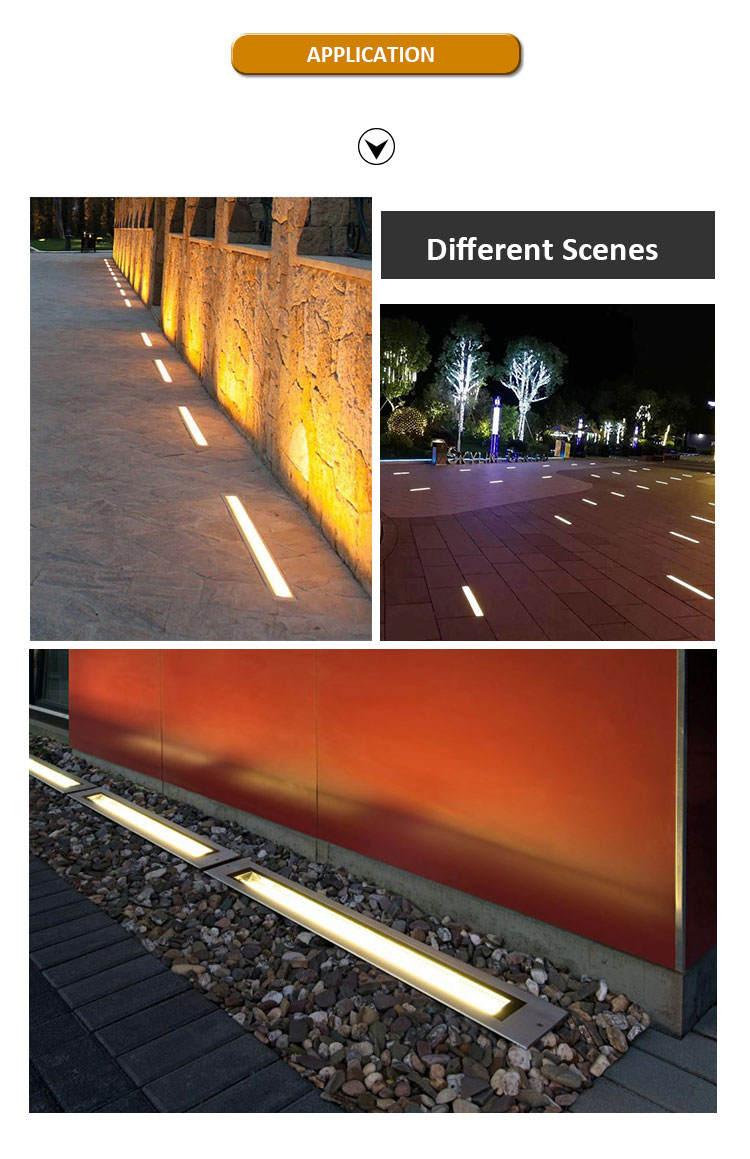

1. Design: 1000mm Seamless Linear Integration Features a sleek, 1-meter linear profile designed for recessed installation in pathways, plazas, and modern architectural projects. Creates a continuous, high-end light line for guidance and aesthetic accentuation.
2. Material: Heavy-Duty 316 Stainless Steel Cover Equipped with a precision-brushed 316SS front plate for superior corrosion resistance and durability. The robust construction is rated for walkover safety, maintaining its premium look in high-traffic commercial areas.

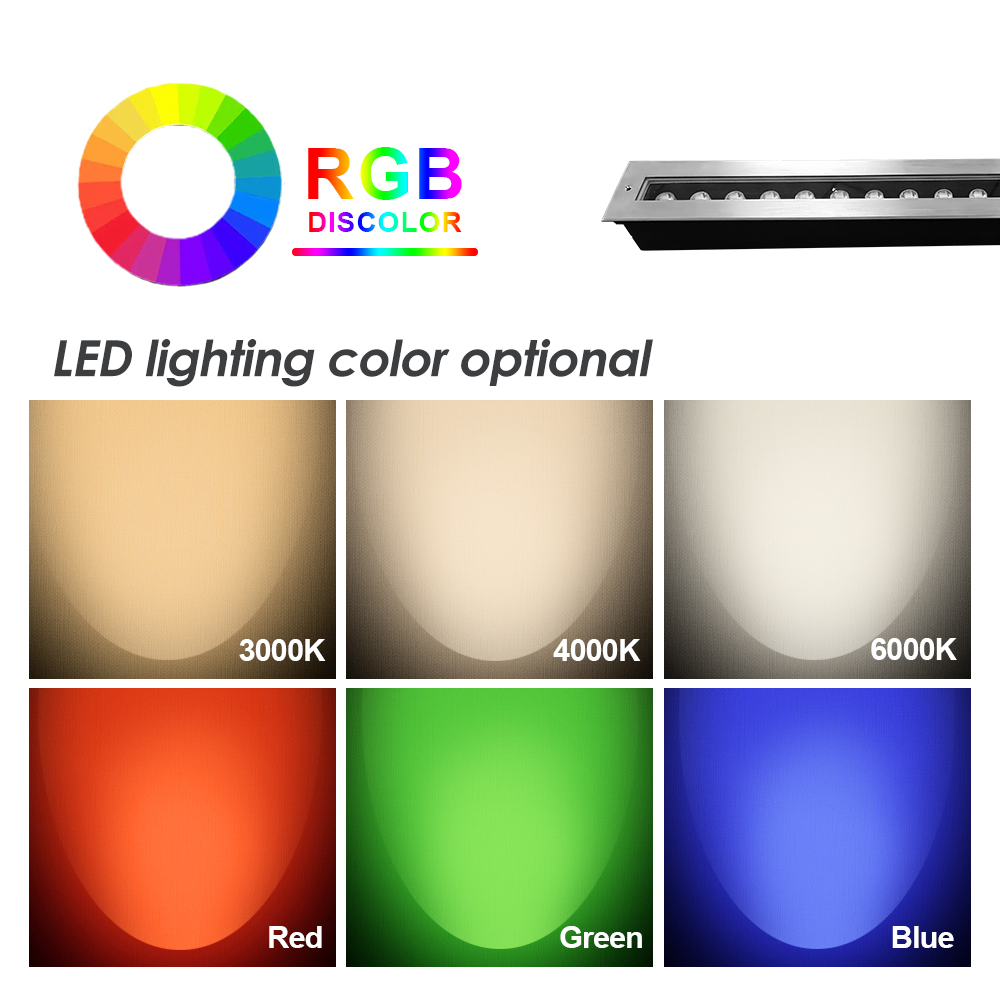

3. Performance: Dimmable 2700K-6500K White Balance Supports a full range of adjustable white temperatures from warm 2700K to cool 6500K. Perfect for creating customized lighting atmospheres for luxury resorts, hotels, and public landscape designs.
4. Waterproof: IP67 Certified Outdoor Protection Fully sealed and potted to meet IP67 standards, ensuring reliable performance against heavy rain, humidity, and dust. Built to endure the rigors of outdoor ground installation with zero internal condensation.
5. Housing: High-Grade #6063 Aluminum Extrusion The main body is constructed from anodized #6063 aluminum, providing exceptional heat dissipation and structural strength to protect the internal LED modules from ground pressure and soil impact.
6. Safety: Low Voltage 24V DC Operation Operates on a stable 24V DC system, ensuring maximum safety for pedestrians in public squares, parks, and residential walkways. Compatible with standard B2B architectural lighting controllers.
B2B Strategic Project Support:
Lead Time: Flexible, project-based delivery schedules.
Certs: CE, RoHS, and EMC compliance available.
Support: IES files, wiring diagrams, and technical assistance.

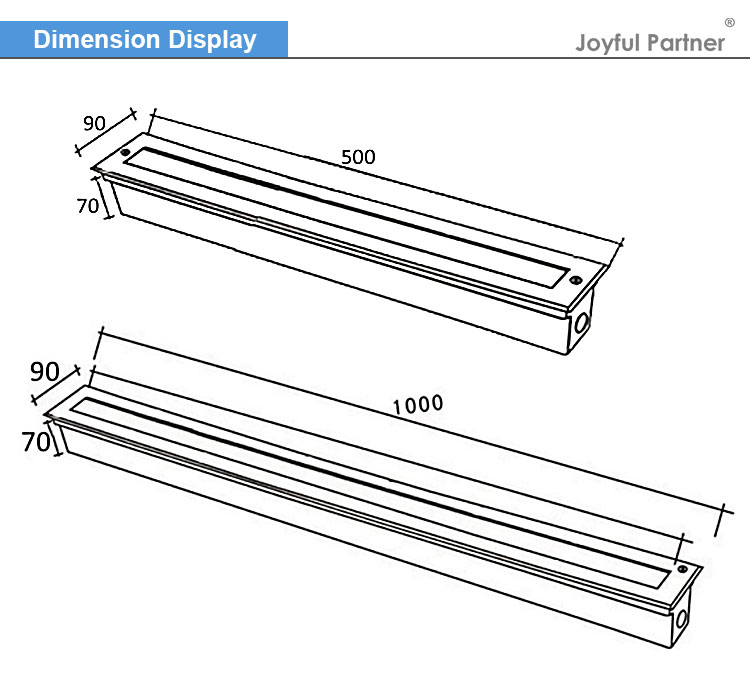

Custom: OEM branding and custom lengths (e.g., 500mm/1000mm) supported.

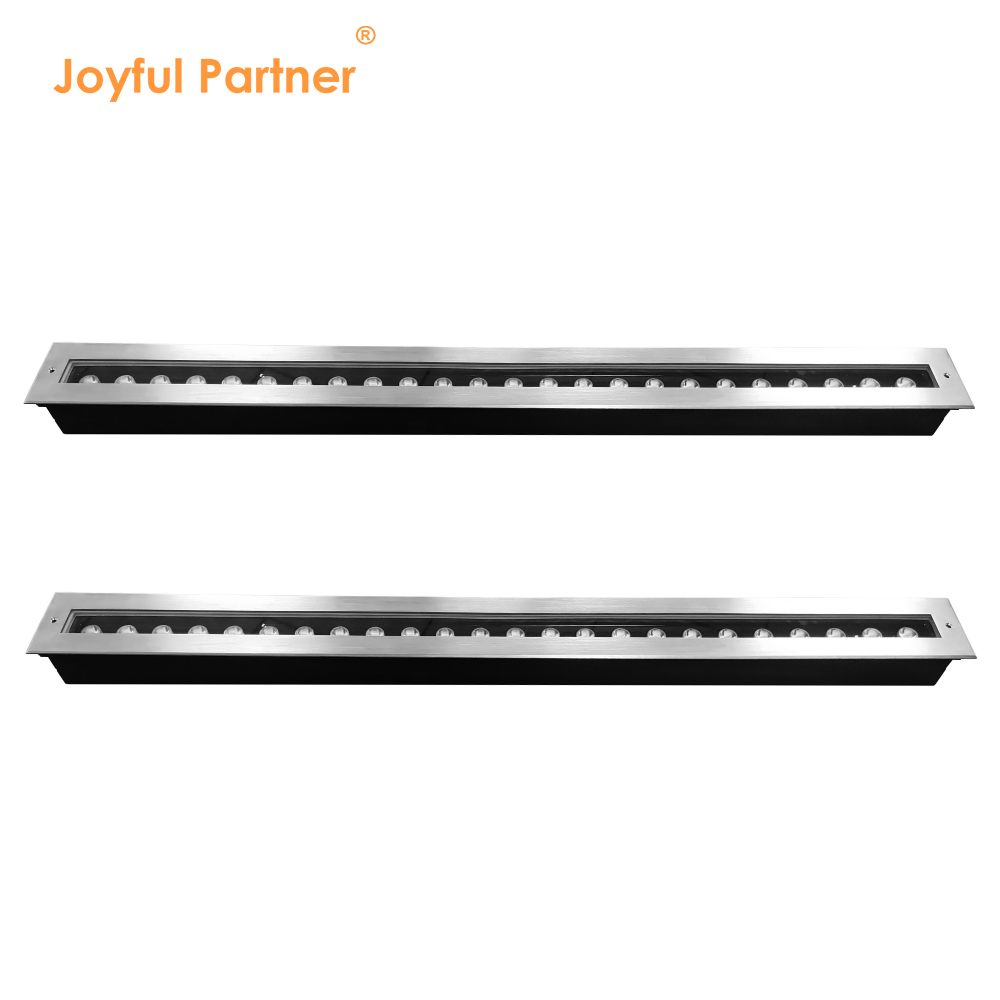

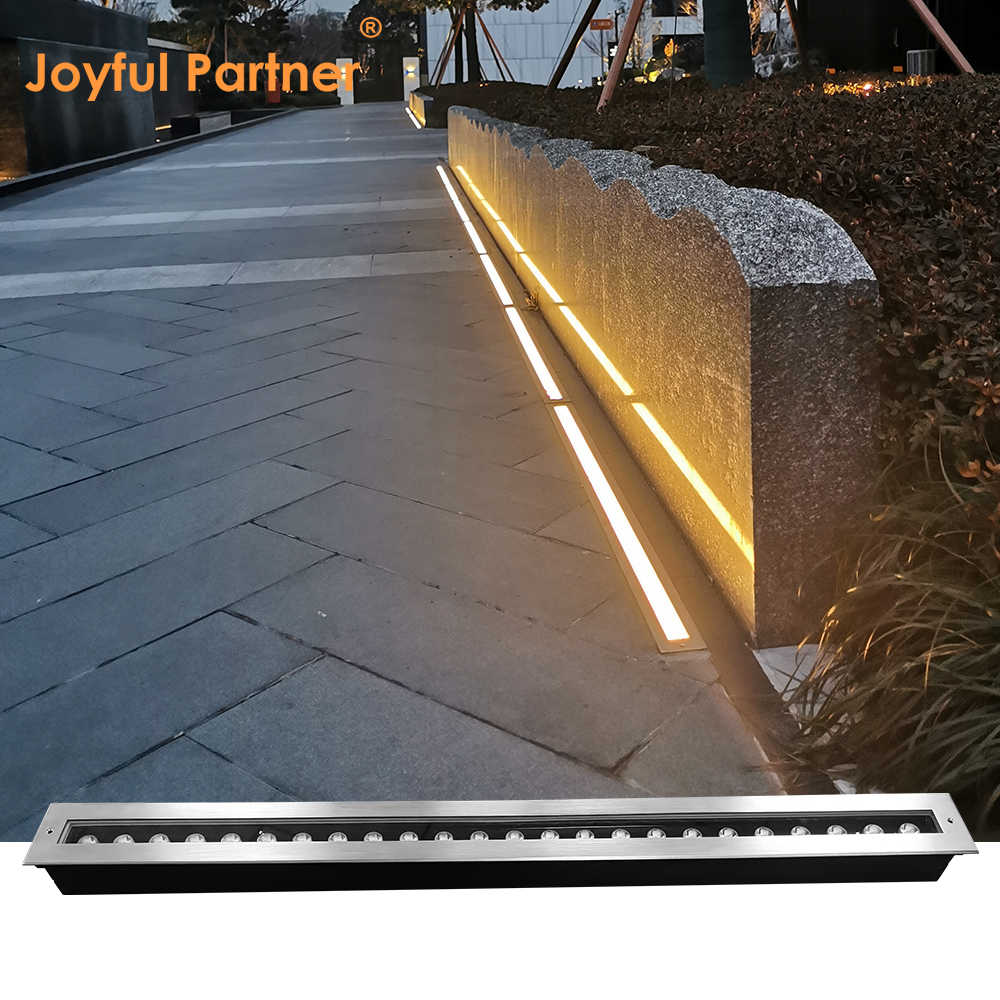

IP67 1000mm Linear Recessed LED Underground Light 316SS Waterproof Walkover Path Step Light 24V DC Landscape Bar Lamp
Item No.
Light source
Lens beam angle(°)
Consumption(watt)
Input Voltage(V)
Ik rate
8210241
24x1W LED
15°/25°/30°/45°/60° /asymmetrical lens
DC24V
24.5
08
8210241H
24x1W LED
AC100-240V
24.5
08
8210242
24x2W LED
DC24V
48.6
08
8210242H
24x2W LED
AC100-240V
48.6
08

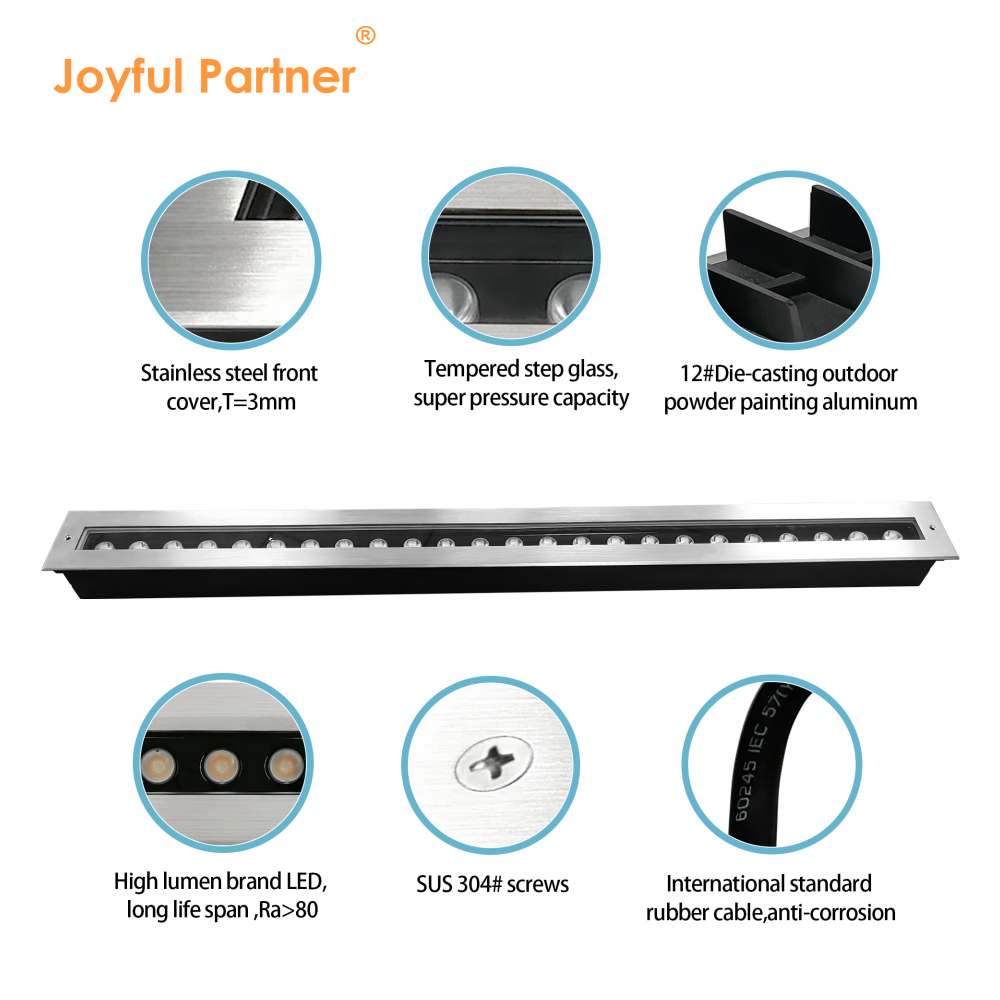

Material specifications
Housing
Outdoor dark grey powder coated aluminum T=60-80μm Adhesion ISO Glass 1/ASTM Glass 4B
Front cover
Hard chrome plate 304# or 316# Stainless Steel
Lens
Optical lens, efficiency≥85%
Glass
Tempered step glass T=7mm
Glass pressure capacity
Full area = 1700kgs
Gasket
Molding shaped silicone seal
Operating temperature
(-20℃~40℃)
Power cable
H05RN-F2*0.75mm² L=0.5m (low voltage) H05RN-F3*0.75mm² L=0.5m (for single color/high voltage)
Mounting sleeve
ABS
Specifications
Detail Shot
Customization Capabilities
Competitive Advantages
About The Supplier
Established in 2006, our factory is a premier manufacturer specializing in the R&D and precision manufacturing of professional LED outdoor lighting. We operate a 4,000㎡ modern production base with automated lines. To better serve global partners, we maintain a professional Showroom, providing a seamless "Factory + Showroom" service experience.

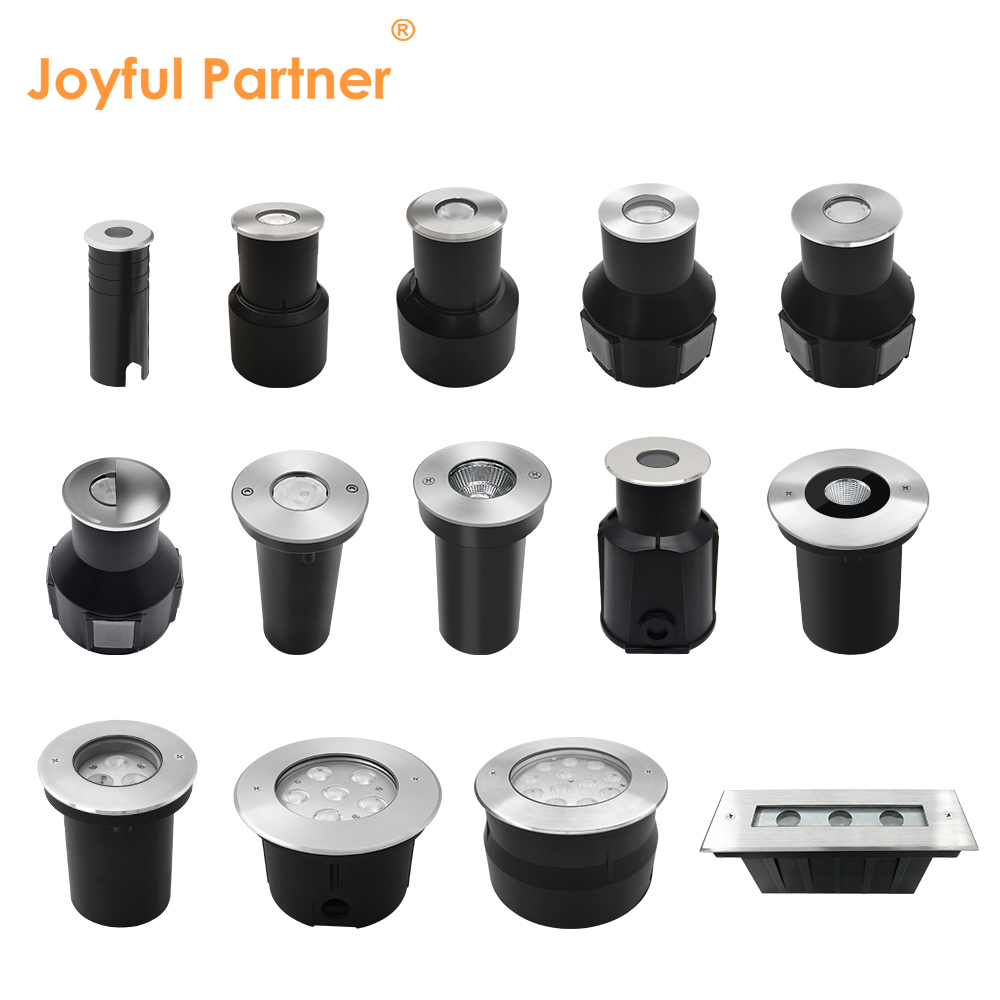

Core Product Spectrum:
Underwater Series: Specialists in IP68 SS316L Pool and Fountain Lights, utilizing advanced Resin-Filled technology for zero-leakage performance.
Inground & Garden: Heavy-duty Inground Lights and Step Lights designed for high durability, IK10 impact resistance, and salt-spray protection.
Architectural Series: Project-grade Wall Washers and Wall Lights with precise optical control for sophisticated facade illumination.
Solar Series: High-efficiency new energy outdoor lighting systems for sustainable and green projects.
Why Partner With Us?
18 Years of Expertise: Mastery in precision die-casting and structural waterproofing (IP65-IP68) with an independent R&D center.

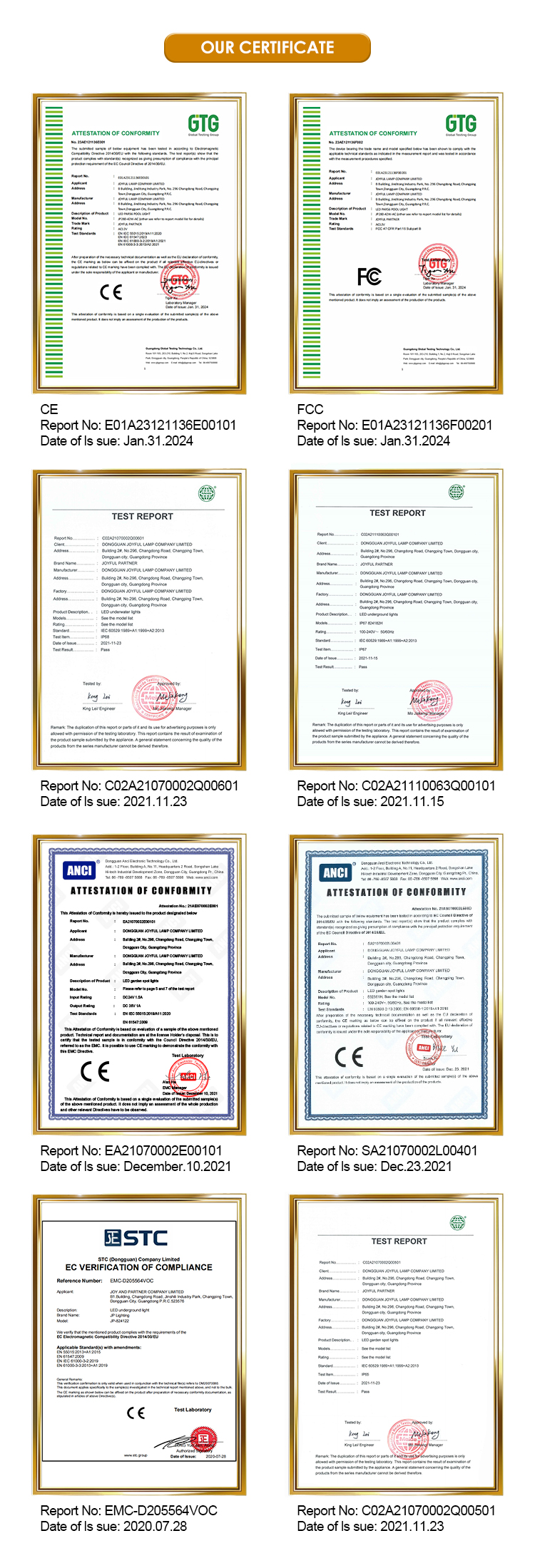

Global Compliance: Products successfully exported to 60+ countries with full CE, RoHS, and UL certifications.
Project Specialist: We offer comprehensive OEM/ODM customization, technical support (DIALux), and rapid delivery through our efficient supply chain.

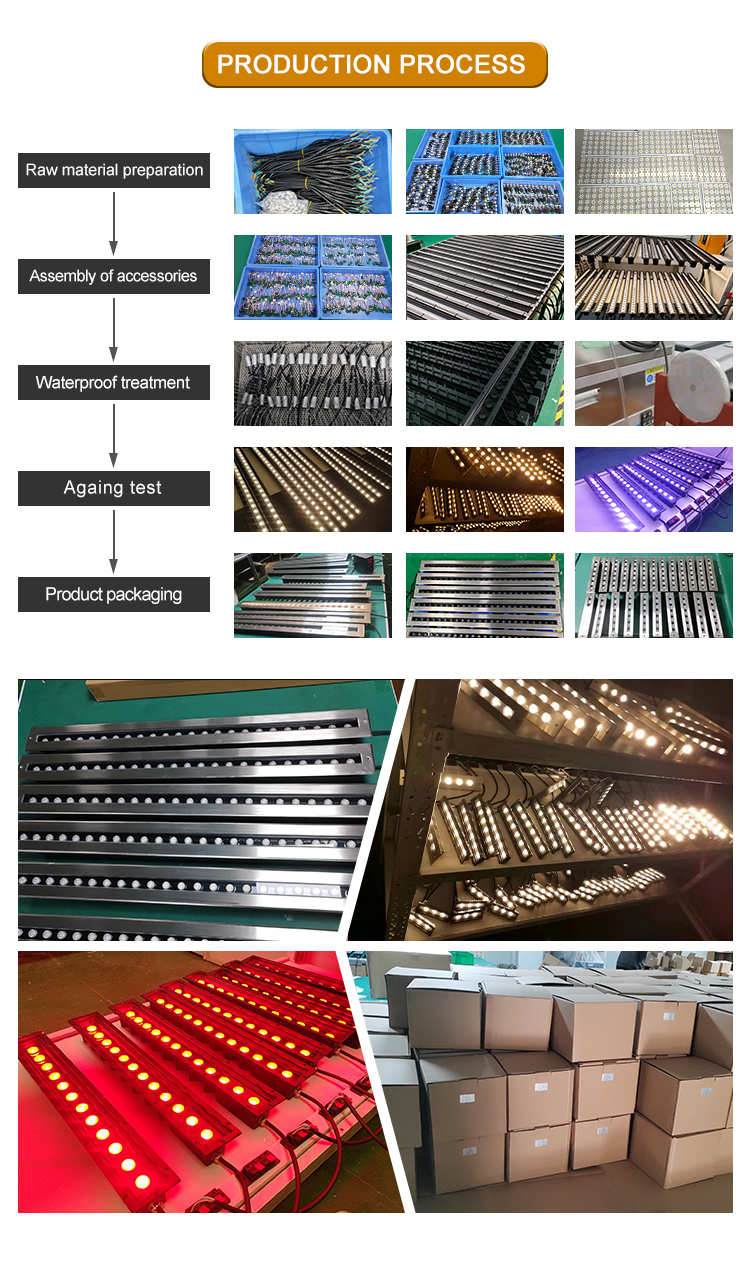

Quality Commitment: 100% rigorous aging, high-pressure waterproof, and salt-spray testing before shipment to ensure zero-defect performance.

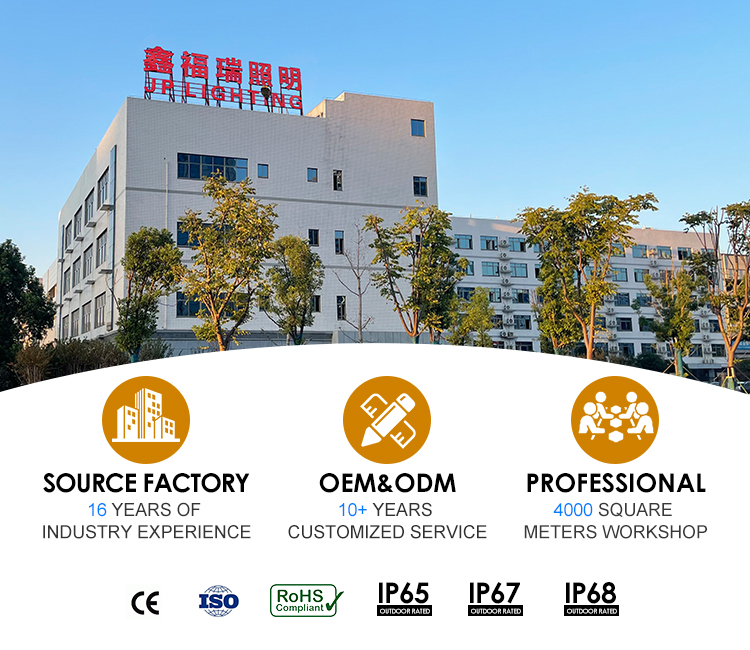

Factory Profile
Trade Show Participation
Packaging & Shipping Specifications
FAQs
When can I get the quotation?
If any items get your interest, please send feedback. We usually quote within 12 hours after receiving your inquiry. If you are having a very urgent project that needs our quick response, please indicate it clearly in your message.
How can I get a sample for quality check?
After price confirmation, you can require samples to check our quality. If you need samples, we will charge the sample cost. But the sample cost can be refunded after order confirmation if the quantity exceeds our MOQ.
Can you provide OEM or ODM service?
Yes, we accept both OEM and ODM services. We have a professional design and engineering team in the lighting industry. We can customize the logo, color, package and design according to your requirements.
What's the lead time for mass production?
It depends on the order quantity and the season you place the order. Our usual practice is around 10-25 days after the deposit payment. And we suggest that you start the inquiry two months before the date you would like to receive the goods.
How to guarantee the quality of your products?
1. Strict detection during production. 2. At least 48 hours of aging test for each product. 3. Strict sampling inspection on products before shipment and intact product packaging ensured.
What is your warranty?
All our products come with a 2-5 years warranty. We offer free replacements for quality problems.
