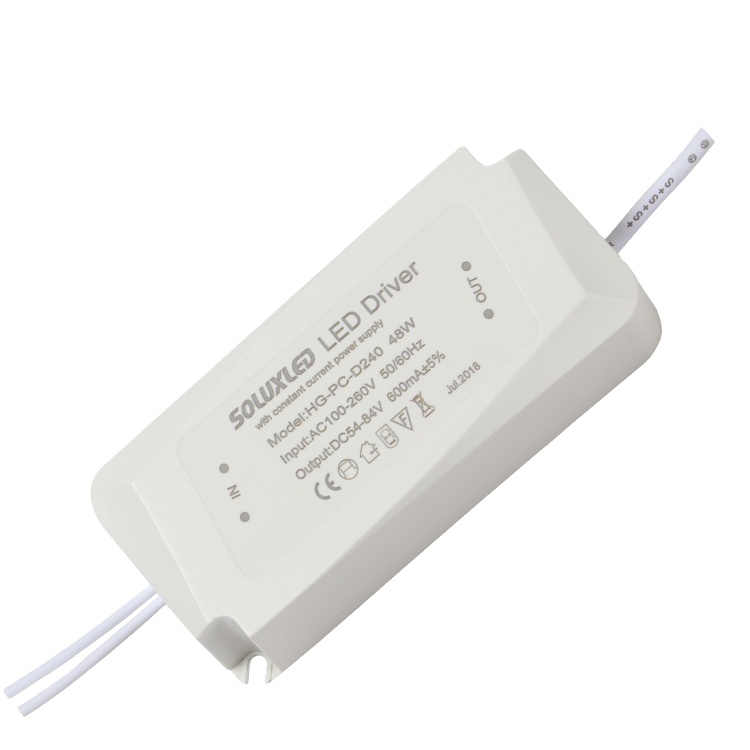

Product Parameters
| Category |
Specification Item |
HG-PC-D240-600 |
HG-PC-D240-1050 |
HG-PC-D240-1400 |
| OUTPUT |
DC VOLTAGE |
DC80V |
DC40V |
DC33V |
| CONSTANT CURRENT |
600mA±5% |
1050mA±5% |
1500mA±5% |
| RATED CURRENT |
580mA |
1050mA |
1400-1500mA |
| RATED POWER |
18-24*3W |
42W |
50W |
| VOLTAGE ADJ. RANGE |
DC54-84V |
DC24-42V |
DC25-36V |
| INPUT |
VOLTAGE RANGE |
AC100-260V |
| FREQUENCY |
47-63Hz |
| POWER FACTOR |
0.5 |
| EFFICIENCY |
0.88 |
| AC CURRENT |
<0.5A |
| PROTECTION |
SHORT CIRCUIT |
Hiccup mode, auto-recovery. |
| OVER LOAD |
Shut down o/p voltage, re-power on to recover. |
| OTHERS |
DIMENSION |
105*47*30.5mm |

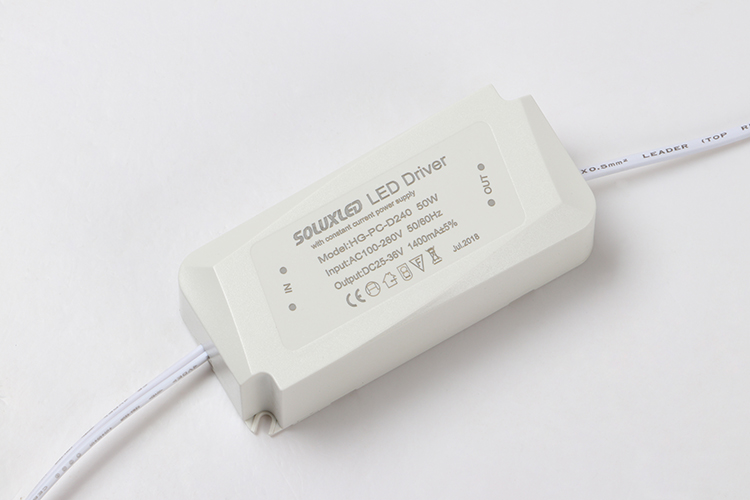

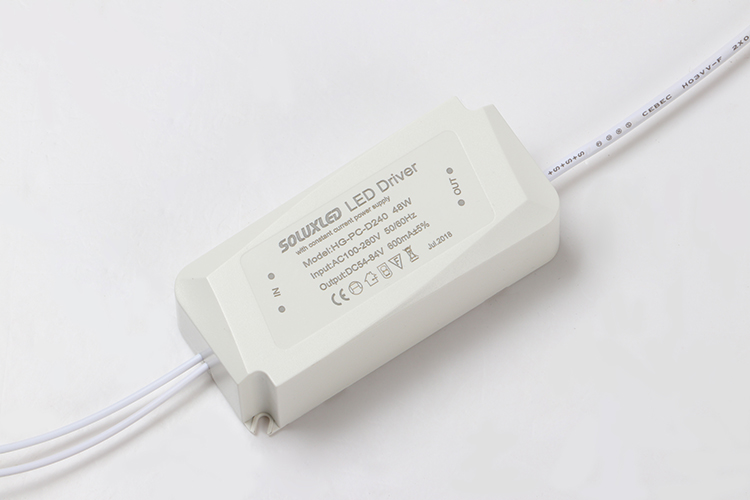

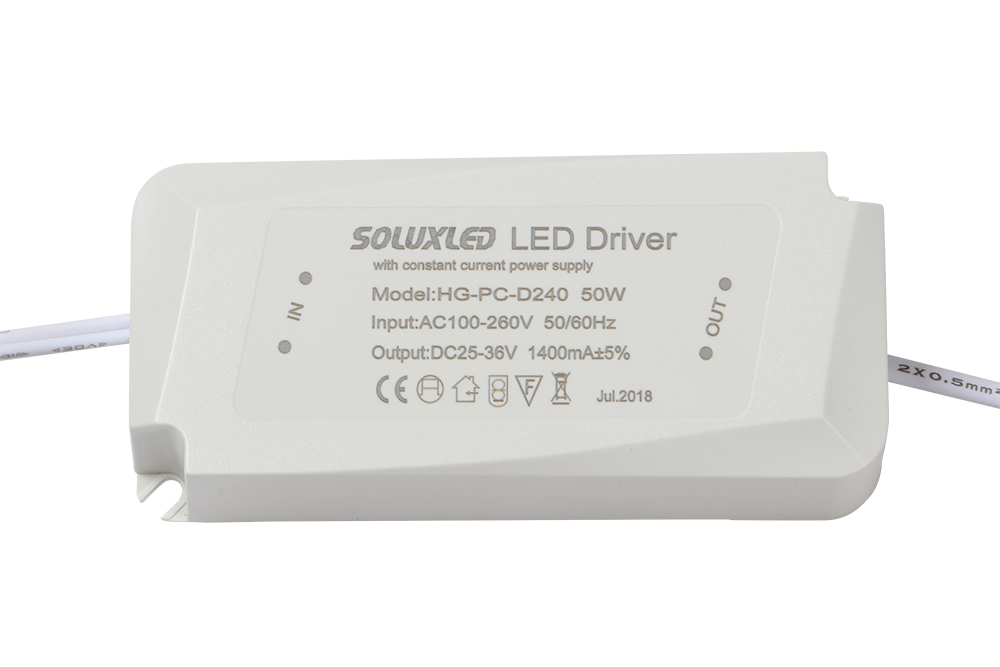

Detailed Images

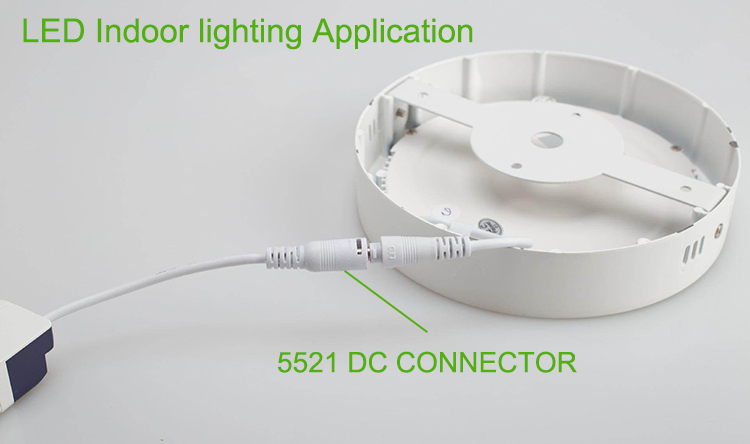

LED Driver Power supply IP20, suitable for various applications including LED downlights, LED panel lights, and indoor LED lighting solutions.

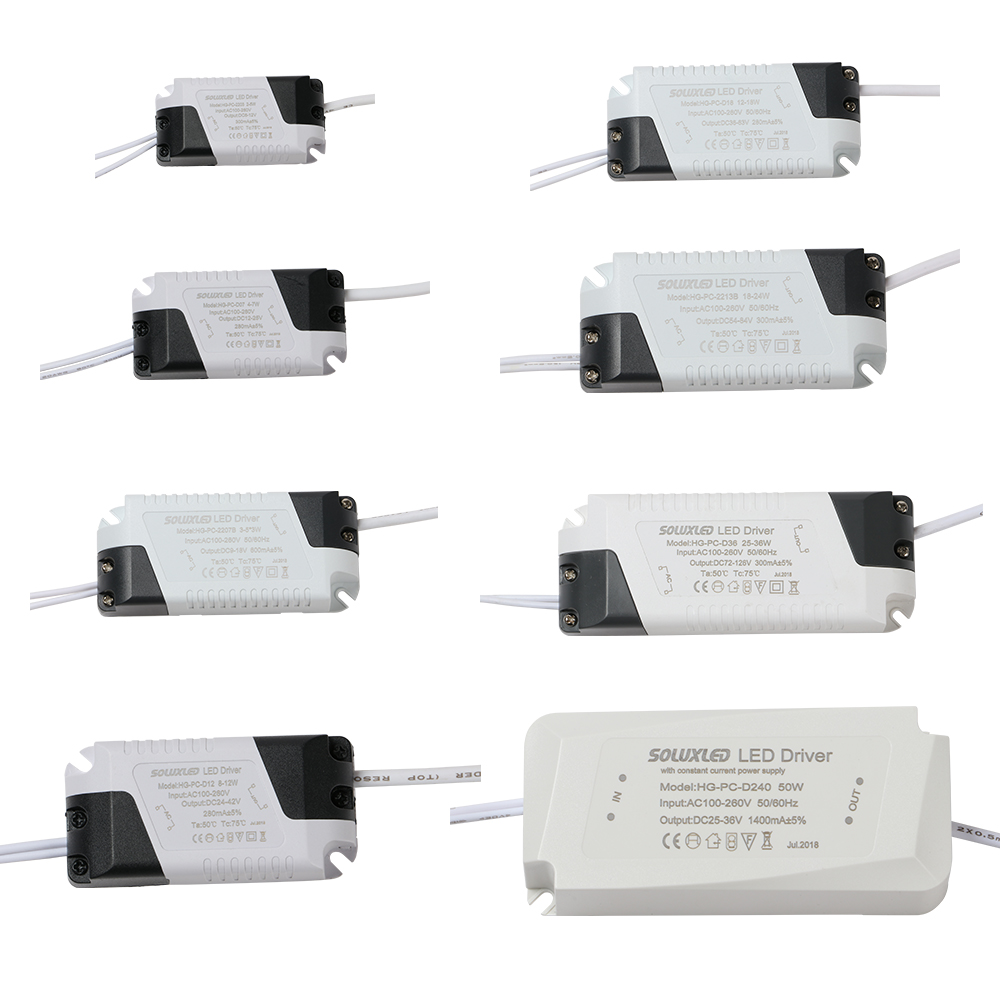

Related Products
| Model | Specification |
|---|
| HG-PC-2203 | 2-5*1W 300mA / 1*3W 580mA |
| HG-PC-D07 | 4-7*1W 280mA |
| HG-PC-2207B | 3-5*3W 580mA |
| HG-PC-D12 | 8-12*1W 280mA |
| HG-PC-D18 | 12-18*1W 280mA |
| HG-PC-2213B | 18-24*1W 280mA / 8-12*3W 580mA |
| HG-PC-D30 | 30W 900mA |
| HG-PC-D36 | 25-36*1W 280mA / 12-18*3W 580mA |
| HG-PC-D240 | 18-24*3W 580mA / 50W 1400mA |

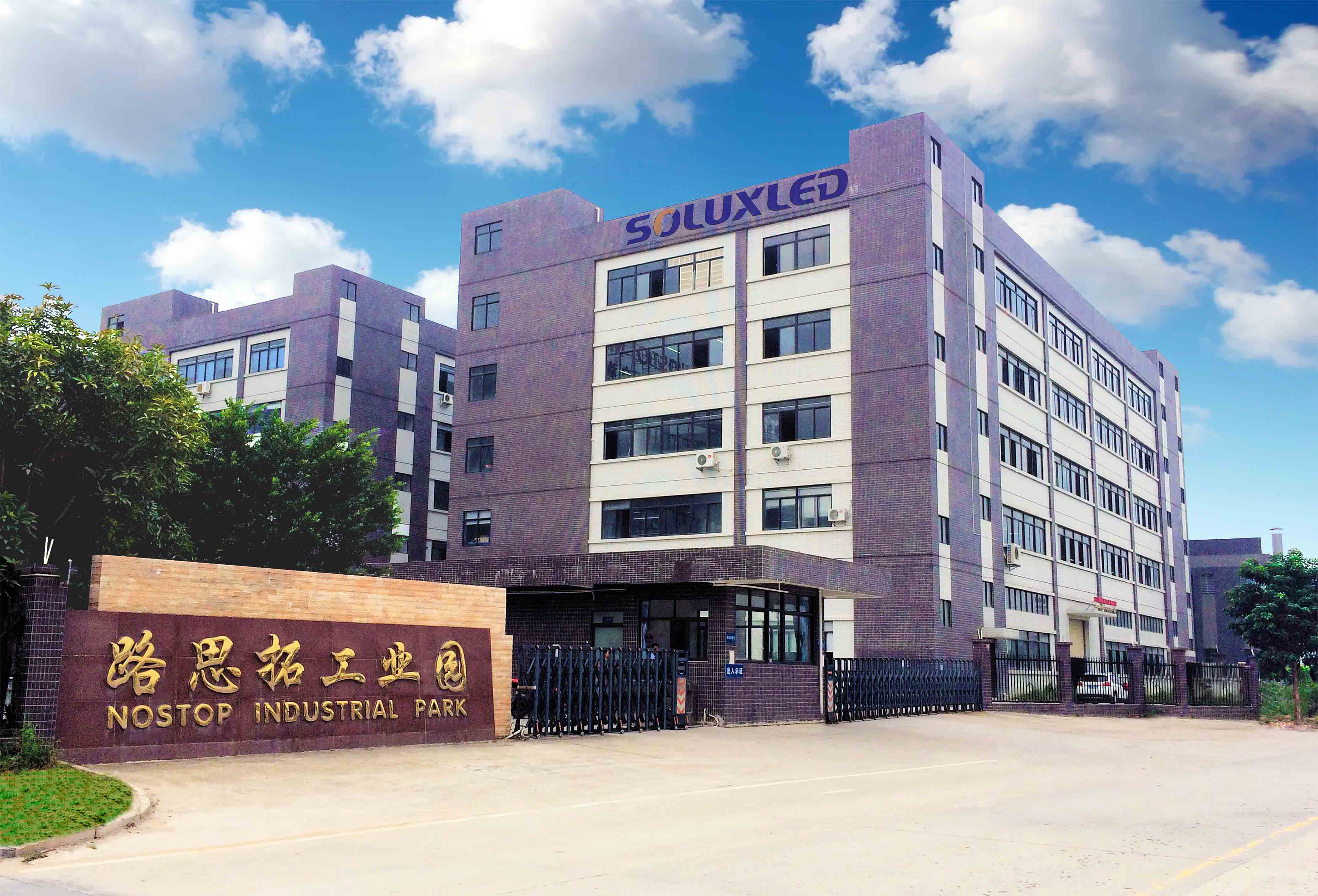

Professional Manufacturing
Established in 2008, we are a professional wholesale manufacturer specializing in high-quality LED drivers, constant current & voltage power supplies, and advanced LED lighting solutions. We provide comprehensive customized products and OEM services, serving global clients with reliable lighting solutions.

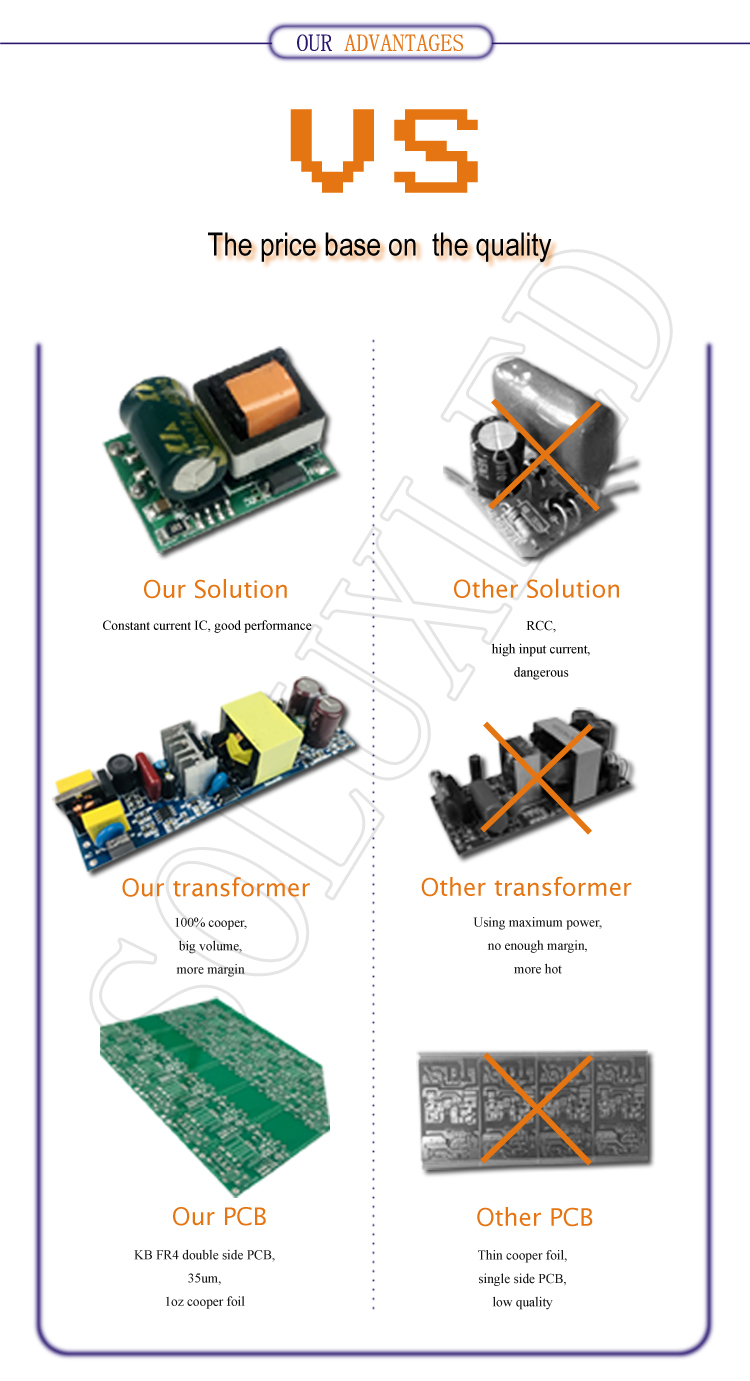

Our Advantages
Customized ODM Solutions

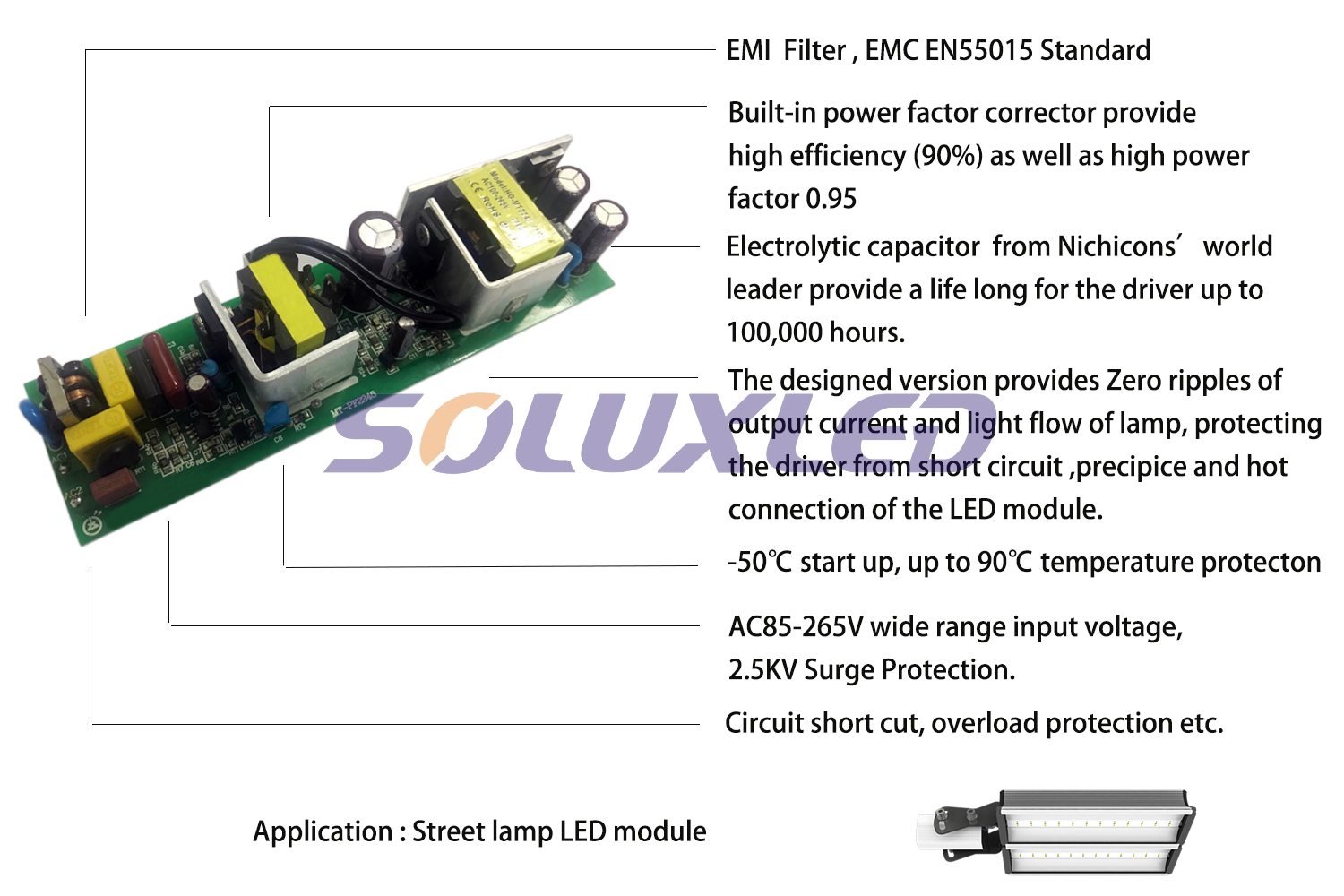

We offer tailored LED driver solutions, including 45W & 90W constant current drivers for street lights. Features include customized housing dimensions, thermal control management, EMC compliance, and high-efficiency double-stage power factor correction.
Exhibition

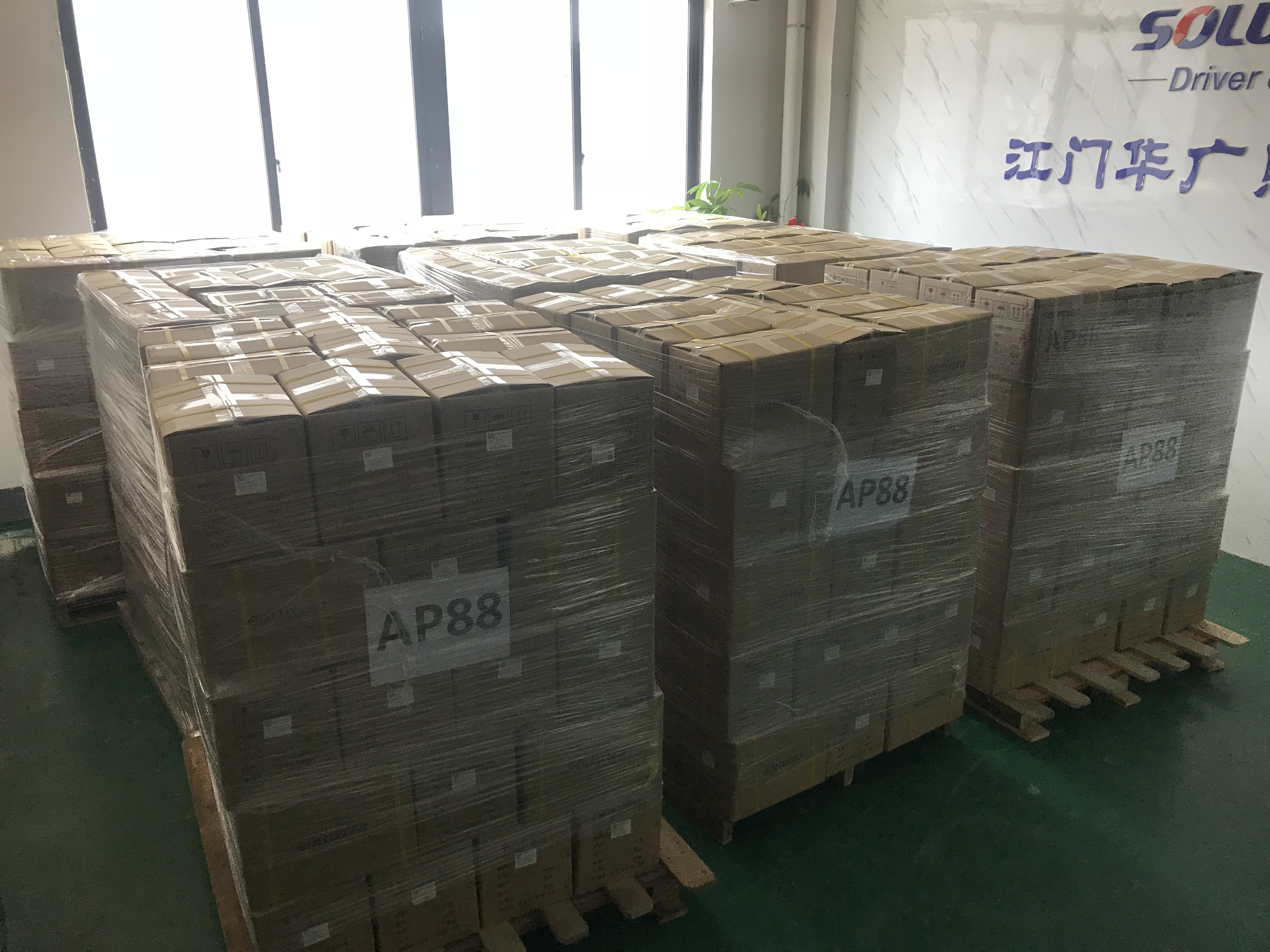

Packing & Shipping
FAQ
1. What is an LED driver and why do I need one?
An LED driver is a self-contained power supply that regulates the power required for an LED or string of LEDs. It ensures that the LED receives the consistent current it needs to operate without overheating or fluctuating brightness.
2. Can I use this LED driver for outdoor lighting?
The model featured here is rated IP20, which is designed for indoor applications. For outdoor lighting, please consult with our team to discuss IP65 or higher rated waterproof solutions.
3. What is the expected lifespan of your LED drivers?
Our LED drivers are designed with high-quality components and robust thermal management, ensuring long-term reliability and stability for professional lighting projects.
4. Are your LED drivers dimmable?
The standard model listed is non-dimmable. However, we specialize in OEM/ODM services and can customize the driver with dimming functions based on your specific requirements.
5. How do I choose the right LED driver for my project?
To choose the right driver, consider the total wattage of your LED array, the required constant current or voltage, and the physical space available in your housing. Contact our team for technical support.
