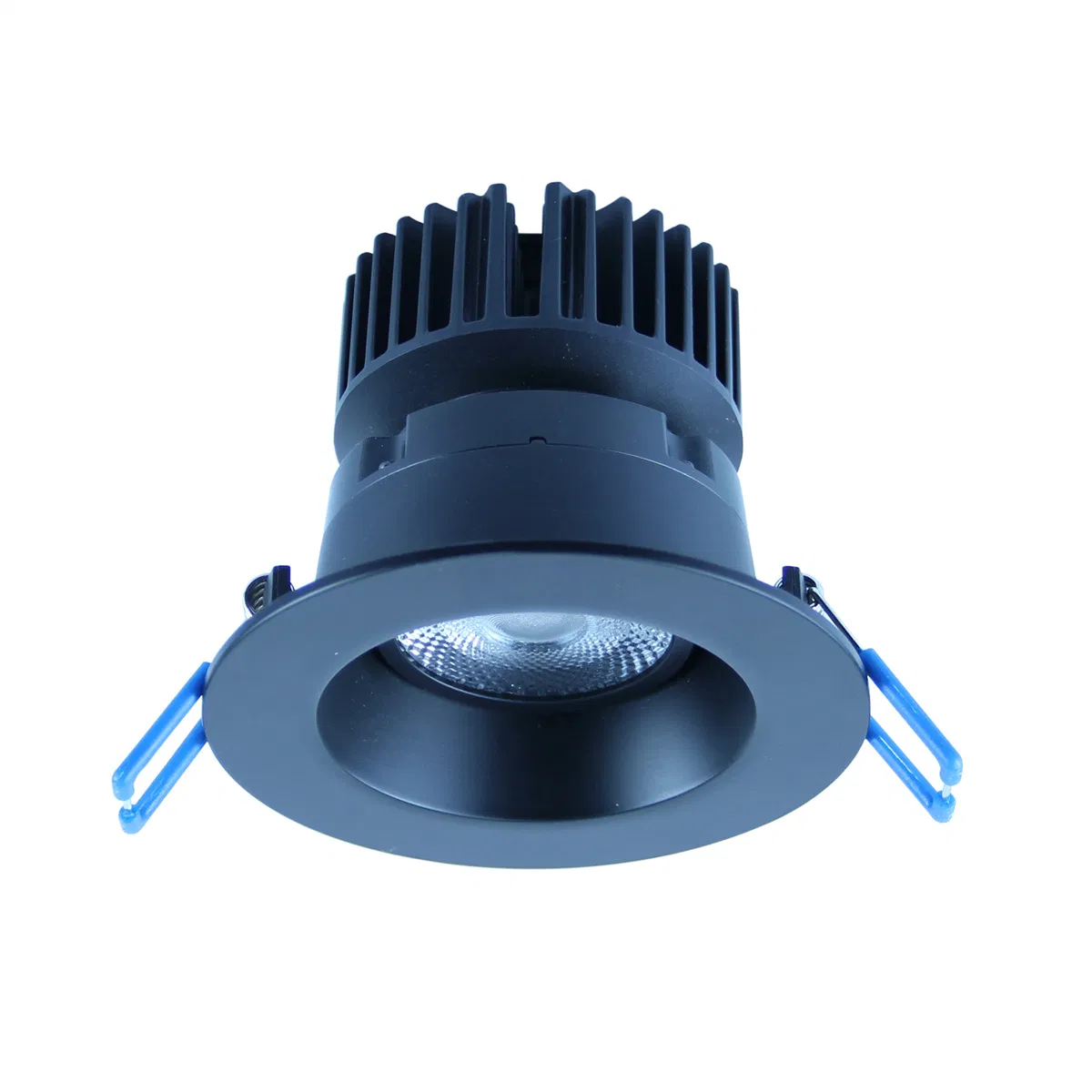

LED Dimmable 5W 7W 9W 12W Downlight 5CCT Adjustable Round Trim and Trimless Ceiling Down Light Recessed Downlight

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Model NO.
KG3RR-5CCT-0512-BK
Power
5-12W
Color Temperature
5CCT
Lamp Body Material
Aluminum
Source Number
Single Plug
Installation
Recessed
Warranty
5 Years
Application
Engineering, Home Furnishing, Commercial/Home/Office/Hotel
IP Rating
IP54
Certification
CE, EMC, Energy Star, ETL, FCC, LVD, RoHS
Watt
5-12W Adjustable
Color
White/Black/Bronze
CCT
5CCT Adjustable
Cutout
85mm
Transport Package
Box
Specification
20pcs/Ctn
Origin
China
Production Capacity
70000PCS/Month
Product Description
Key Features
  • 5CCT-selectable: Choose between 2700K / 3000K / 3500K / 4000K / 5000K
  • Wattage selectable: Choose between 5W / 7W / 9W / 12W
  • High CRI: RA > 90+ for true color rendering
  • Replaceable lens: 15°, 24°, 36°, 60° options
  • Wet location rated
  • Warranty: 10 Year Residential / 5 Year Commercial
  • Optional Driver: 0-10V Dimmable / Triac Dimmable
Technical Specifications
Item No. KG3RR-5CCT-0512-BK
Light Source Bridgelux
Input voltage 100-240VAC
Wattage 5W-12W selectable
Colour Temperature 5CCT Adjustable 2700 to 5000K
CRI >90
Beam angle 15°/24°/36°/60°
Dimensions φ110*H73mm
Cutout 85mm
Finish White/Black/Bronze
Life Time 50,000 hours
Warranty 5 years
Detailed Photos

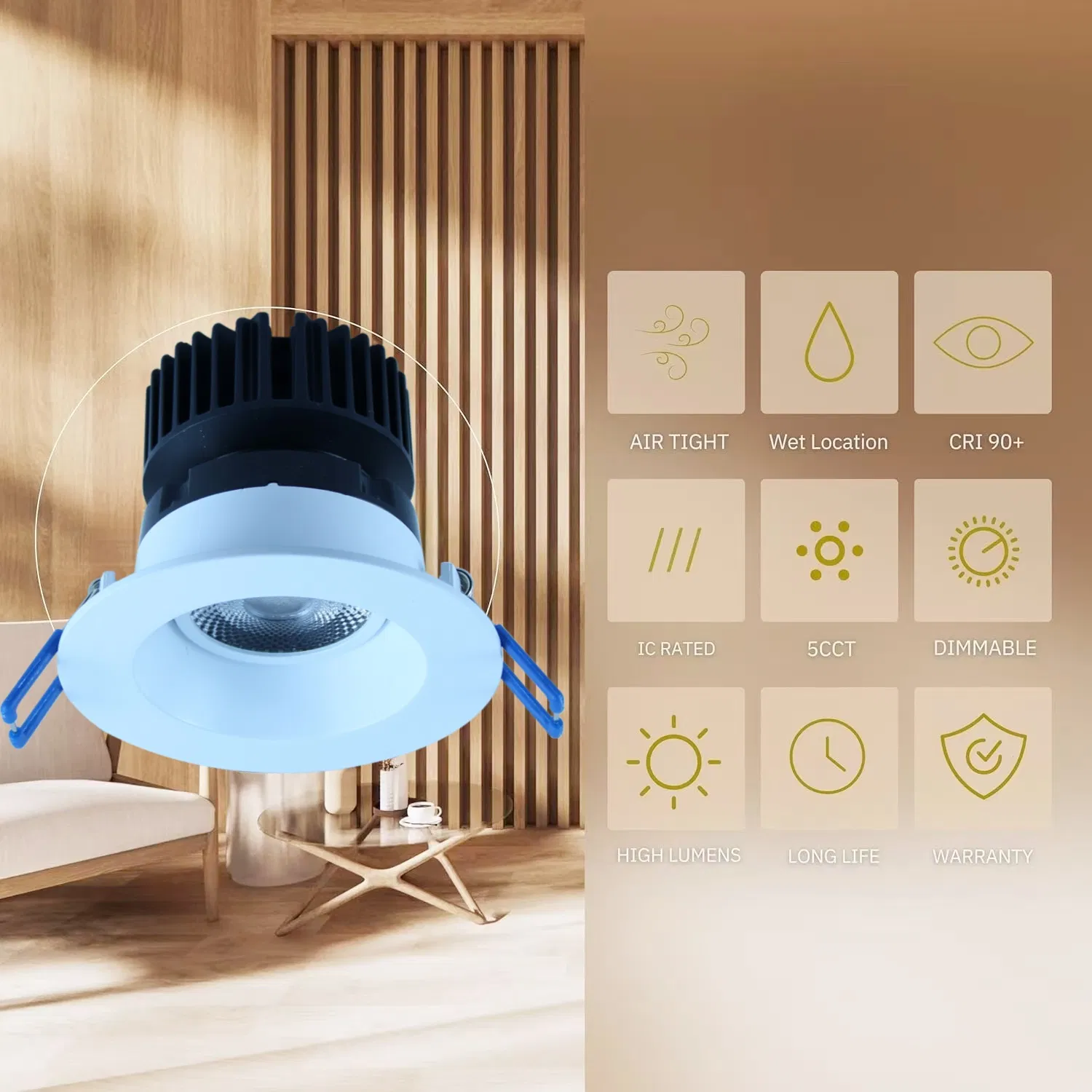

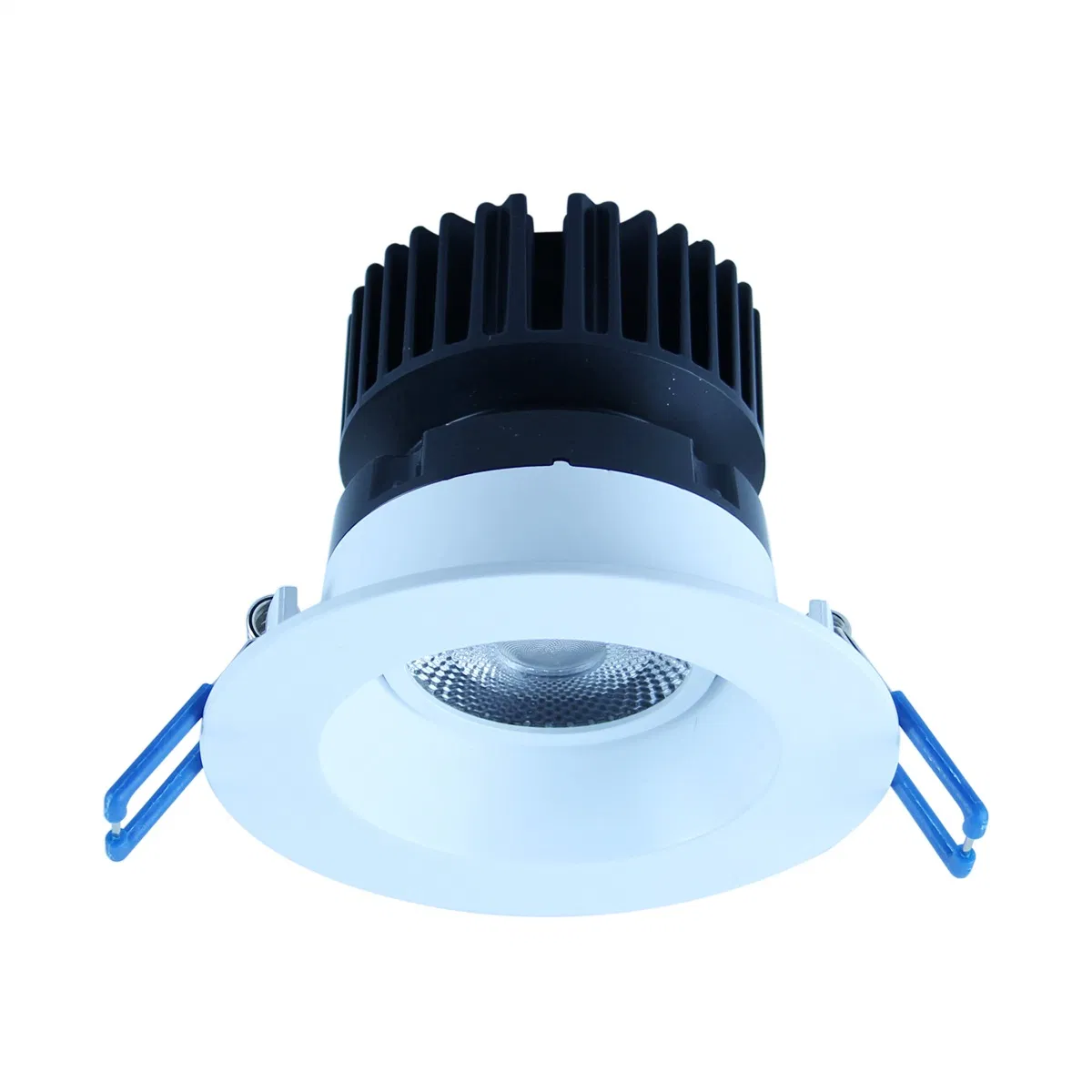

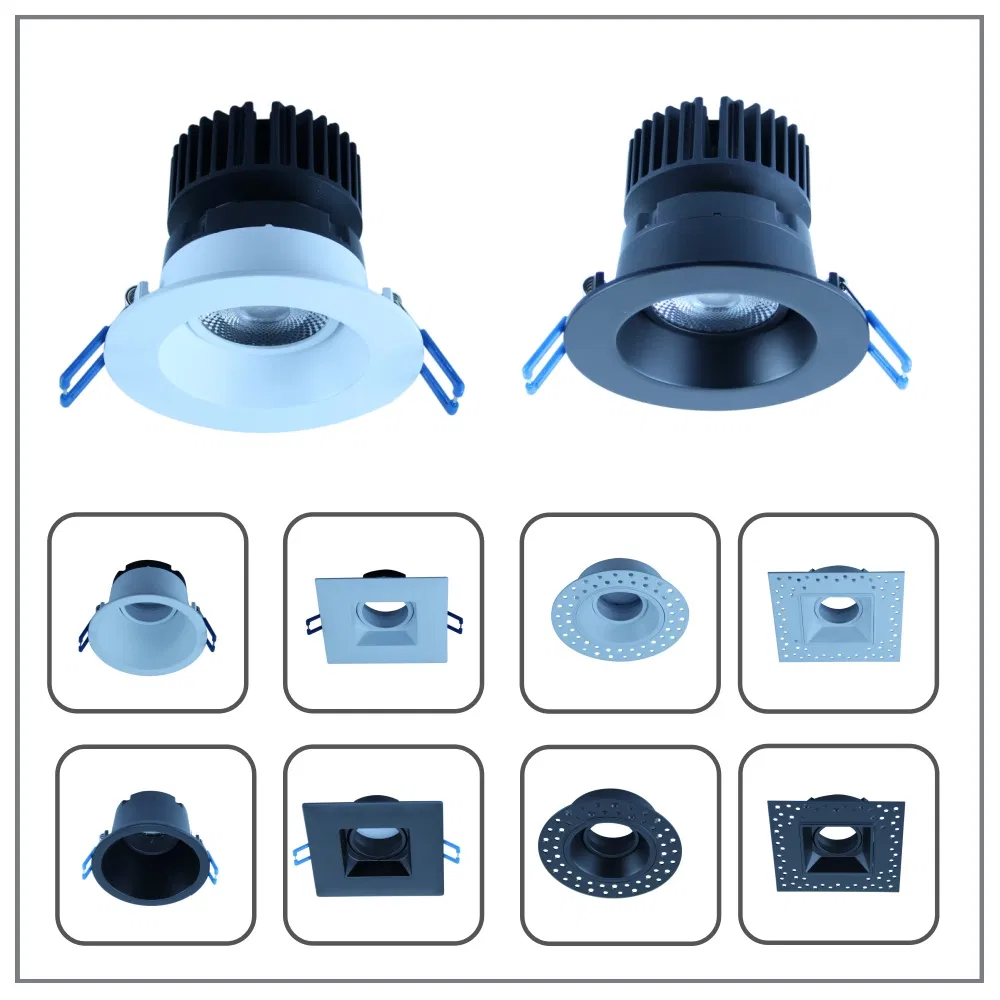

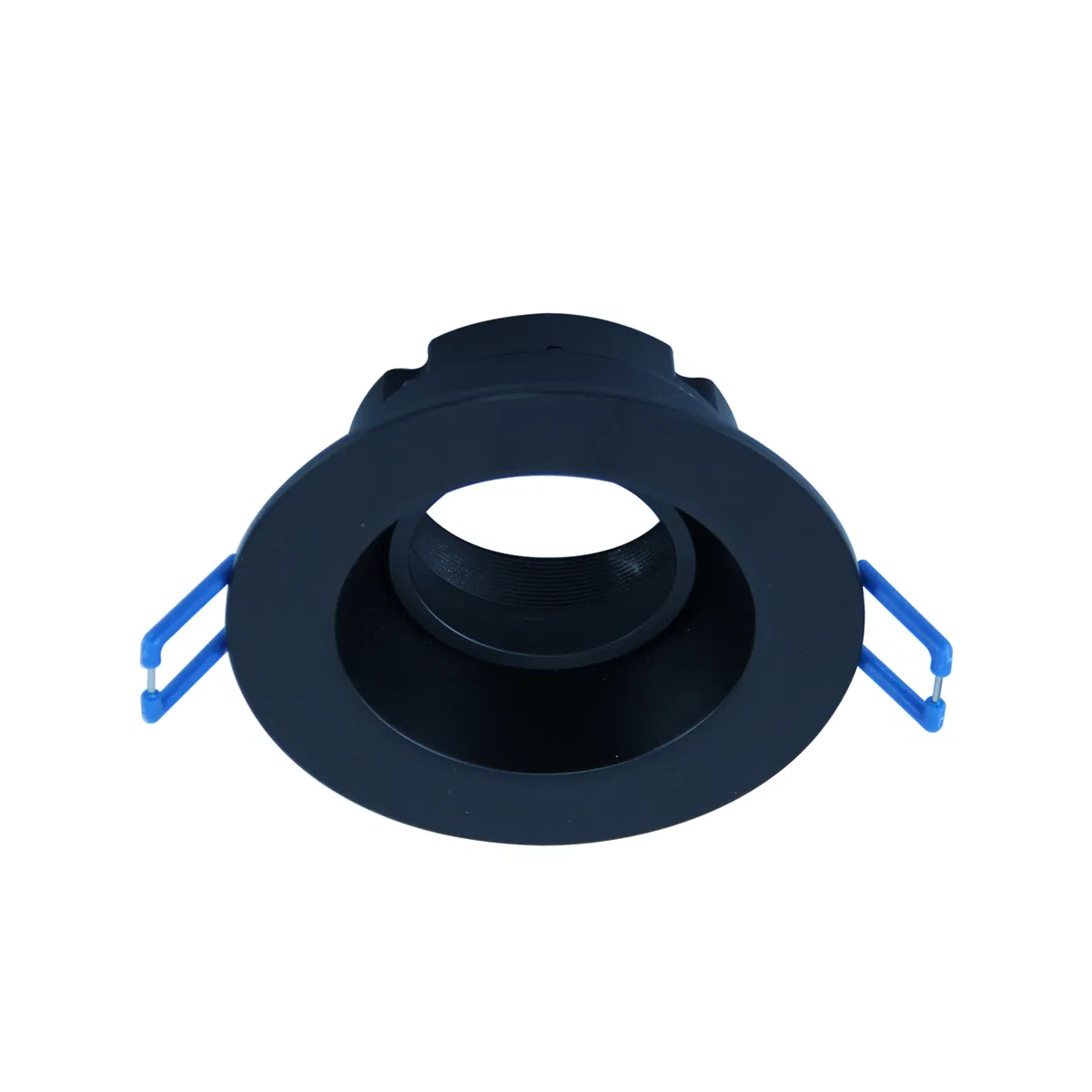

LED Dimmable Downlight 5CCT Adjustable Trim and Trimless Recessed Downlight
LED Dimmable Downlight 5CCT Adjustable Trim and Trimless Recessed Downlight

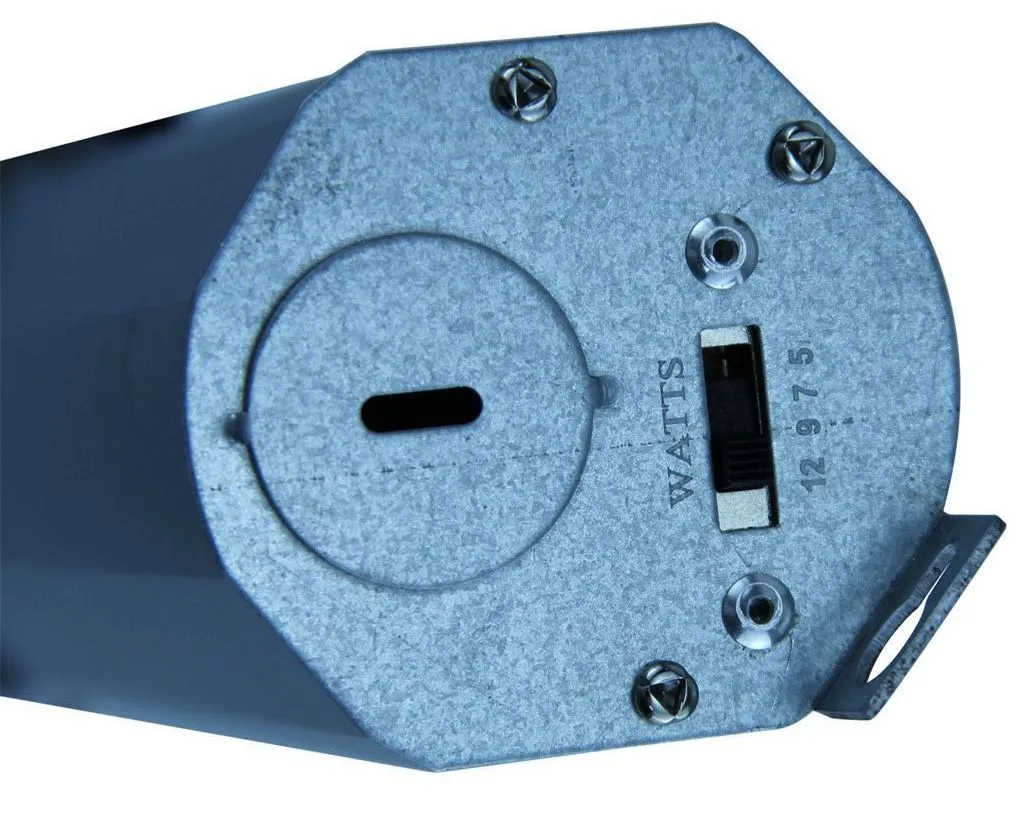

Watts selectable effortlessly
Adjust from 5W/7W/9W/12W to meet different application requirements.
Watts selectable feature

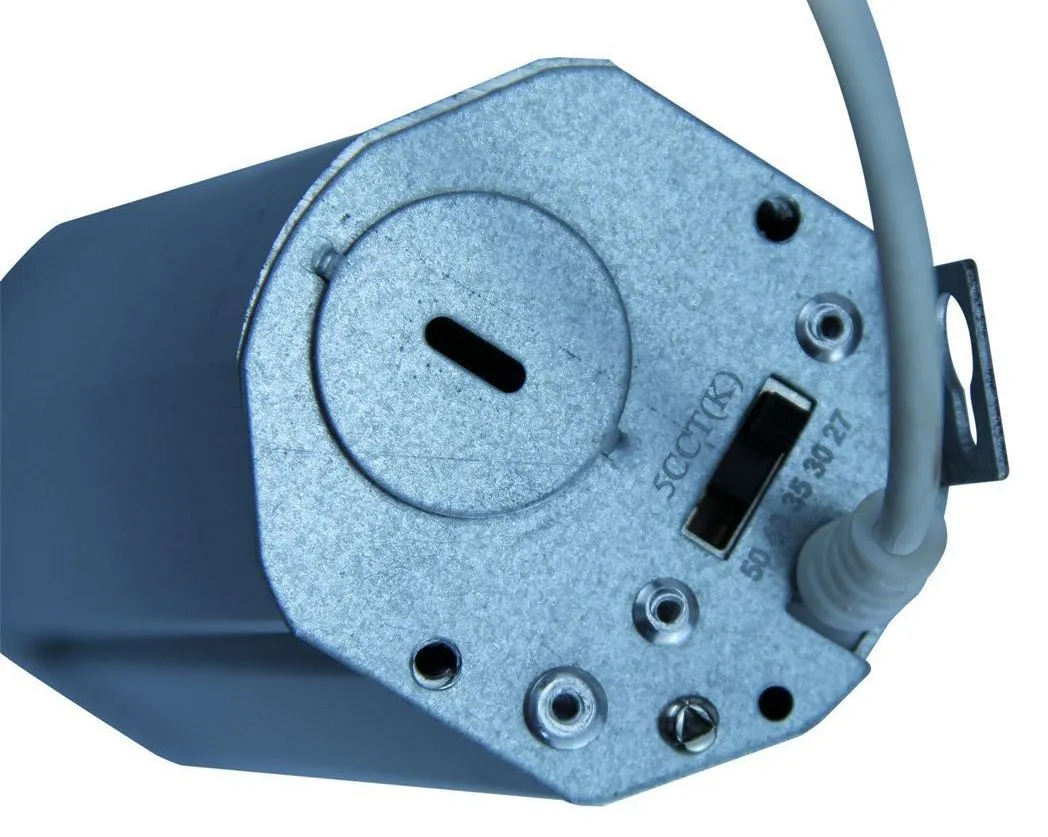

5CCT selectable effortlessly
Switch options: 2700K / 3000K / 3500K / 4000K / 5000K.
5CCT selectable feature
Other products for option

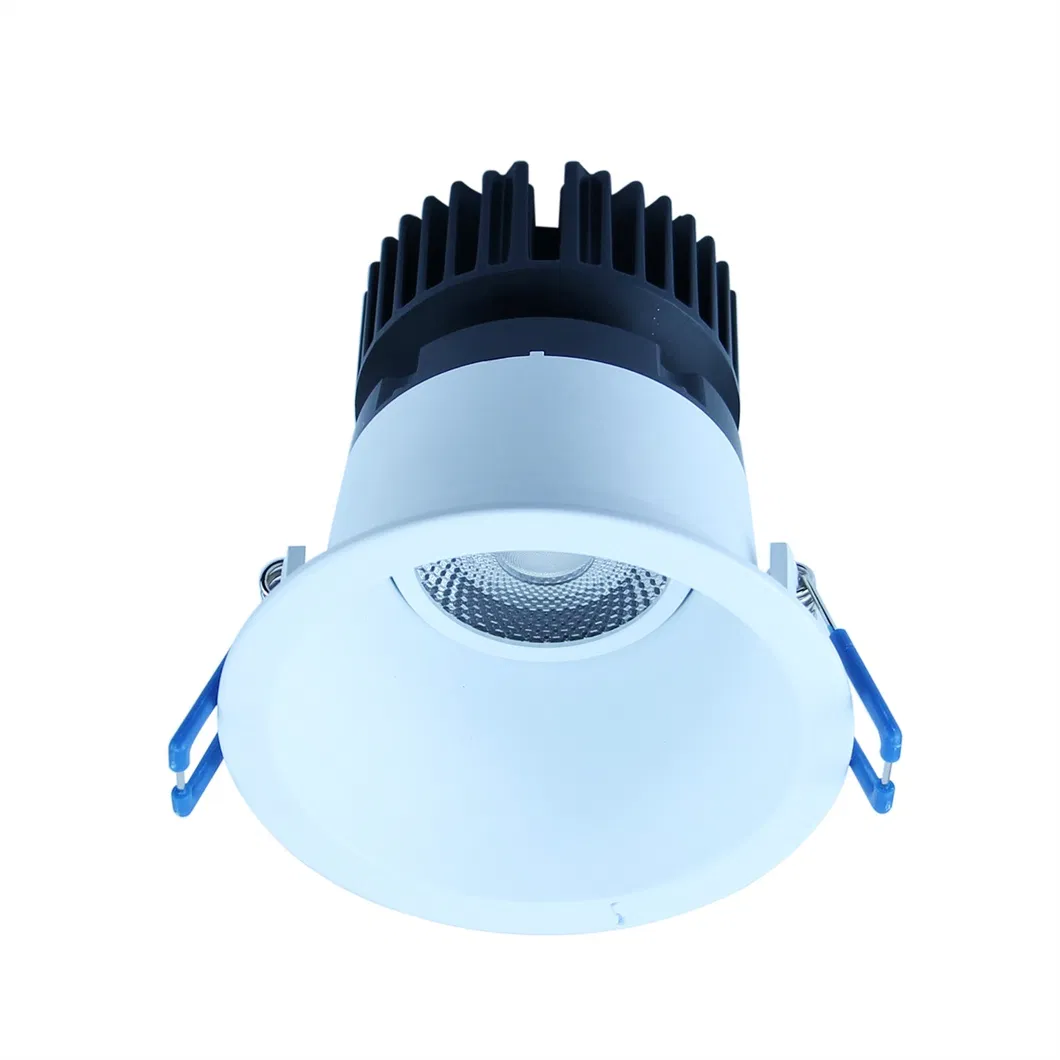

Product Option 1

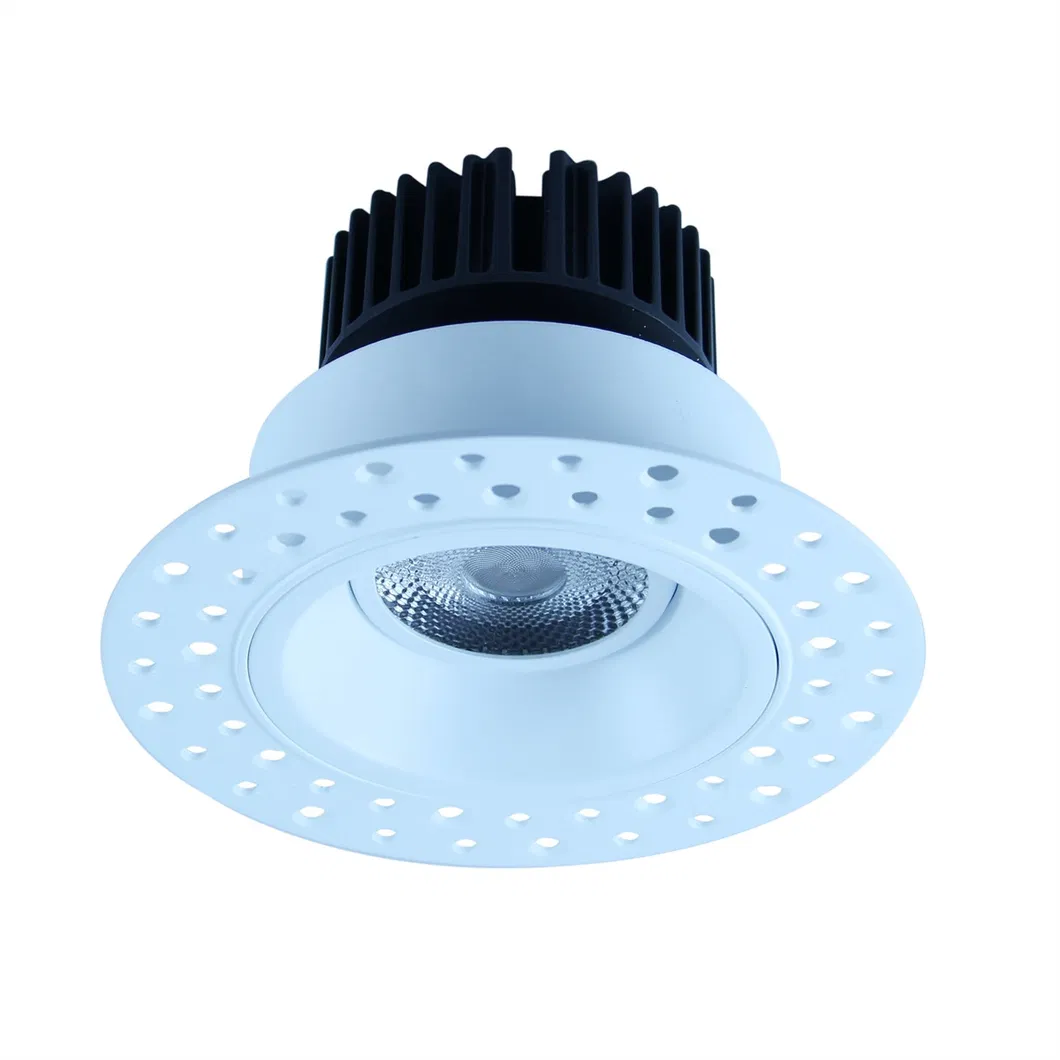

Product Option 2

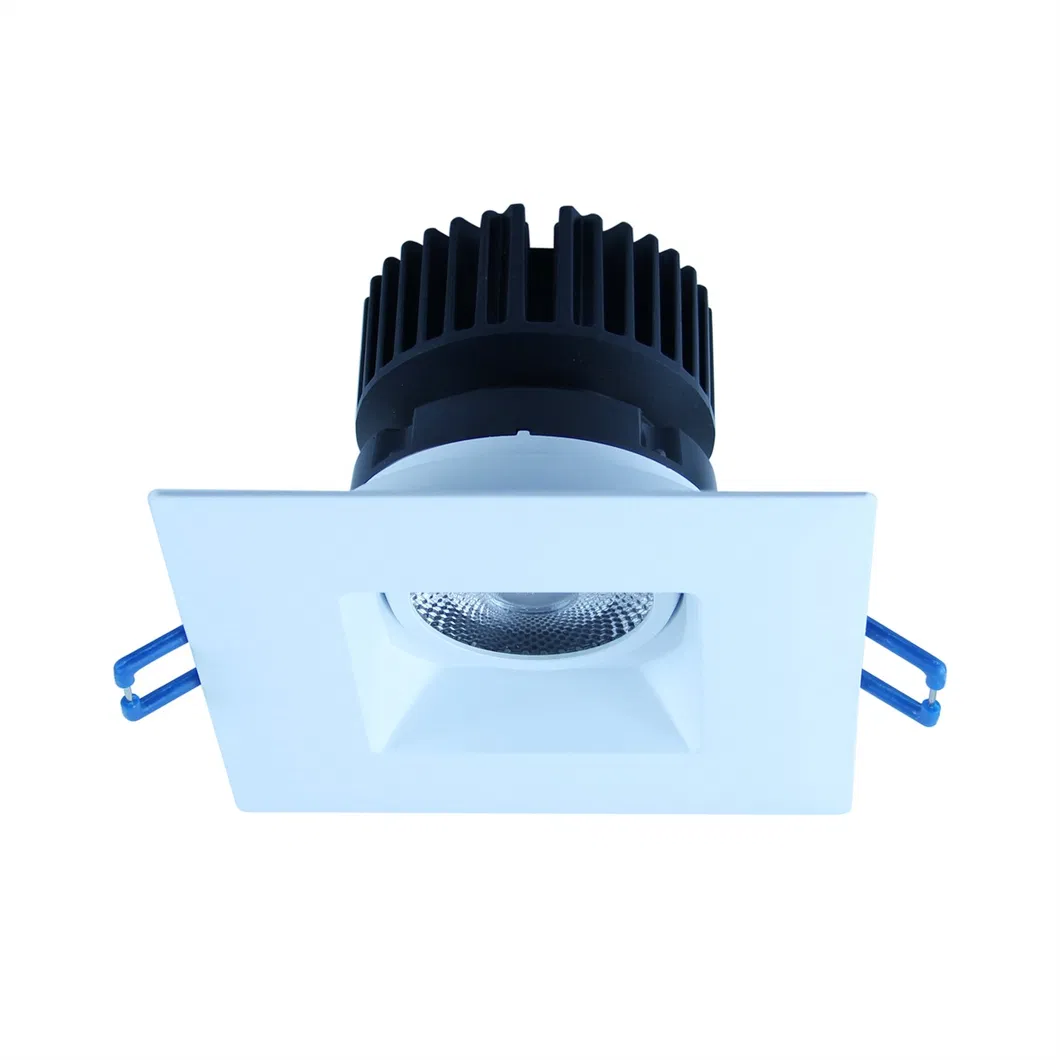

Product Option 3

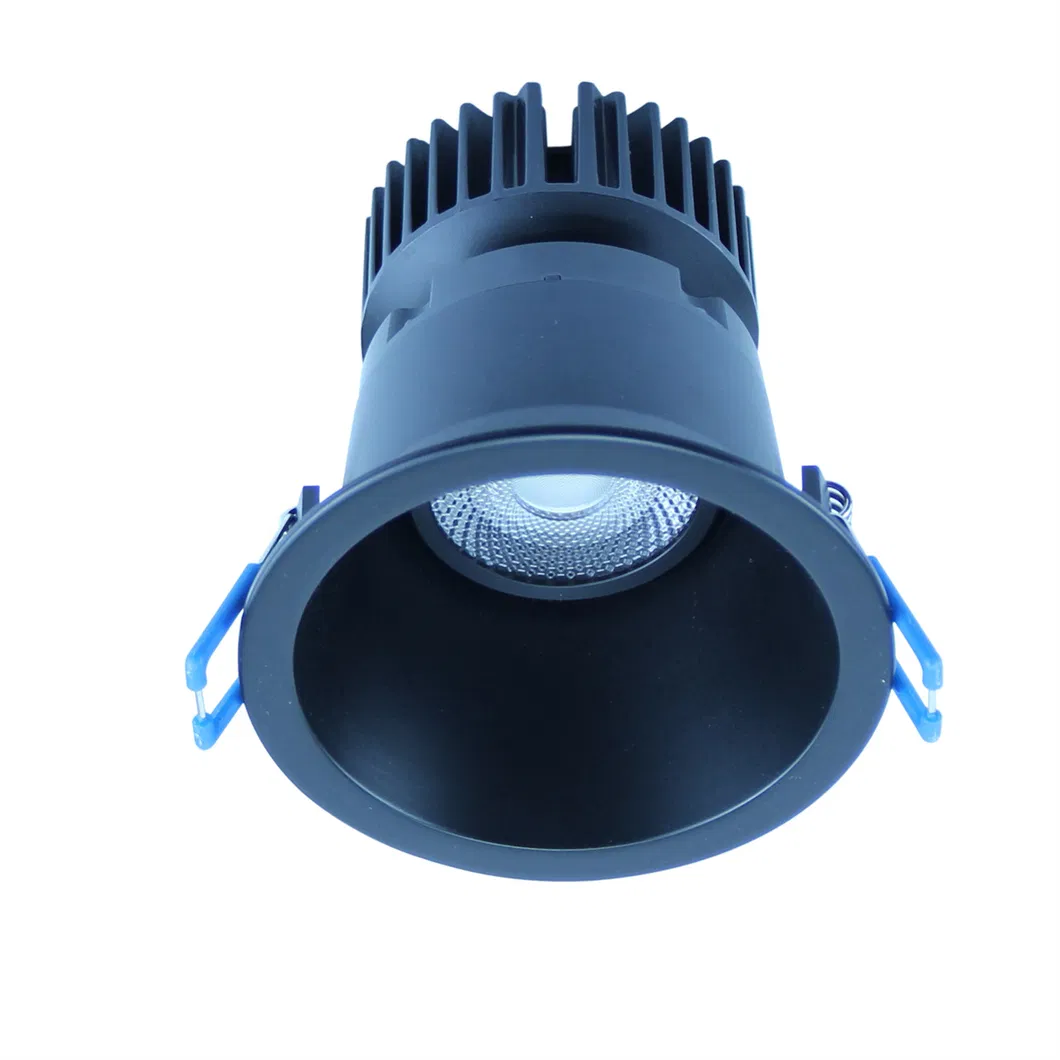

Product Option 4

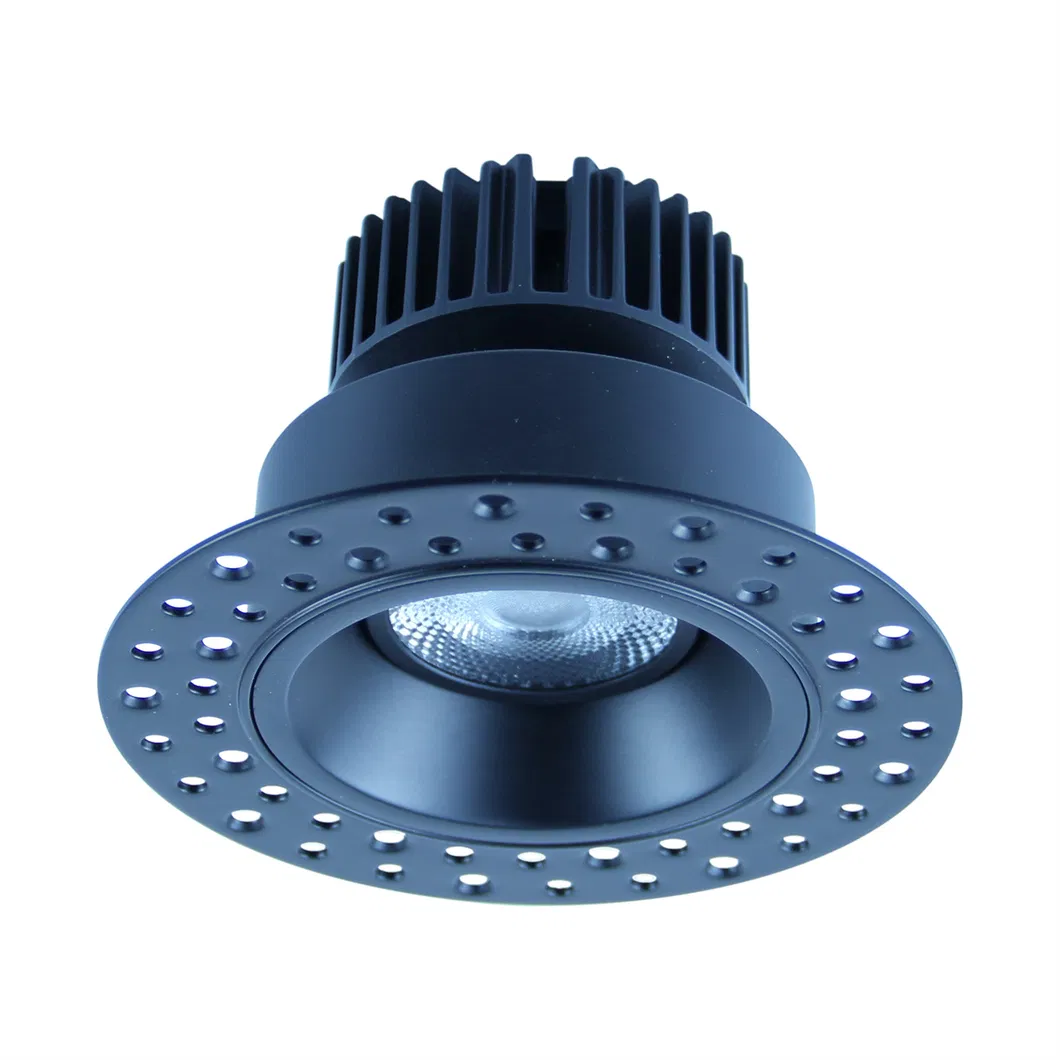

Product Option 5

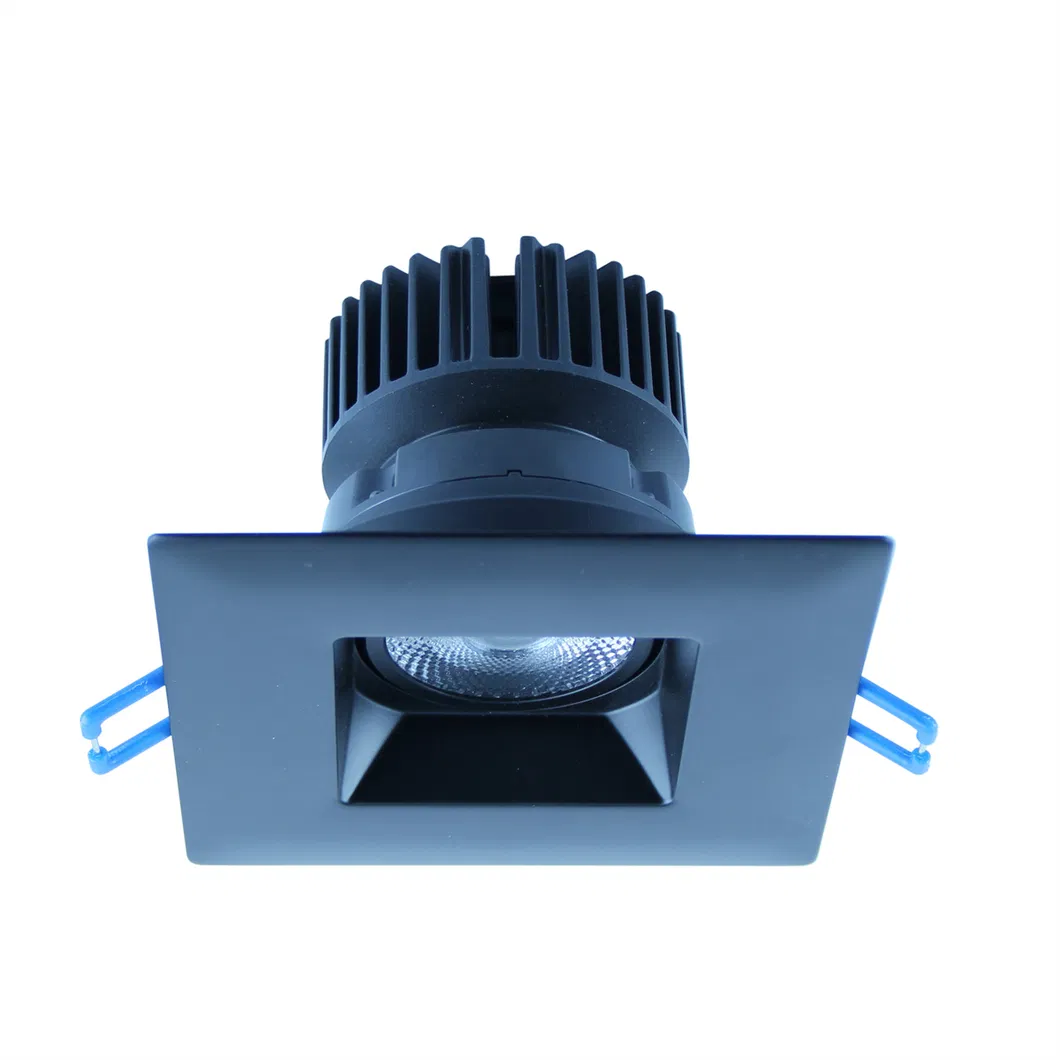

Product Option 6
Packaging & Shipping

Cardbox package is durable and secure enough for long distance transportation. We offer a wide range of logistics options: world express, by sea, air or land etc.

Packaging Box Option 1
Packaging Box Option 2
Shipping Logistics Operations
Company Profile
ABOUT US

We are a professional LED lighting company since 2014, operating in a total area of 4200sqms. We have cooperated with major retailers for 10 years. You can trust us to offer you high-quality lighting products and the best solutions for your business.

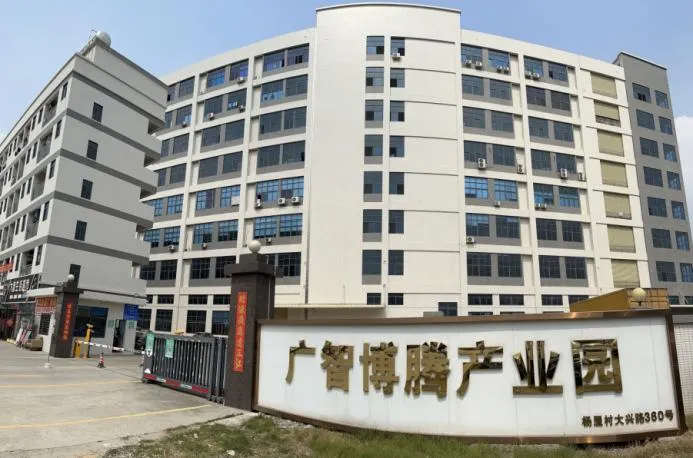

Manufacturing Area

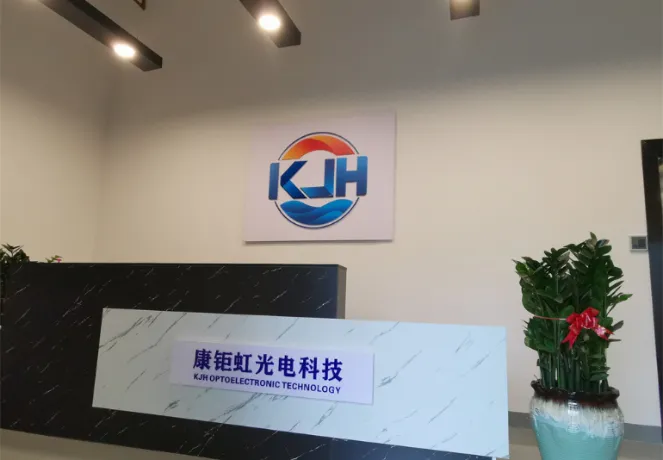

Assembling Line
OUR ADVANTAGES

Production
Our company has own hardware factory, own power supplies R&D center and workshop, and advanced LED lights manufacturing facilities including auto soldering machines, SMT machines, die casting machines, CNC machine laser machines, and electrical testing devices such as integrating spheres and distribution photometer. There are more than 10 low voltage aging lines to meet a monthly production capacity of 500,000pcs LED lamps.

R&D Team
We devote ourselves to developing new products with state-of-the-art technologies. We have more than 10 R&D engineers who have abundant experience in appearance design, circuit design, electric driver, optical lens design and light control system research. Most of our products are self-designed with private moulds, and ETL, TUV, CE, RoHS certified.

Q&C
Our QC team is professionally trained to ensure the quality of all the products. We use advanced equipment to test electronic and optical characteristics, waterproof and anti-corrosion functions. We strictly implement the ISO9001 management process. We fully inspect our products and perform 48 hours aging before shipping.

Factory Show

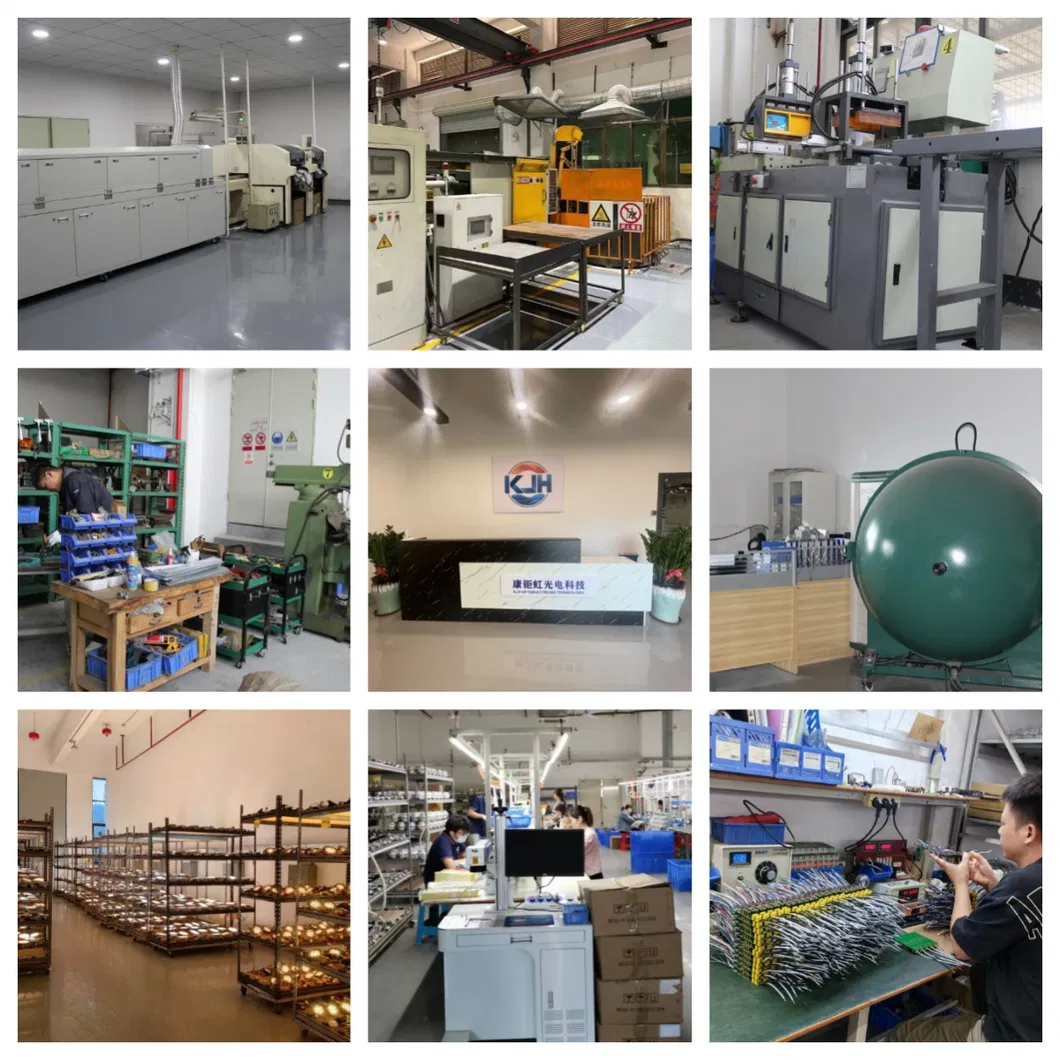

Factory Showroom
FAQ
Are you a manufacturer?

Yes, we have our own factory with full product lines.

Can you offer samples?

Yes, you are welcome to place a sample order to test our quality before bulk order.

How long is your production time?

If the quantity is small, the production time is usually 5-7 days. The specific production time can be determined according to the order quantity.

Do all products have to be tested before transportation?

Yes, we test all products for at least 48 hours. Under strict quality control, the failure rate is minimal.

How about your packing?

Our cartons are neutral and have been inspected to be suitable for long-distance international transportation. If items are fragile, we will pack them in wooden cases if necessary.

How to solve after-sales problems?

Take a picture of the problem and send it to us. We will provide you with a satisfactory solution within 24 hours after confirming the issue.
