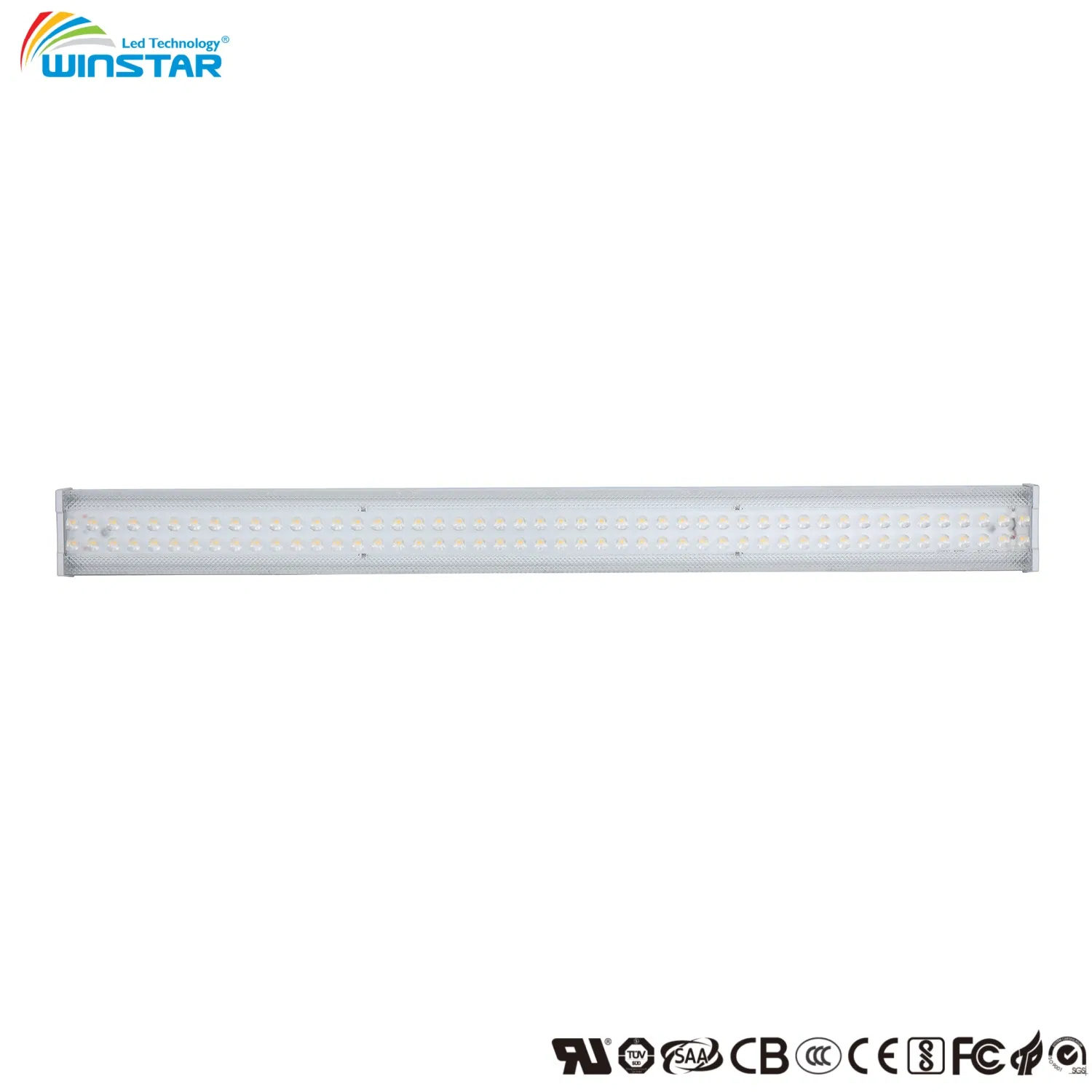

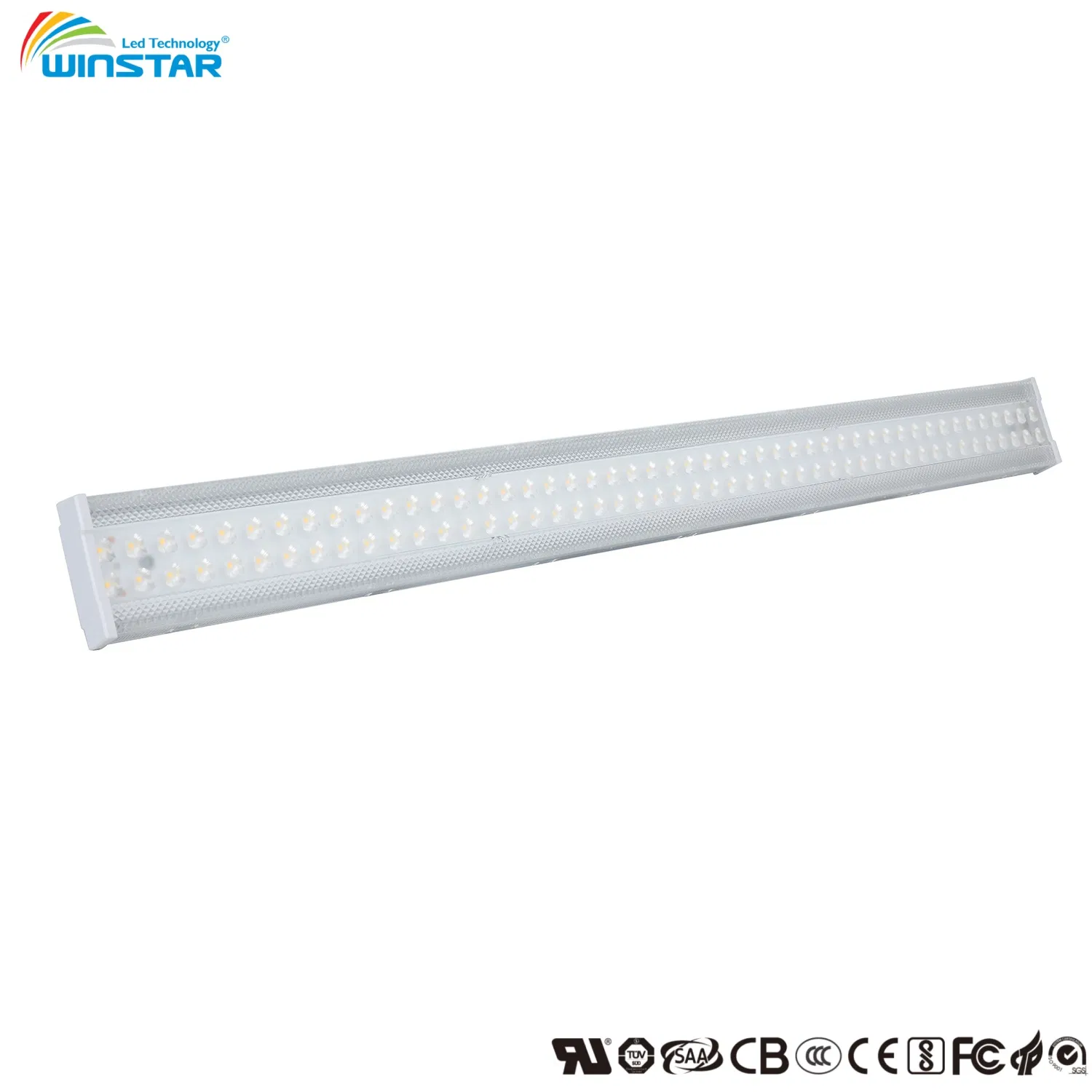

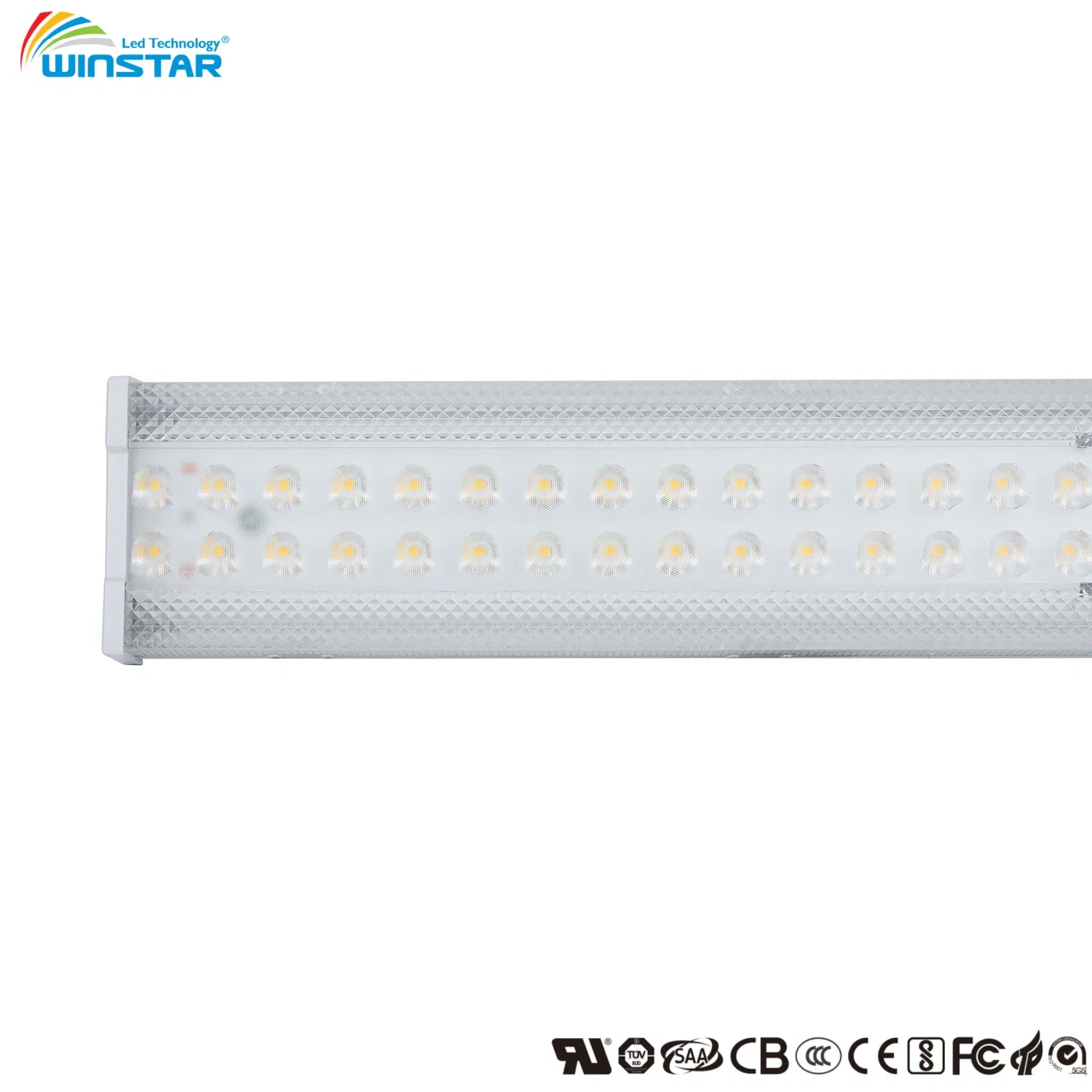

High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
1 / 5
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting
High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting

High Efficiency 180lm/W LED Track Linear Light for Commercial Supermarket Office Warehouse Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

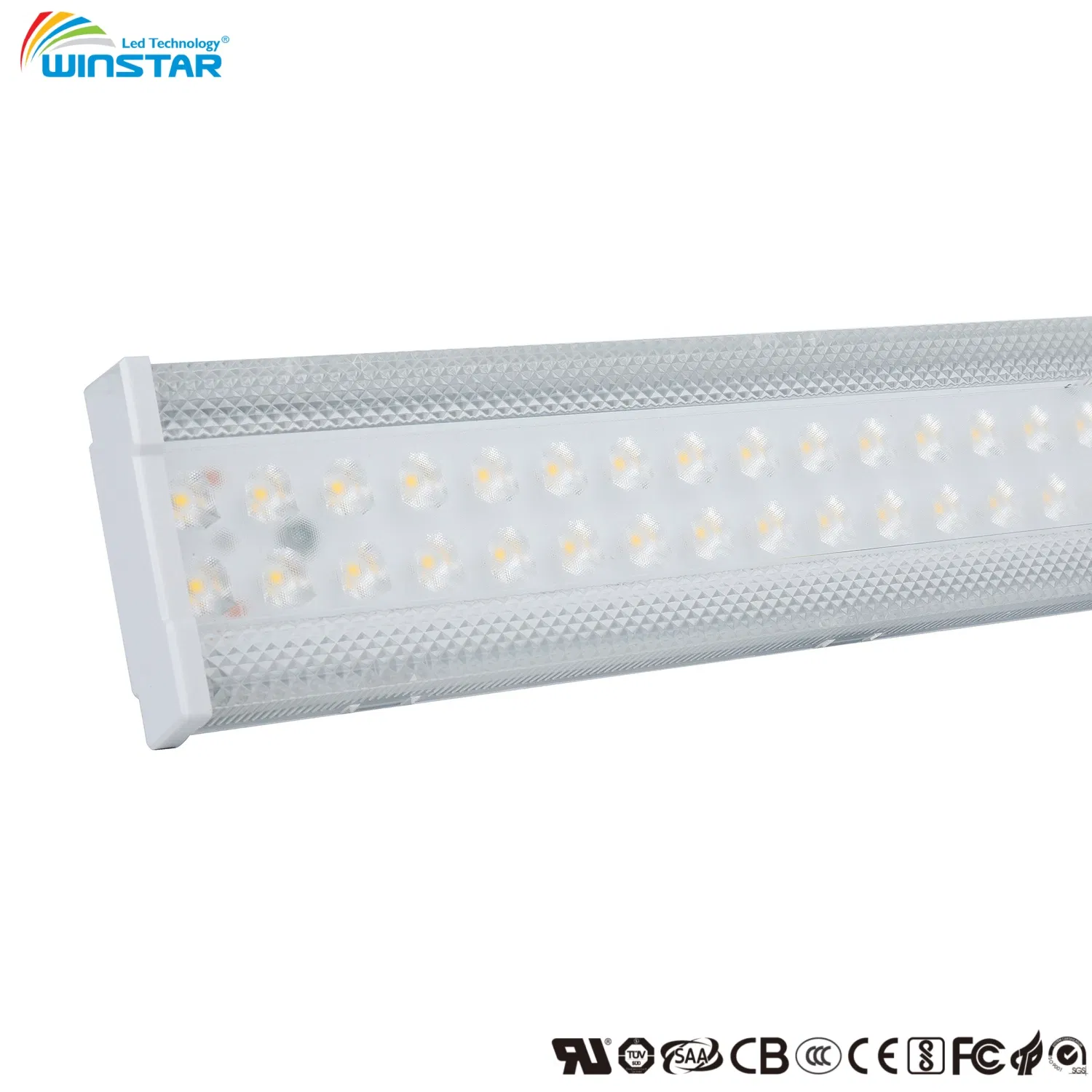

High Efficiency LED Track Linear Light
LED Track Linear Light System
Track Linear Light for Commercial Lighting
Overview & Basic Info
Technical Parameters Electrical & Optical Properties
Model NO. WS-LT-L075W38-4C/6C Power 38W (0.75m) / 75W (1.5m)
Emitting Color Based on CCT Wire Options 4 Wire / 6 Wire
IP Rating IP20 Certification CE, RoHS
Input Voltage AC180-265V LED Chips Brand Epistar
Frequency 50/60Hz CRI (Ra) 80
Power Factor (PF) 0.9 Beam Angle 60° / 90° / Polarized
Dimming Dali / Casambi Optional Operating Temp -20°C ~ +40°C
Surge Protection 2kv Warranty 5 Years
Lumen Efficacy Options 160 / 180 Lm/W Flicker Flicker Free
Transport Package Polystyrene Foam Packaging Specification 0.75m / 1.5m / 2.25m
HS Code 8539510000 Production Capacity 100,000 PCS/Month
Packaging & Delivery Standard
Package Size: 81.00cm * 40.00cm * 32.00cm
Package Gross Weight: 11.000kg
Product Description
180LM/W LED Track Linear Light for Supermarket Office Retail Store | DALI Casambi 4 Wire 6 Wire Track Lighting System

The C Series LED Track Linear Light is a high-efficiency commercial lighting solution designed for supermarkets, retail stores, offices, warehouses, and modern commercial projects.

Featuring up to 180LM/W luminous efficacy, this track lighting system significantly reduces energy consumption while delivering bright, uniform illumination. The fixture adopts 6063 aerospace-grade aluminum housing with excellent thermal management for long lifespan and stable performance.

Compatible with Global, Nordic, ERCO, AAG, UNIPRO, and other mainstream track systems, the product supports both ON/OFF and intelligent dimming systems including DALI and Casambi.

With multiple beam angle options, modular installation, and modern linear aesthetics, the C Series is an ideal replacement for traditional track spotlights and downlights in commercial environments.

Key Features
  • Ultra High Efficiency: Up to 180LM/W complete fixture efficacy

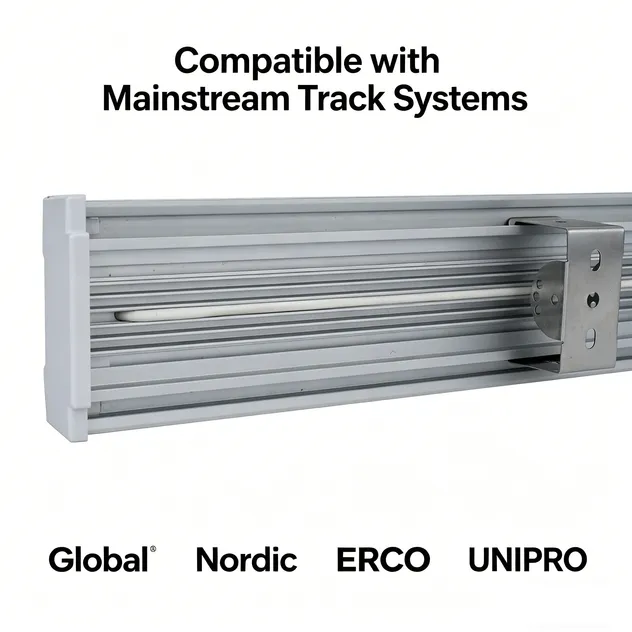

  • Wide Compatibility: Compatible with Global, Nordic, ERCO, AAG, UNIPRO track systems
  • Smart Dimming Available: DALI dimming & Casambi wireless control

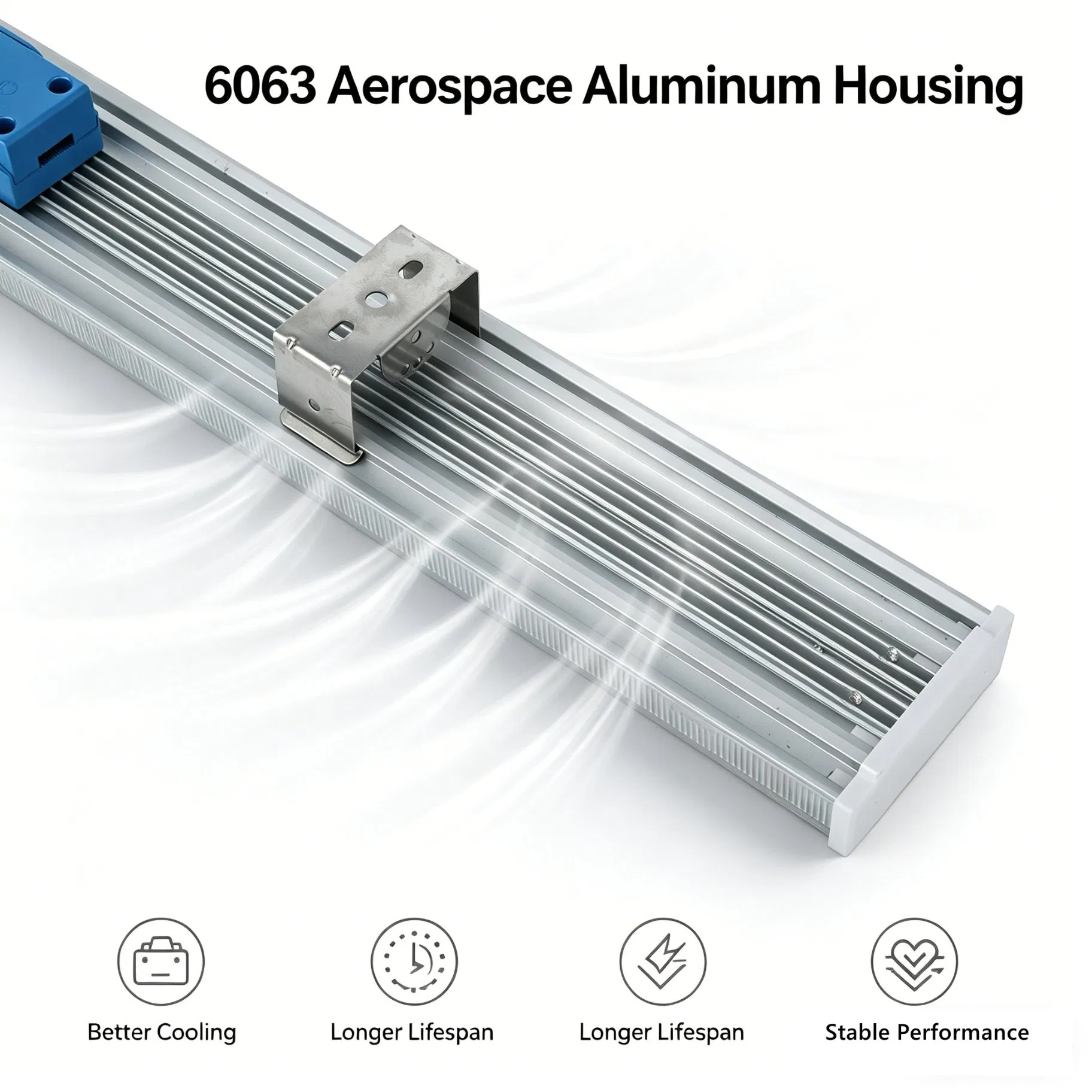

  • Excellent Heat Dissipation: 6063 aerospace aluminum housing
  • Multiple Beam Angles: 60°, 90°, Single / Dual polarization
  • Commercial Reliability: PF >0.9, THD <15%, 5 Years Warranty
  • Modern Linear Design: Elegant appearance & uniform light distribution
  • Easy Installation: Quick lock track installation

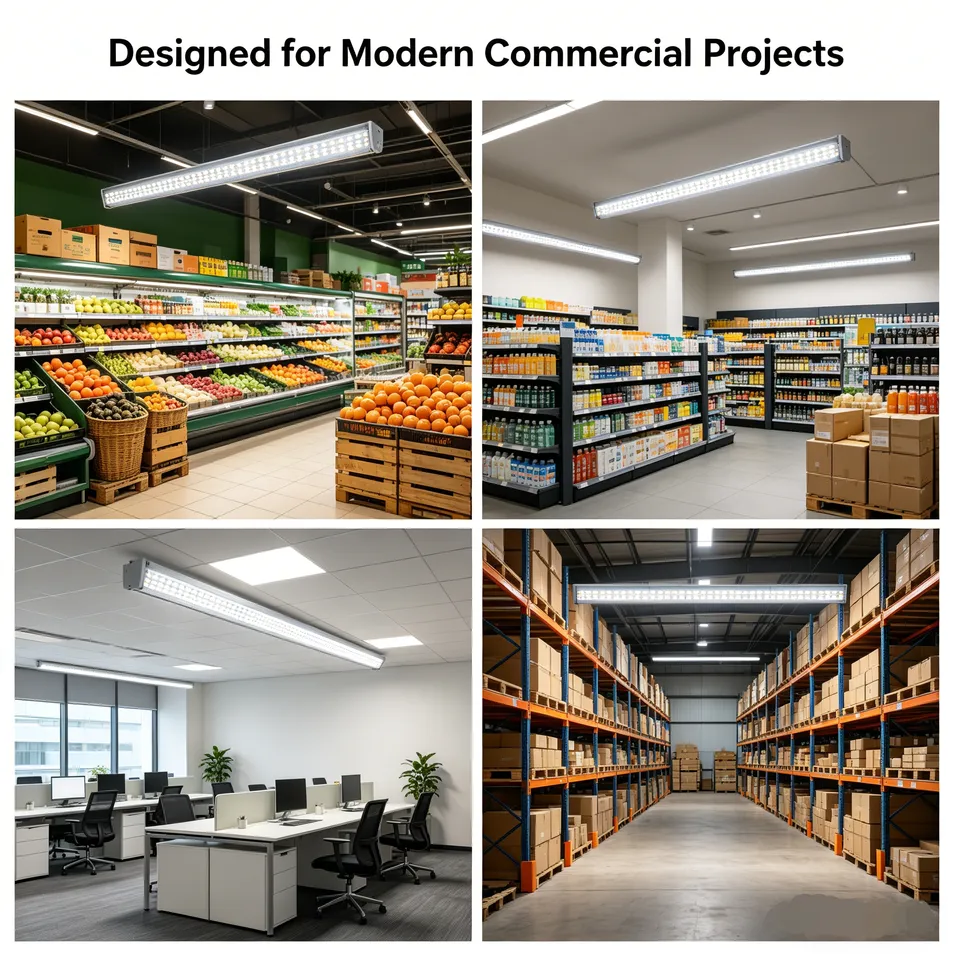

Applications
  • Supermarkets
  • Retail stores
  • Shopping malls
  • Office buildings
  • Warehouses
  • Exhibition halls
  • Brand chain stores
  • Commercial corridors
  • Clothing & Electronic stores
  • Modern commercial interiors
Project Experience
  • Supermarket chain projects
  • Retail stores & Shopping malls
  • Modern office buildings
  • Commercial showrooms
  • Warehouses & Exhibition halls
Project Advantages:
  • Reduced energy consumption by up to 60%
  • Lower maintenance frequency
  • Better lighting uniformity
  • Improved customer shopping experience
Specification
Product Model WS-LT-L075W38-4C/6C WS-LT-L150W75-4C/6C
Rated Power (Switchable) 38W 75W
Luminous Efficacy (Selectable) 160 / 180 LM/W
Colour Rendering Index (CRI) Ra > 80
Color Temperature (CCT) 3000 / 4000 / 5000 / 6000K (When <3500K, reduce 15%)
Color Tolerance (SDCM) 5 sdcm
PF (DF) > 0.9
Input Voltage AC180-265V 50/60Hz
Beam Angle (Deg) 60 / 90 / P20iRL25 120D (PC cover)
Rated LLMF at 6,000 h 0.95
THD 0.15
Surge 2KV
Certification CE, RoHS
Operating Temperature -20 to +40°C
Warranty 5 years
Packaging & Shipping
Package Details WS-LT-L075W38-4C/6C WS-LT-L150W75-4C/6C
Carton Size (mm) 810 * 400 * 320 1620 * 400 * 220
Qty/CTN 12 pieces / Carton 8 pieces / Carton
N.W. / G.W. per CTN 11 Kg 15 Kg
Packing Details
Packing Details
  • Protective polystyrene foam packaging
  • Strong export carton
  • Anti-damage transportation protection
Shipping
  • Sea freight, Air freight, Express delivery available
Delivery Time
  • Sample: 3-7 days
  • Bulk order: 15-25 days

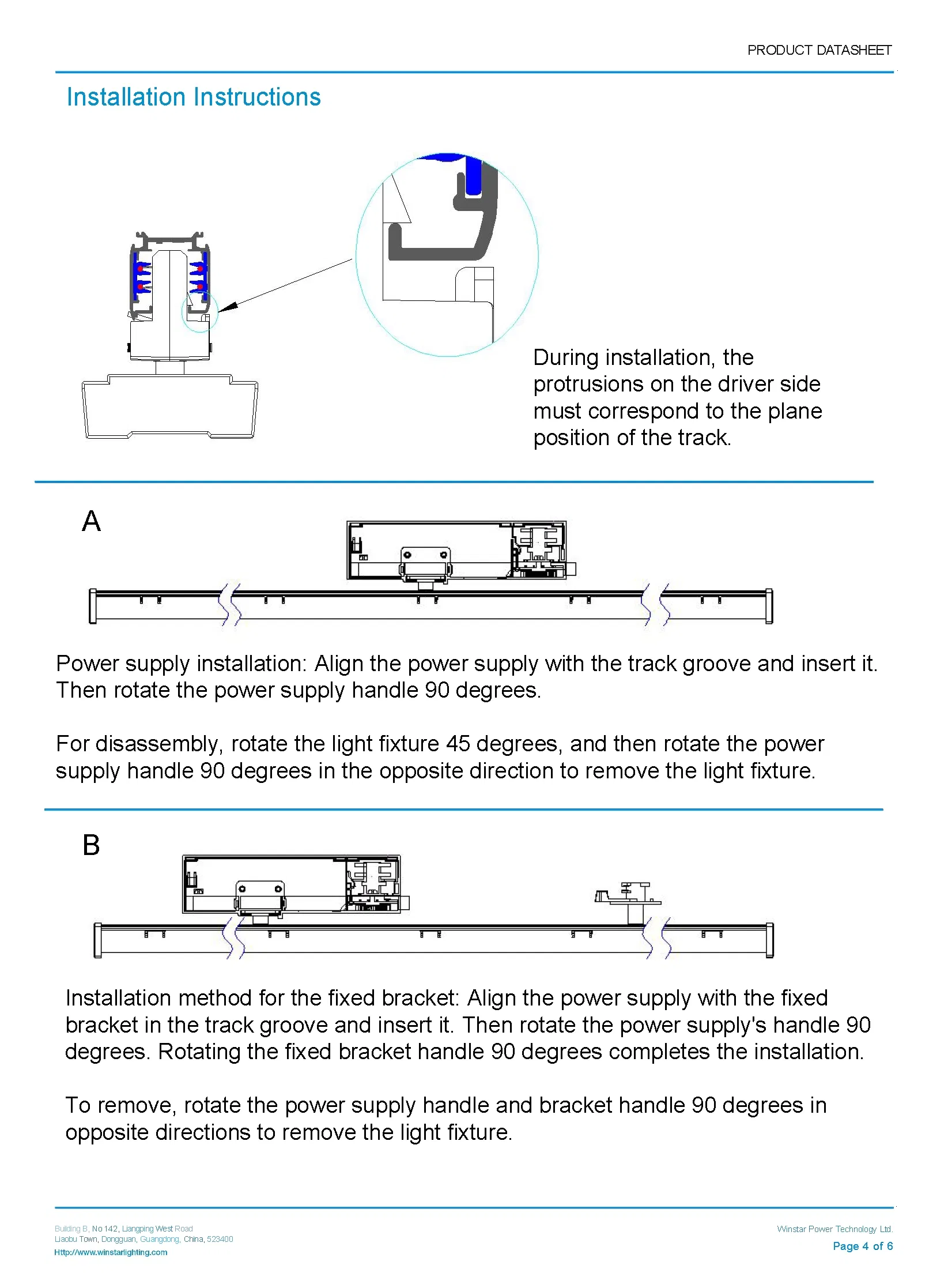

Installation Instructions
Installation Instruction Graphic
Professional Manufacturing Capacity

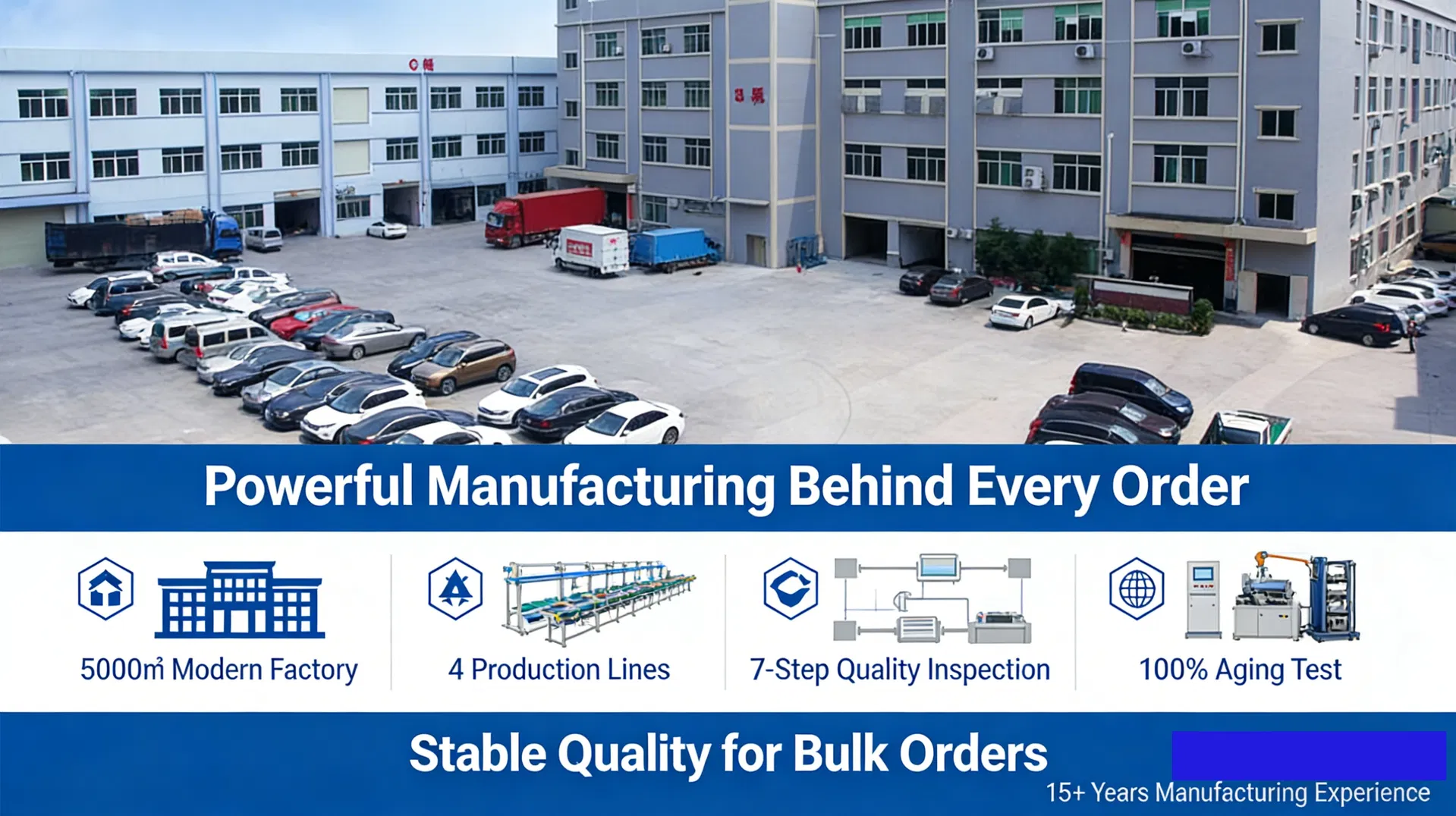

Manufacturing Plant
Industrial Lighting Solutions Manufacturer

We are a professional LED lighting manufacturer with years of experience in industrial lighting solutions.

  • Specialized in LED high bay, tri-proof, and linear lighting
  • Strong R&D capability for OEM & ODM projects
  • Stable production capacity for bulk orders
  • Exported to Europe, America, Middle East, and Southeast Asia
  • Our products are designed to balance performance, reliability, and cost-effectiveness, making them ideal for distributors, wholesalers, and engineering contractors.
  • We focus on building long-term partnerships instead of one-time transactions.
Quality Control System
  • Sample Order: 3–5 days
  • Standard Order: 7–15 days
  • Bulk / Project Orders: 15–25 days (depending on quantity)
  • Stable production capacity ensures fast and reliable delivery
Export Markets
  • Europe
  • North America
  • Middle East
  • Southeast Asia
  • South America
OEM & Customization
  • Logo printing on product & carton
  • Customized packaging design
  • Label & manual customization
  • Driver / CCT / function customization
Why Choose C Series Track Linear Light?
  • Up to 180LM/W ultra high efficiency
  • Compatible with mainstream track systems
  • DALI & Casambi smart control available
  • Excellent uniform lighting effect
  • Fast installation & easy maintenance
  • Modern commercial appearance
  • 5 years warranty
  • Ideal for supermarket and retail projects
  • Lower electricity and maintenance cost
  • Professional OEM & ODM support

Best-selling standard model with proven market demand:

  • High efficiency up to 210lm/W, strong energy-saving advantage
  • Flexible configuration (multiple drivers & power options)
  • Competitive price for bulk orders
  • Fast delivery & stable supply chain
  • Professional support for project solutions
  • We help customers win projects with better price + reliable quality + fast delivery
Track Linear Light Performance
Linear Light Application Diagram
Linear Light Design Highlight
Engineering ROI Module
Save More Electricity. Reduce Commercial Operating Cost.

Traditional Lighting VS C Series Track Linear Light

ROI Example (Supermarket Project):
  • Quantity: 200pcs
  • Working Hours: 12h/day
  • Electricity Rate: $0.15/kWh
  • Estimated Annual Saving: Save approximately 35-50% electricity cost annually
Additional Benefits:
  • Lower air conditioning load
  • Lower maintenance cost
  • Faster project payback
Comparison Item Traditional Track Light C Series Linear Track Light
Efficiency 90-120 LM/W Up to 180 LM/W
Energy Consumption High Low
Heat Generation High Lower
Maintenance Frequent Minimal
Lifespan Shorter Longer
Uniformity Uneven Excellent
Similar Hot Sale Models
Commercial LED Track Linear Lighting System
LED Linear Track Light for Supermarket
LED Tri-Proof Waterproof Batten Light
Frequently Asked Questions
Q1Is this track light compatible with Global track systems?
Yes, it is fully compatible with Global, Nordic, ERCO, AAG, UNIPRO, and other mainstream track systems.
Q2Does it support dimming options?
Yes. DALI and Casambi smart dimming systems are optional features available for integration.
Q3What applications is this product suitable for?
It is highly suitable for supermarkets, retail shops, offices, warehouses, exhibition halls, and general commercial projects.
Q4What is the warranty period?
We offer a robust 5-year warranty on this product.
Q5What is the energy-saving advantage of these linear lights?
Compared to traditional commercial lighting systems, it can reduce energy consumption by up to 50-60% while maintaining high efficacy up to 180LM/W.
Q6Can the beam angles be customized?
Yes, multiple beam angles (including 60°, 90°, and polarized light options) are available to suit different design needs.
