Vactrim Light
Vactrim Light

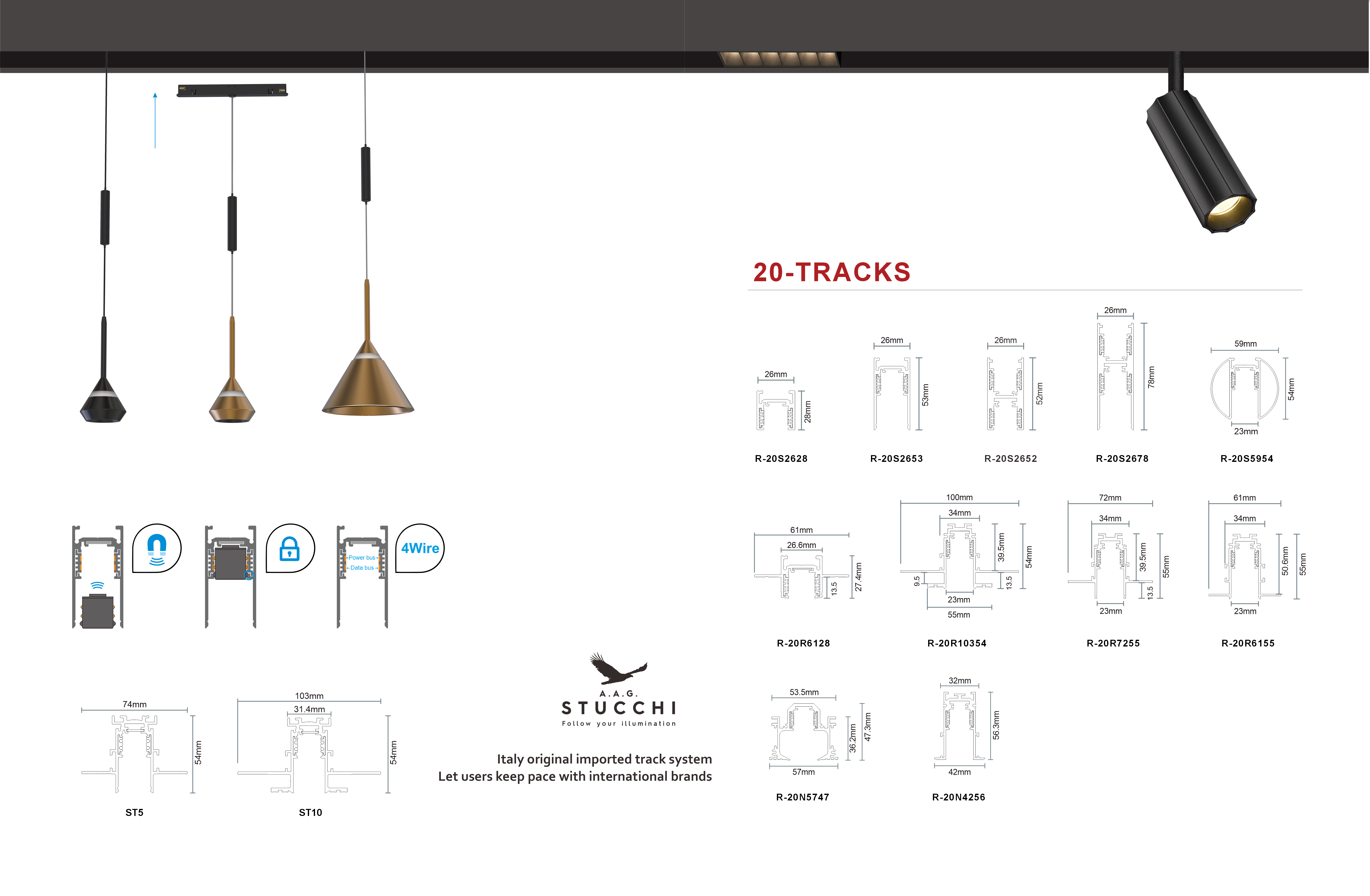

Two track profiles, diverse lighting modules & connections for seamless design freedom.
48V low-voltage system, compatible with 0/1-10V dimming and DALI controls.
High-purity red copper strips (0.6/0.8 mm) ensure stable power delivery.

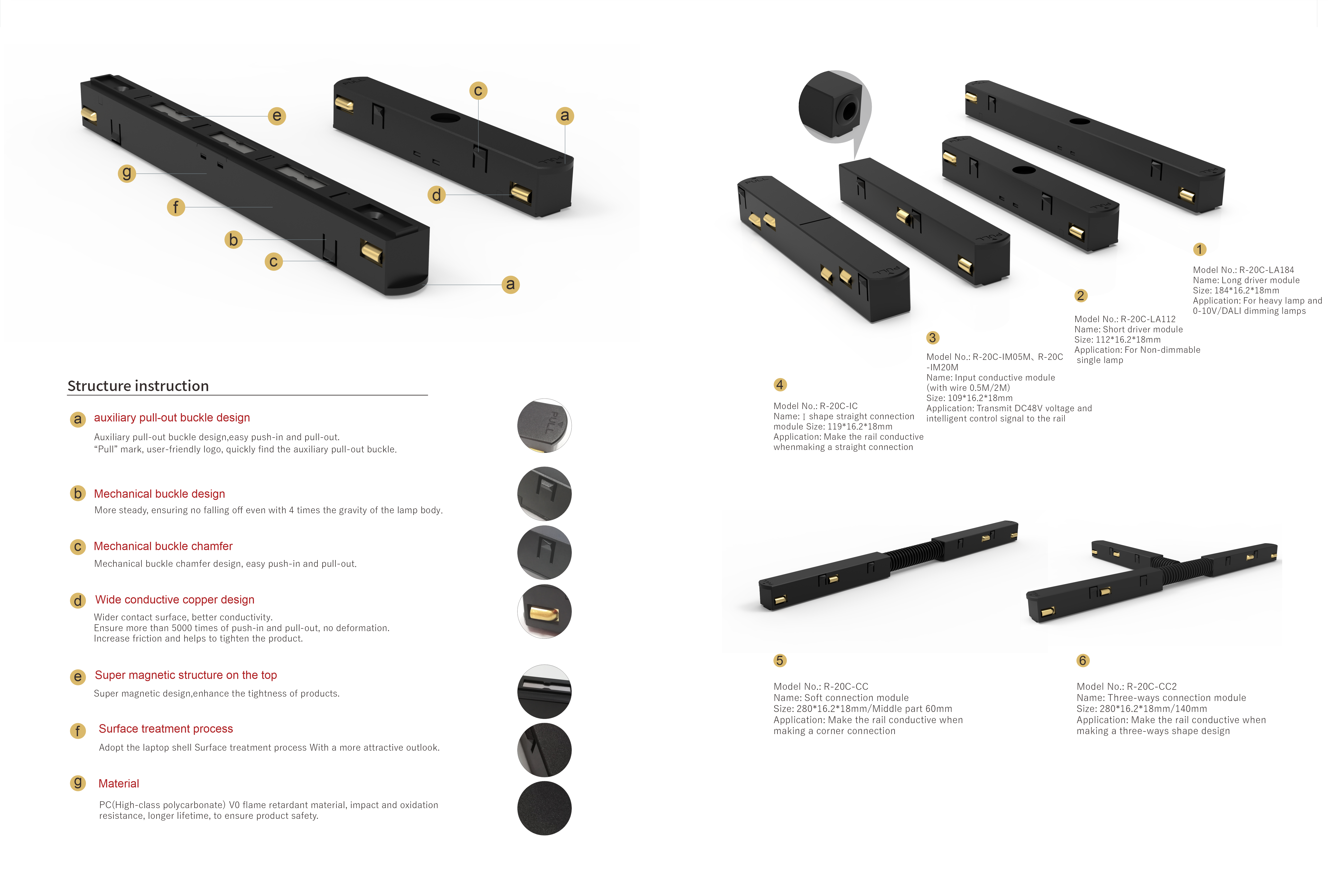

Ladder-type copper retention, built-in springs, and V0 flame-retardant PC material for long-term reliability.

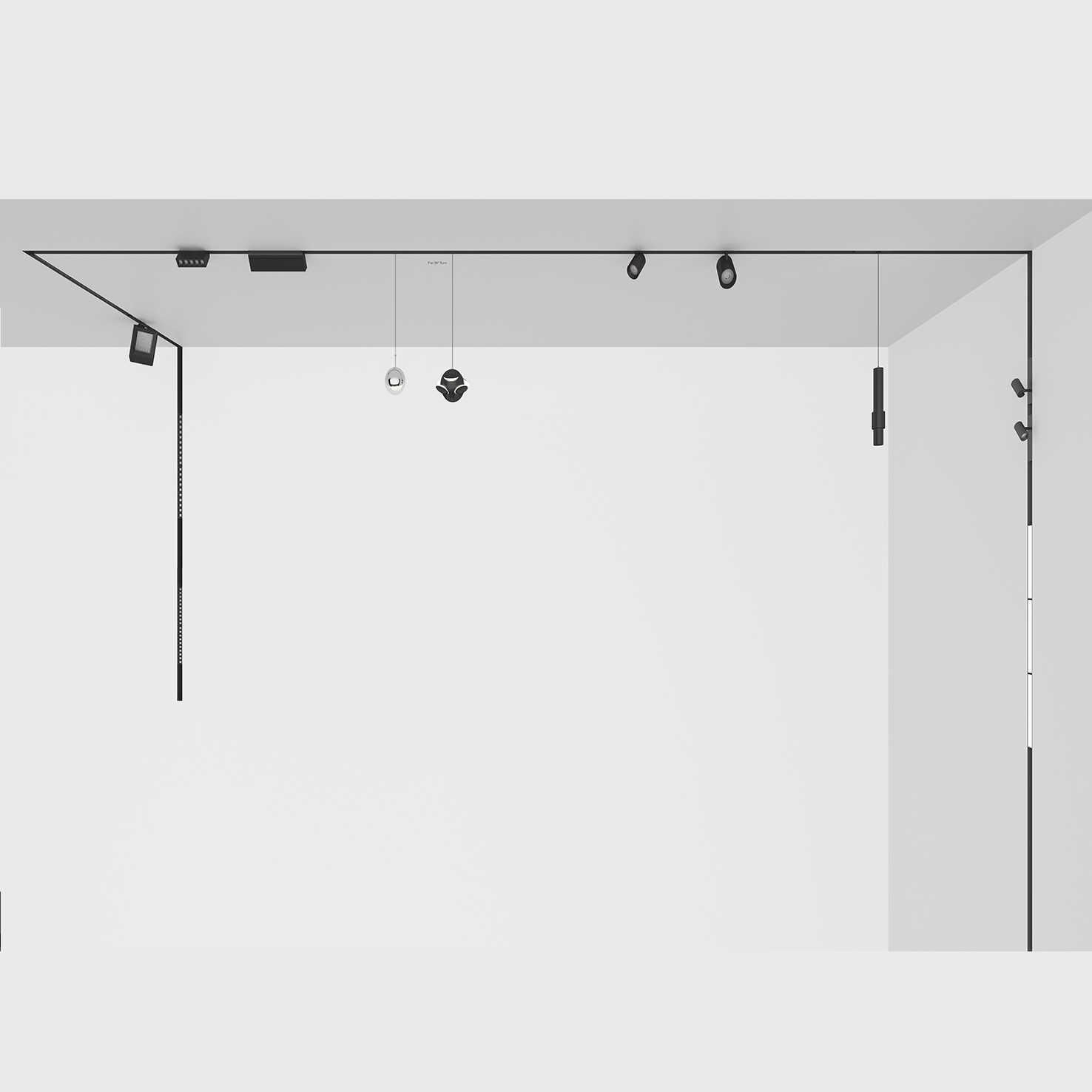

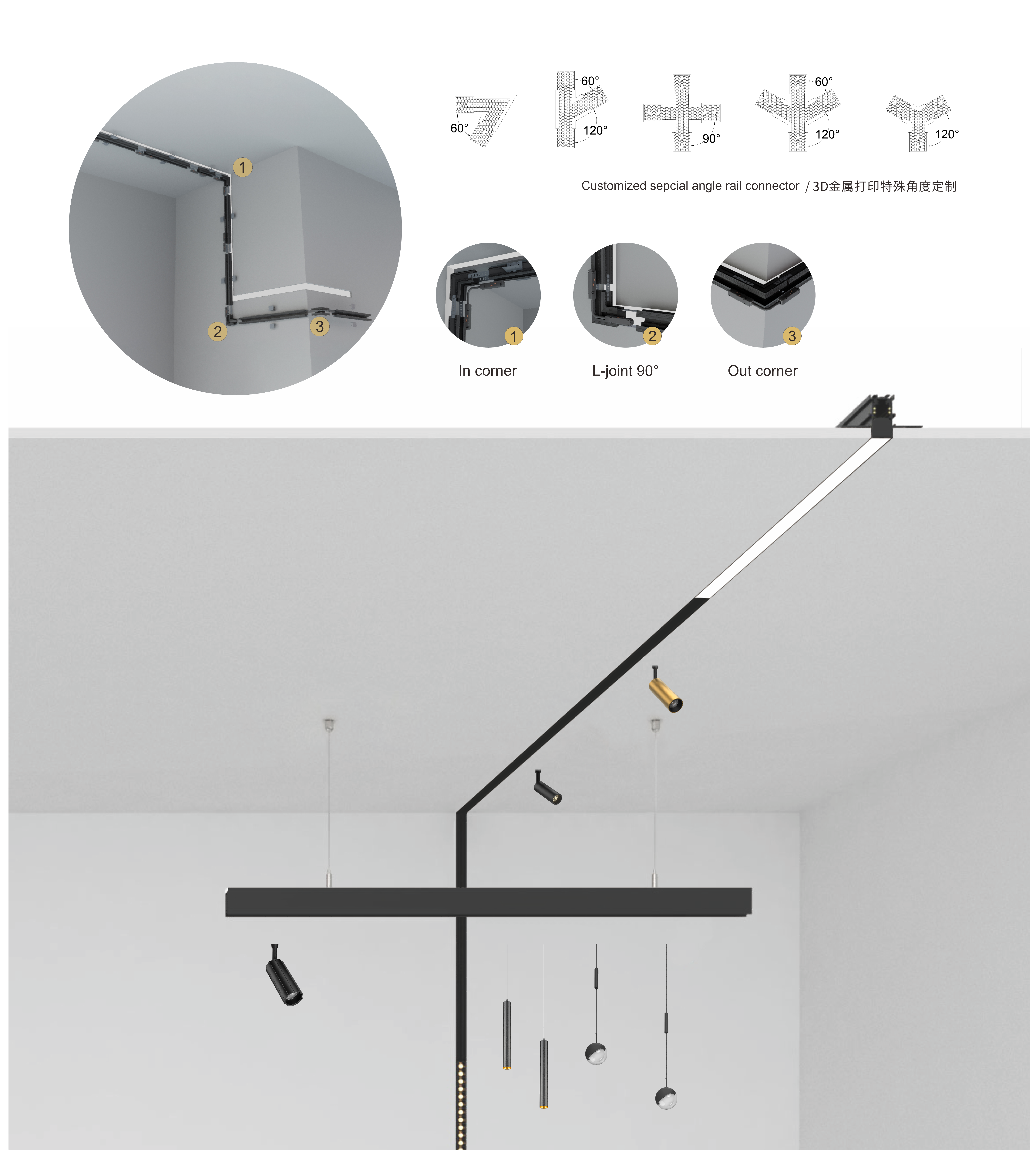

Multiple mounting options (surface, recessed, suspended) and corner connections for any space.
High-tension magnetic structure keeps modules firmly attached.
Hot-plug safe and flicker-free operation for eye comfort and safety.
Trimless recessed profiles and laptop-grade surface finish blend seamlessly with interiors.
| Product | LED Magnetic Tracklight |
| Material | Die Casting Aluminum |
| Model & Specifications |

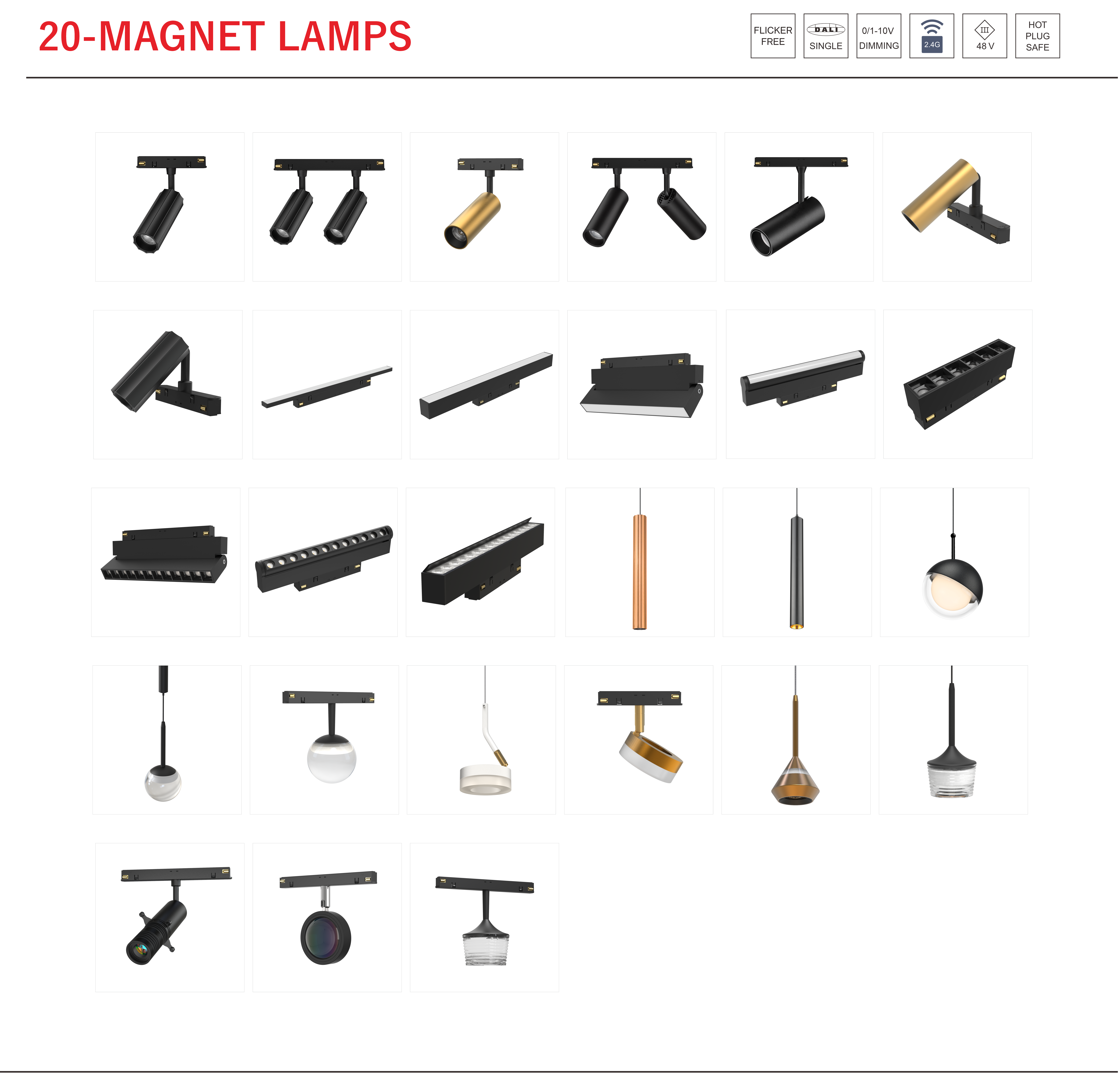

BM-20-01: 5-30W BR-24C1039: 7W (45mm) BR-2C1039: 9W (55mm) BR-35C1039: 12W (65mm) BR-3C1039: 15W (75mm) BR-4C1039: 28W (85mm) BR-5C1039: 35W (95mm) |
| Input Voltage(V) | DC 48V |
| Beam Angle | 15°/24°/36°/60°/110° |
| CCT | 2700K/3000K/3500K/4000K/5000K |
| Luminous Efficiency (lm/w) | 50-90lm/W |
| UGR | <12 |
| Installation Mode | Recessed/Surface-mounted/Pendent |
| Application | Residential/Hotel/Museum/Gallery/Retail Store/Showroom |
| Certificate | ETL/CE/SAA |
| Dimming | On/Off, Triac, 0-10V, Dali, Tuya, Casambi |
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than MOQ.
Low MOQ, 1pc for sample checking is available.
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places deposit for formal order. Fourthly, we arrange the production.
Yes, we offer a 5-year warranty on our products.
