Vactrim Light
Vactrim Light

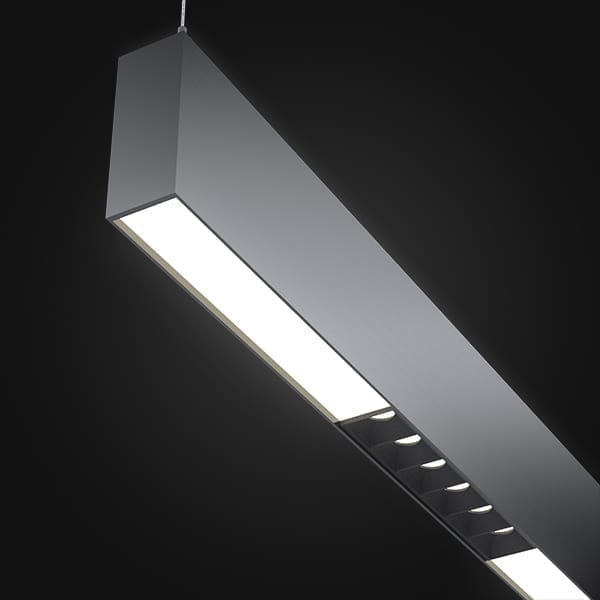

Light up your space, create unlimited possibilities, and welcome a bright future! The CUXD7575 linear lighting series provides you with excellent lighting solutions. Whether you are looking for lighting solutions that inject aesthetics and practicality, or looking to illuminate your office, commercial space, retail store, or home environment, our dropline linear lighting fixtures can perfectly blend in, illuminating your space and adding modernity and unique charm.
| Model No. | Input Voltage | Wattage | Length | CRI | CCT | Beam |
|---|---|---|---|---|---|---|
| CUXD7575P | AC 220-240V | 40W | 1206mm | Ra≥90 | 4000K | / |
| Technical Parameters & Performance | |||
|---|---|---|---|
| Input Voltage | 220-240VAC | Input Current | 0.18A±10% |
| Power Factor | >0.9 | Luminous Flux | ≥2500lm |
| Photoeffect | ≥60 lm/W | Power | 40W±10% |
| Color Temperature | 4000K±175K | Rendering Index | Ra≥90 |
| Beam Angle | / | Red Saturation Value R9 | >0 |
| SDCM | <5 | Light Color Level | 3 |
| Thermal Conductivity (Silicone Grease) | / | Light Source Temp (Silicone/Alu substrate TC) | ≤120ºC / 85ºC |
| External Dimensions | L1206*W75*H73.5mm | Material | Aluminium |
| Surface Treatment | Dusting | Adjustable Angle | / |
| Lamp IP Rating | 44 | Lamp Color | SW |
| Weather Resistance | Working environment temperature -20 °C ~ ±45 °C, humidity ≤ 85% | ||
Adopting advanced LED lighting technology, it has an excellent energy efficiency ratio and long lifespan, reducing energy consumption and maintenance costs. Free from UV, infrared, and mercury pollution.
No flicker or glare, featuring stable switch activation to ensure a comfortable lighting experience. High Color rendering index (Ra ≥ 90) and red saturation (R9>0) reveal natural, vibrant colors.
Underwent strict testing to verify outstanding seismic performance, maintaining reliable stability against external vibrations or sudden impact.

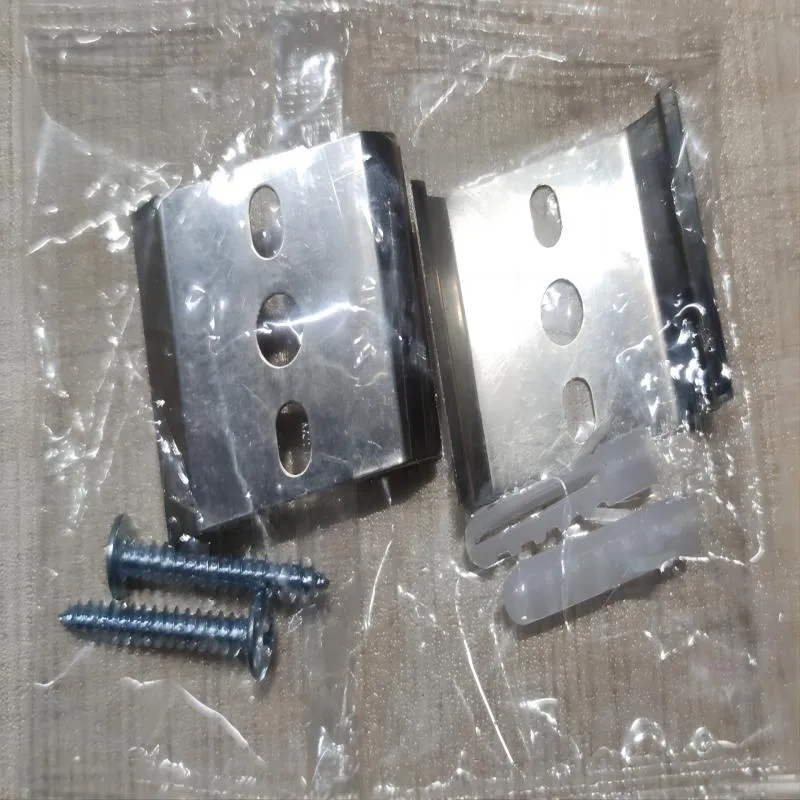

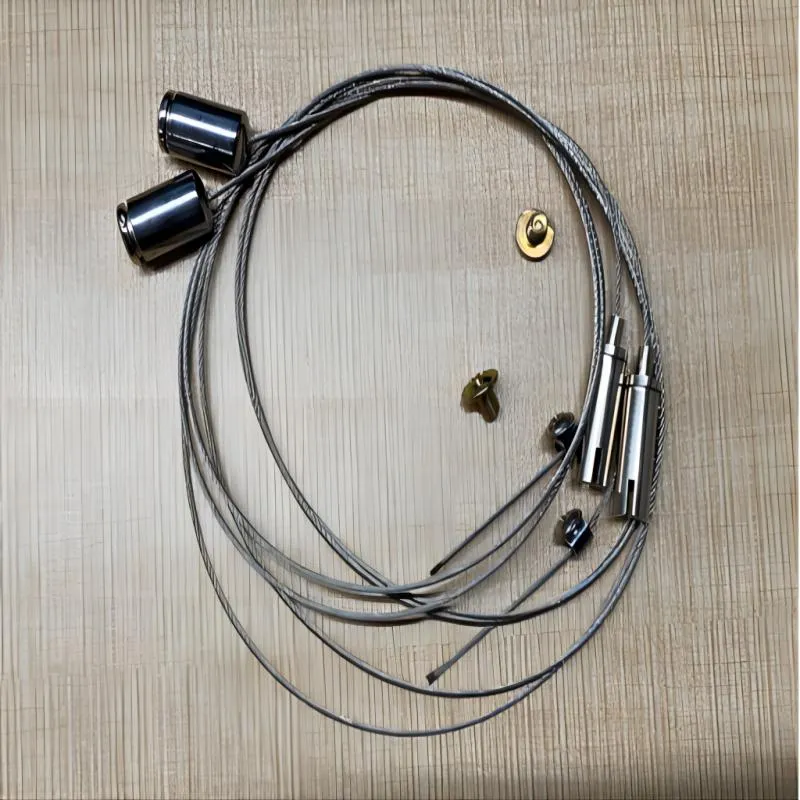

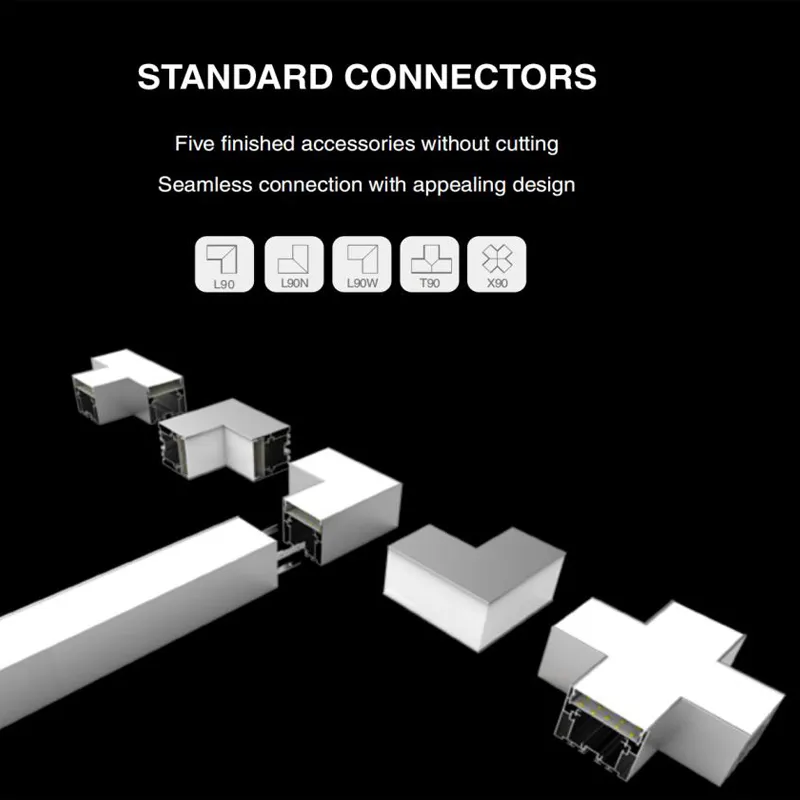

Supports suspended hook or cable lift installation options, easily adapting to custom space layouts, standalone or serial line structures.

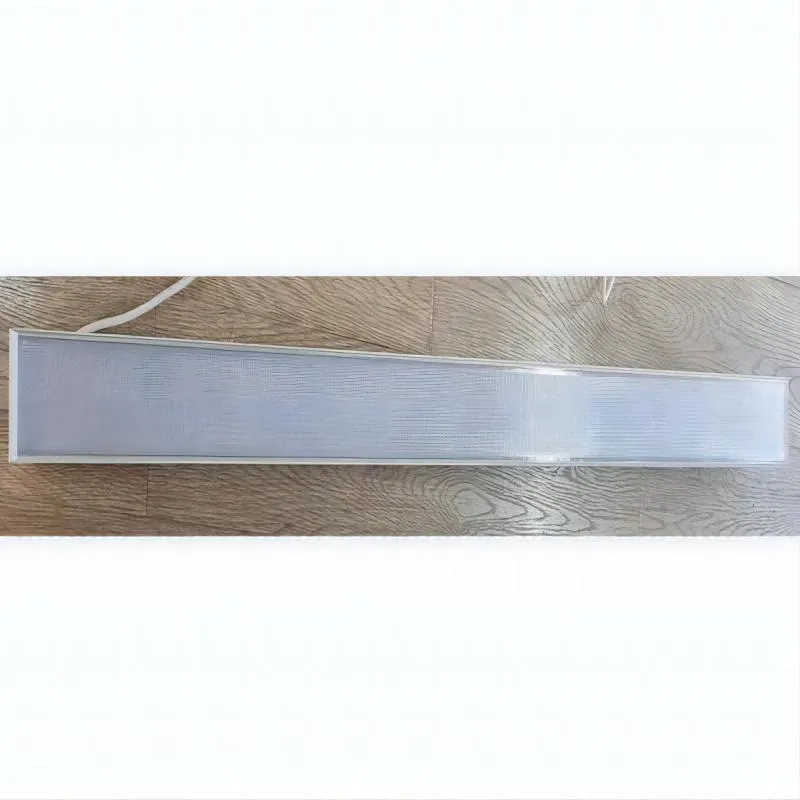

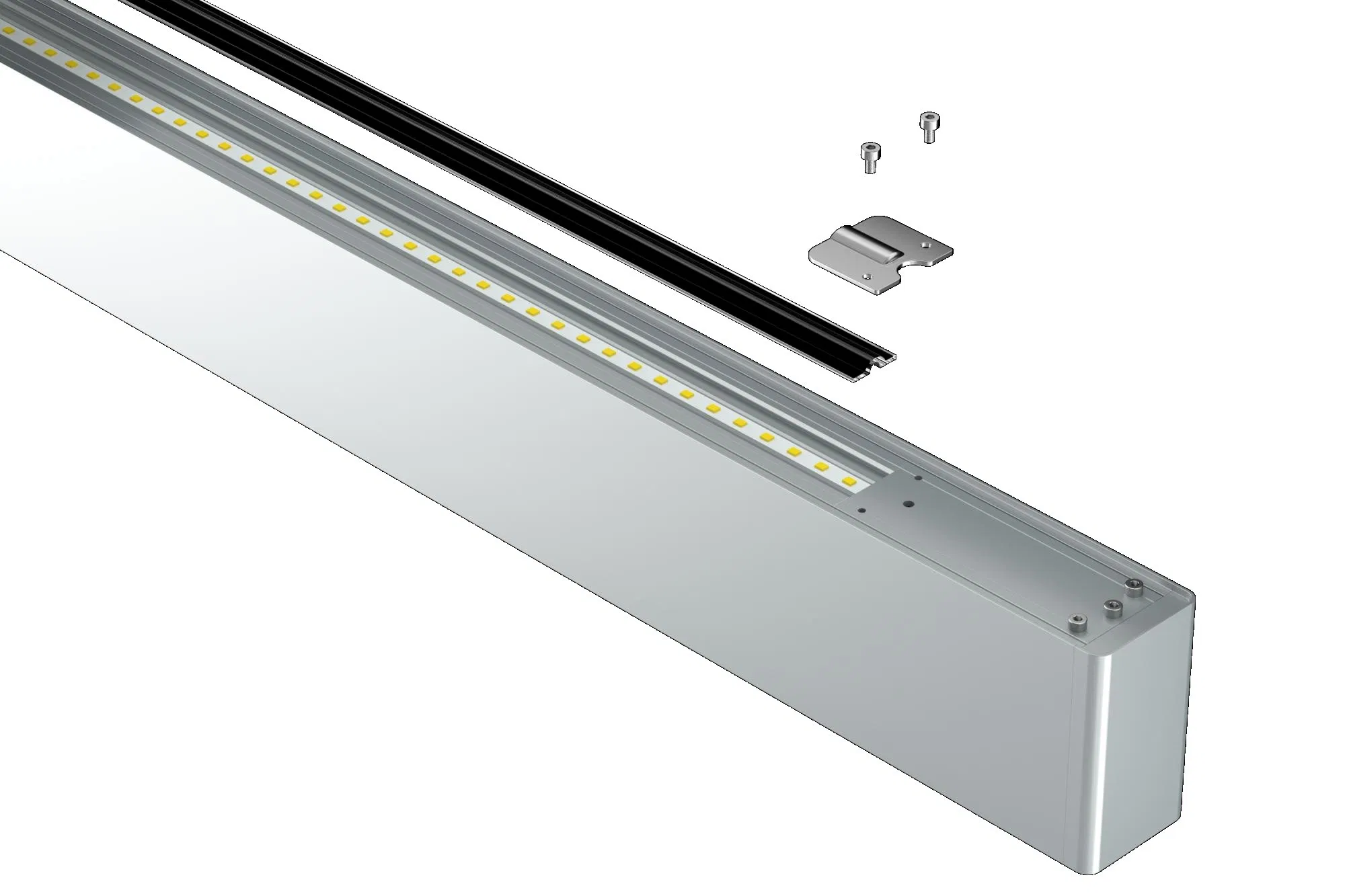

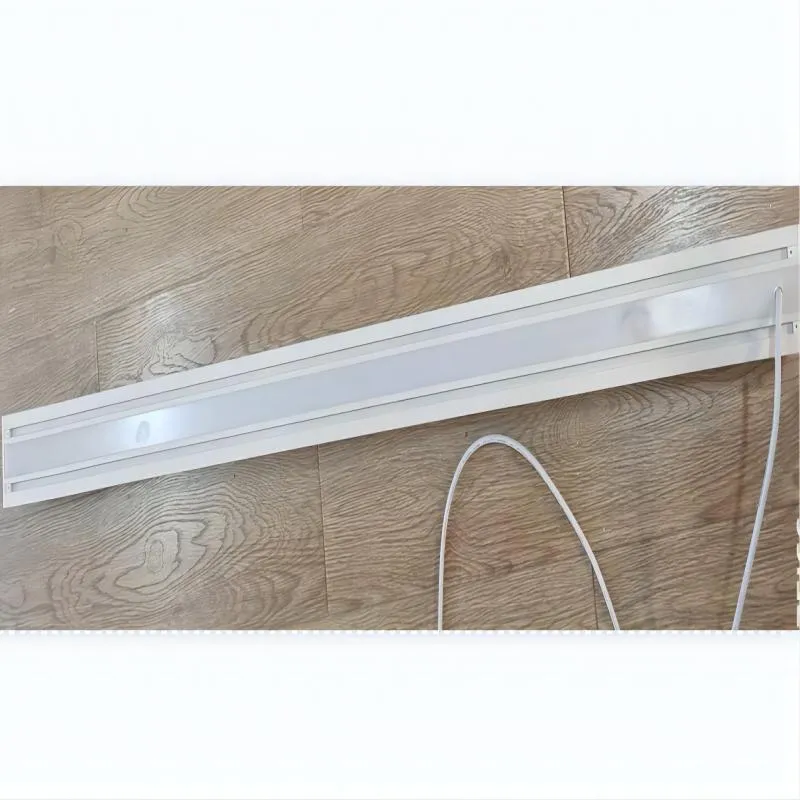

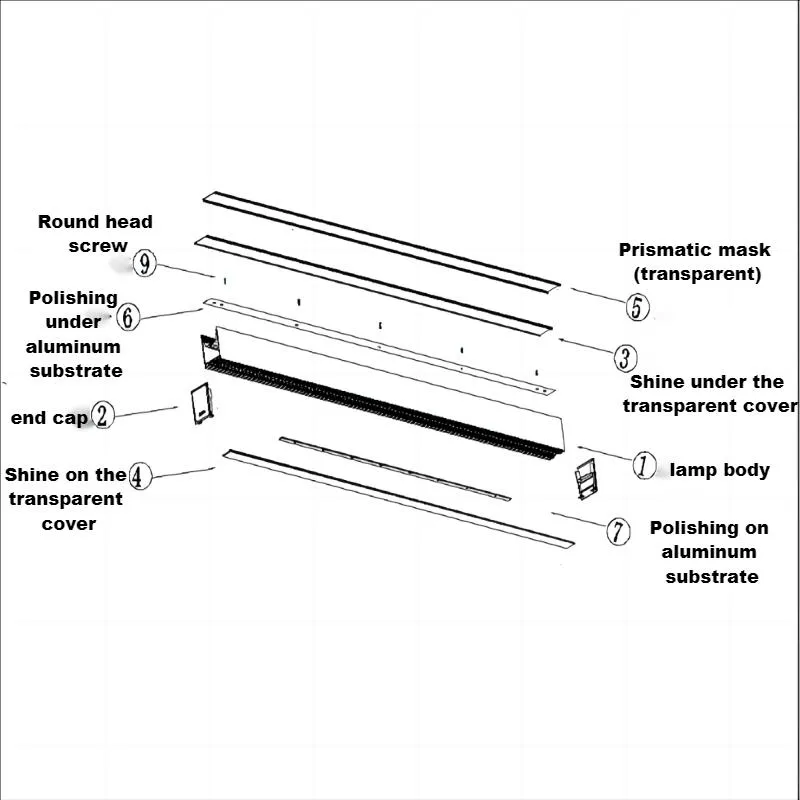

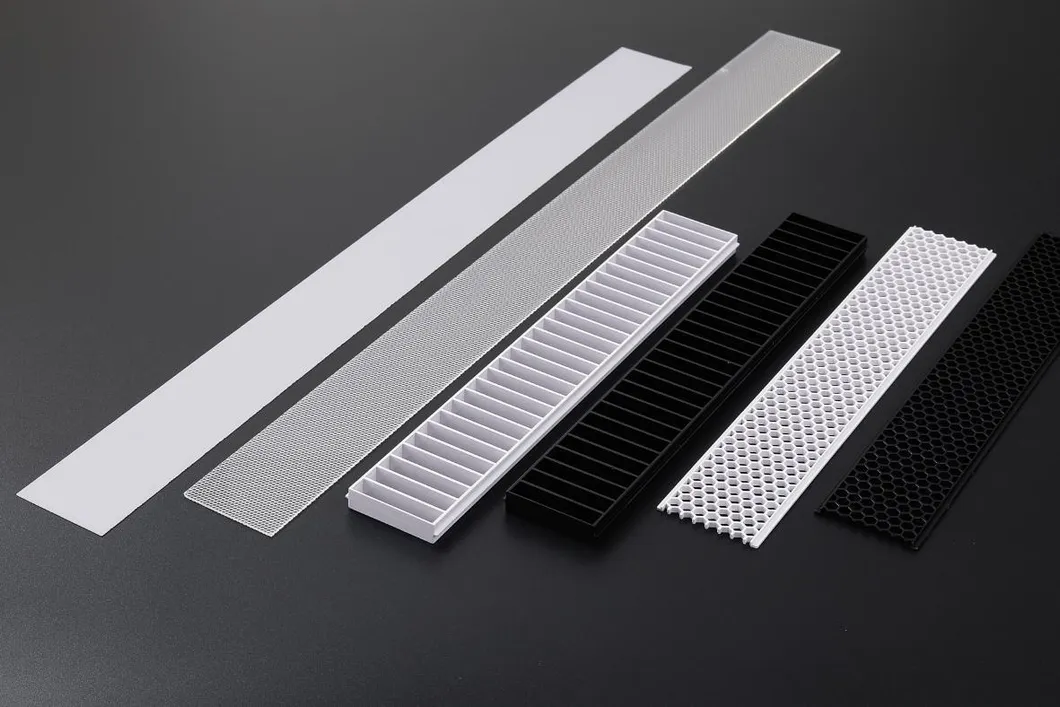

Features a robust aluminum profile lamp body finished with high-quality electrostatic powder spraying. Employs premium crystal PC diffuser covers for excellent light transmission and long-term durability.

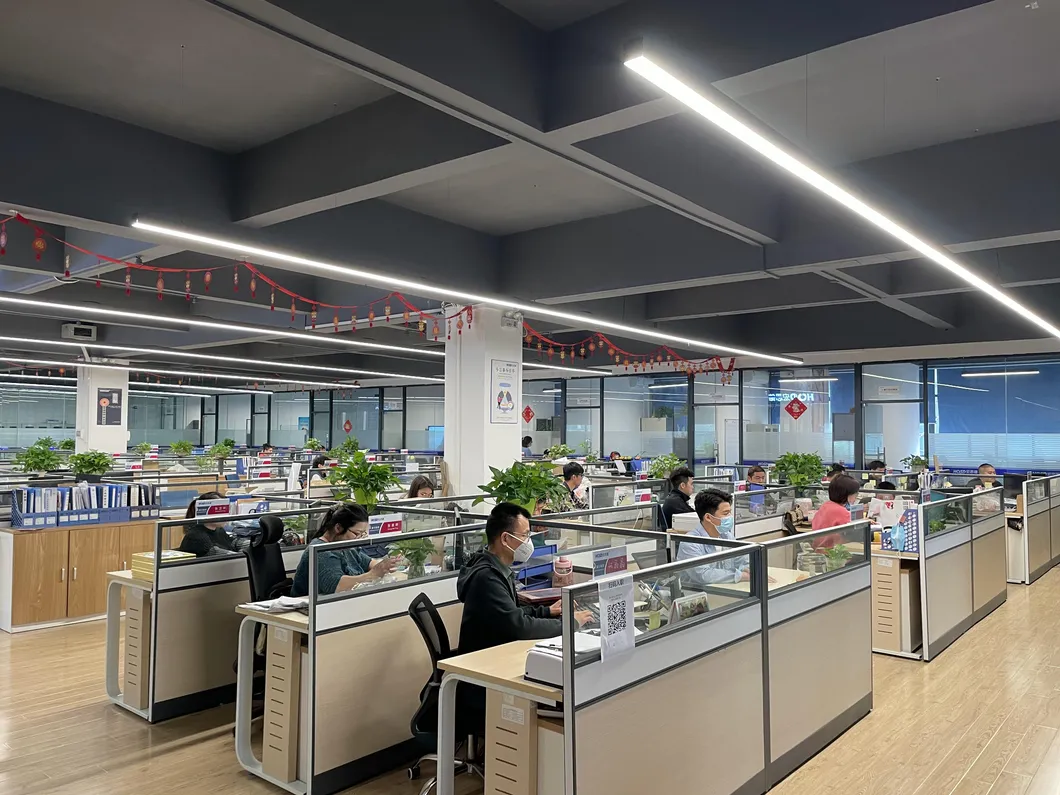

Ideal for offices, conference rooms, retail malls, high-end hotels, exhibition galleries, public educational institutions, and parking facilities.

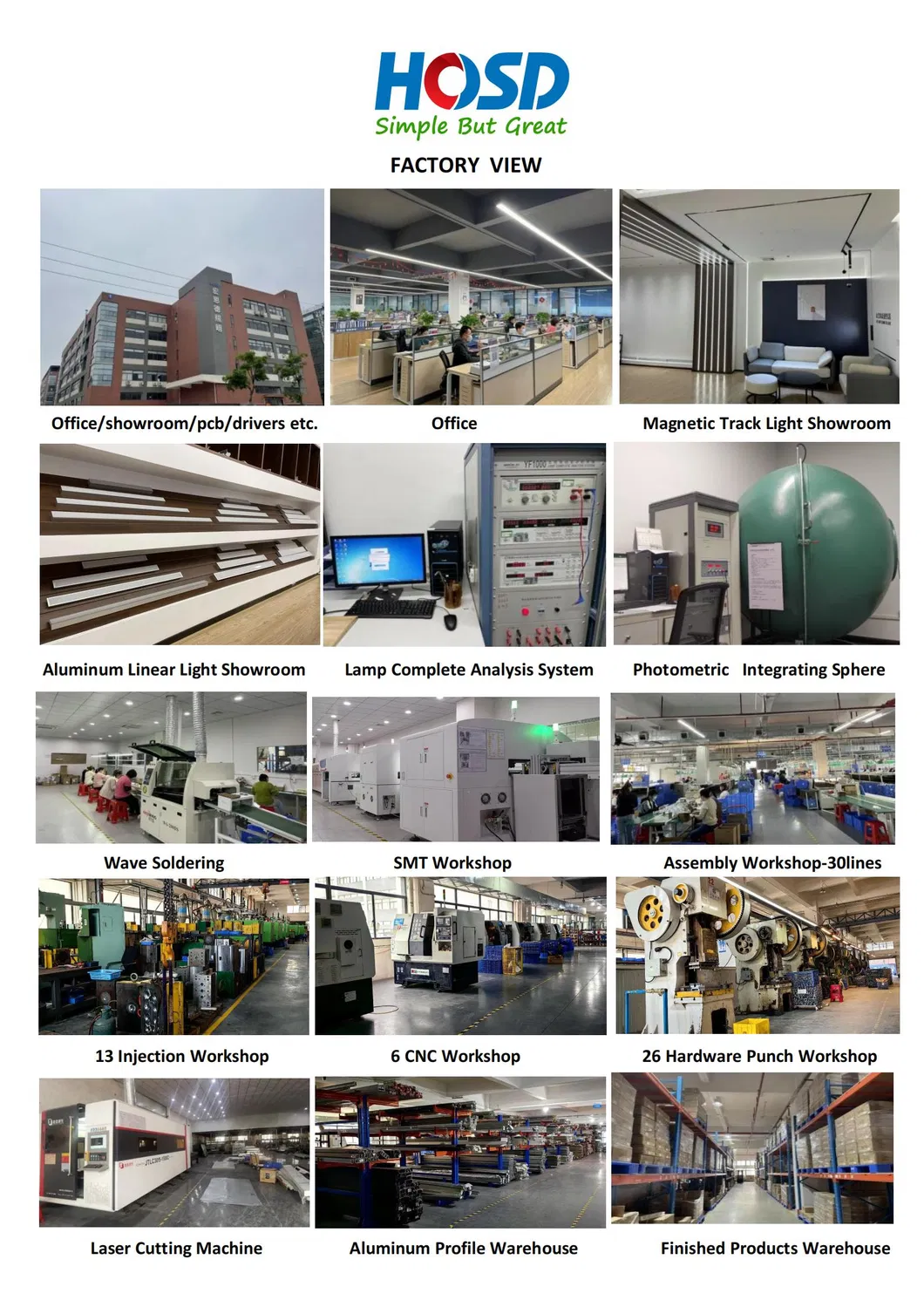

Yes, we are. We are a professional original manufacturer operating three specialized production facilities.
Yes, our structural engineers can produce CAD and 3D drawings based on client requirements. We operate dedicated in-house mould workshops for punched, injection, and die-casting products, allowing for accelerated development timelines.
Yes, we welcome sample orders to test and verify quality. Mixed product models within the sample order are acceptable.
Standard sample production takes 3-5 days. For batch bulk production, lead times range from 2-4 weeks.
Our production processes are certified under GBT19001-2016 and ISO9001-2015 standards. 100% of finished products complete a thorough aging test before packaging. We offer a 2 to 5-year guarantee on our product line.
For minor parts issues during the warranty period, we supply free replacement components with your next order. For bulk batch issues, we will repair and return the items or work dynamically to negotiate a mutually beneficial resolution.
