Vactrim Light Vactrim Light

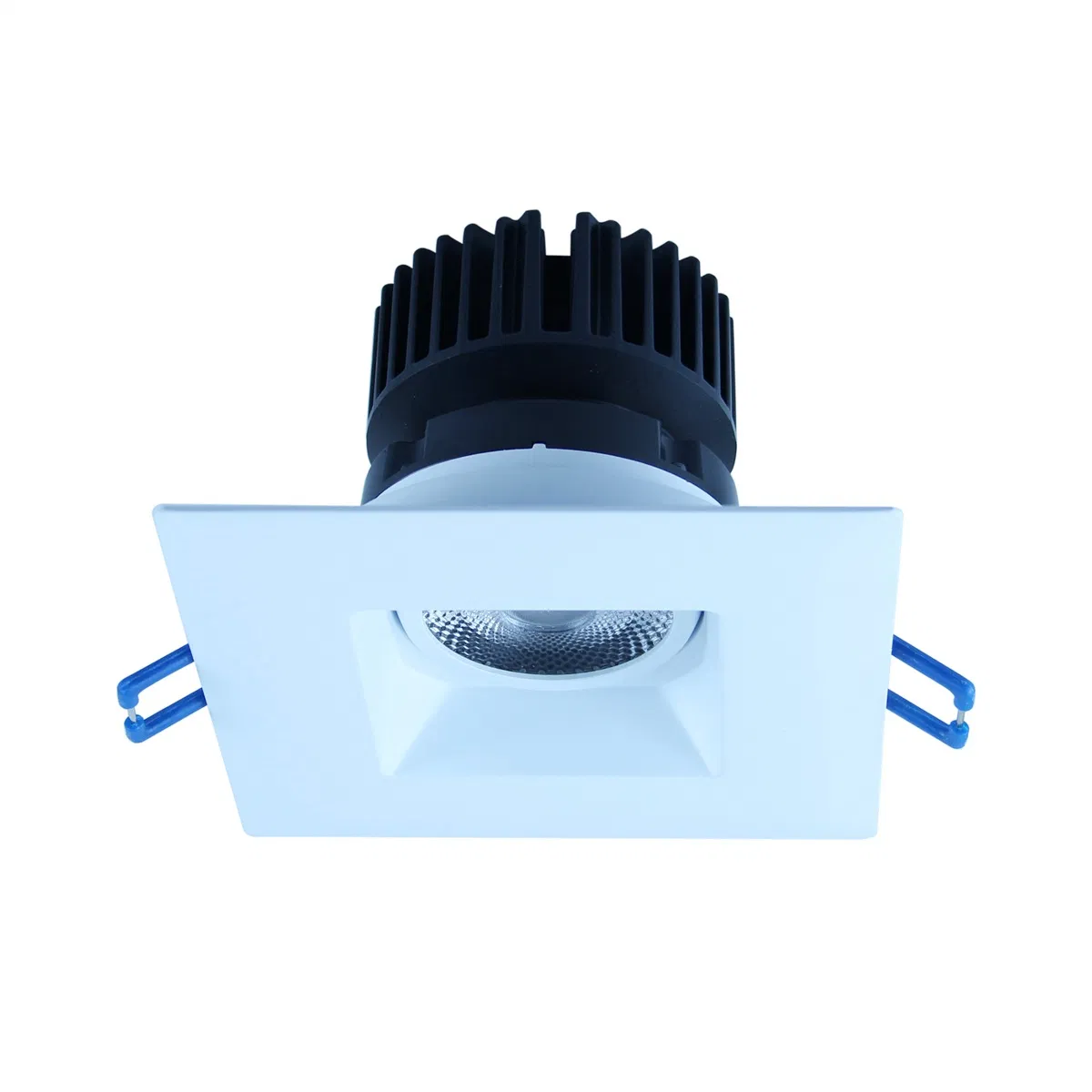

Adjustable Square Dimmable Spotlight Anti Glare Ceiling LED COB Downlight Trimless Recessed Down Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Model NO.
KG3S-5CCT-0512-WH
Power
5-12W
Color Temperature
5CCT
Lamp Body Material
Aluminum
Source Number
Single Plug
Installation
Recessed
Warranty
5 Years
Application
Engineering, Home Furnishing, Commercial/Home/Office/Hotel
IP Rating
IP54
Certification
CE, EMC, Energy Star, ETL, FCC, LVD, RoHS
Watt
5-12W Adjustable
Color
White/Black/Bronze
CCT
5CCT Adjustable
Cutout
82mm
Transport Package
Box
Specification
20pcs/Ctn
Origin
China
Production Capacity
70000PCS/Month
Product Description
Key Features
5CCT-selectable: Choose between 2700K / 3000K / 3500K / 4000K / 5000K
Wattage selectable: Choose between 5W / 7W / 9W / 12W
High CRI: RA > 90+ for true color rendering
Replaceable lens: 15°, 24°, 36°, 60° options
Wet location rated
Warranty: 10 Year Residential / 5 Year Commercial

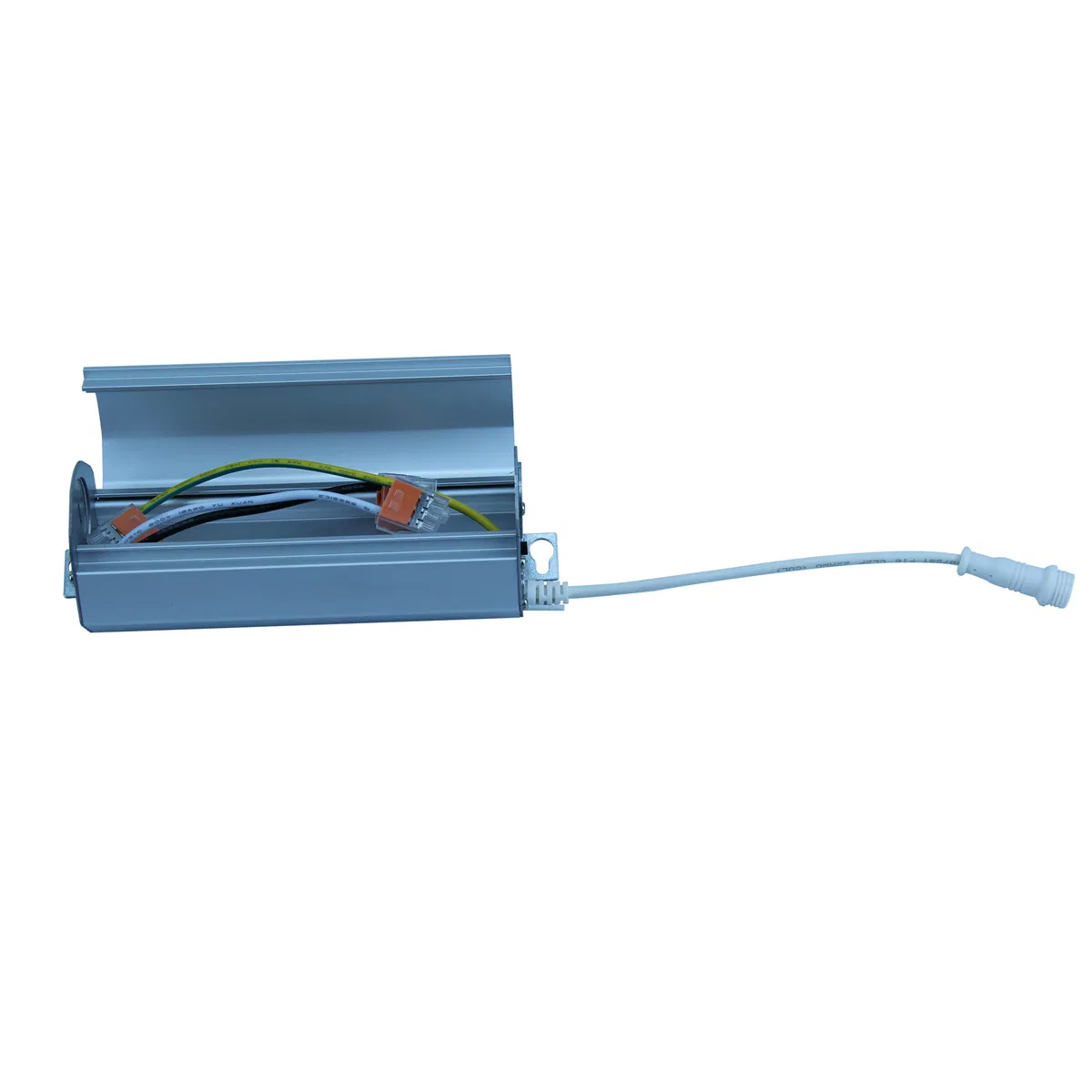

Optional Driver: 0-10V Dimmable / Triac Dimmable
Specifications
Item No. KG3S-5CCT-0512-WH
Light Source Bridgelux
Input voltage 100-240VAC
Wattage 5W-12W selectable
Colour Temperature 5CCT Adjustable 2700 to 5000K
CRI >90
Beam angle 15°/24°/36°/60°
Dimensions L110*W110*H73.6mm
Cutout 82mm
Finish White/Black/Bronze
Life Time 50,000 hours
Warranty 5 years
Detailed Photos

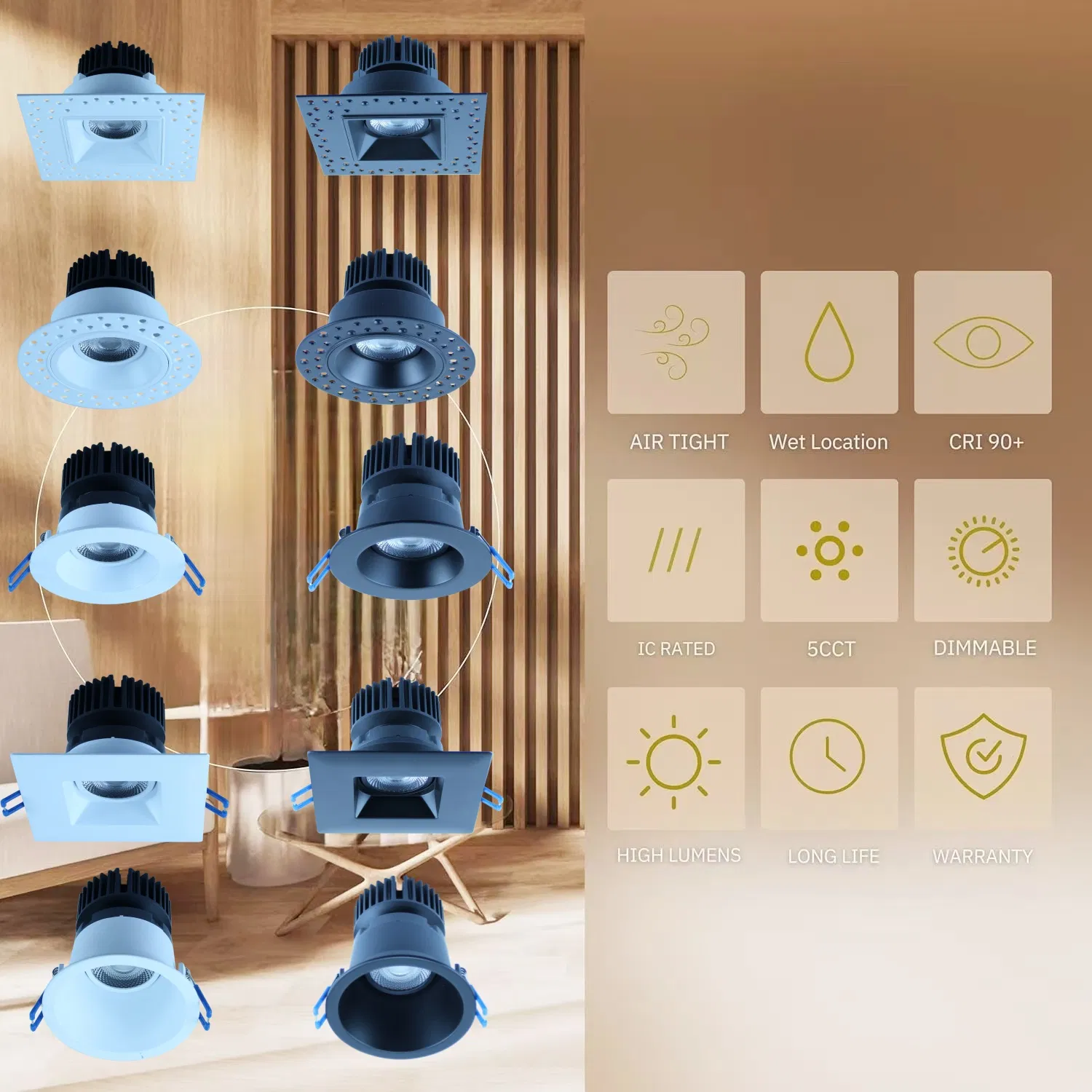

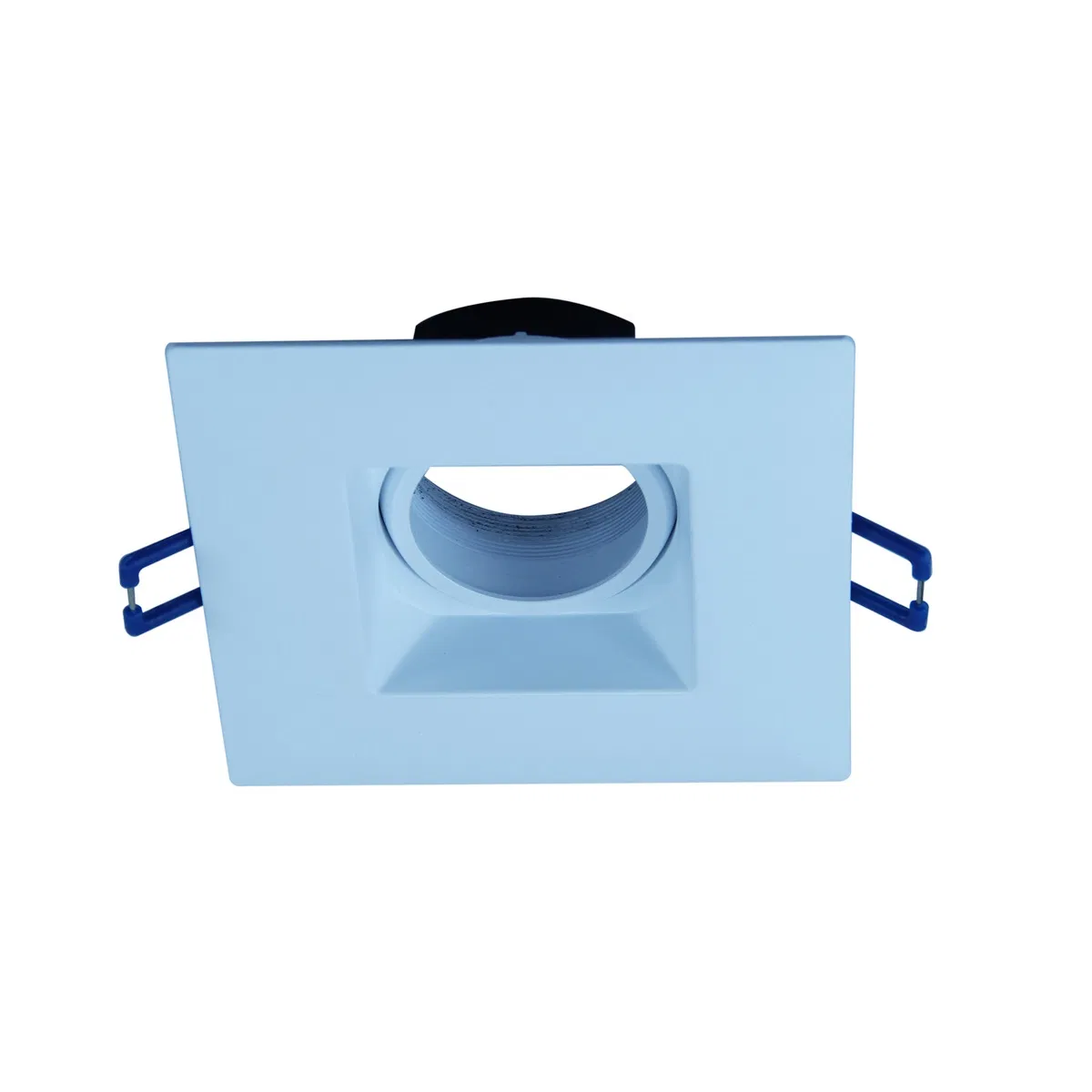

Adjustable Square Dimmable Spotlight Anti Glare Downlight

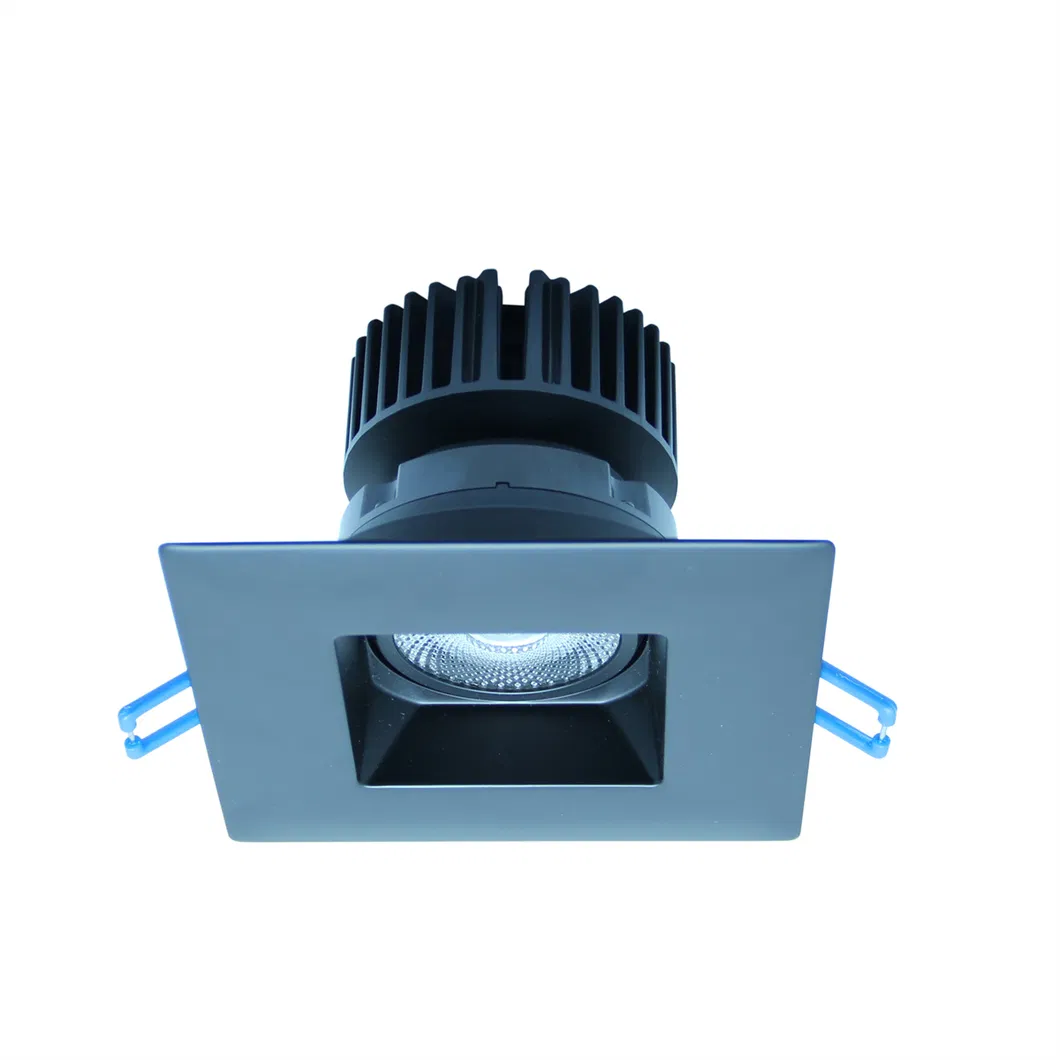

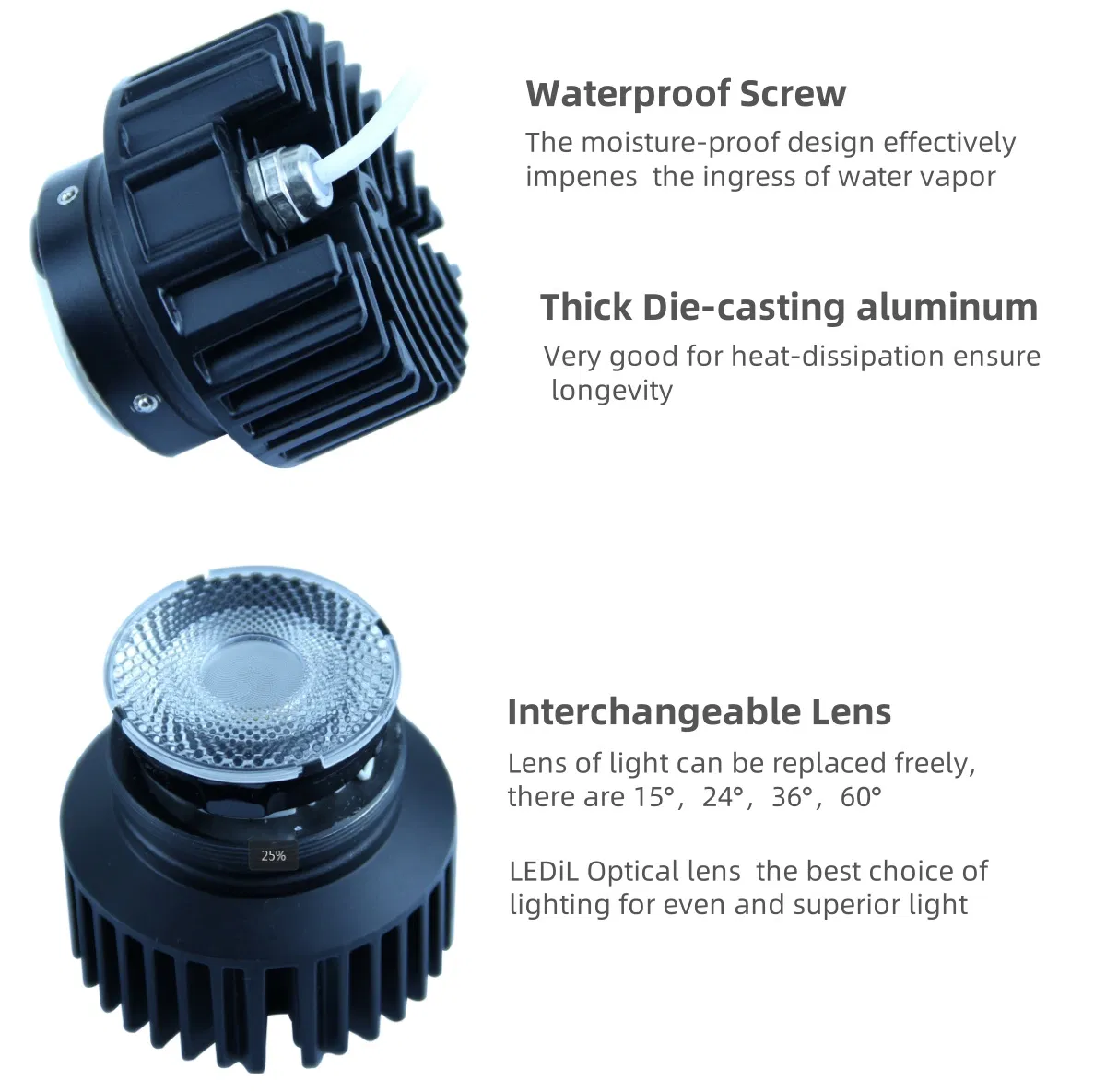

Trimless Recessed Down Light Detail

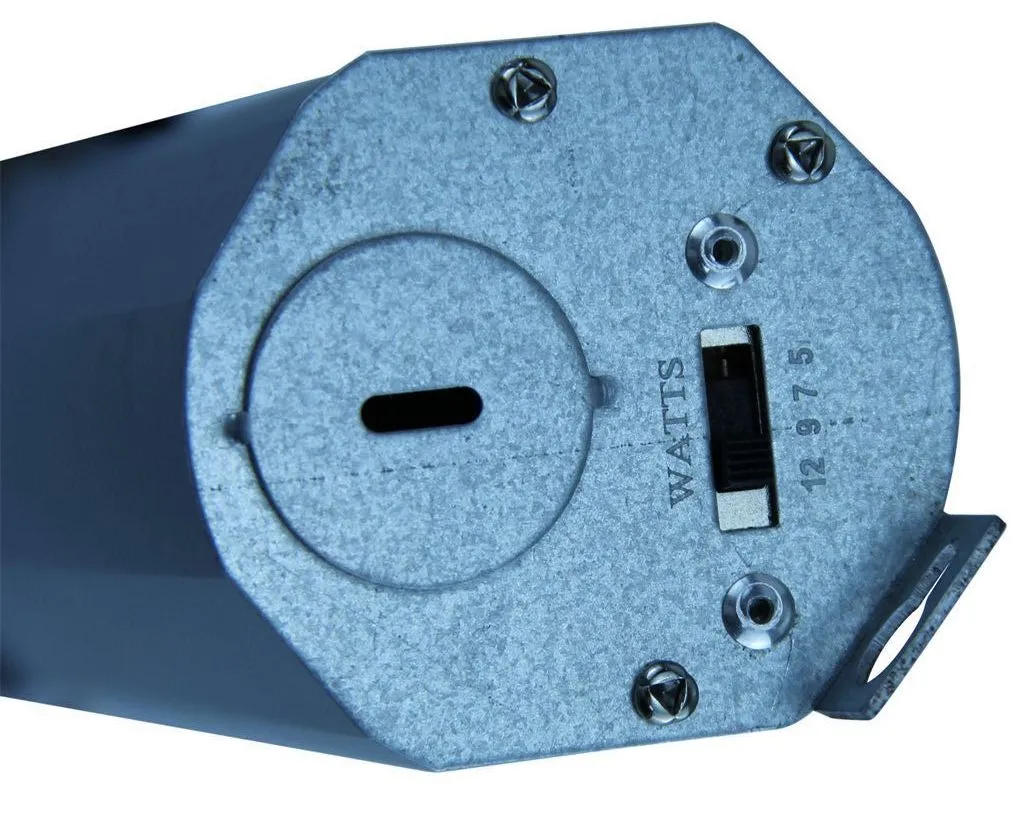

Watts Selectable Effortlessly
Adjust wattage from 5W / 7W / 9W / 12W easily to meet different application requirements.
Watts selectable spotlight options
5CCT selectable downlight color temperature

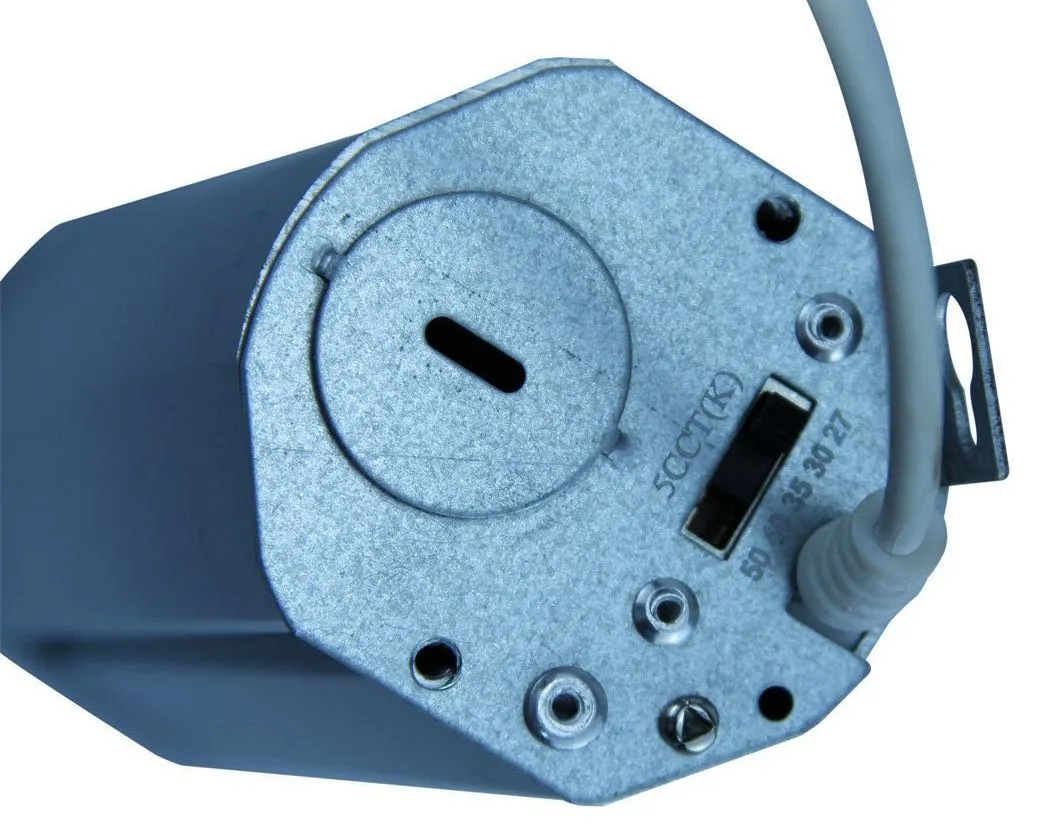

5CCT Selectable Effortlessly
Quickly adjust between 2700K / 3000K / 3500K / 4000K / 5000K color temperatures.
Other Products For Option
Alternative downlight option 1

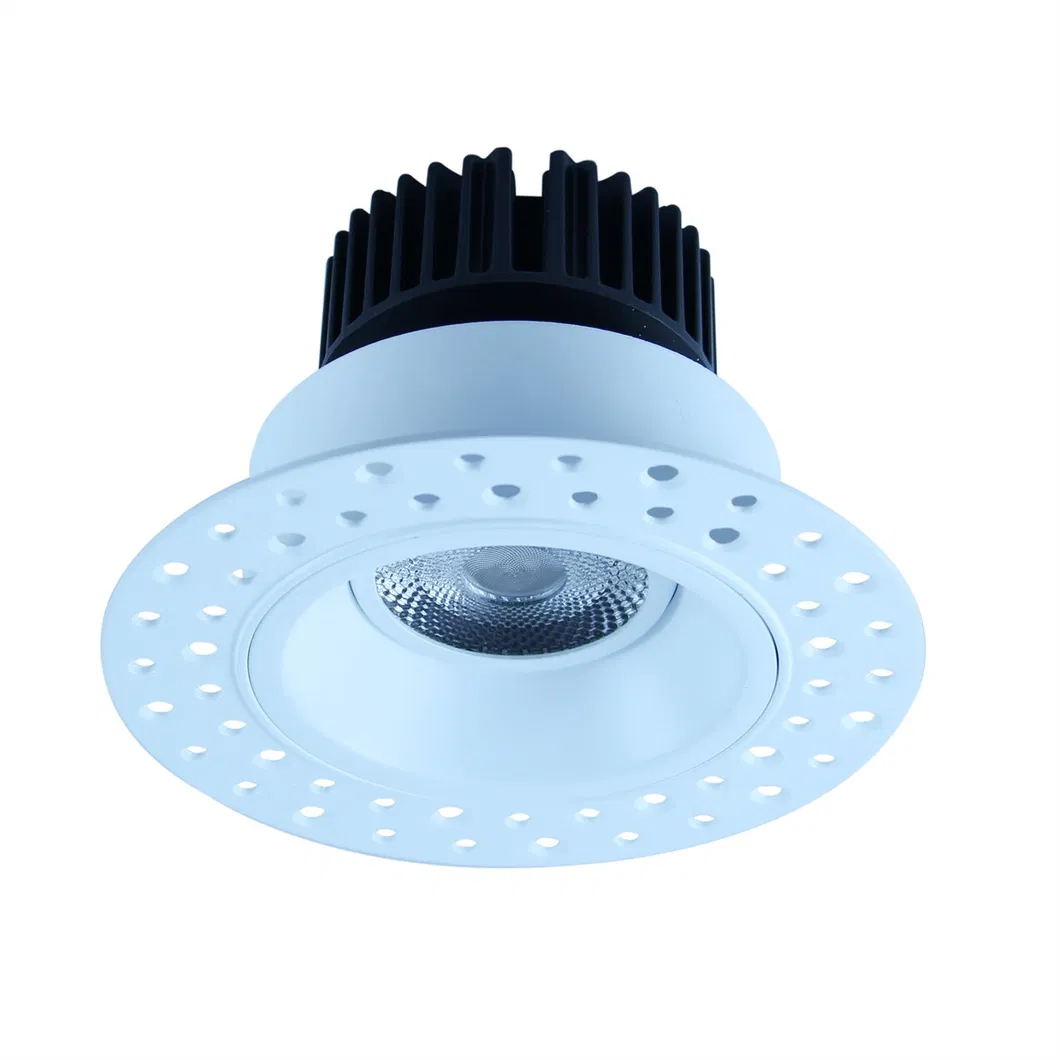

Alternative downlight option 2

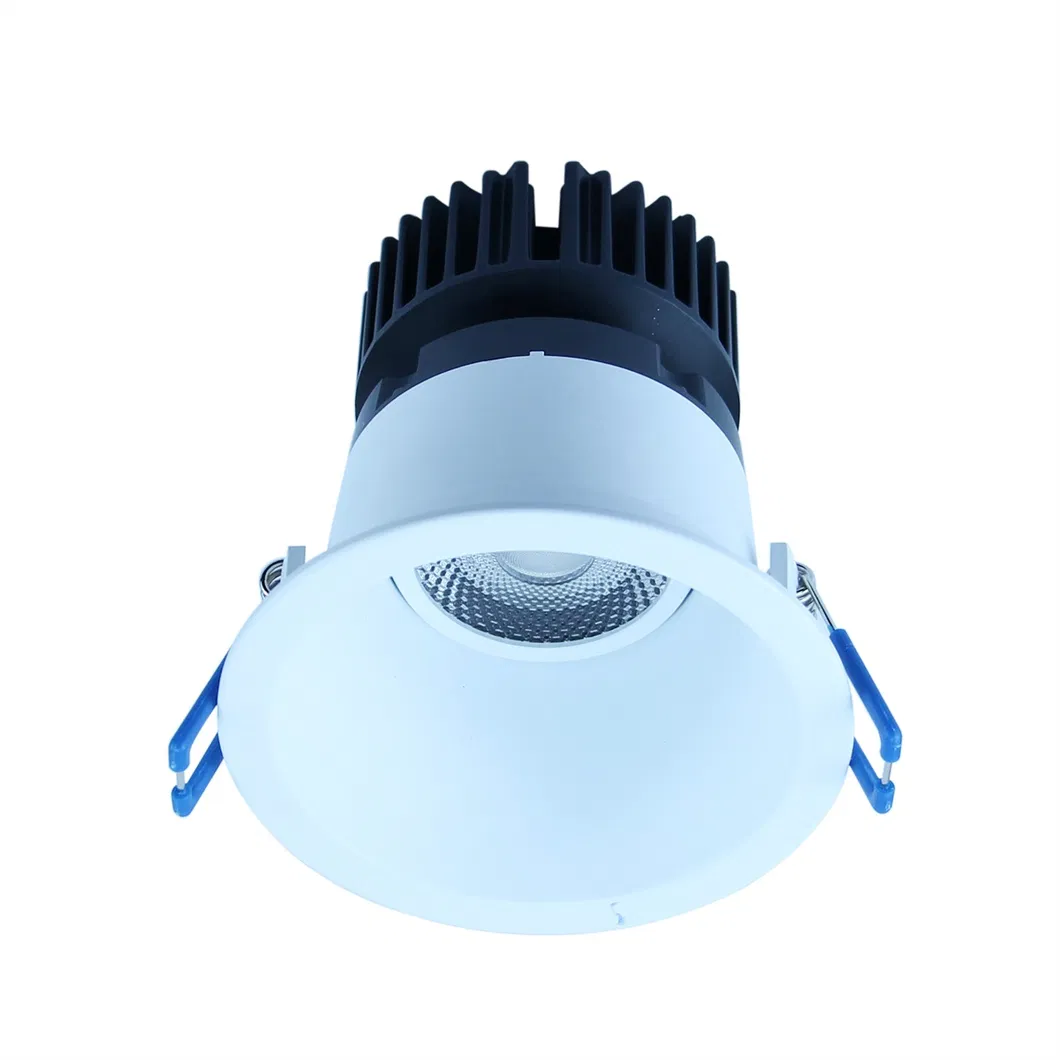

Alternative downlight option 3

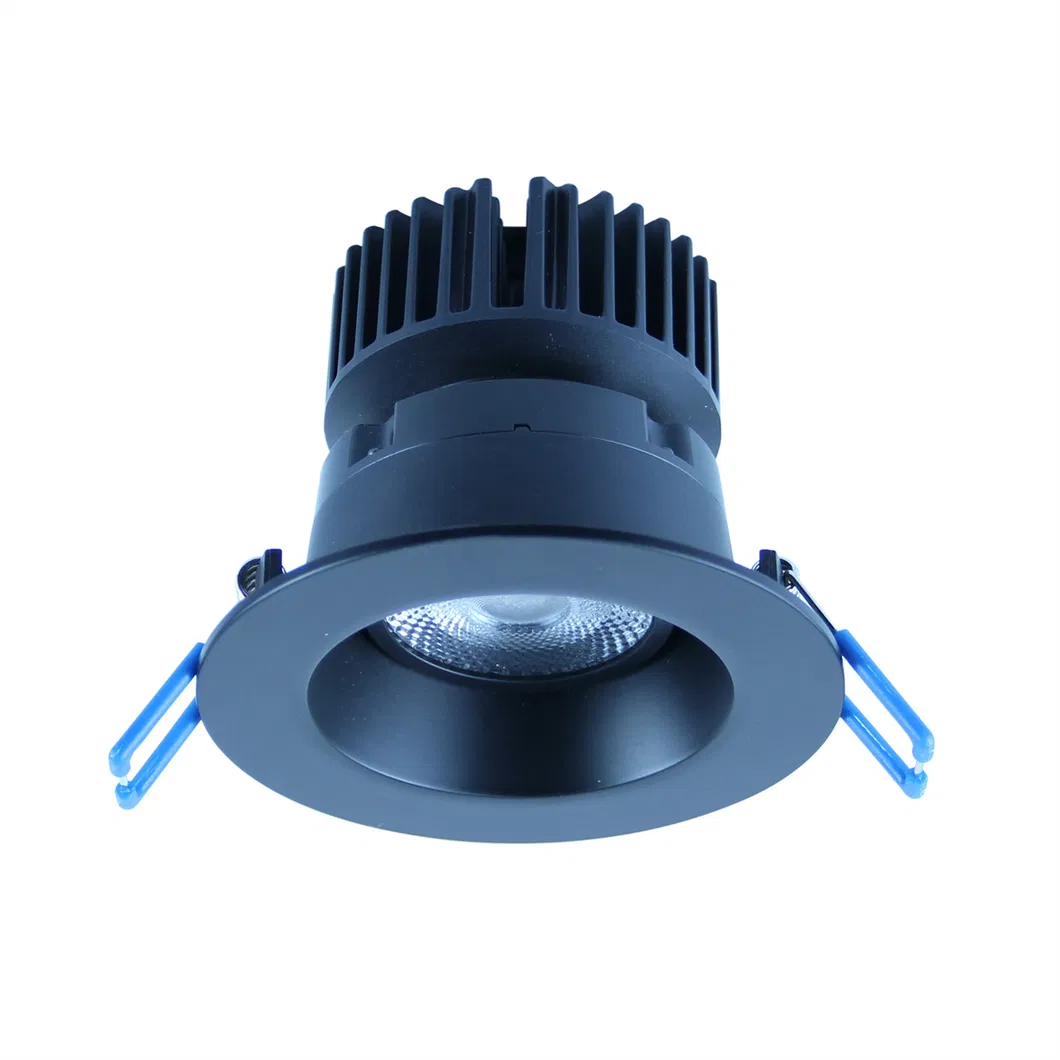

Alternative downlight option 4

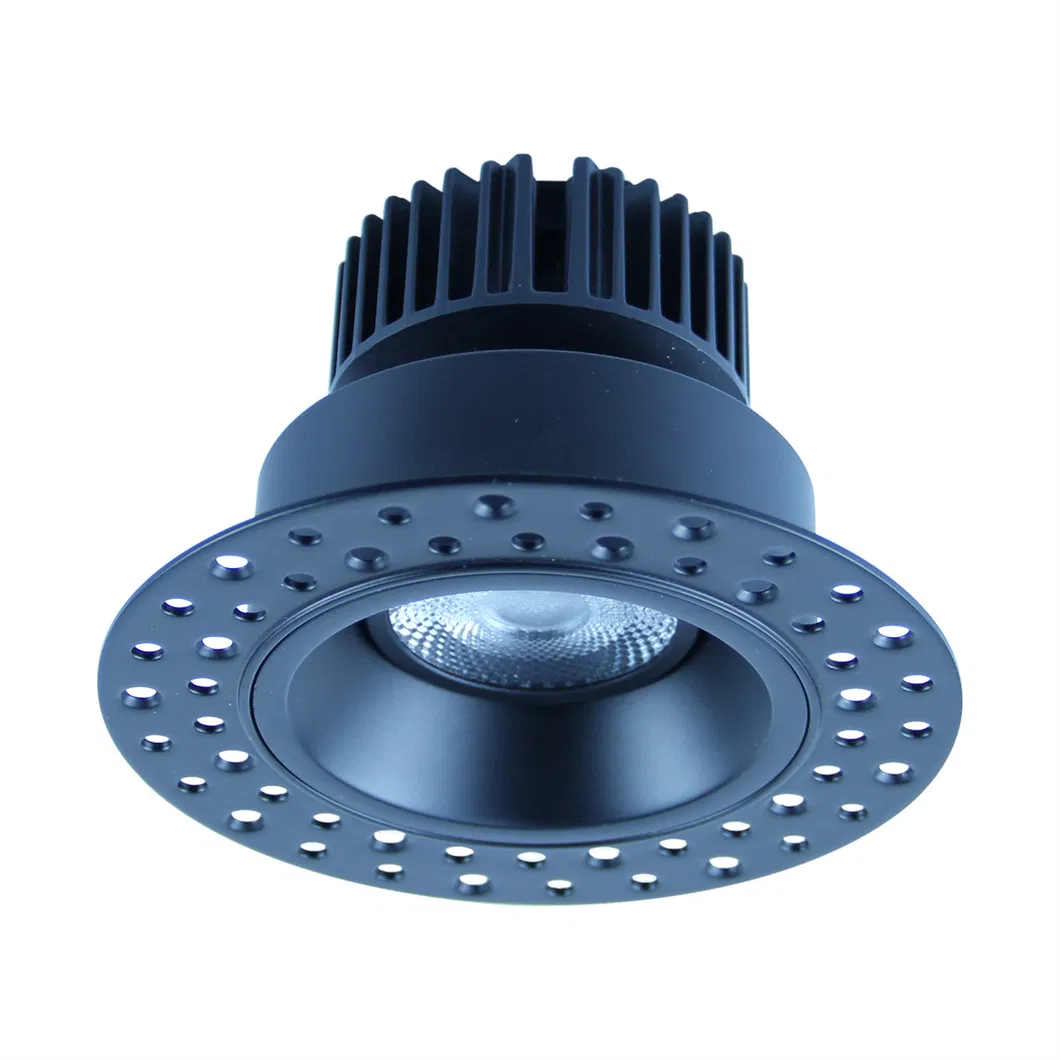

Alternative downlight option 5

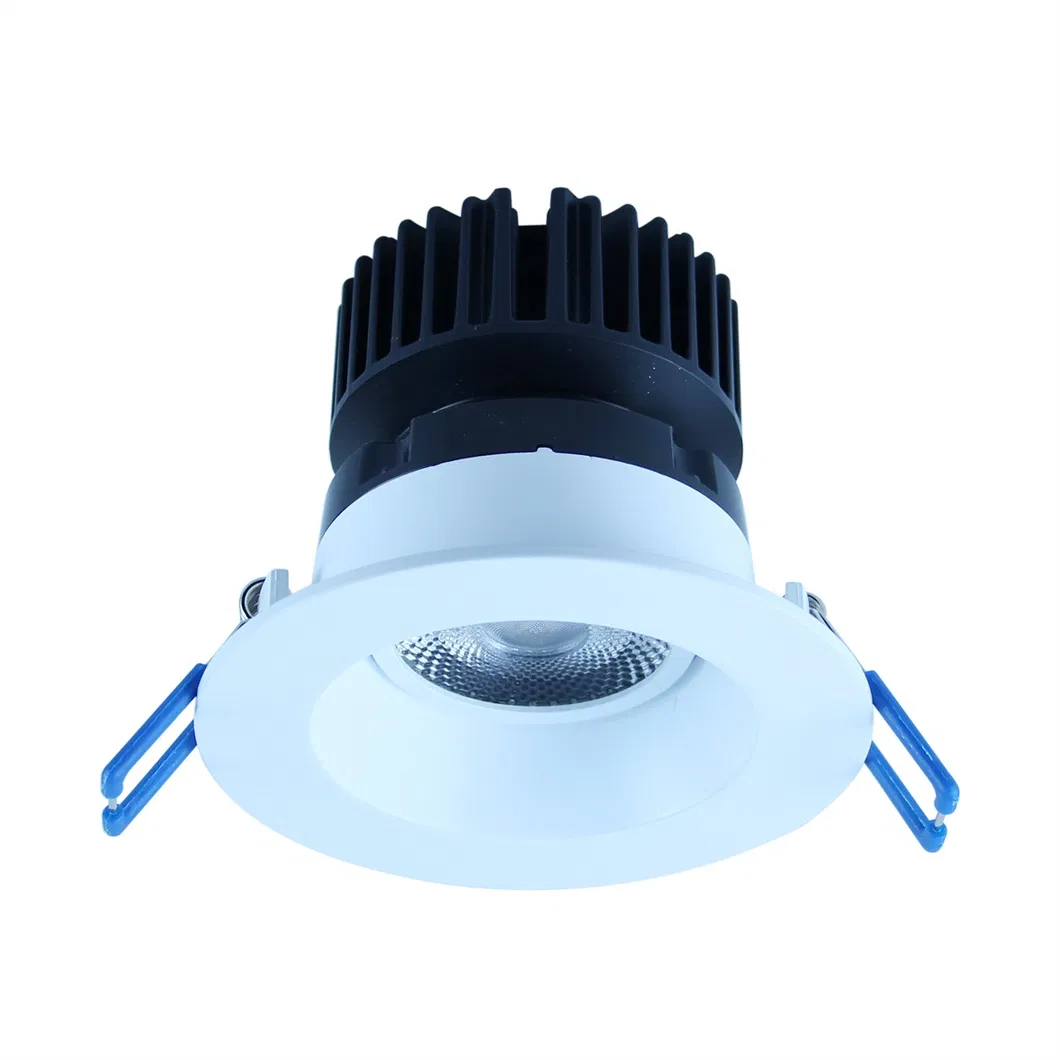

Alternative downlight option 6
Packaging & Shipping
Cardbox package is hard enough for long distance transportation. We support a wide range of logistics options: world express, by sea, air, or land etc.
Product packaging display
Safe transit packaging logistics
Worldwide express transport methods diagram
Company Profile
We are a professional led lighting manufacturer since 2014, with a total area of 4200sqms. We have cooperated with some of the biggest retailers in North America for 10 years. You can trust us to offer you high-quality lighting products and the best solutions for your business.

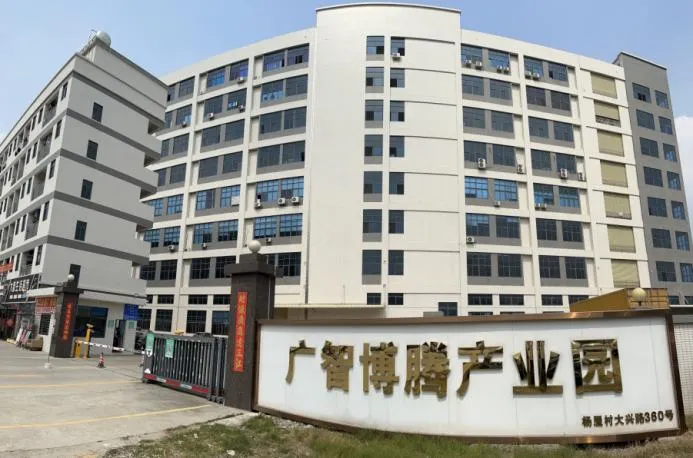

Factory internal workshop setup

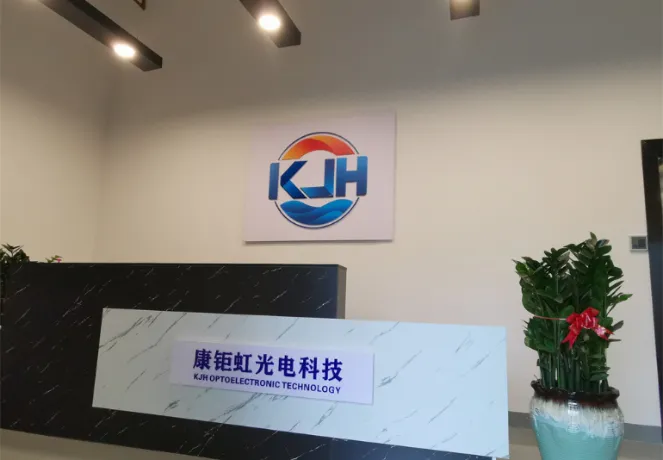

Electronic manufacturing SMT line
Our Advantages
Production
We have our own hardware factory, power supplies R&D center and workshop, and advanced manufacturing facilities including auto soldering, SMT, die casting, CNC laser machines, and electrical testing devices such as integrating spheres and distribution photometer. Over 10 low voltage aging lines support a monthly capacity of 500,000pcs.
R&D Team
We devote ourselves to developing products with state-of-the-art technologies. We have more than 10 R&D engineers with rich experience in appearance design, circuit design, electric driver, optical lens, and light control systems. Most products are self-designed with private moulds, and ETL, TUV, CE, RoHS certified.
QC
Our QC team is professionally trained to inspect electronic, optical, waterproof, and anti-corrosion features using advanced testing equipment. We strictly implement ISO9001 management processes and run a 48-hour aging test on products before shipping.
Factory Show

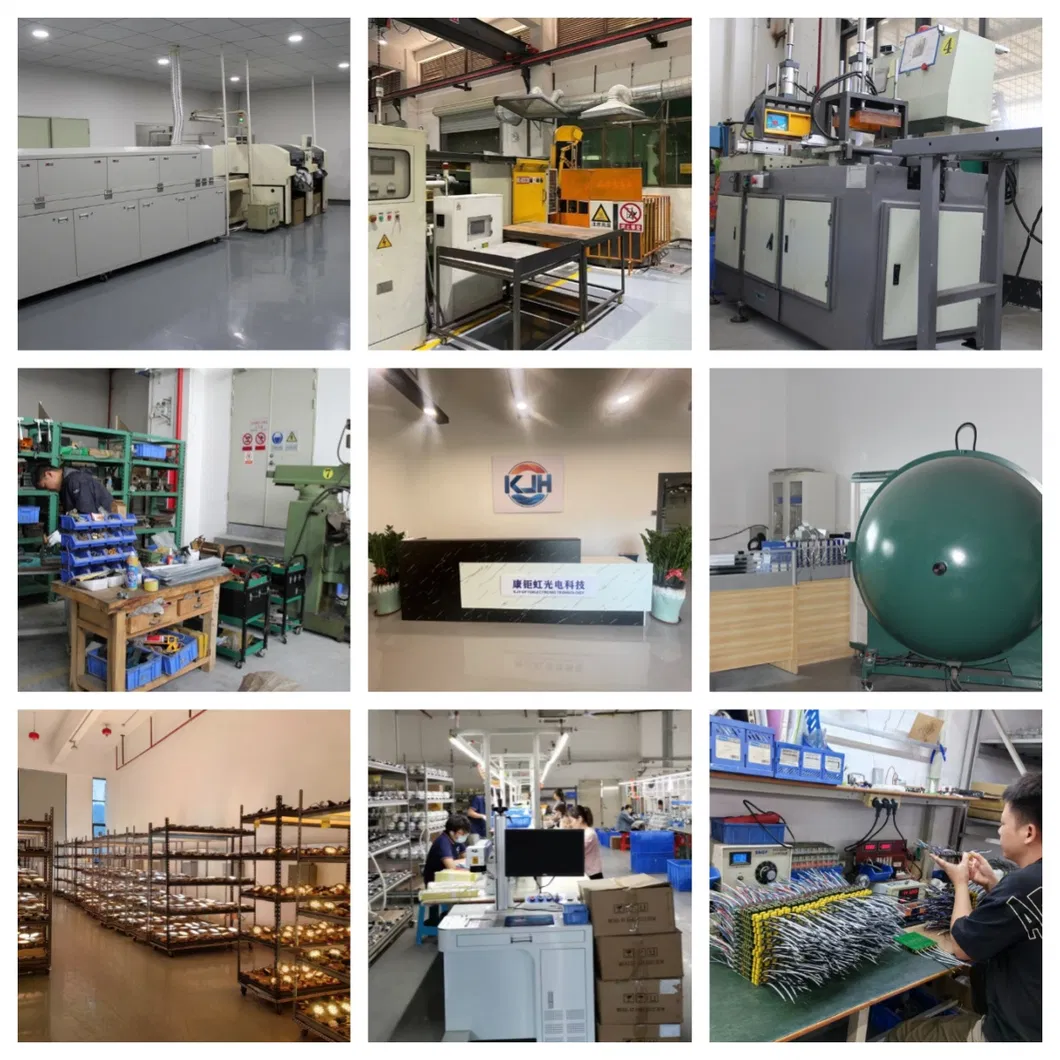

Factory aging testing production lines
Frequently Asked Questions

Q1. Are you a manufacturer?

Yes, we have our own factory with full product lines.

Q2. Can you offer samples?

Yes, you are welcome to place a sample order to test our quality before bulk orders.

Q3. How long is your production time?

If the quantity is small, the production time is usually 5-7 days. The specific production time can be determined according to the order quantity.

Q4. Do all products have to be tested before transportation?

Yes, we have to test all the products for 48 hours at least. Under strict quality control, the failure rate is kept very small.

Q5. How about your packing?

Our cartons are made of neutral cartons. The packing of our products has been inspected to be suitable for long-distance international transportation. If items are fragile, we will pack them in wooden cases if necessary.

Q6. How to solve the after-sales problem?

Take a picture of the problem and send it to us. We will provide you with a satisfactory solution within 24 hours after confirming the problem.
