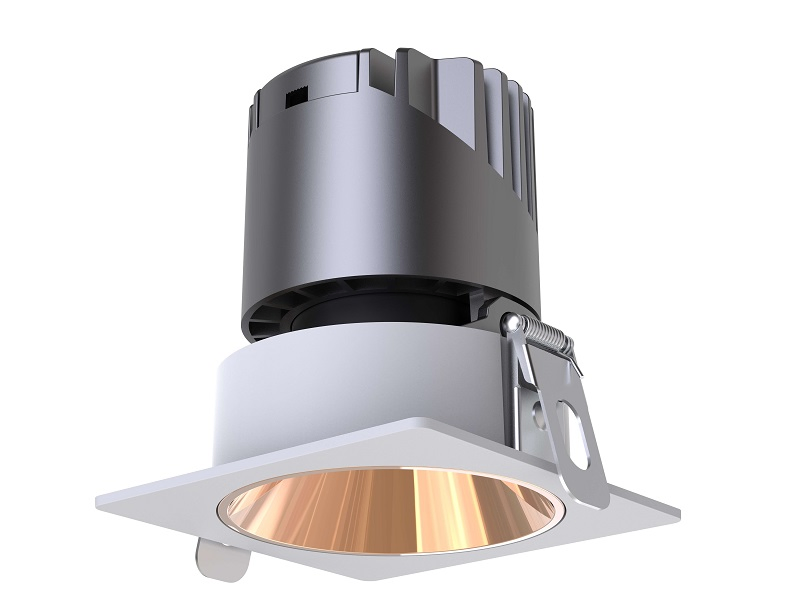

25W 0-10V Dimmable Adjustable Multi-Selective Reflector Recessed/Trimless Installation LED Downlight

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info
Model NO. AB8001-25W-DL
Power 25W
Color Temperature Warm White
Lamp Body Material Aluminum
Source Number COB
Installation Recessed
Lamp Installation Recessed
Switch Type on/off
Warranty 5 Years
Application Indoor Lighting
IP Rating IP20
Certification CE, EMC, ETL, RoHS
Size D105*H120mm
Cutout D95
Input 220-240V/100-277V
Efficiency 100lm/W
Ugr <19 Optional
Driver Brand Lifud
LED Chip COB
CRI 90
CCT 3000K/4000K/5000K/6000K
Certificate CE/RoHS/ETL
Head Option Single/Dual/3 Heads/4 Heads
Reflector White/Black/Silver
Transport Package Carton
Origin China
HS Code 9405429000
Production Capacity 50000 Per Month
Packaging & Delivery
Package Size 5.00cm * 5.00cm * 7.00cm
Package Gross Weight 1.000kg
Product Description

LED downlight is a modern, energy-efficient lighting fixture that is recessed into ceilings or flushed onto ceiling, providing directional illumination. It uses Light Emitting Diodes (LEDs) as its light source, offering superior brightness, longevity and energy-saving.

The Full Coverage Series Downlight advantages:

  • One engine for optional frames and optional colors.
  • Reflector beam: 15°/24°/38°55°.
  • Narrow trim or trimless or square or double or triple or four heads.
  • Easy replace, just change heat only no need change whole lamp.
  • Easy to disassemble & deep anti glare.
  • Reflector color: white, black, black chrome, chrome, rose golden.
  • Laser, Logo, Customized Package is available.
  • Fast lead time: 5-7 days for under 500pcs.
  • High quality with CREE/ Citizen LED chip and Tridonic/LTECH driver.
  • Dimming type: 0-10V/Triac/Dali/Dmx/Push Dim/ CCT Tunable all available.

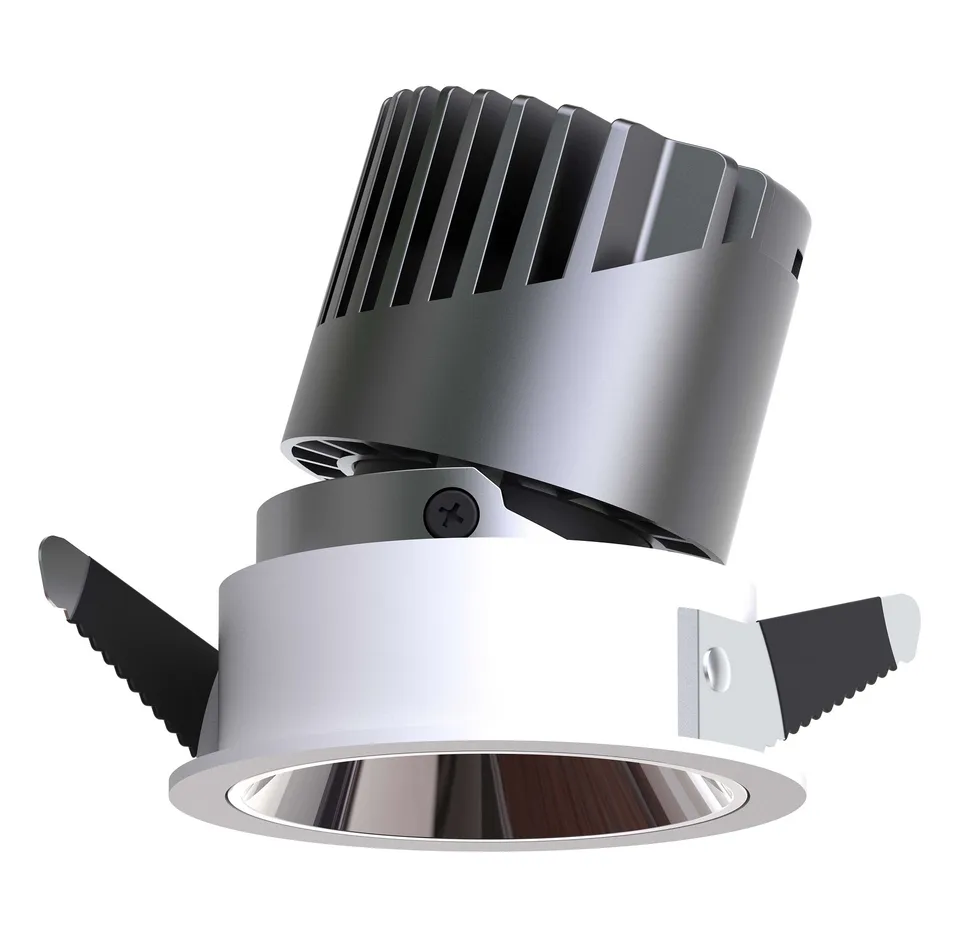

Adjustable Multi-Selective Reflector Downlight
Adjustable Multi-Selective Reflector Downlight

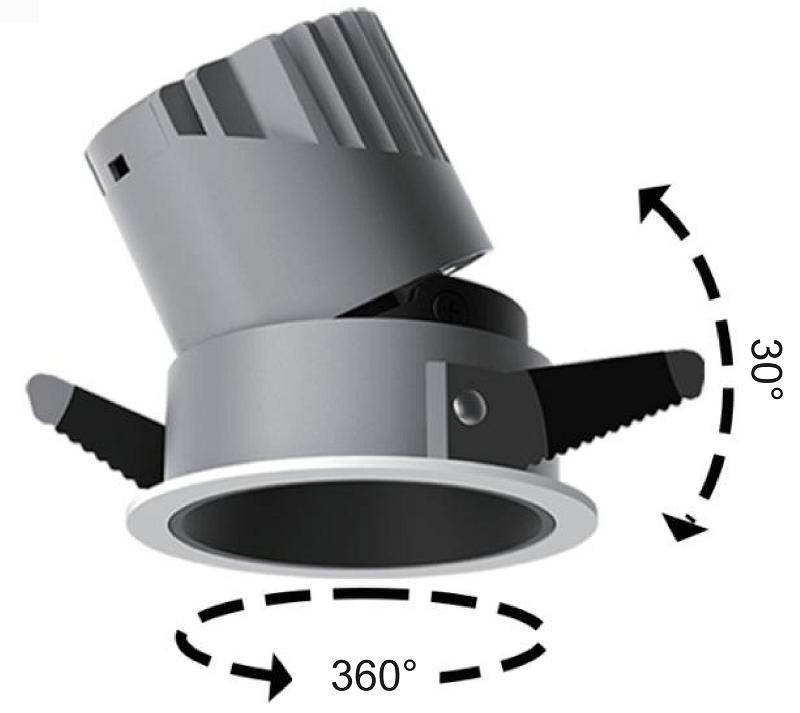

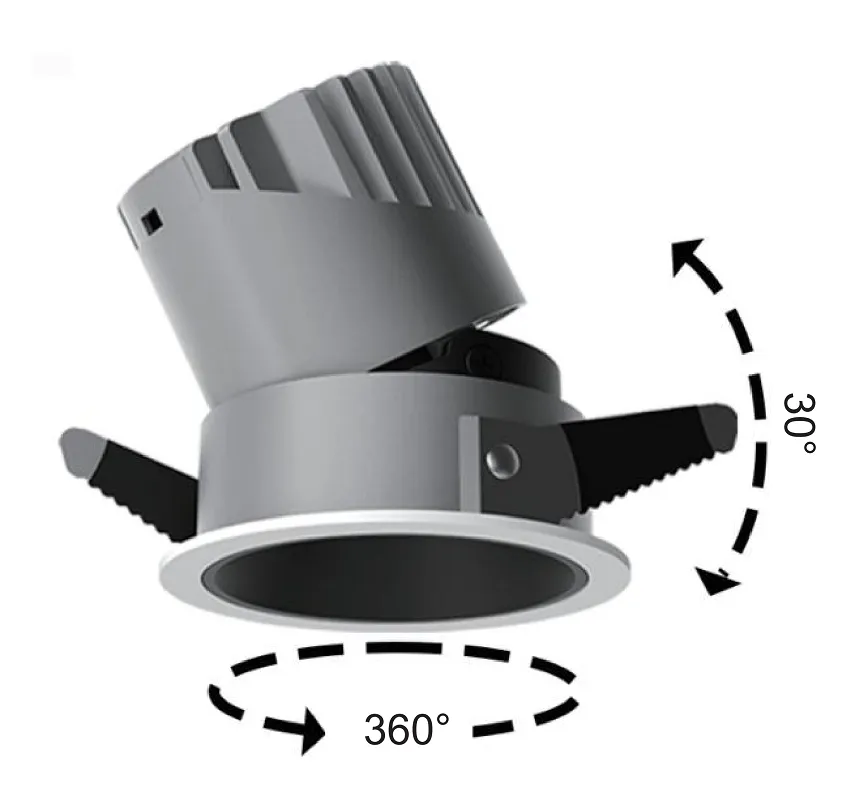

Downlight with 30° adjustable and 360° rotatable

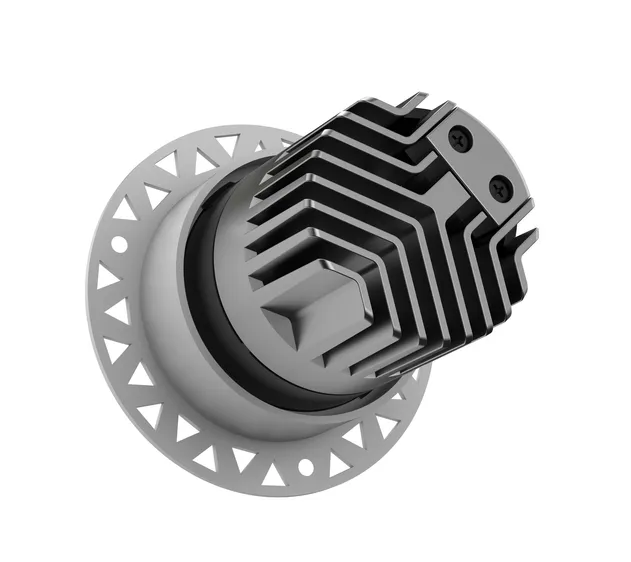

Square Recessed Mounting Downlight
Square Recessed Mounting Downlight
Square Recessed Mounting Downlight
Square Recessed mounting version with reflector colors optional
Square Recessed mounting options
Square Recessed mounting options
Square Recessed mounting options
Square Recessed mounting version with reflector colors optional
Downlight Ceiling Mounting
Downlight Ceiling Mounting
Downlight Ceiling Mounting
Downlight Ceiling mounting version with reflector colors optional / Multi-Head optional

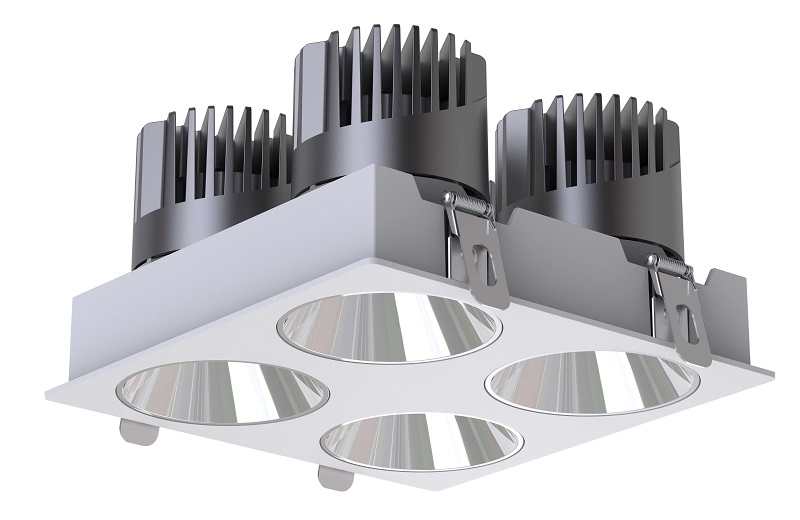

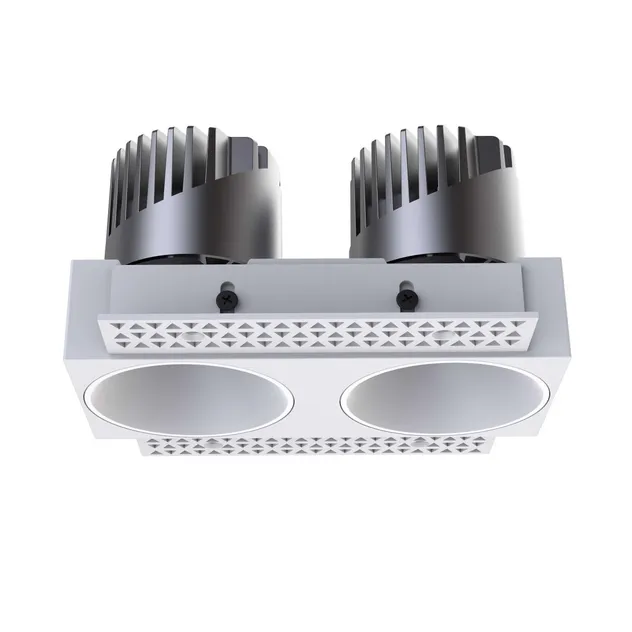

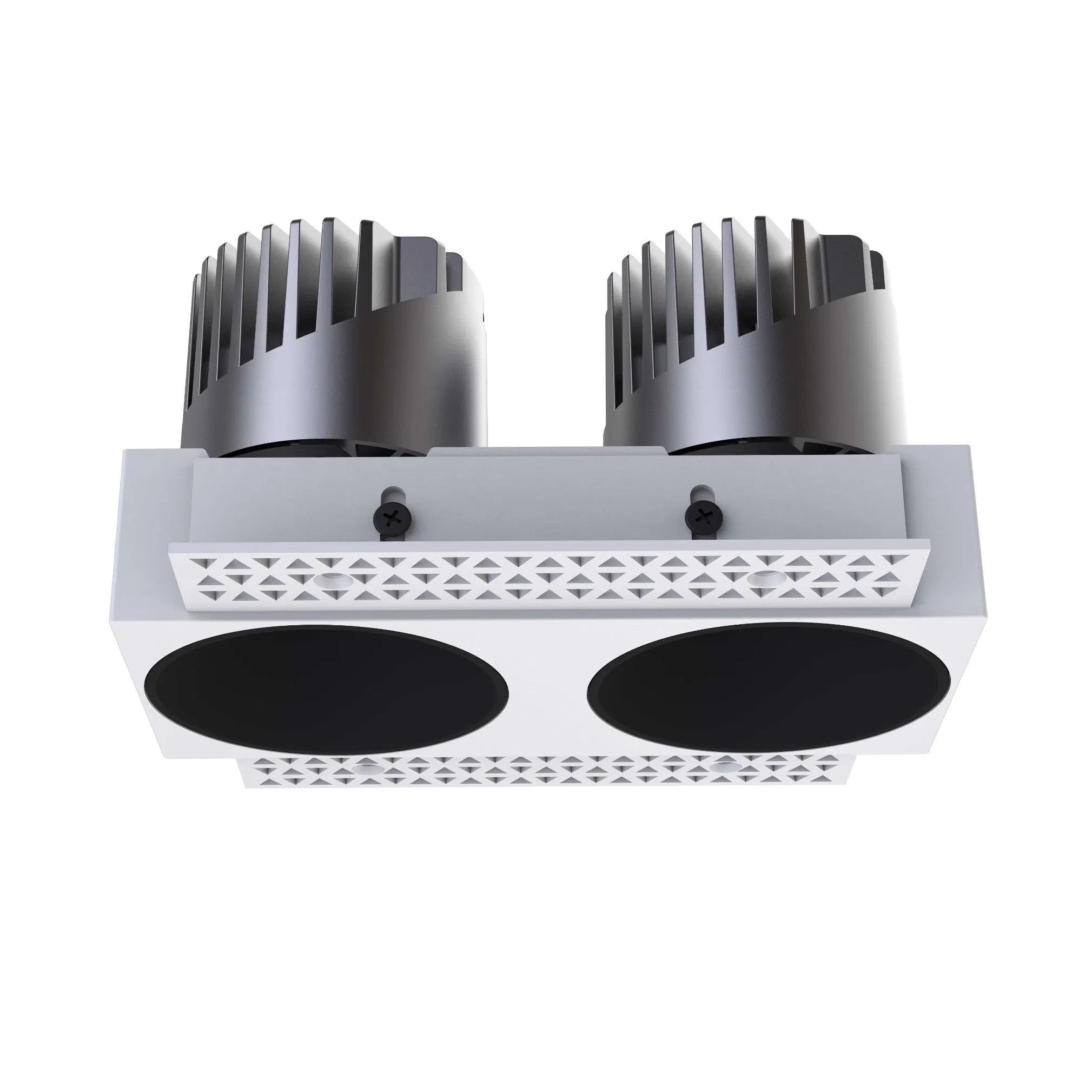

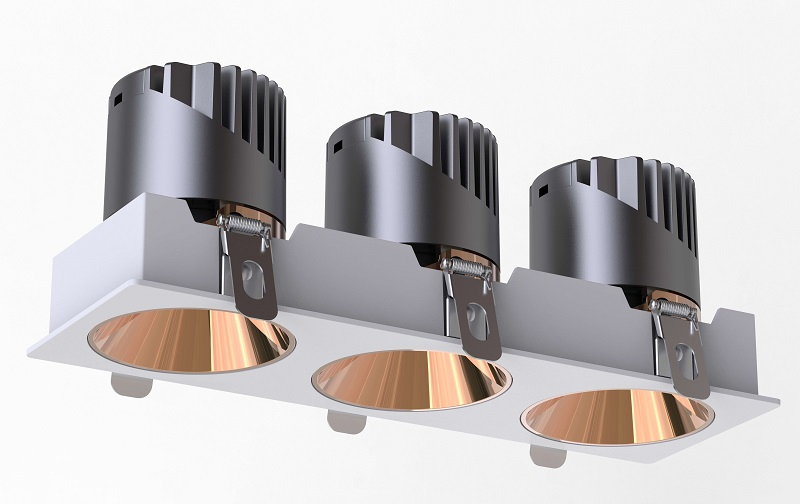

Multi Head optional
Multi Reflector color optional
Multi installation optional
Downlight Multi Head optional / Multi Reflector color optional / Multi installation optional
Specifications
Part Number Size Cutout Beam Angle Efficiency
AB8001-5W φ65*H75mm φ55mm 15° 24° 38° 55° 100Lm/w
AB8001-7W φ85*H79mm φ75mm
AB8001-9W φ85*H90mm φ75mm
AB8001-12W φ85*H100mm φ75mm
AB8001-15W φ85*H100mm φ75mm
AB8001-18W φ105*H105mm φ95mm
AB8001-25W φ105*H120mm φ95mm
Parameters Specifications Details
Input 220-240Vac/100-277Vac
Driver Lifud Driver
LED COB
Light Efficiency 100Lm/w
CCT 2700K 3000K 4000K 5000K 6000K
CRI 90
UGR 19
Beam angle 15° 24° 38° 55°
Finish White or Black
Function 0-10V/DALI/EM Kits
Fix or Adjustable Adjustable
Installation method Ceiling/Recessed/Trimless Recessed
Material Aluminum
Operating -20° ~ 40°
Warranty 5years
Company Profile

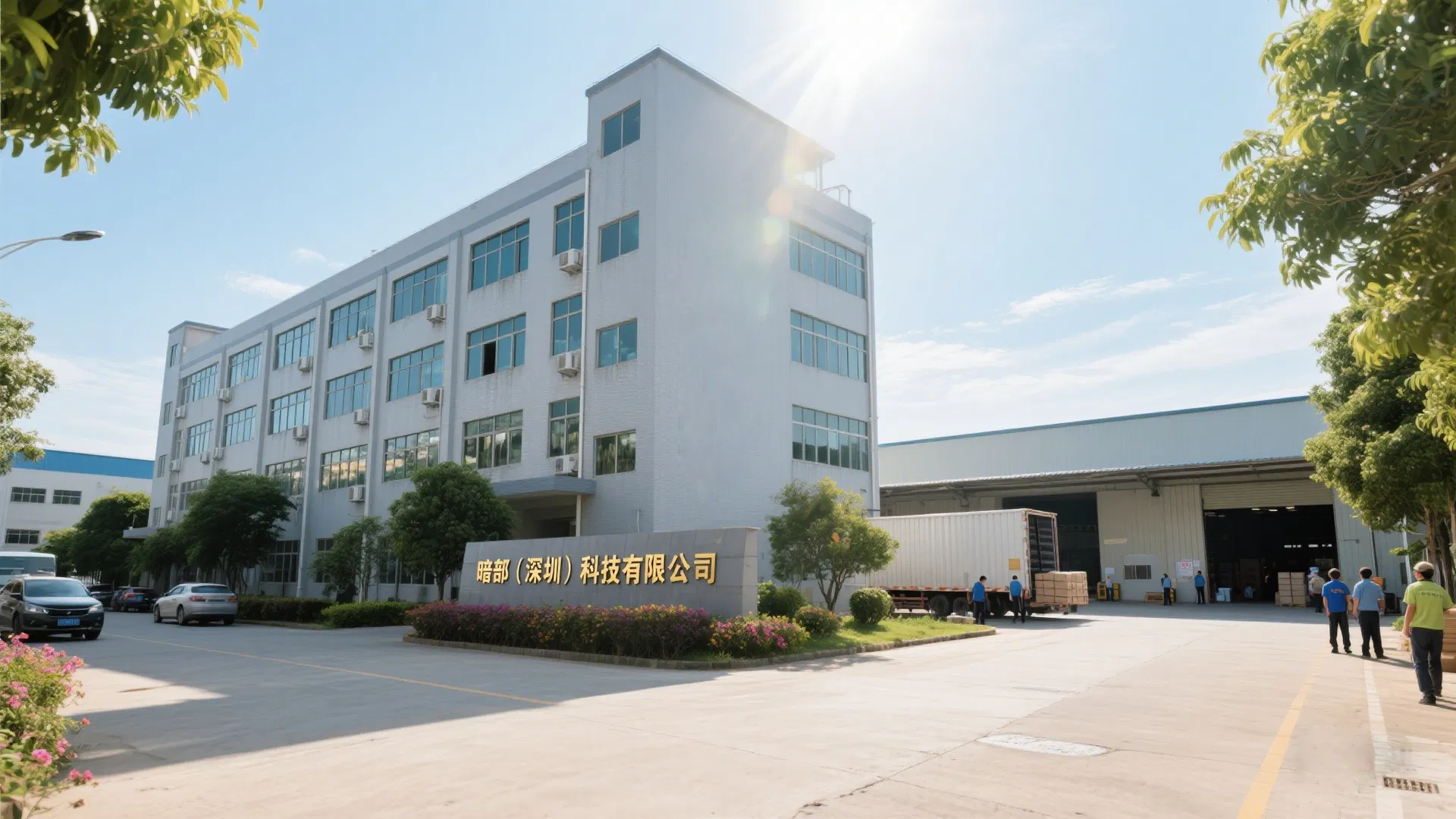

Manufacturing Center

A Trusted LED Lighting Manufacturer with 10 Years of Excellence. For over a decade, our team has been at the forefront of LED lighting innovation, delivering high-quality, energy-efficient lighting solutions to clients worldwide. With 10 years of industry expertise, we specialize in designing, manufacturing, and supplying premium LED linear lights, downlights and other commercial & residential lighting products.

Why Choose Us?

  • 10+ Years of Manufacturing Experience – Proven expertise in LED technology.
  • High-Quality & Energy-Efficient – Strict quality control with international certifications (CE, RoHS, ETL etc.).
  • Customizable Solutions – Tailored designs, sizes, and color temperatures to meet diverse project requirements.
  • Competitive Pricing & OEM/ODM Support – Cost-effective production with flexible customization.
  • Global Export Experience – Reliable supply to Europe, North America, Asia, and beyond.
Production Facility

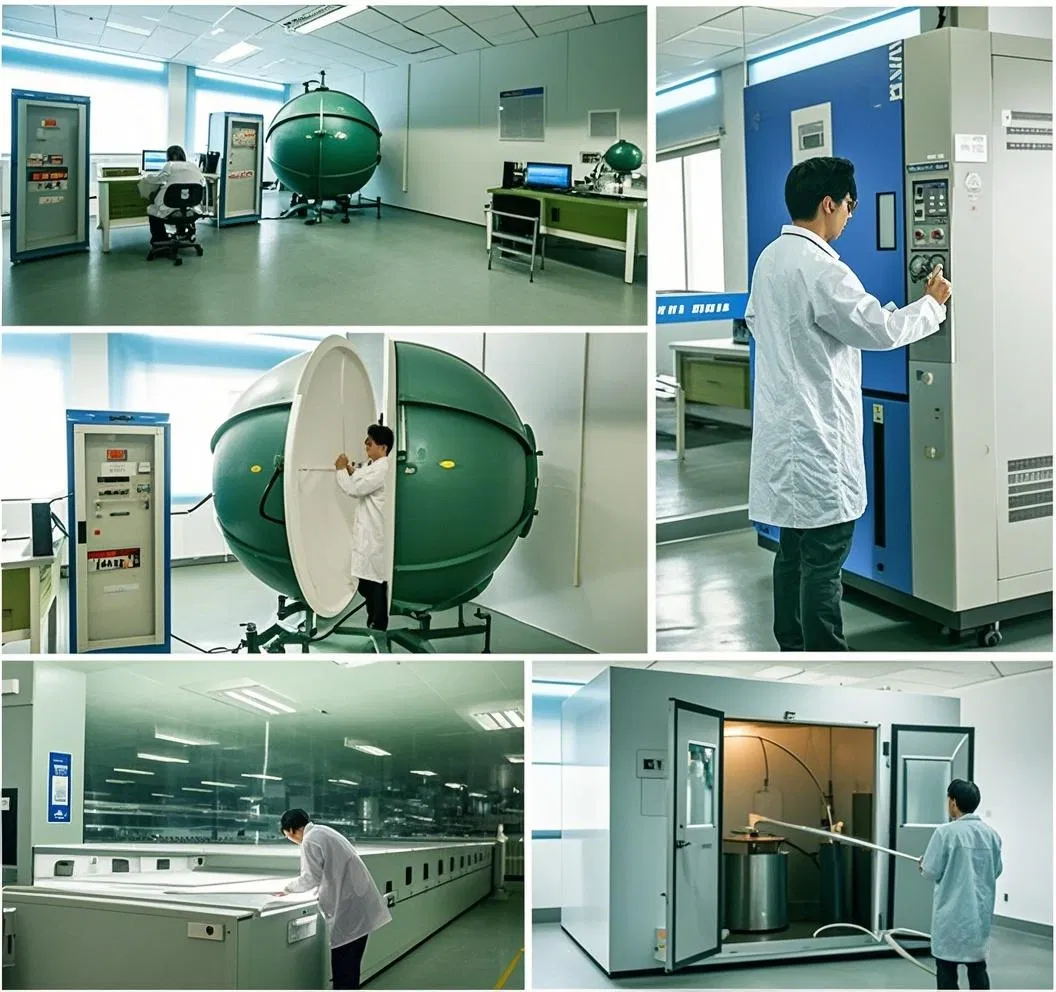

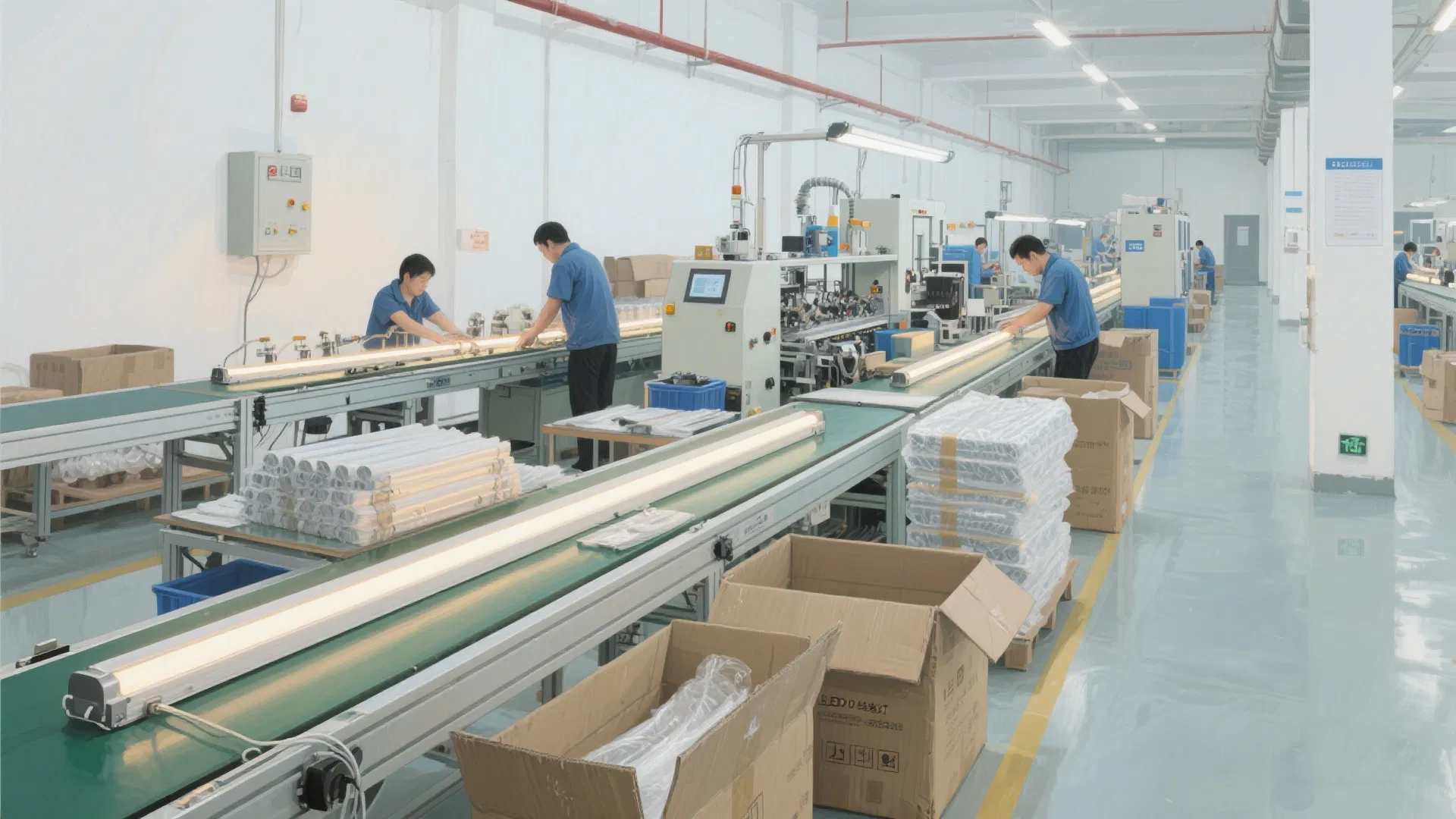

Testing Area
Warehouse

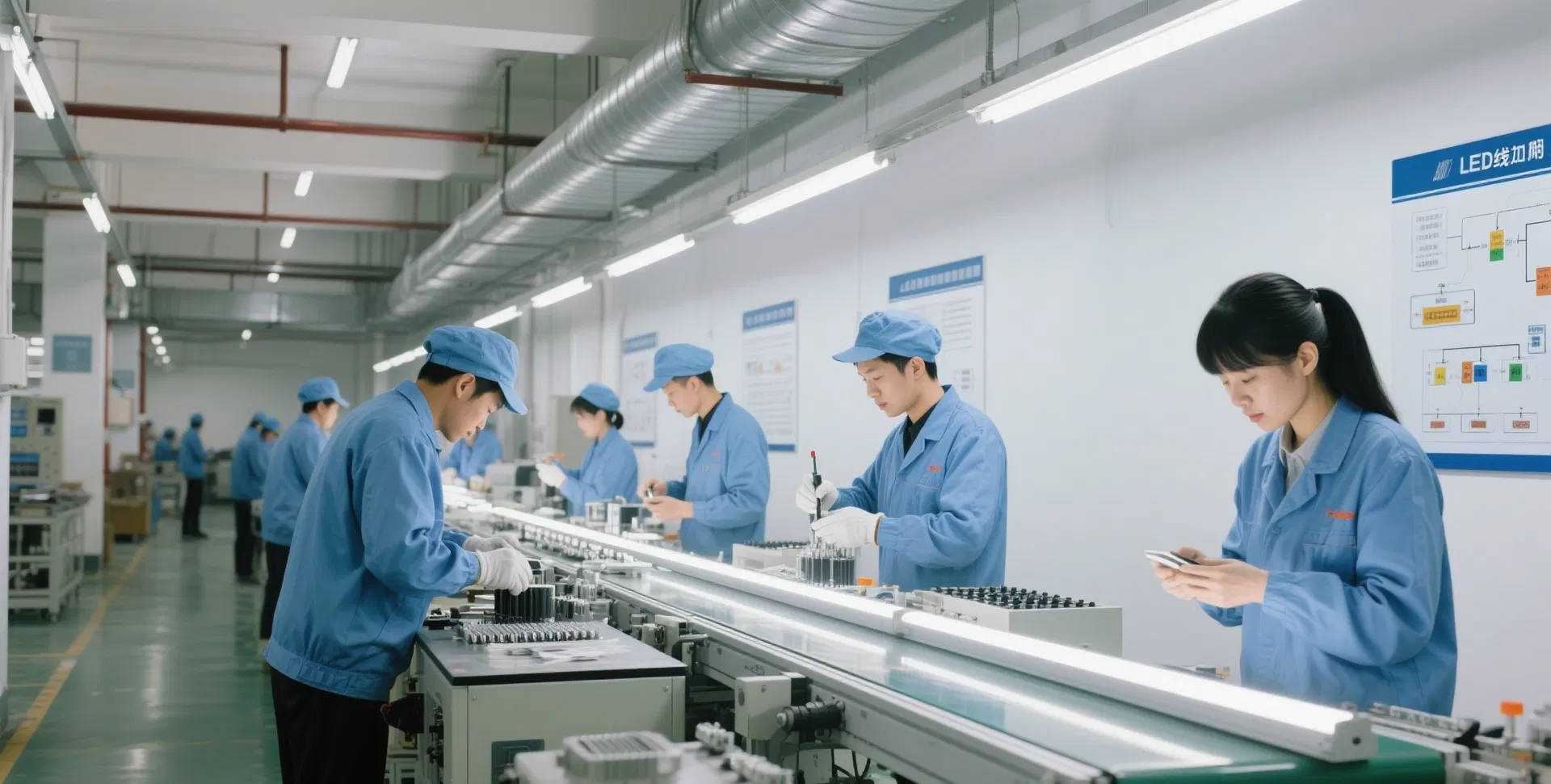

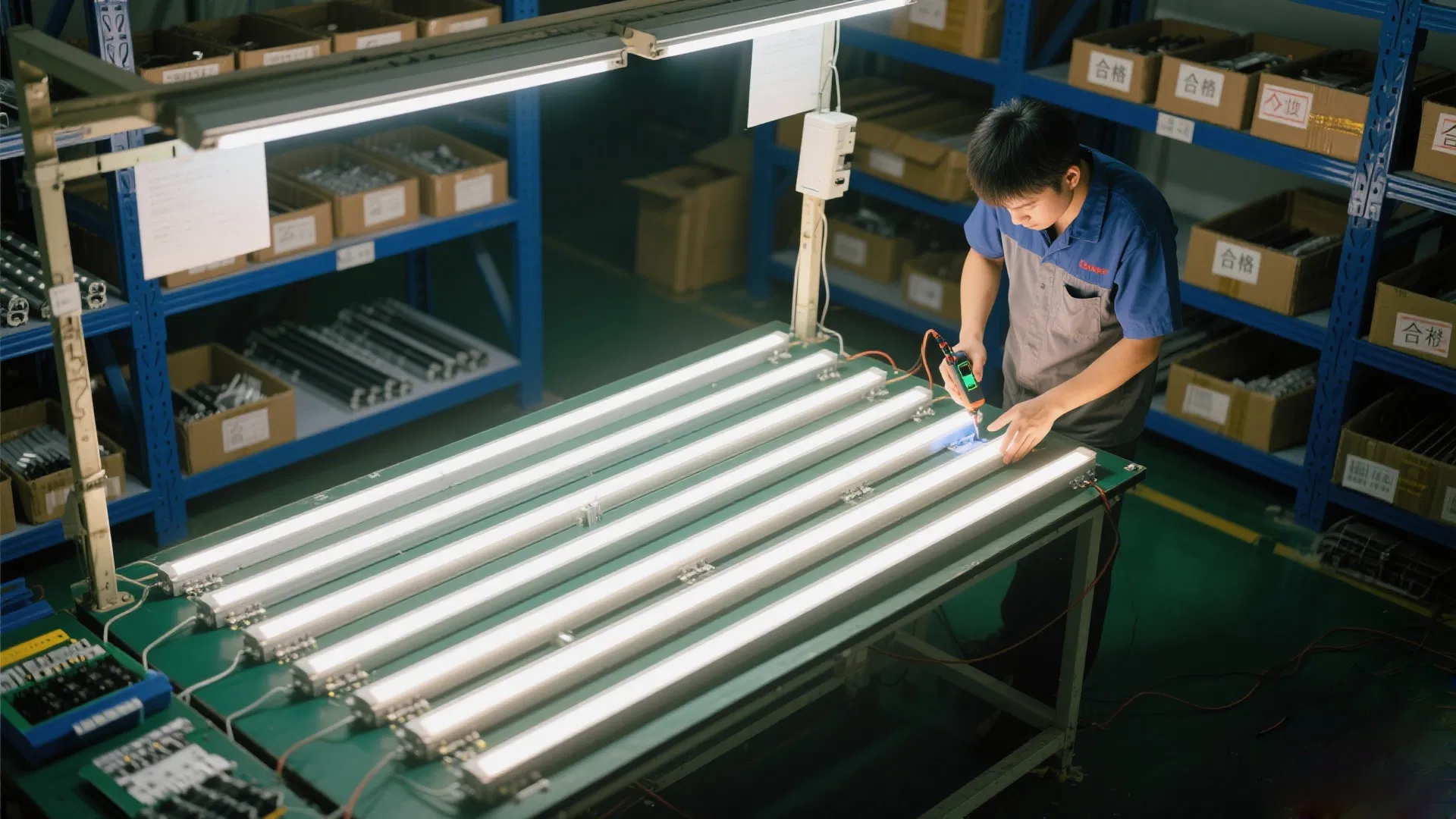

Manufacturing Line

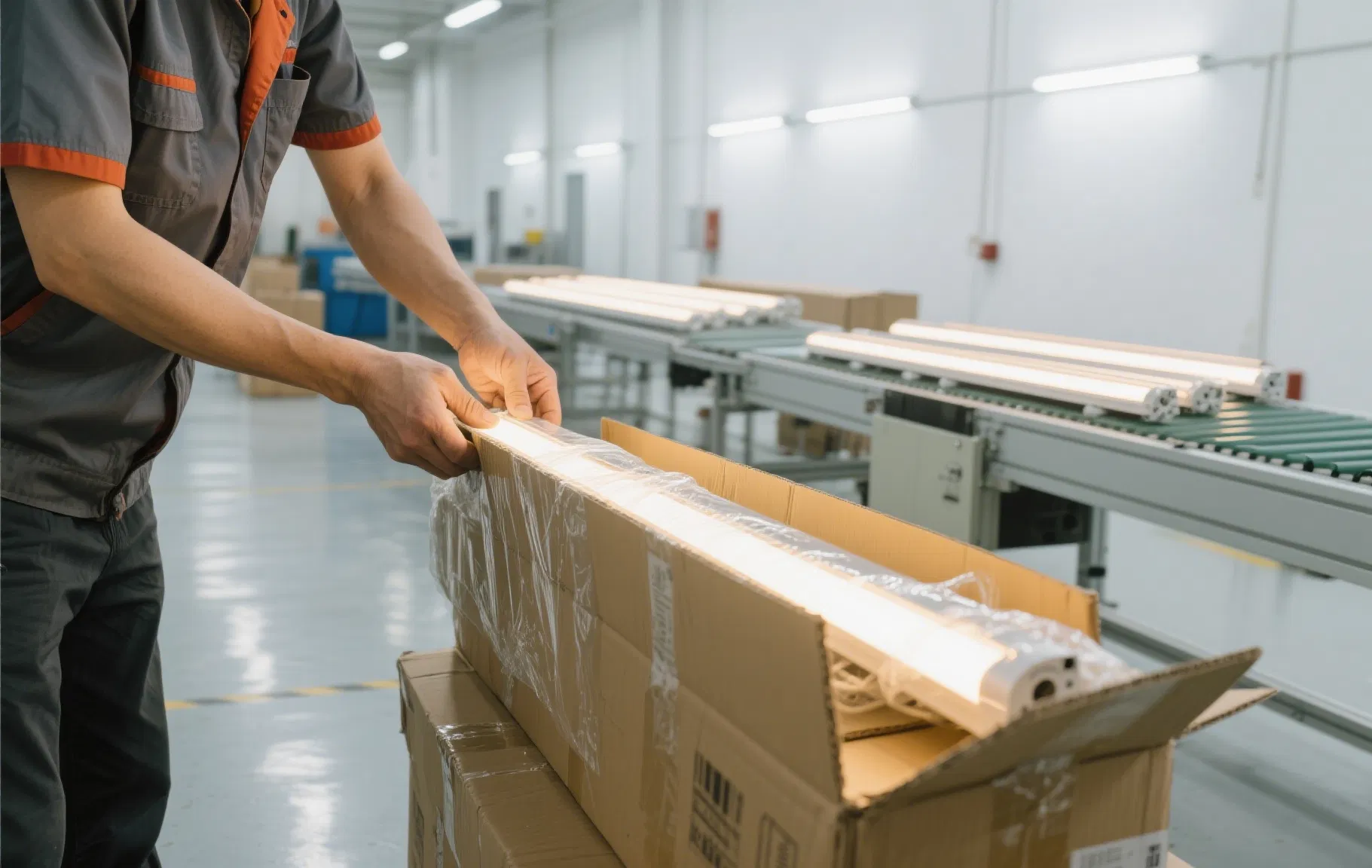

Quality Inspection
