Vactrim Light
Vactrim Light
| Model Name | SJ-P2.6 | SJ-P2.976 | SJ-P3.91 | SJ-P4.81 |
| Pixel Pitch | 2.6mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Density/㎡ | 147,456 dots | 112,896 dots | 65,536 dots | 43,264 dots |
| LED Configuration | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Module Size | 250mm * 250mm | 250mm * 250mm | 250mm * 250mm | 250mm * 250mm |
| Module Resolution | 96 * 96 dots | 84 * 84 dots | 64 * 64 dots | 52 * 52 dots |

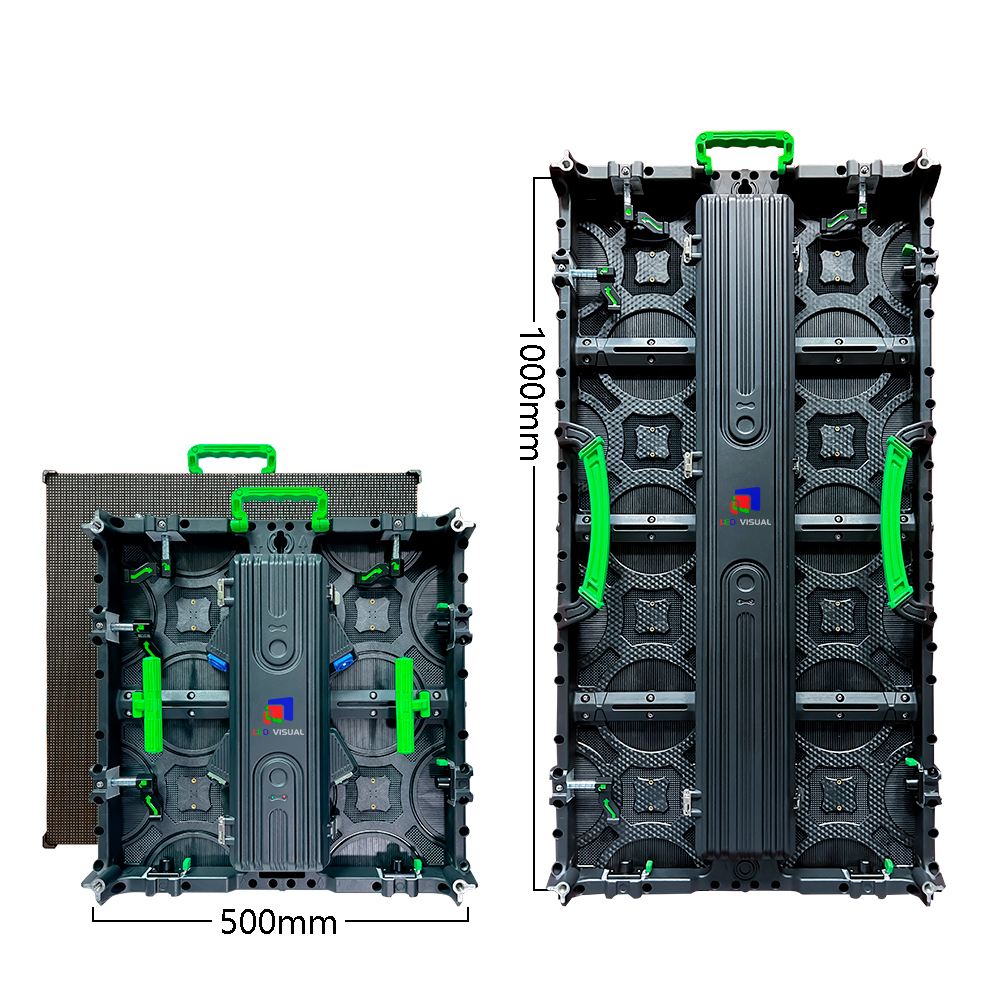

| Cabinet Dimension | 500 * 500 * 88mm | 500 * 500 * 88mm | 500 * 500 * 88mm | 500 * 500 * 88mm |
| Cabinet Resolution | 192 * 192 dots | 168 * 168 dots | 128 * 128 dots | 104 * 104 dots |
| Cabinet Weight | 7 Kg | 7 Kg | 7 Kg | 7 Kg |
| Driving Mode | 1/30 | 1/21 | 1/16 | 1/13 |
| Refresh Rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥4500cd/㎡ | ≥5000cd/㎡ | ≥5500cd/㎡ | ≥5500cd/㎡ |
| Viewing distance | 2.5-30m | 3-60m | 4-60m | 5-70m |
| Power consumption | Average: 400W/㎡ Max: 880W/㎡ | |||
| Maintenance method | Front/back | |||
| Cabinet raw material | Die-casting aluminum | |||
| IP Rating | Front: IP41 / Back: IP51 | |||
| Humidity | 10%-90% | |||
| Life | 100,000 hours | |||
