Vactrim Light
Vactrim Light
Welcome to check more products: spot light, down light, track light, linear light, surface mounted, fixed, adjustable, and so on.
Ask us for full product range.
Feel free to ask us for more choice for you.
| Model | Details & Specification |
|---|---|
| KH-3043 |

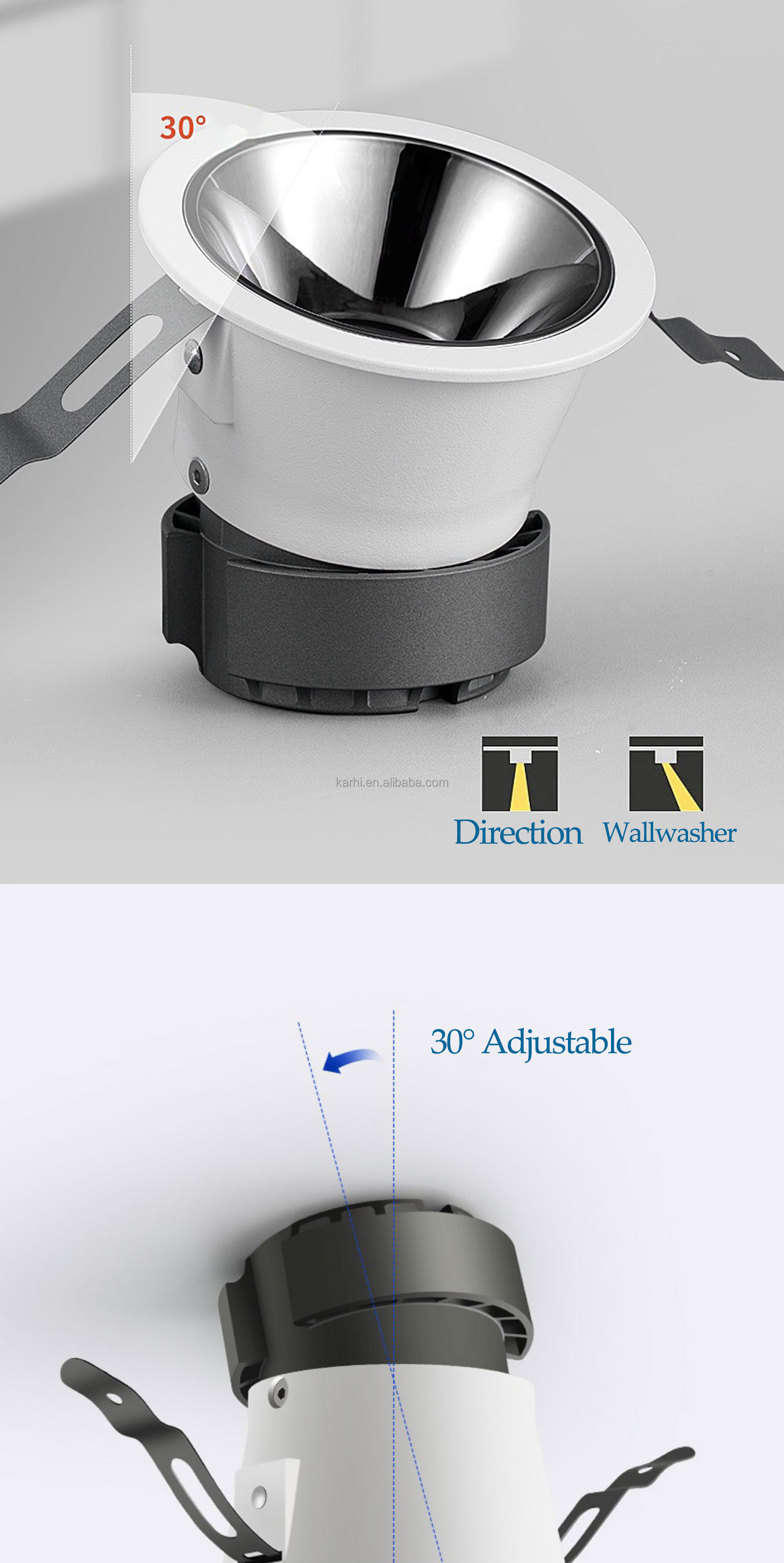

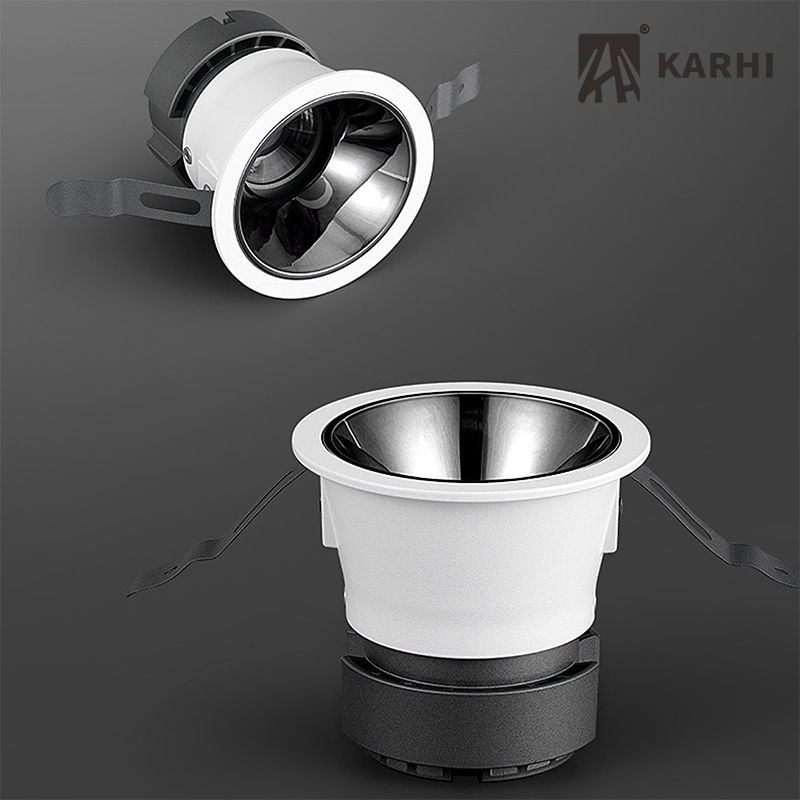

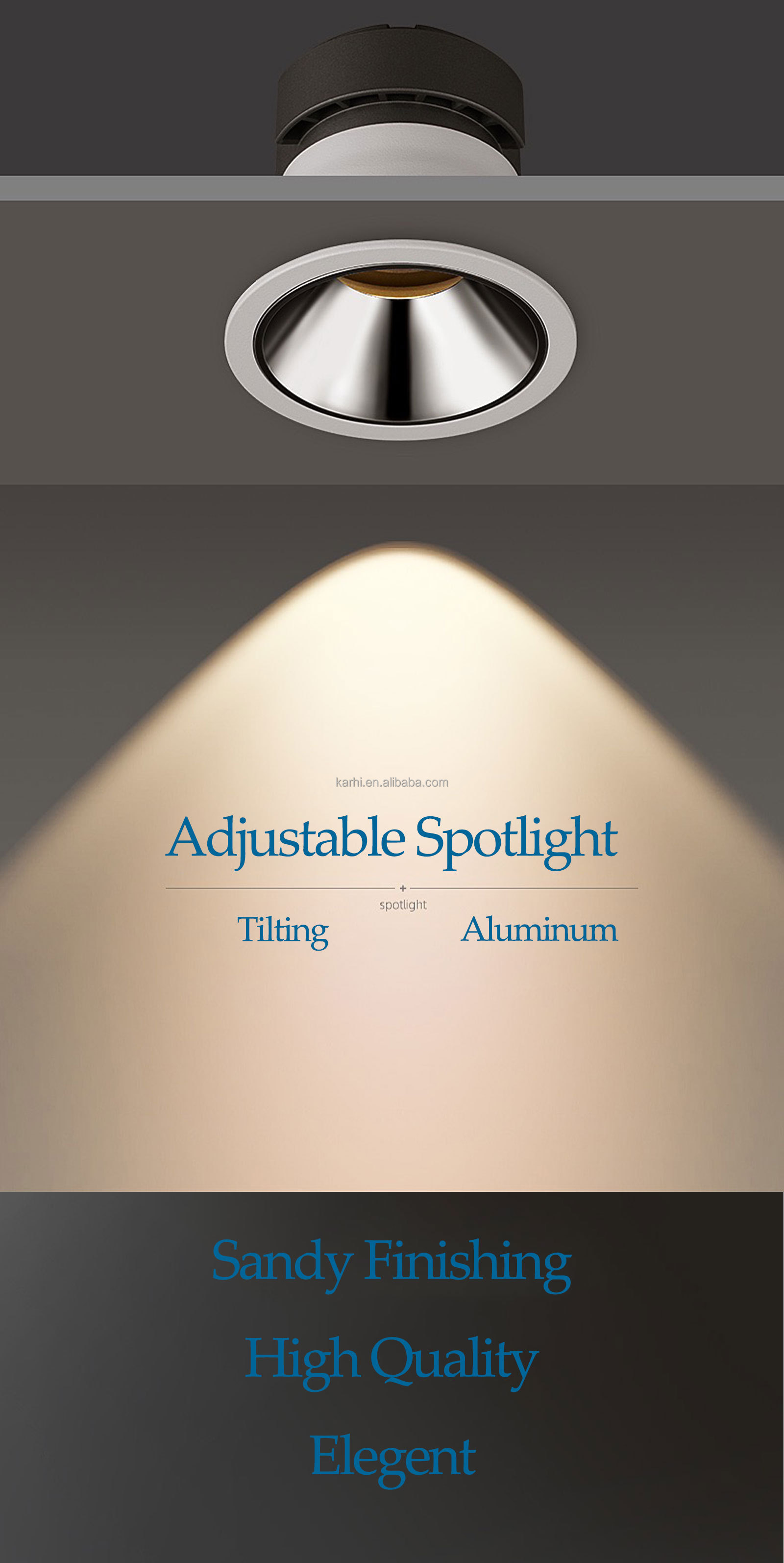

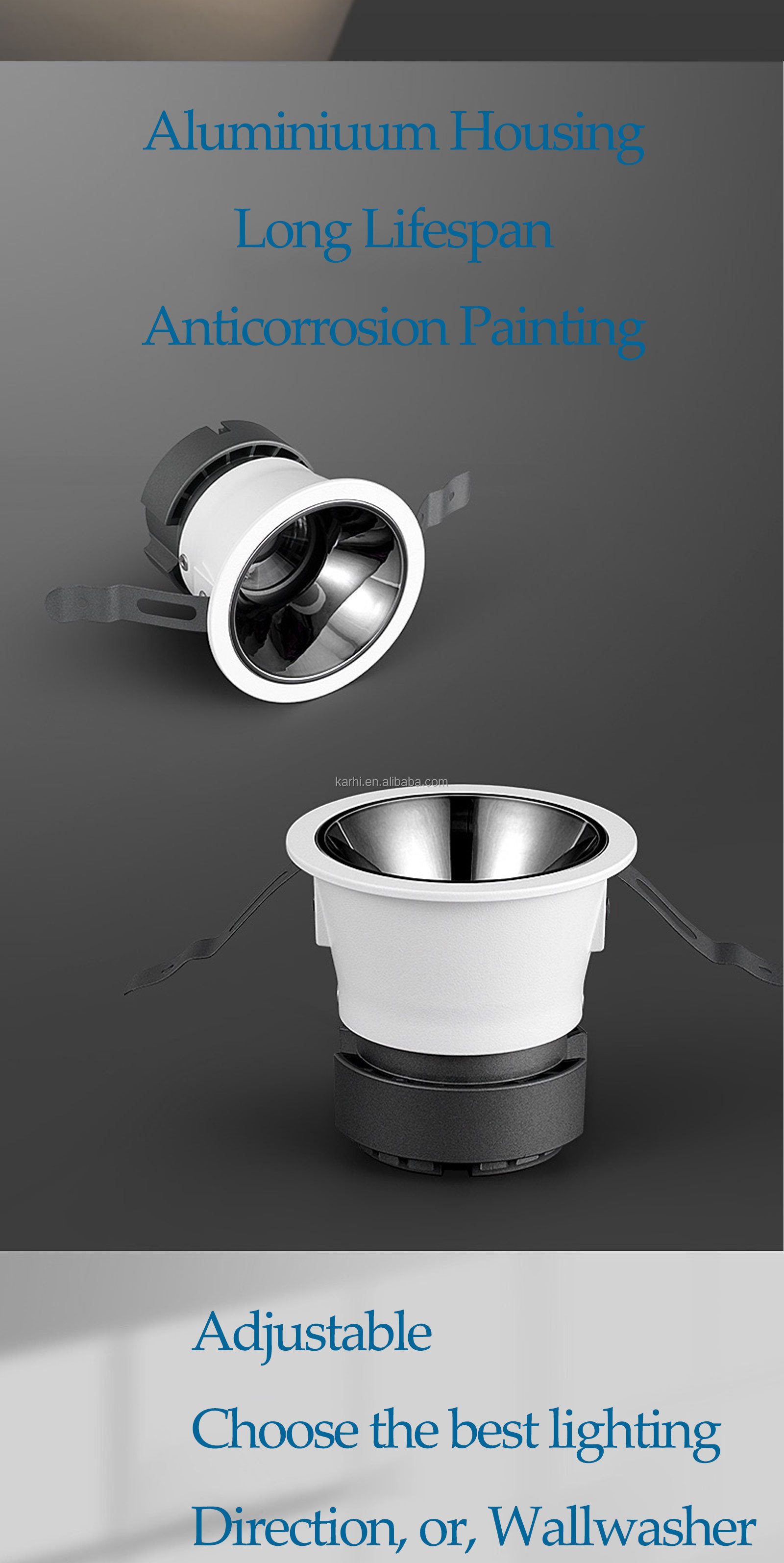

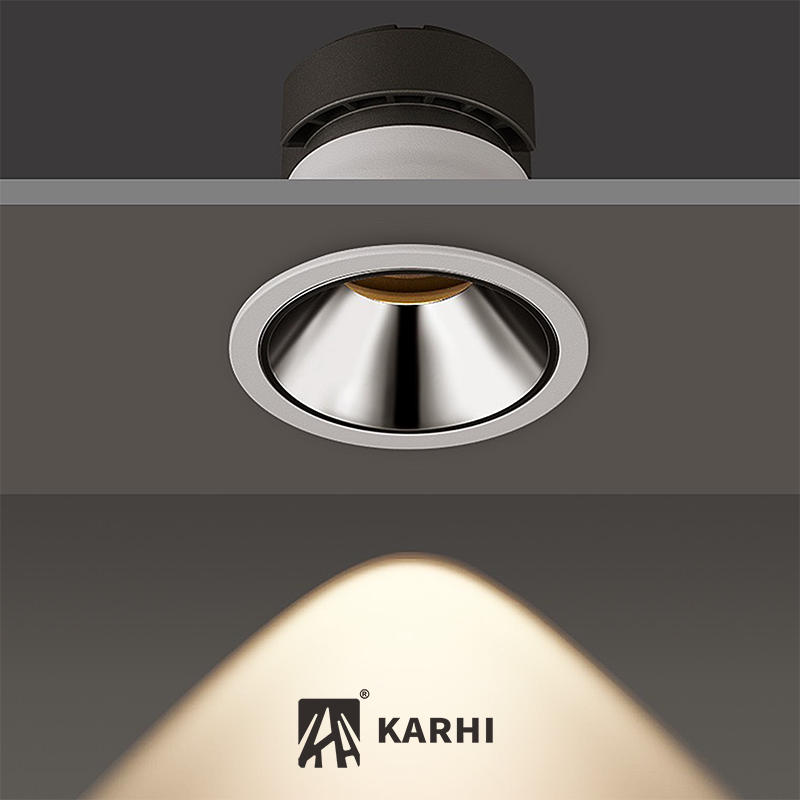

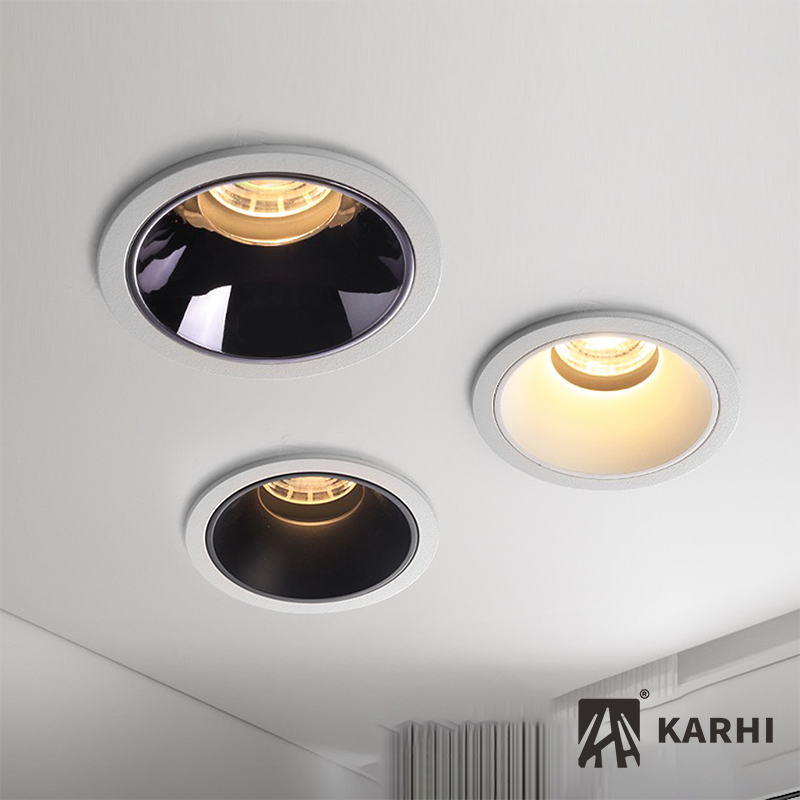

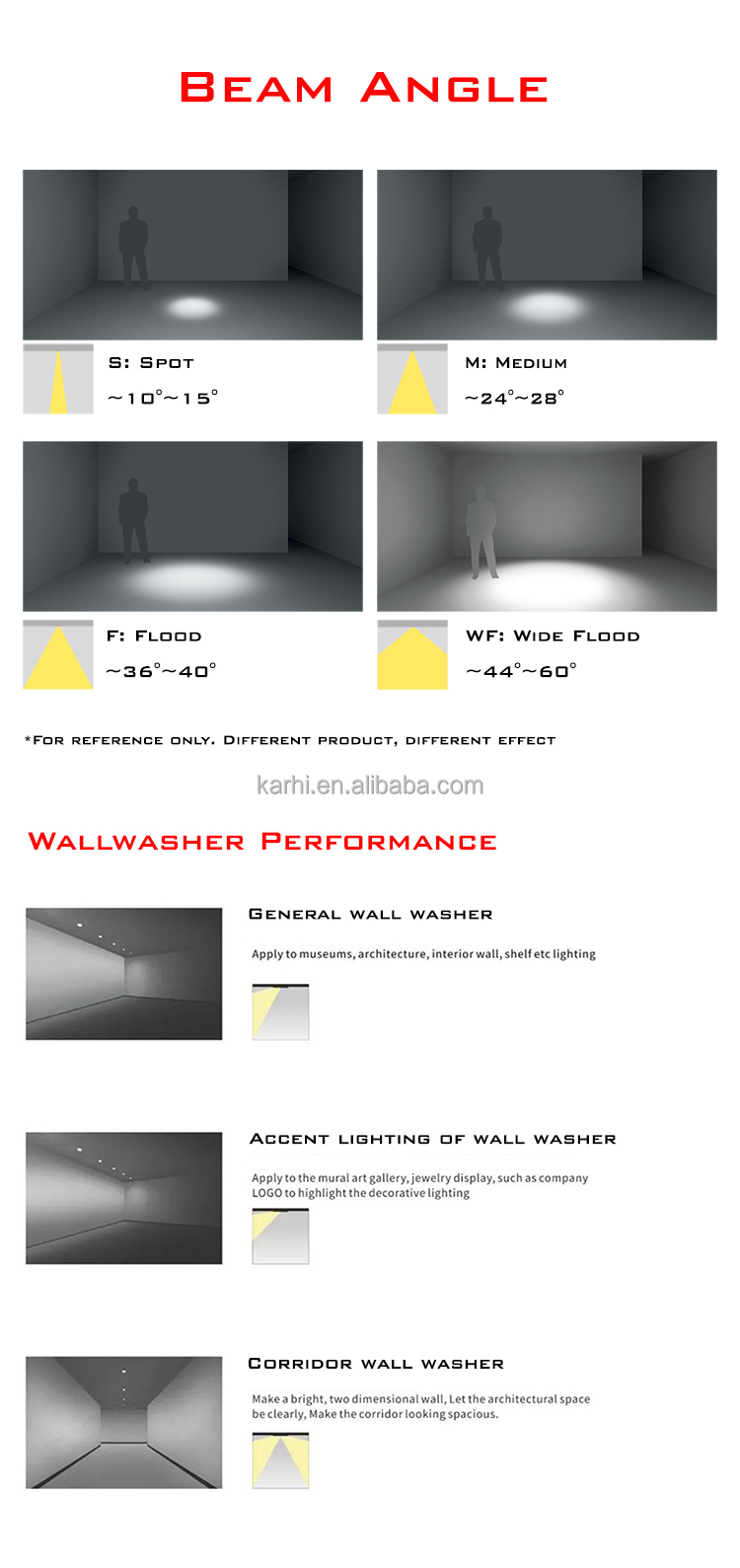

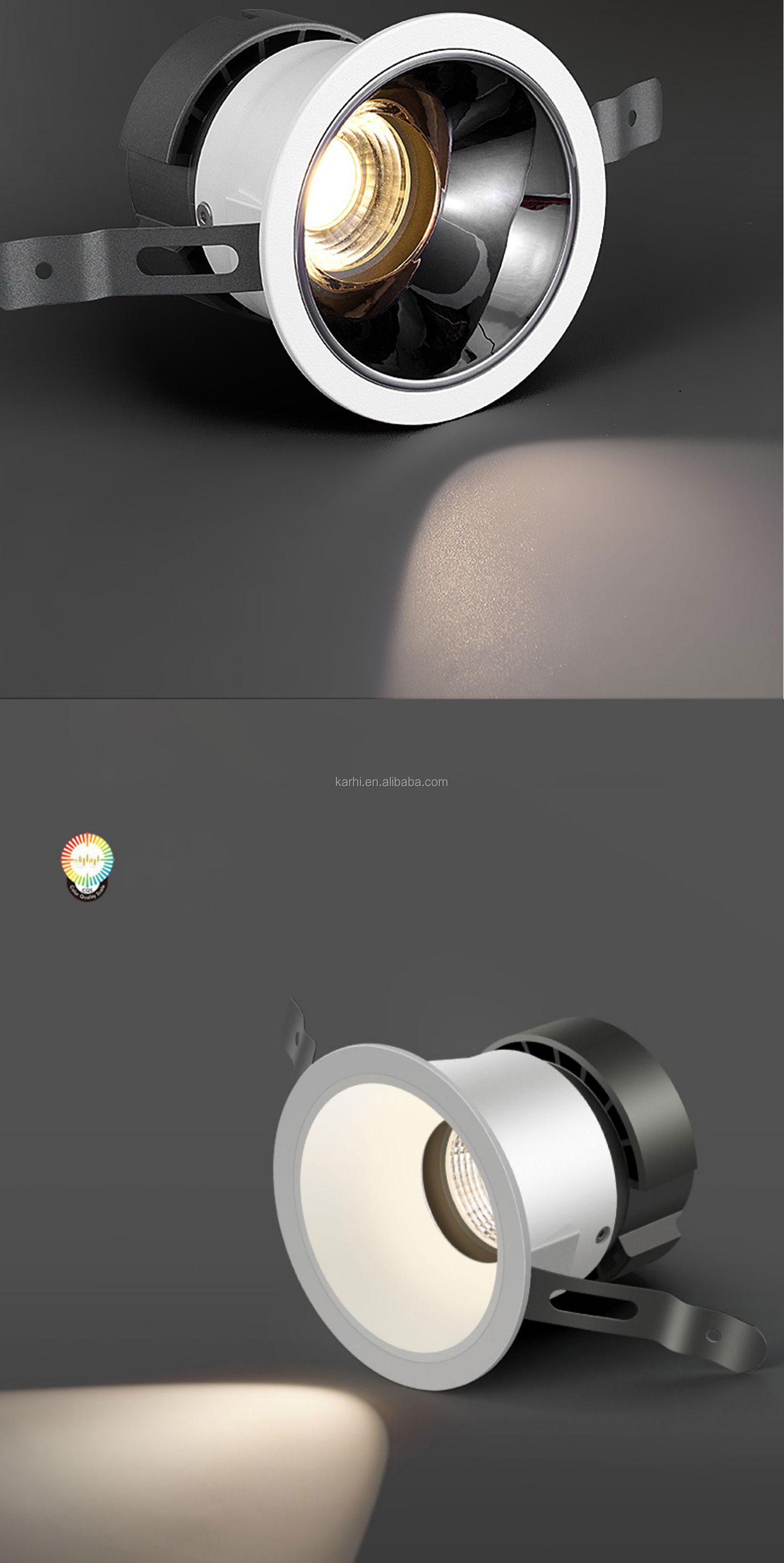

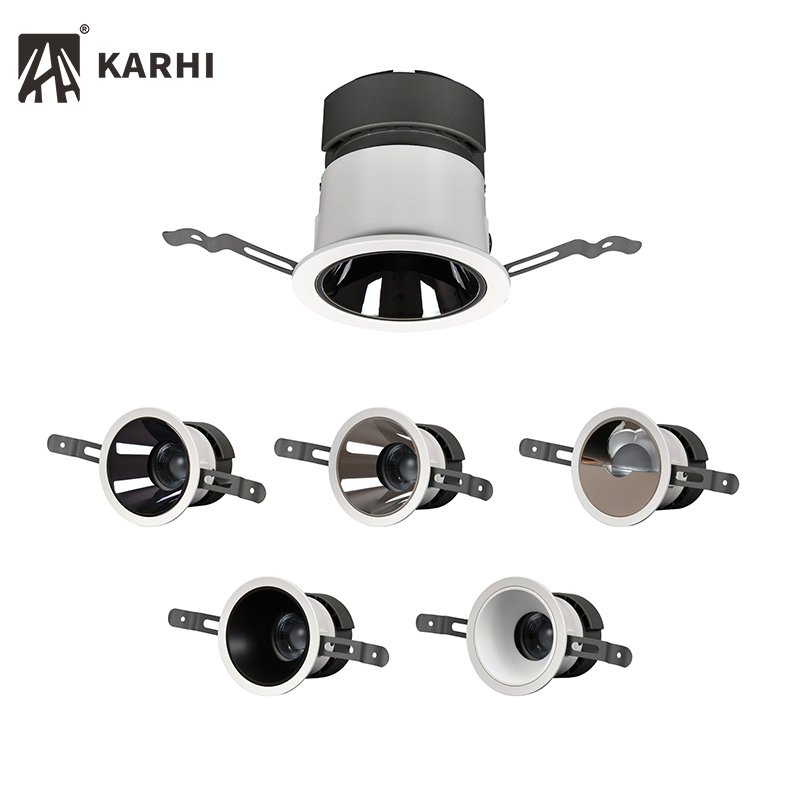

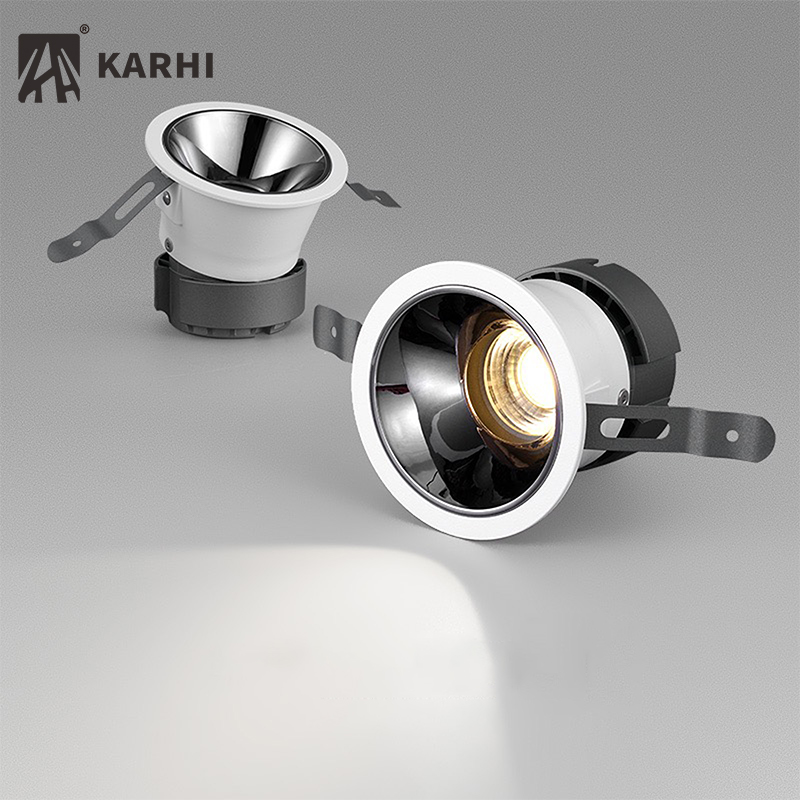

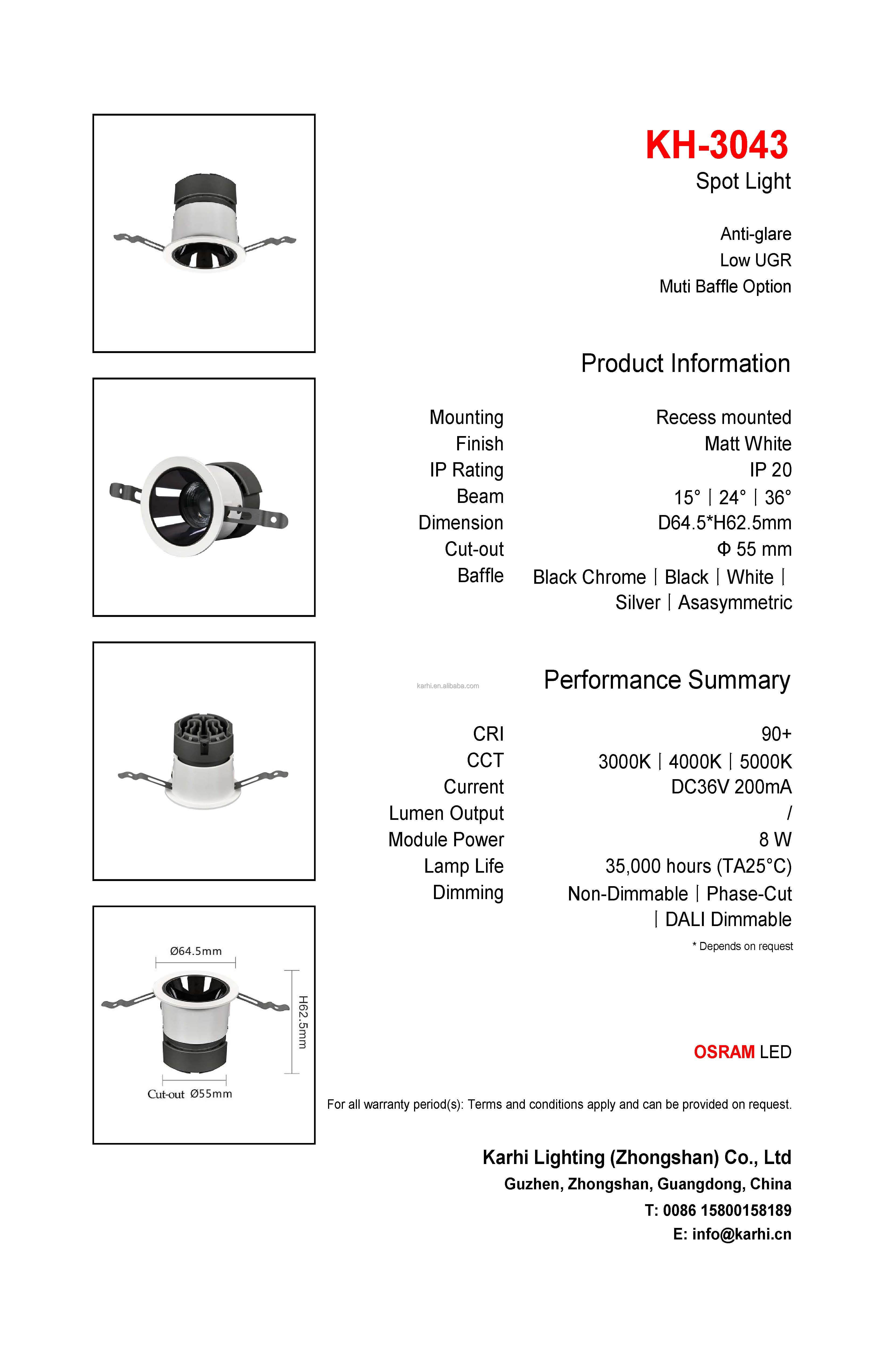

Item no.: KH-3043 Description: Adjustable recess mounted secondary reflection LED spot light, with die-cast aluminum body in sandy white powder-coated, equipped with 15°/24°/36° anti-glare optical lens, black chrome / black / white / silver / asymmetric baffle, 10°-20° tilting Dimension: D64.5*H62.5mm Cutout: D55mm Rated Power: 8W |
| Light Source | Osram COB LED 1202 3000K Ra90 DC36V 200mA 7.2W |
| Appliance | external driver 220-240VAC 50/60Hz 36VDC 200mA PF0.5, Eaglerise, flicker free |
| Model | KH-3043 | KH-3044 | KH-3045 | KH-3046 |
|---|---|---|---|---|
| Wattage | 8 W | 12 W | 16 W | 24.5 W |

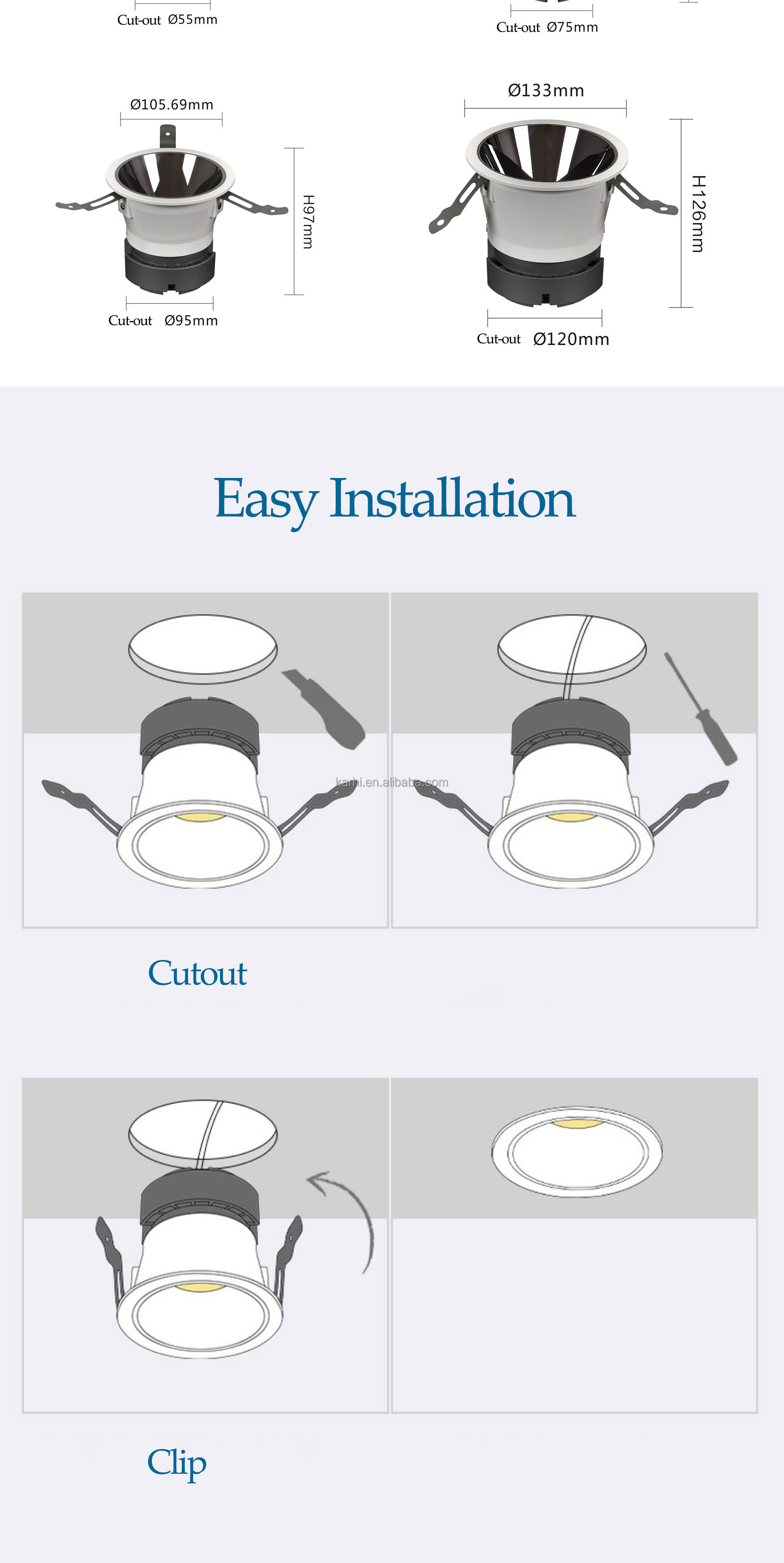

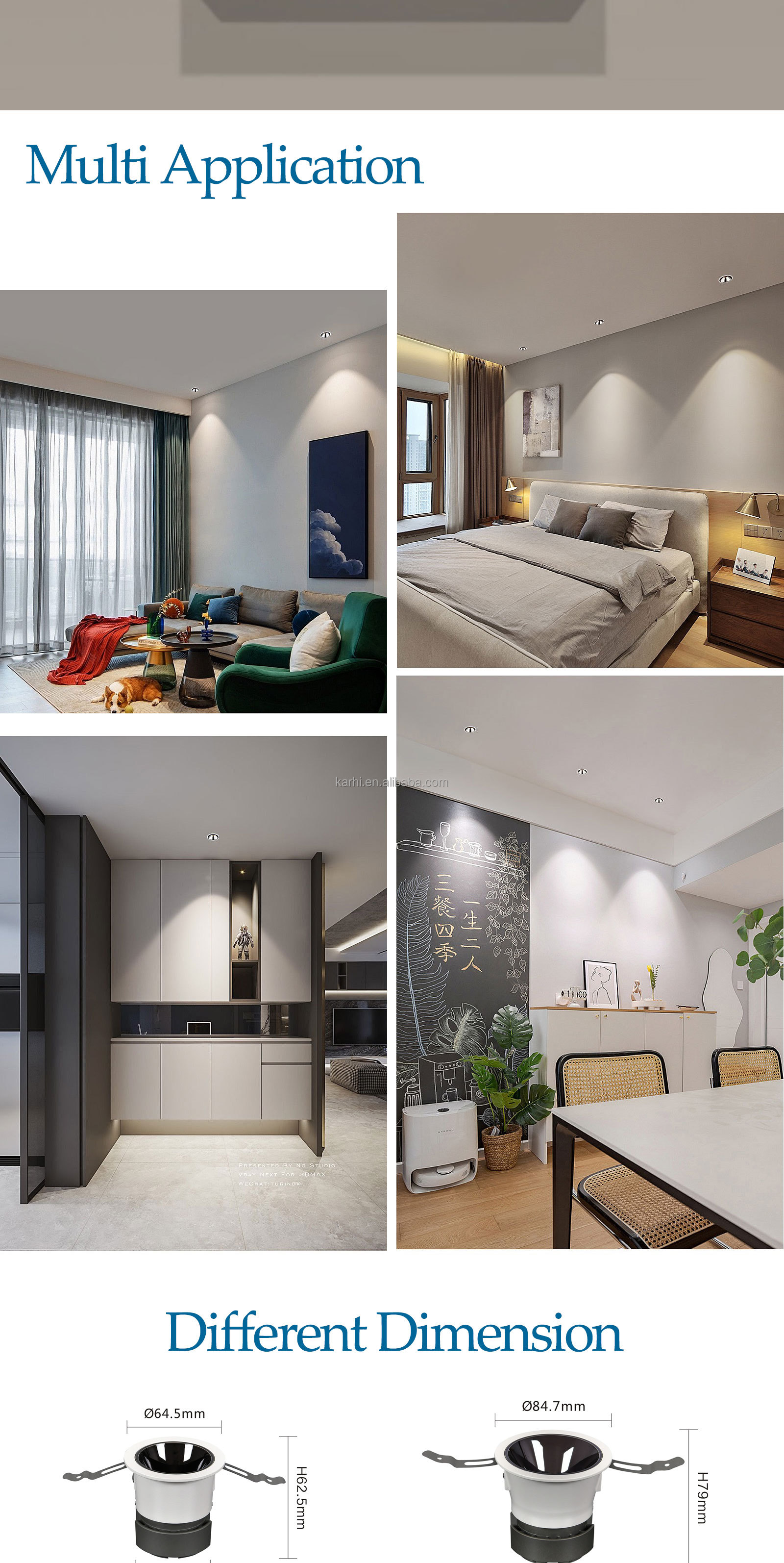

| Dimension | D64.5*H62.5mm | D84.7*H79mm | D105.69*H97mm | D133*H126mm |
| Cut-out | Φ 55 mm | Φ 75 mm | Φ 95 mm | Φ 120 mm |
| Material | Die Casting Aluminium | |||
| LED brand | Osram (Germany brand) | |||
| LED package | COB LED | |||

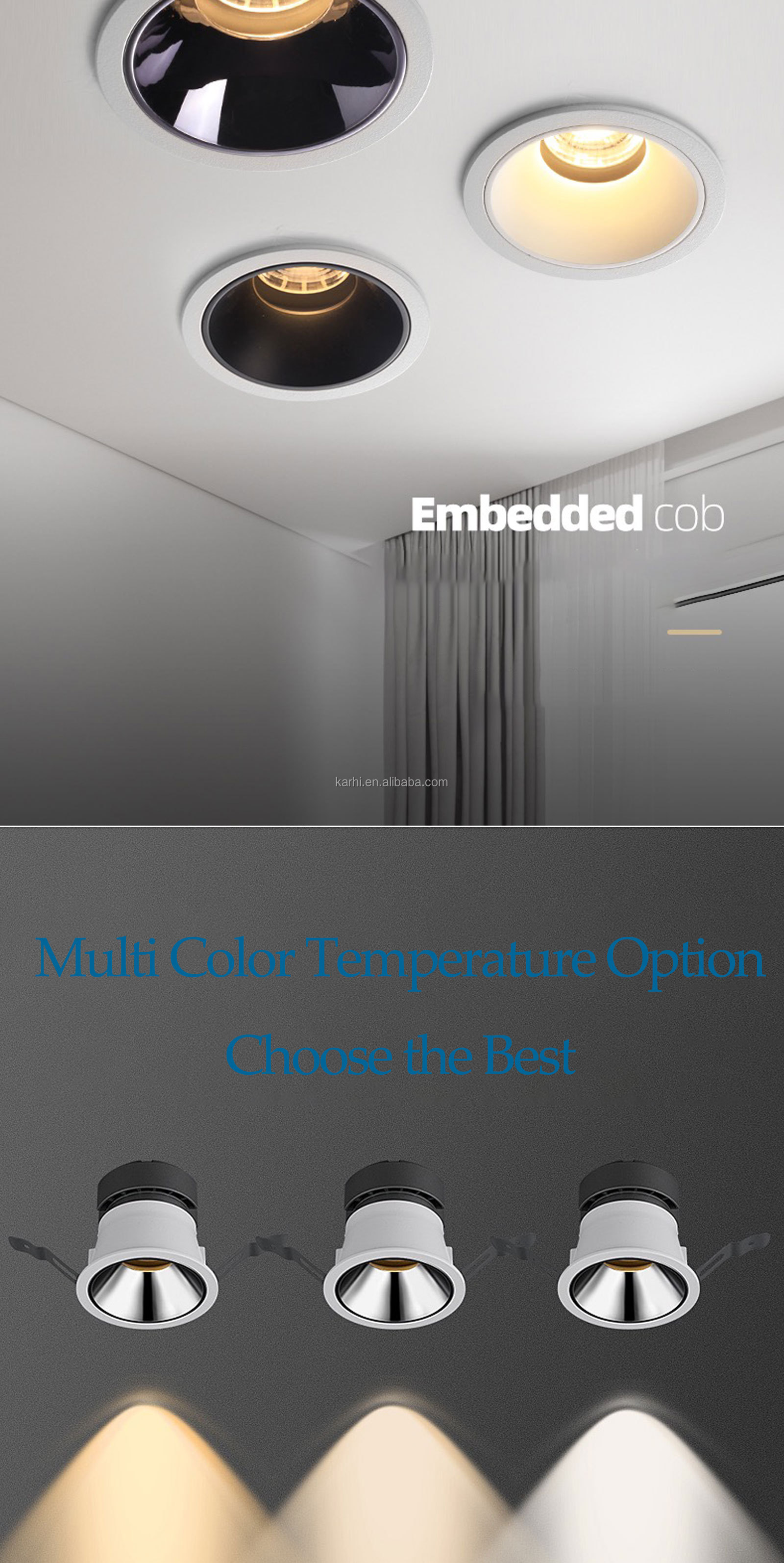

| Color Temperature | 1, 3000K / 4000K / 5000K. 2, Pls ask us if you need 2700K or different color temperature. |
|||
| CRI (Ra) | ≥90 (Pls ask us if you need different CRI / Ra) | |||
| Control method | 1, On/off 2, Pls ask us if require 1-10v dimming, phase-cut/triac dimming or dali-dimming |
|||
| Usage | Indoor use, IP20 | |||
| Input voltage | AC220~240V | |||

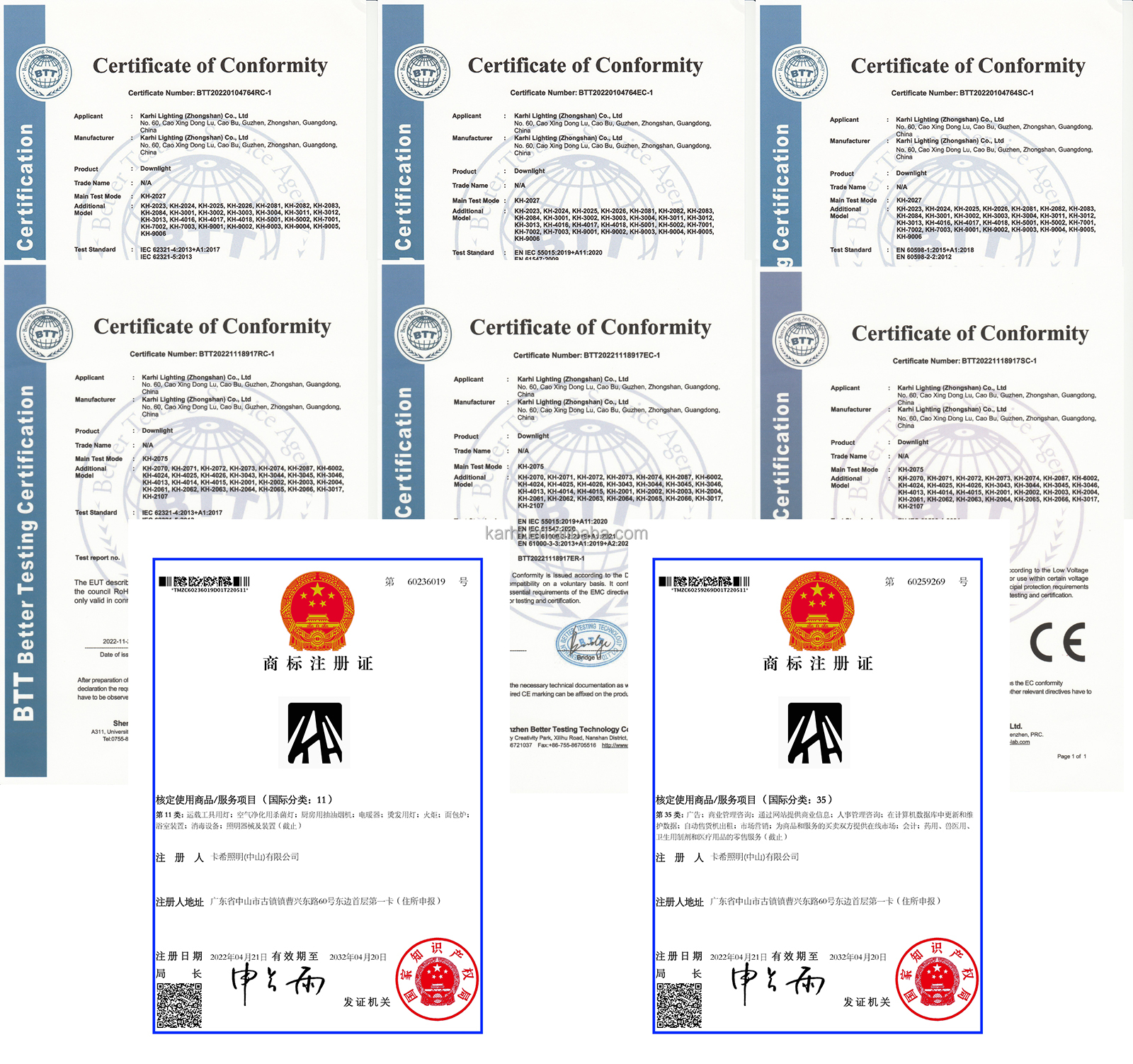

| Driver | CE certificated. Flicker free | |||
| IES/Spectrum Test | Pls ask us for reports | |||
| Package, Sticker | 1, Neutral package with brand sticker / label 2, Pls ask us if you need neutral package or your own LOGO |
|||
| IP Rating | IP20 | |||
| Accessories | 1, Accessories, like spring / clips, driver brand, may be different from images in page, depending on material stock. 2, Pls ask us to check stock if you need more information. |
|||
| Warranty | 1, 3 years 2, Pls ask us to offer price if 5 years needed |
|||
| Different Size/Power | Yes, we do have many types of this kind, pls ask us to send you product link. | |||

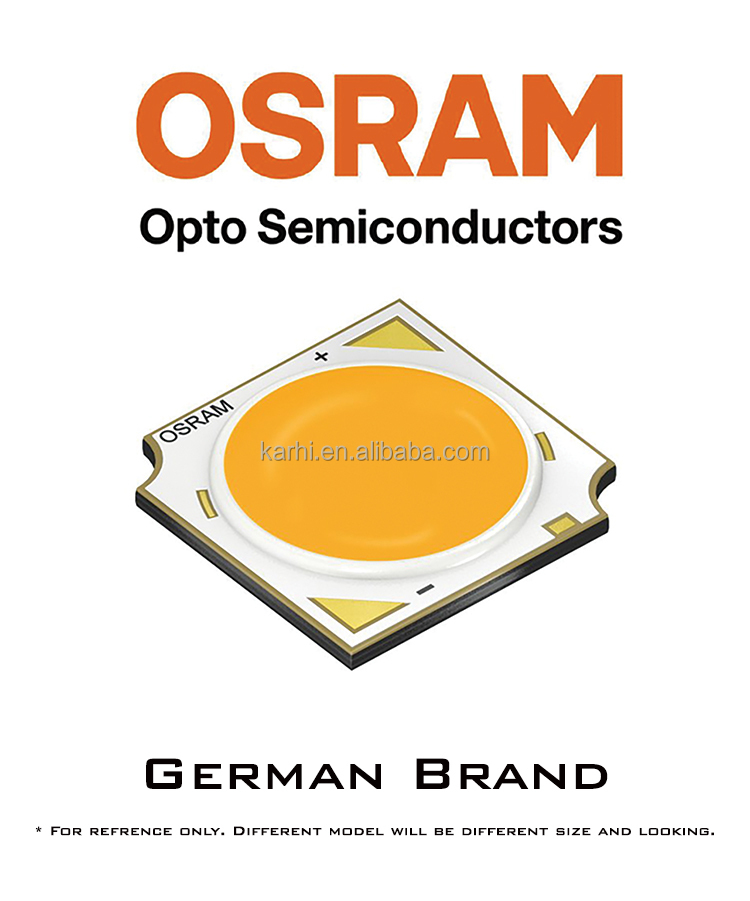

| Model | Osram Code | Max Current | Dimension | Power | Voltage |
|---|---|---|---|---|---|
| 1202 | GW KADEBA.CM | 250mA | 7/13.5*13.5 | 5-10W | 36-38 VDC |
| 1203 | GW KAFFBA.CM | 450mA | 10.5/15.85*15.85 | 10-18W | 36-38 VDC |
| 1204 | GW KAFHBA.CM | 600mA | 10.5/15.85*15.85 | 15-24W | 36-38 VDC |
| 1205 | GW KAMJBA.CM | 750mA | 14/17.85*17.85 | 24-30W | 36-38 VDC |
| 1207 | GW KAMLBA.CM | 1050mA | 14/17.85*17.85 | 30-40W | 36-38 VDC |

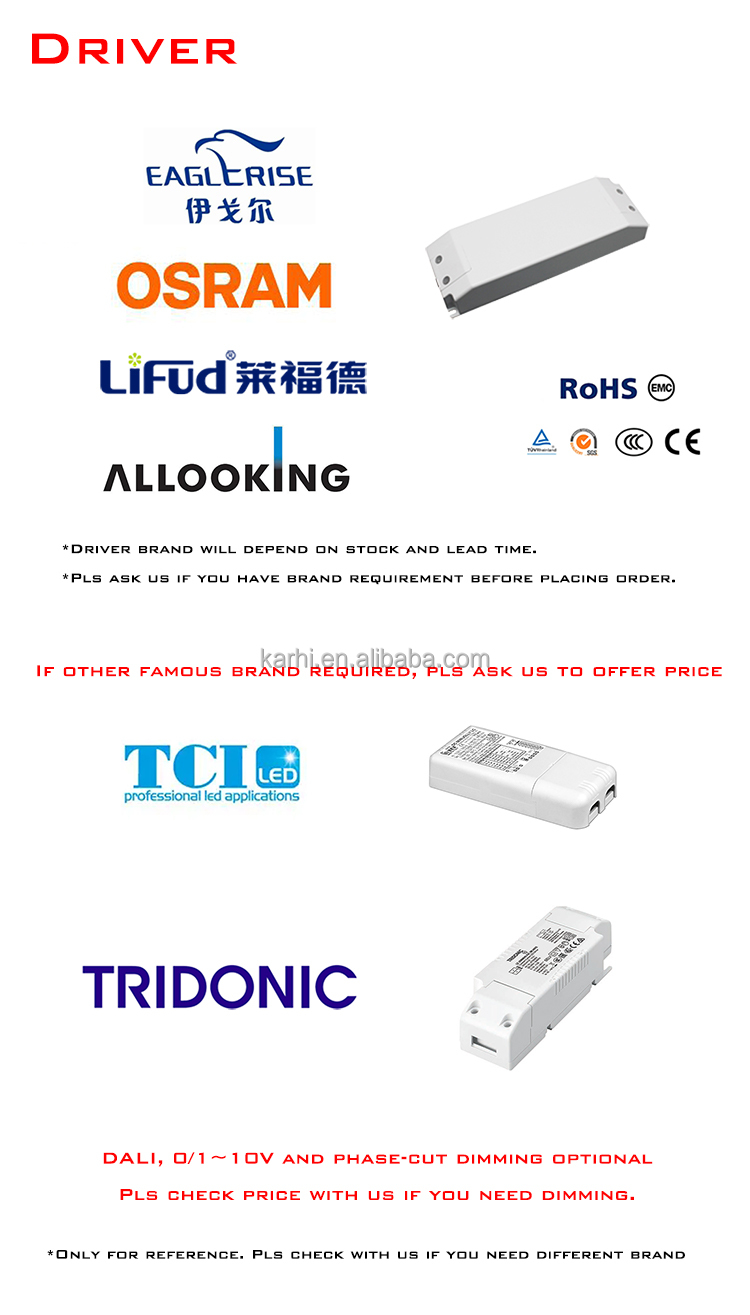

Good quality and good price driver: Tridonic, Osram, Eaglerise, Kegu, Lifud, etc. Depends on your request.
Provide high / low power factor, flicker-free driver.
1-10V, phase cut/ triac dimming, DALI options.

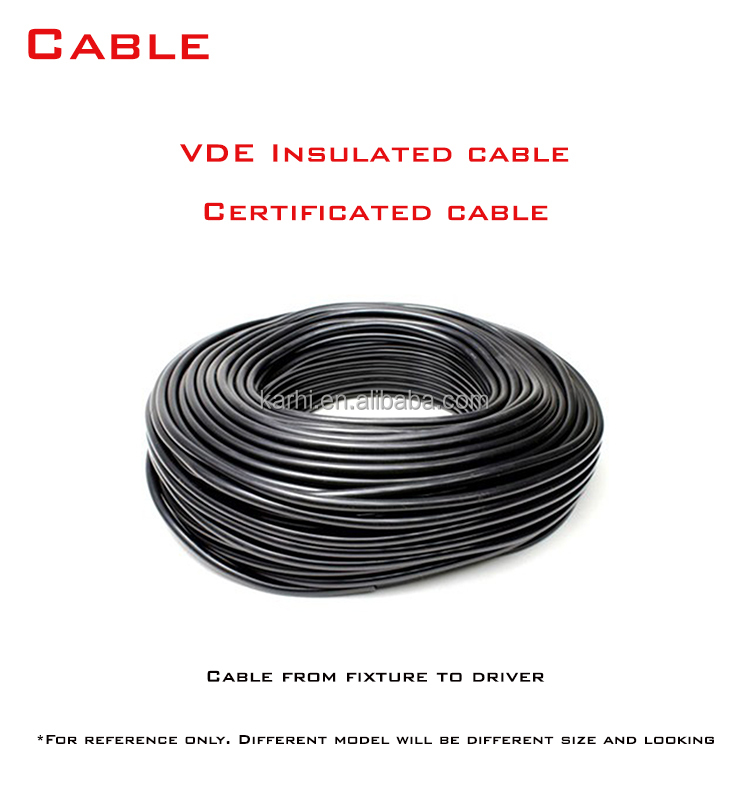

Isolated cable. VDE certificated cable.
Custom-made sticker, box, carton. Depends on your request.

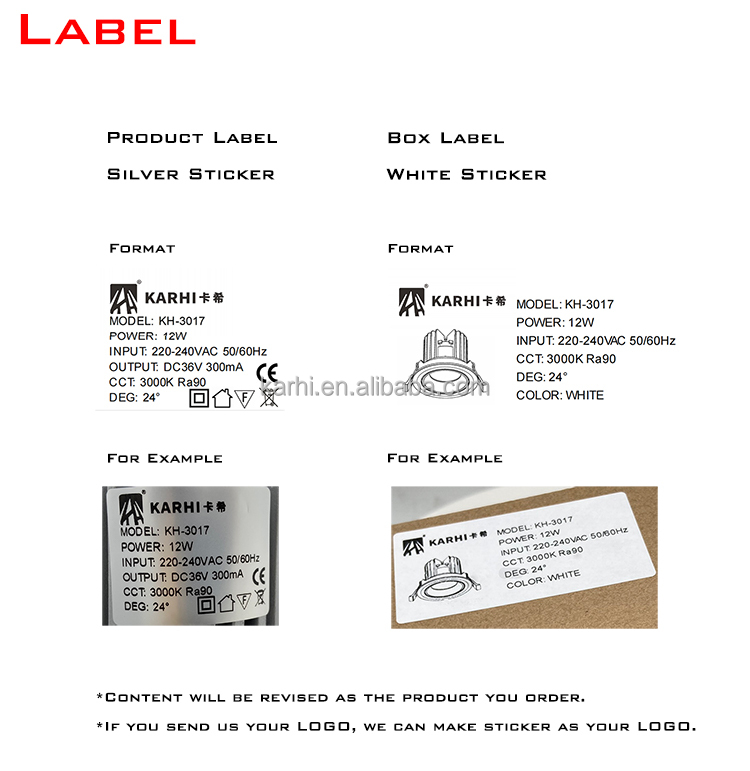

Product Label: Silver PET label / sticker
Box Label: White label / sticker
Devoting into lighting business since 2008, our team has 15 years commercial lighting experience, project experience and sourcing ability, specializing in project - commercial lighting.
We’ve taken part in many projects, like City of Dream (Macau), Oceanus Casino (Macau), Hotel Lisboa (Macau), Grand Lisboa (Macau), E-mart (Korea), and many others small projects in different countries. (Our team took part in those projects when working in major lighting groups from 2008 to 2014).

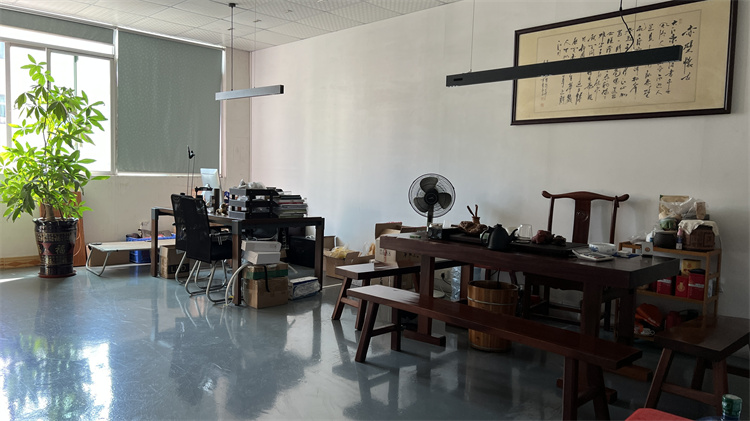

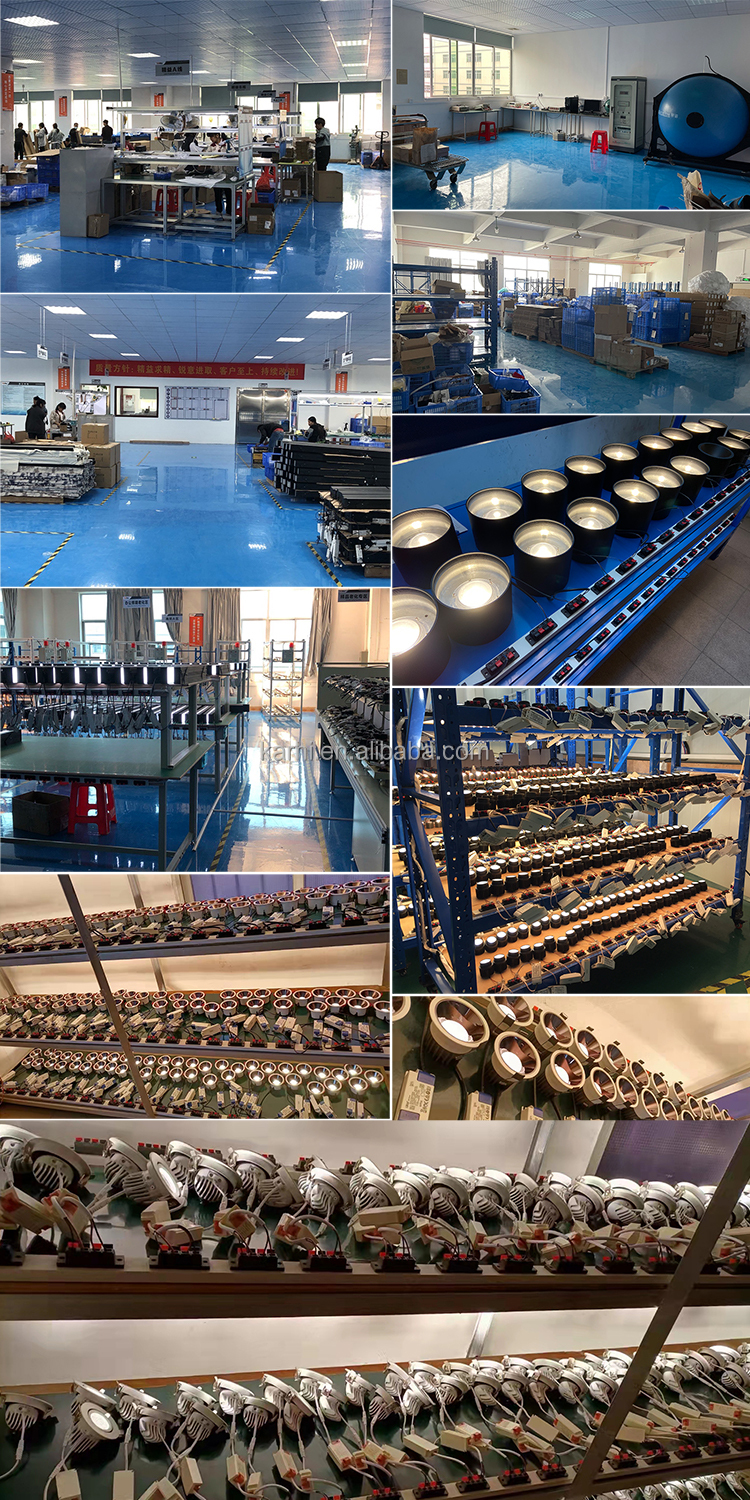

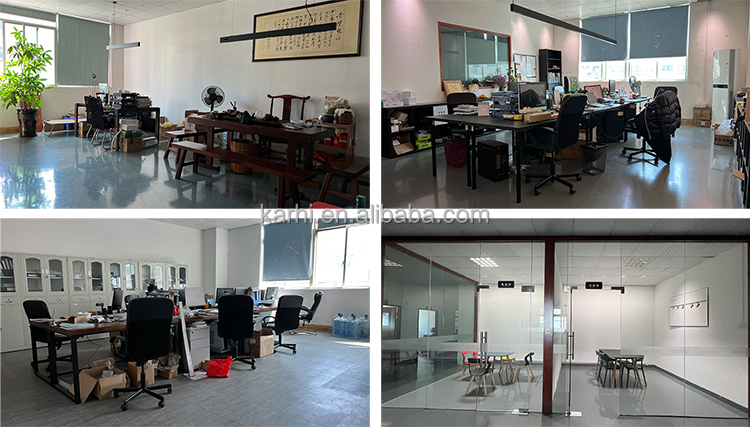

We established our production facility on 2021 and built up our own team to achieve in design, source, assemble, test and deliver by ourselves to get more cooperation possibility.
We are a responsible lighting supplier, and that means we are responsible for all our actions – socially, ethically and environmentally. As well as providing local employment, we support a range of ongoing initiatives that help create healthy, vibrant and cohesive communities.
We believe the best way that we can make a broad and meaningful contribution to the communities in which we operate is through engagement. We see ourselves as part of the communities in which we operate, and as such we strive to be positive, active and contributing participants in community life.
We are very flexible and can achieve your final goal. Talk to us to get better proposal, best price, and OEM sticker, small MOQ, and so on.
We offer the best and suitable for you. We know that if we succeed, then all our valued clients and partners also succeed. This integrated approach begins with our people and the belief that together we can develop trusting relationships with all stakeholders to achieve long term mutual goals.
Give us a chance and get one more possible option for yourself and your clients. Ordering sample to compare and test, trying new and you will find out how good we are. Trust our professional service. Let’s get elder and best together.
