Why use folding magnetic track light Fixtures?
The folding magnetic track light ceiling system is an innovative solution for contemporary spaces, allowing for vertical and horizontal designs on walls and ceilings so your creative DIY lighting ideas come up. At the same time, its quick installation method and minimal decorative effect make it the first choice for home and office lighting.
What Is magnetic track light ceiling, And How Does It Work?

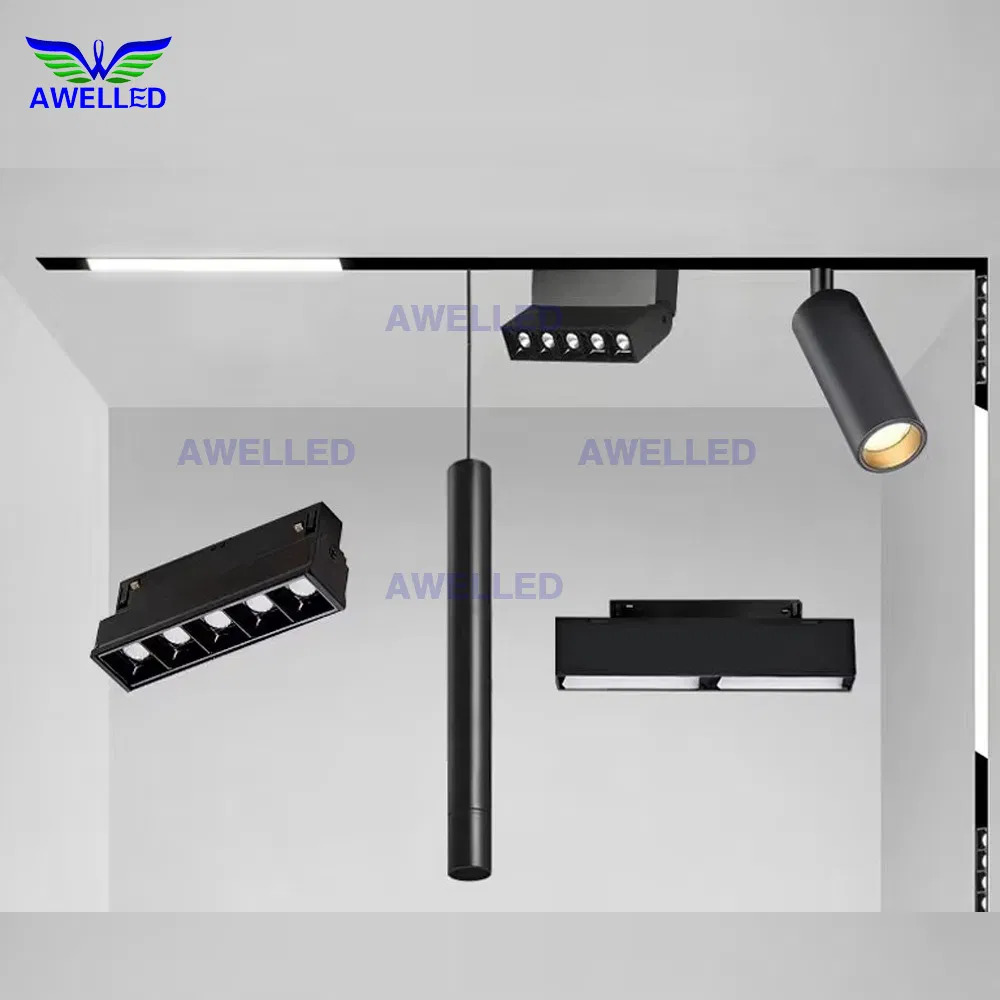

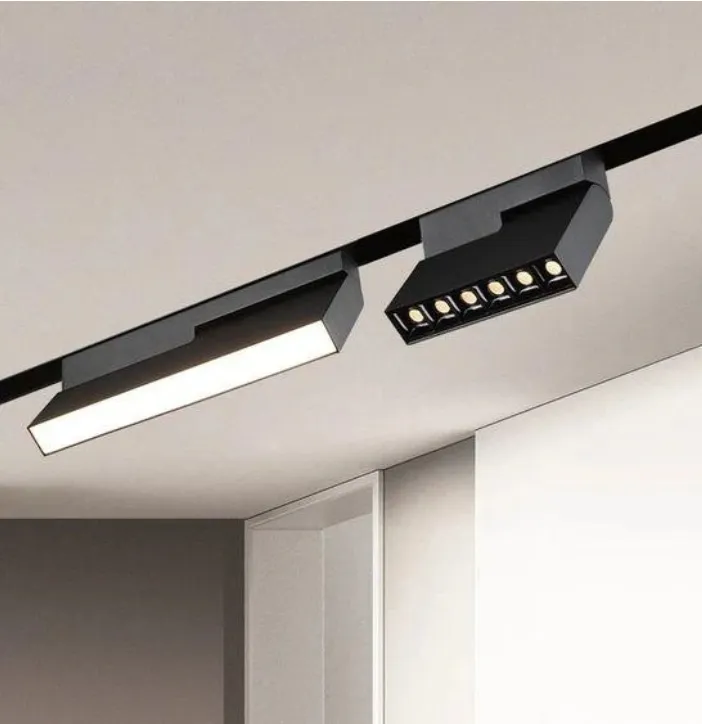

The magnetic track light ceiling is a light fixture installed on the track by a magnet on the light fixture. The track is composed of an aluminum shell, copper conductor, and iron sheet. When the luminaire with magnet is close to the iron sheet in the track, the luminaire will be adsorbed on the trail without any tools, and at the same time, the luminaire is in contact with the copper conductor, then powered by an AC110-220V to DC48V transformer for the whole track lighting modern system. On the magnetic linear track, different forms of magnetic attraction lamps can be installed. Not only can they move freely on the track, but they can also be removed and installed at will. Through different parts, the magnetic tracks can be connected to form an L shape, square shape, U shape, etc.


| Model | AW-ML30-18 |
|---|---|
| Rated Power | 18W (±5%) |
| Input Voltage | 48Vdc |
| Housing Material | Cold-forge Aluminum Alloy |

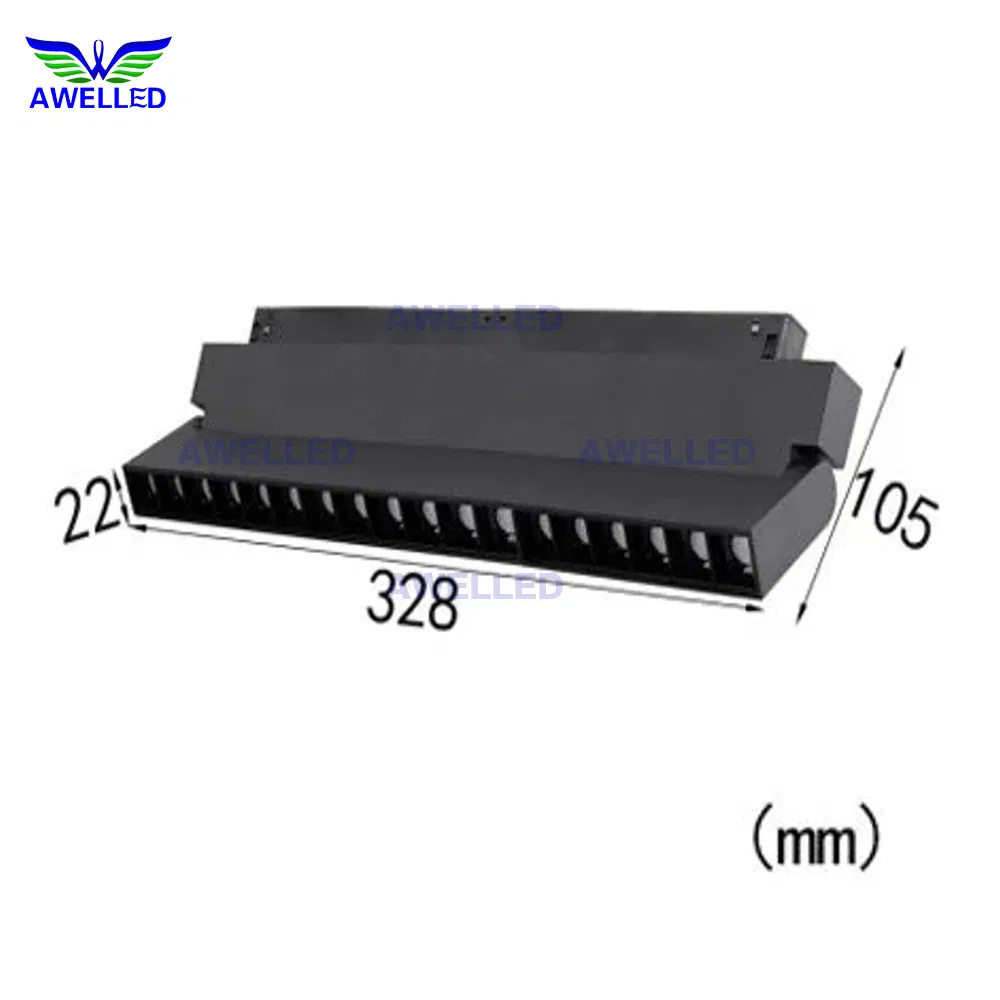

| Dimensions | L328*W22*H105mm |
| Housing Color | Black / White |
| Light Source | High watt 3030 |
| CCT Options | 3000K/4000K/5000K/6000K |
| CRI (Ra) | 80+ / 90+ |
| Beam Angle | 15°/24°/36° |

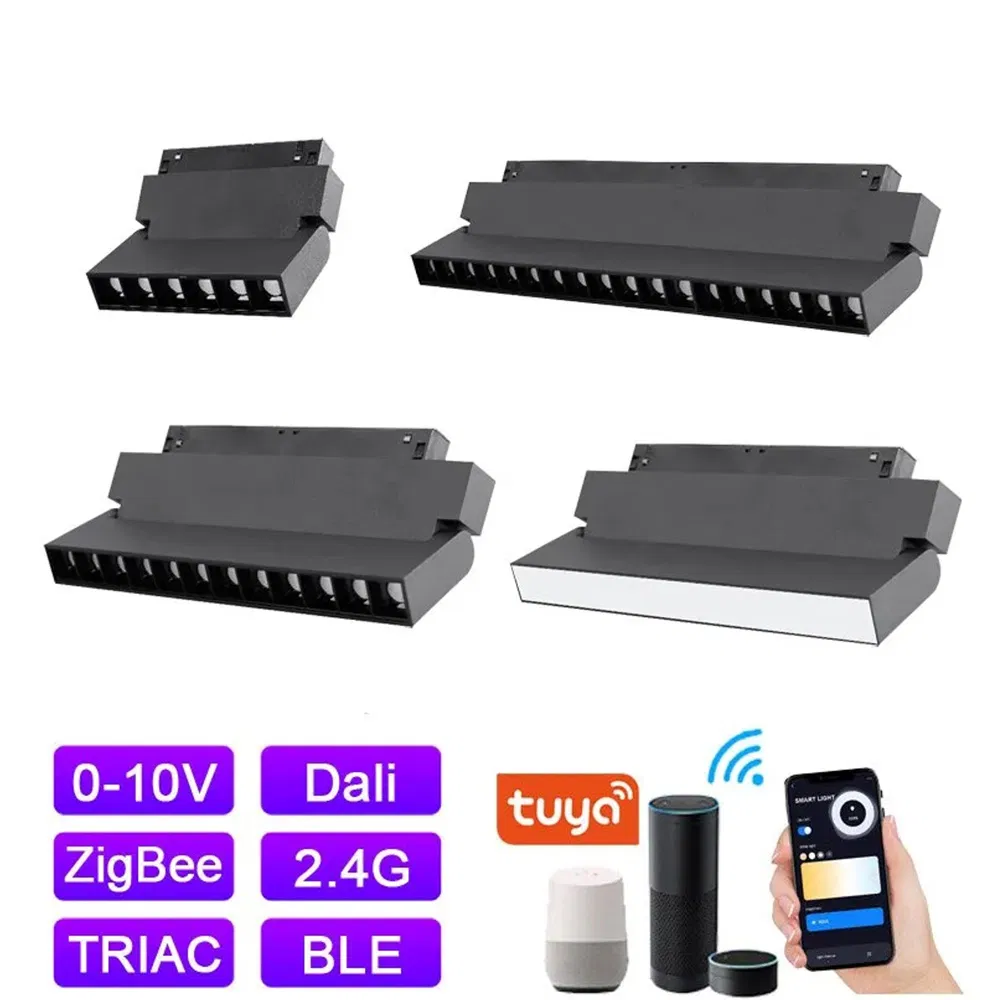

| Dimming Protocols | DALI / TRIAC / 0-10V/1-10V |
| IP Rating | IP44 (Indoor Commercial Use) |
Where are the magnetic track light ceilings used?

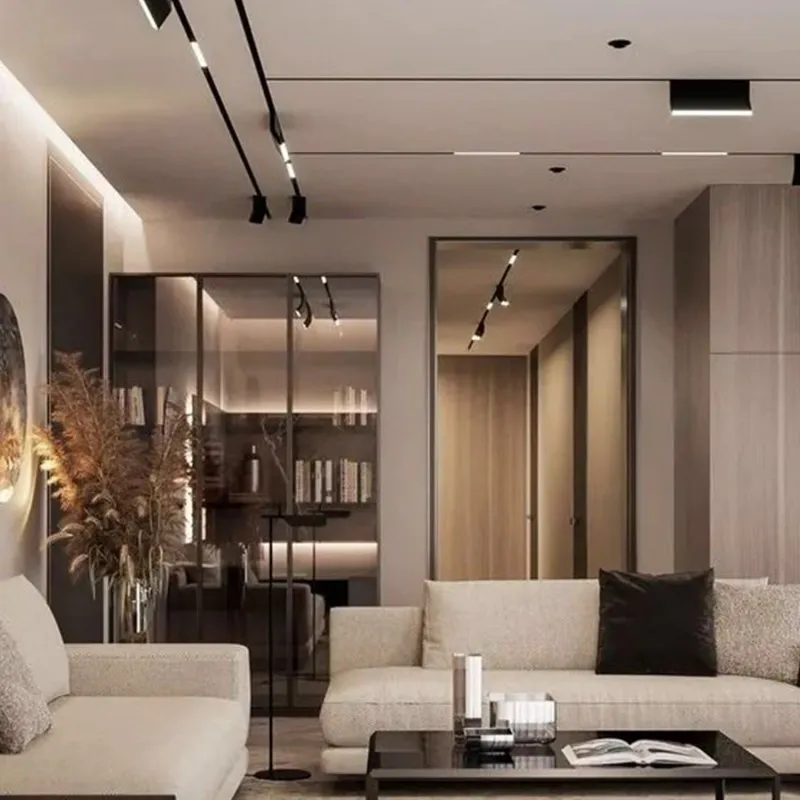

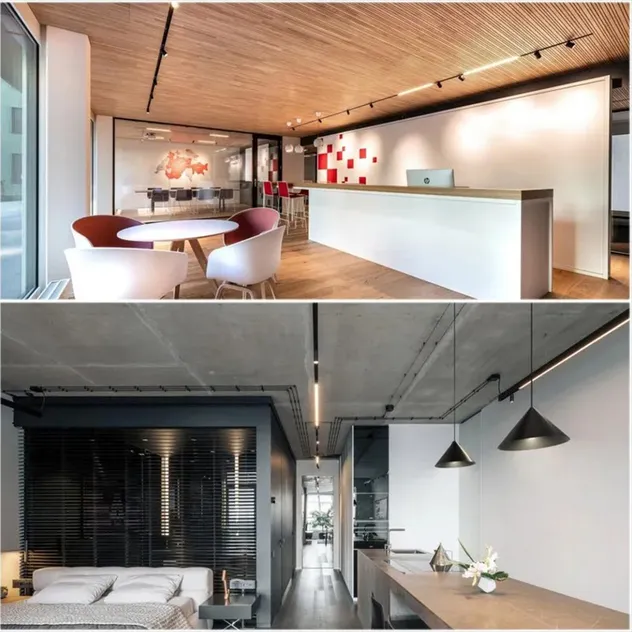

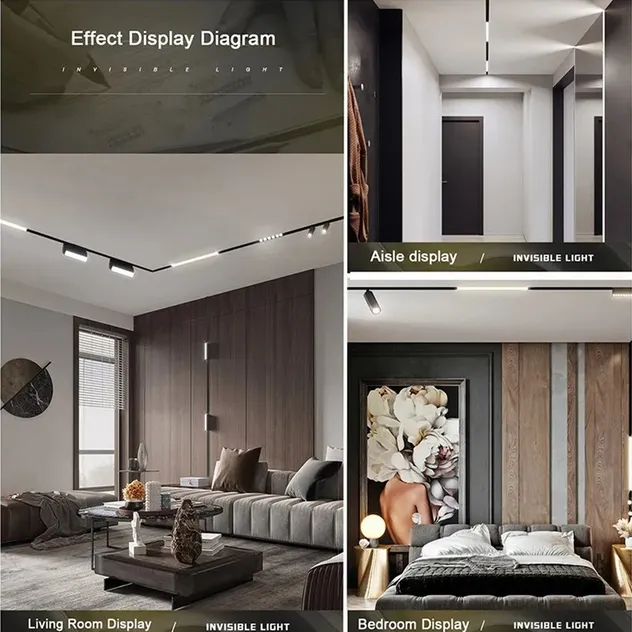

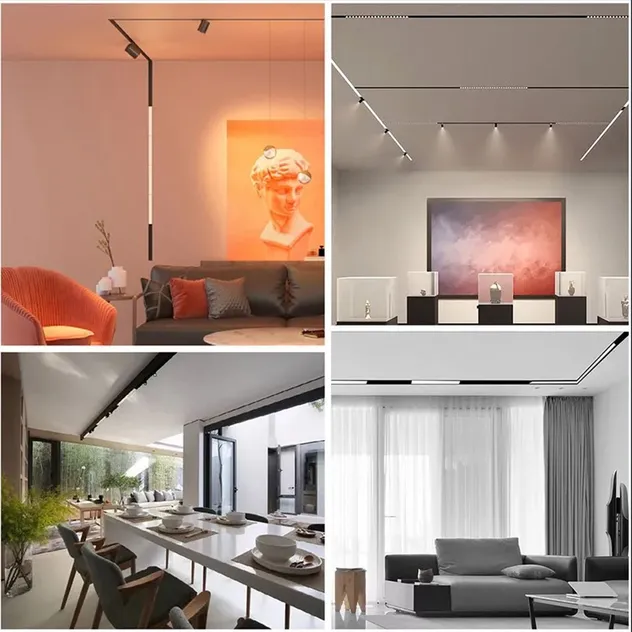

These LED magnetic lights are mainly used as home lighting for the kitchen, dining room, living room, and bedroom. It is available to design different patterns, which will make your home lighting system stylish and modern. Of course, it is also suitable for office lighting, together with LED panel lights, or as commercial lighting in supermarkets, etc.

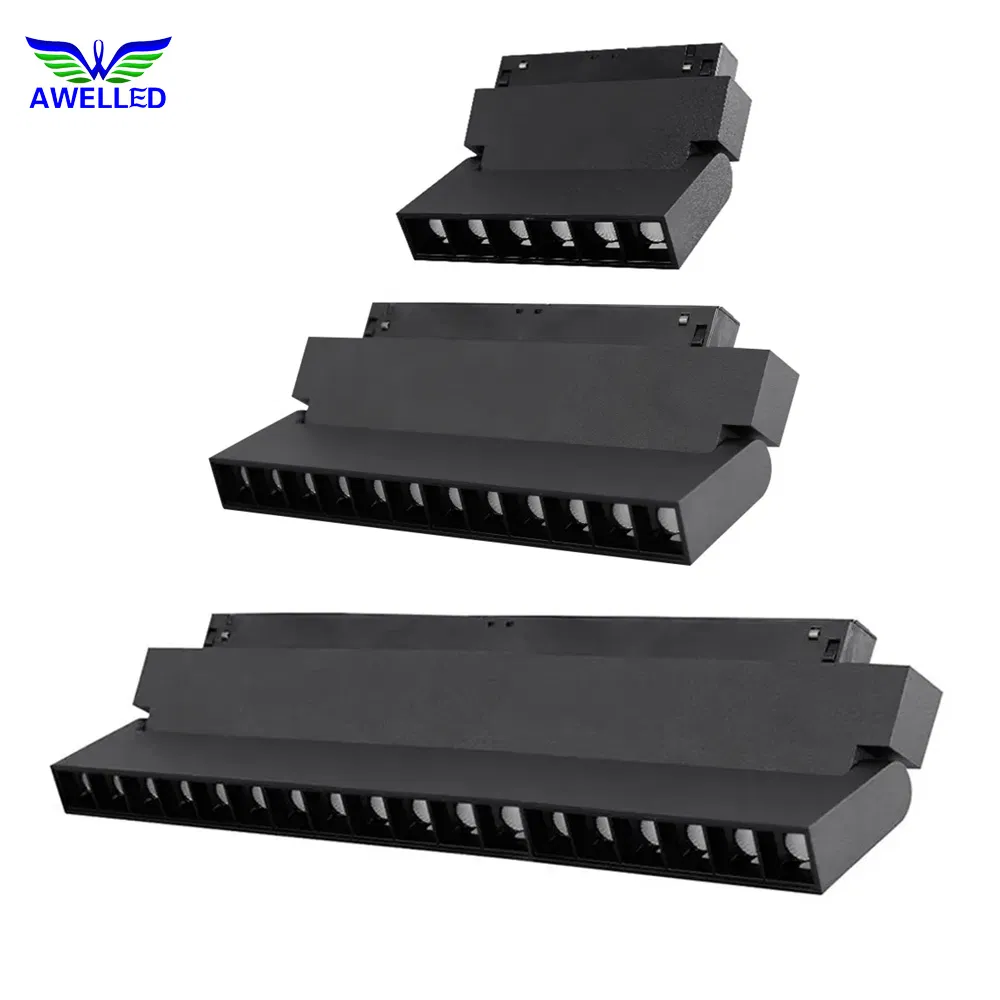

| Model | AW-ML30-6 | AW-ML30-12 | AW-ML30-18 | AW-ML20-24 |
|---|---|---|---|---|
| Power | 6W | 12W | 18W | 24W |
| Size | L135*W22*H105mm | L230*W22*H105mm | L328*W22*H105mm | Dia65*140mm |

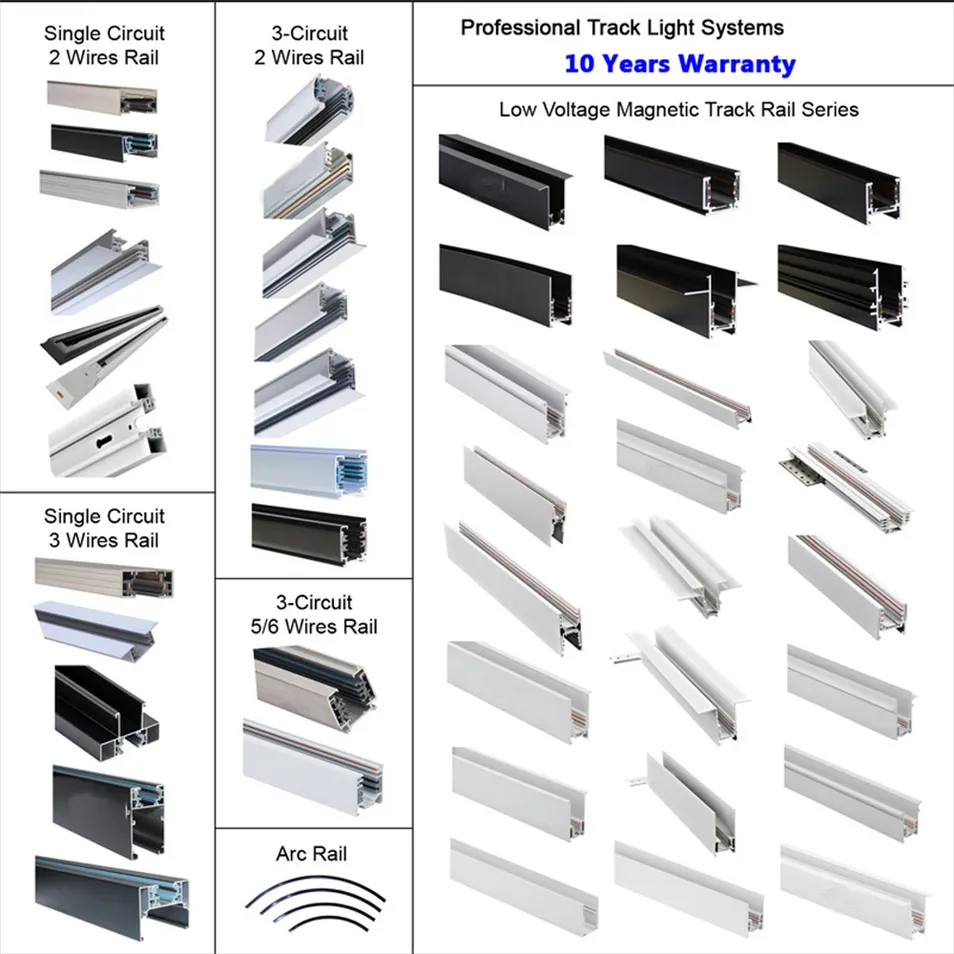

Low Voltage Magnetic Track Rail Series
This easy-to-install track lighting modern system is available in three versions: recessed, surface-mounted and suspended. This offers endless possibilities in applications. For example, the recessed tracks can be mounted in the ceiling as well as in the wall, creating a one-of-a-kind look in the room. The tracks are powder coated with a high-quality coating and supplied in black as standard.
