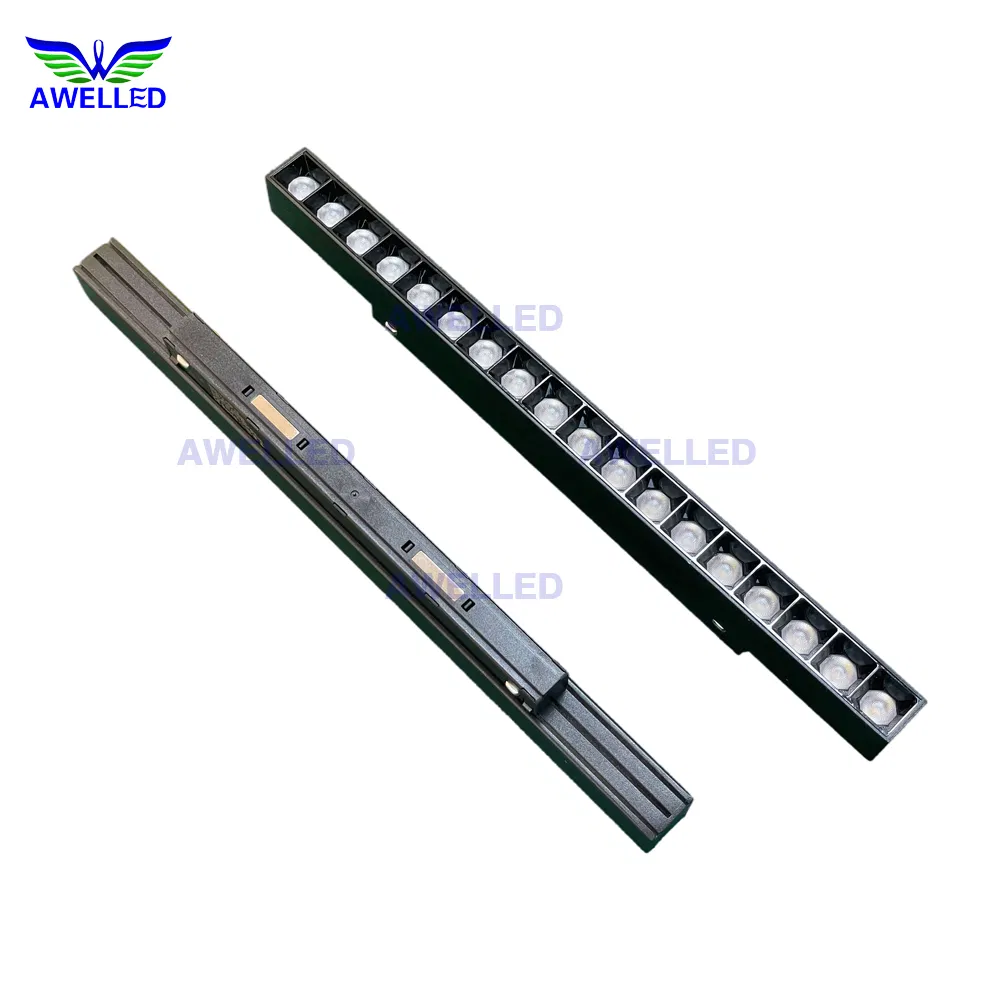

The linear magnetic track light ceiling system is an innovative solution for contemporary spaces, allowing for vertical and horizontal designs on walls and ceilings so your creative DIY lighting ideas come up. At the same time, its quick installation method and minimal decorative effect make it the first choice for home and office lighting.
What Is magnetic track light ceiling, And How Does It Work?
The magnetic track light ceiling is a light fixture installed on the track by a magnet on the light fixture. The track is composed of an aluminum shell, copper conductor, and iron sheet. When the luminaire with magnet is close to the iron sheet in the track, the luminaire will be adsorbed on the trail without any tools, and at the same time, the luminaire is in contact with the copper conductor, then powered by an AC110-220V to DC48V transformer for the whole track lighting system.
On the magnetic linear track, different forms of magnetic attraction lamps can be installed. Not only can they move freely on the track like traditional gold track light artisitics, but they can also be removed and installed at will. Through different parts, the magnetic tracks can be connected to form an L shape, square shape, U shape, etc.
Specification
Parameter
Details
Model
AW-ML40-24
Rated Power
24W (24 LEDs)
Input Voltage
48Vdc
Housing Material
cold-forge Aluminum Alloy
Dimensions
L440*W22*H45mm
Housing Color
Black / White
Light Source
High watt 3030
CCT Options
3000K/4000K/5000K/6000K
CRI (Ra)
80+ / 90+
Luminous Efficiency
90lm/W @ CRI80 (Standard) / Custom High-CRI Versions Available
Beam Angle
15°/24°/36°
Dimming Protocols
DALI / TRIAC / 0-10V/1-10V (Dimming function can be Selectable)
Track Compatibility
48V Low voltage Magnetic Track System
IP Rating
IP44 (Indoor Commercial Use)
Safety Standard
ENEC / CE / RoHS / IEC 61347

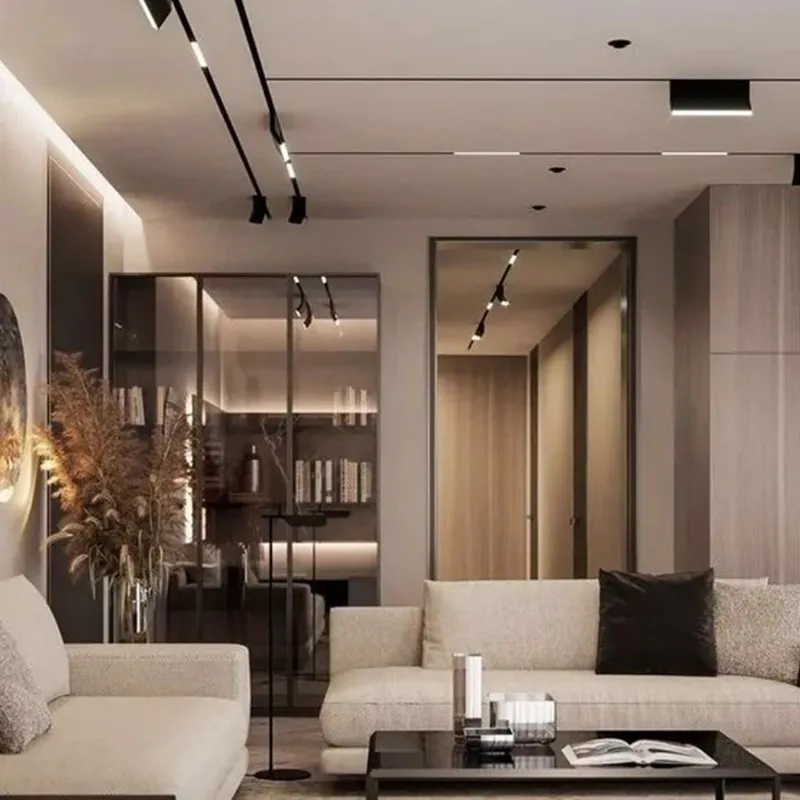

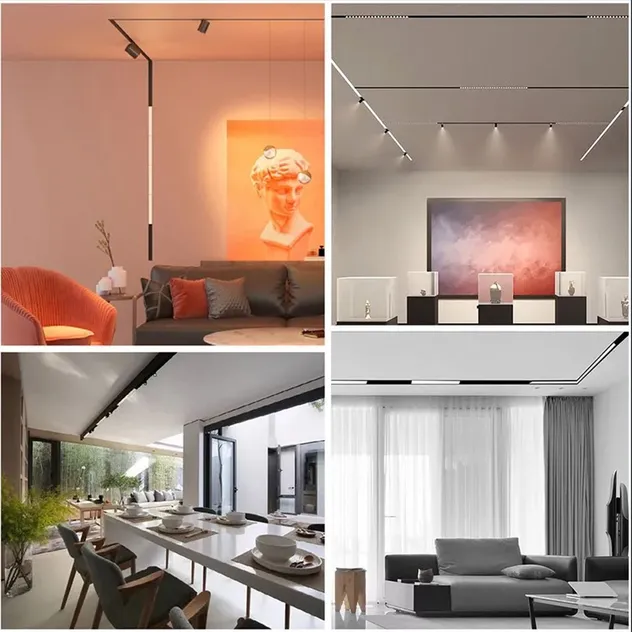

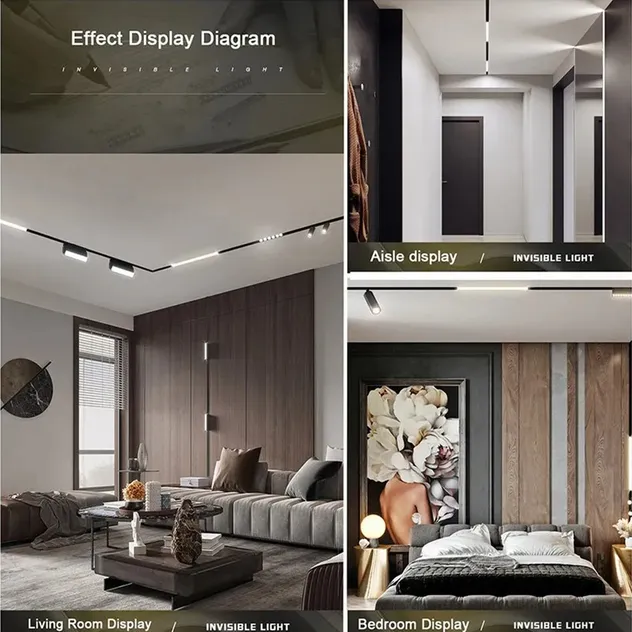

Where are the magnetic track light ceilings used?
These LED magnetic lights are mainly used as home lighting for the kitchen, dining room, living room, and bedroom, it is available to design different patterns, which will make your home lighting system stylish and modern. Of course, it is also okay to be used for office lighting, together with LED panel lights, or as commercial lighting in supermarkets, etc.
More Magnetic Lights in Series
Model
Power
Size
LED'S QTY
AW-ML40-6
6 W
L110*W22*H455
6PCS
AW-ML40-12
12W
L220*W22*H45mm
12PCS
AW-ML40-18
18W
L330*W22*H45mm
18PCS
AW-ML40-24
24W
L440*W22*H45mm
24PCS
Accessories Optional

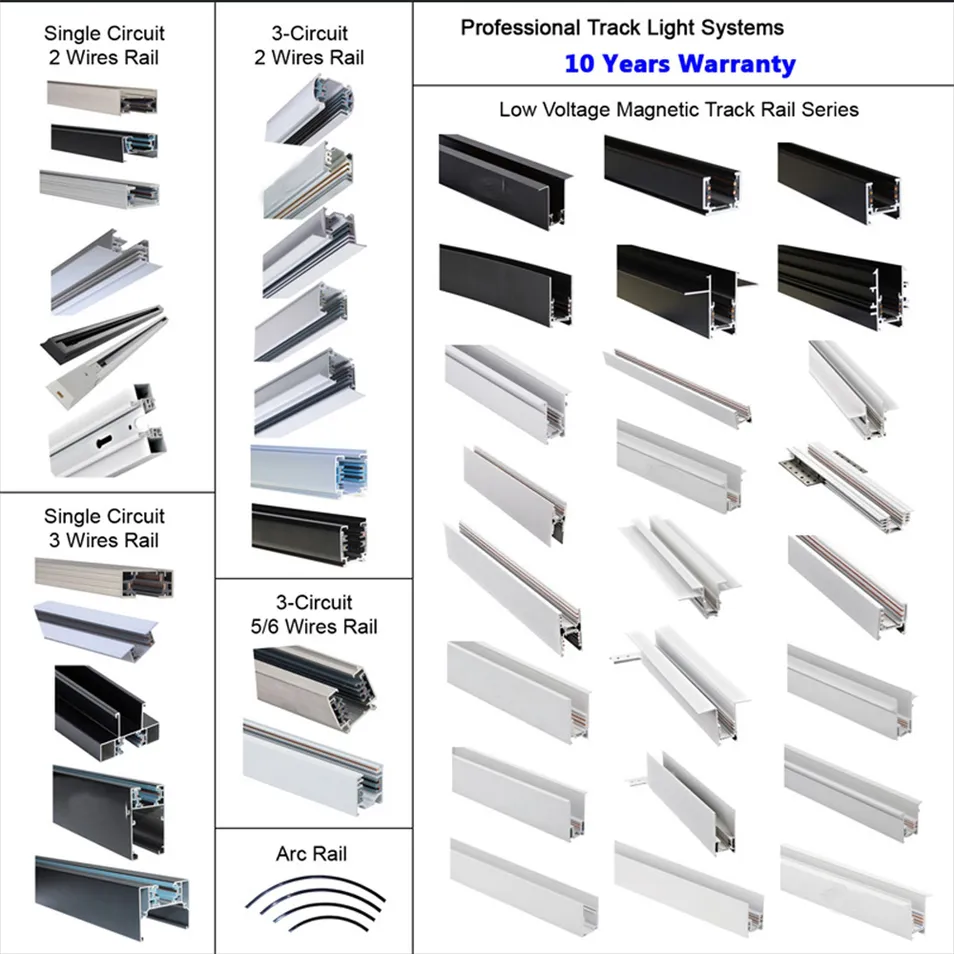

Low Voltage Magnetic Track Rail Series

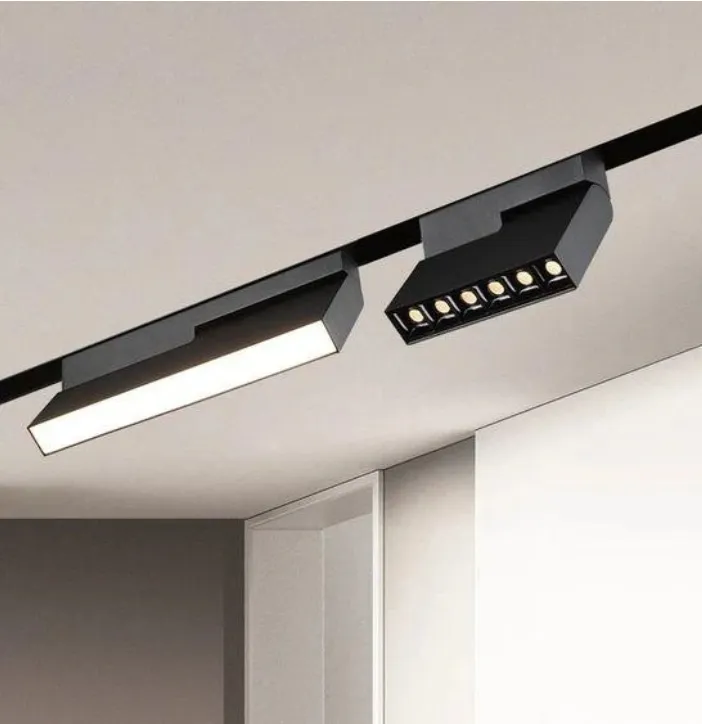

This easy-to-install track lighting system is available in three versions: recessed, surface-mounted and suspended. This offers endless possibilities in applications. For example, the recessed tracks can be mounted in the ceiling as well as in the wall. This creates a one-of-a-kind look in the room. The surface-mounted version is available in high and low versions. The tracks are powder coated with a high-quality coating and supplied in black as standard. On request, we can supply the spotlights as well as the tracks in a colour of your choice.

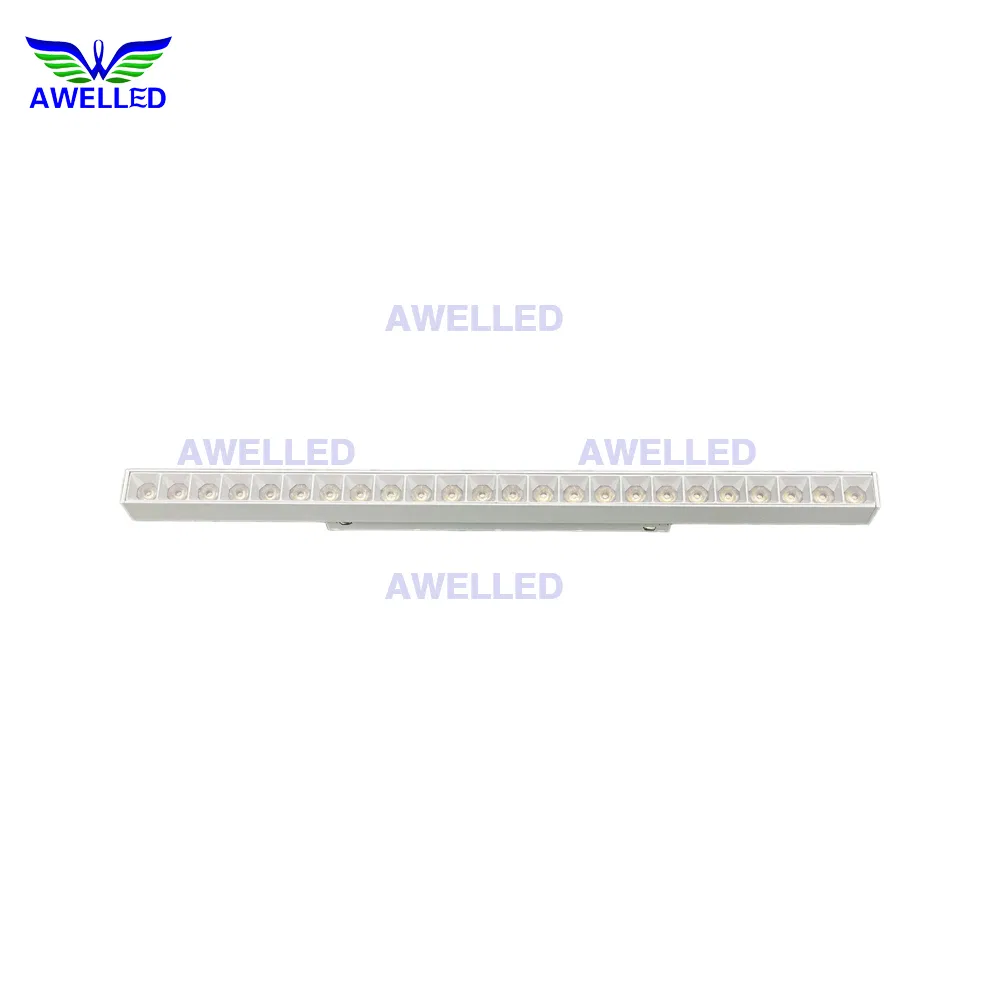

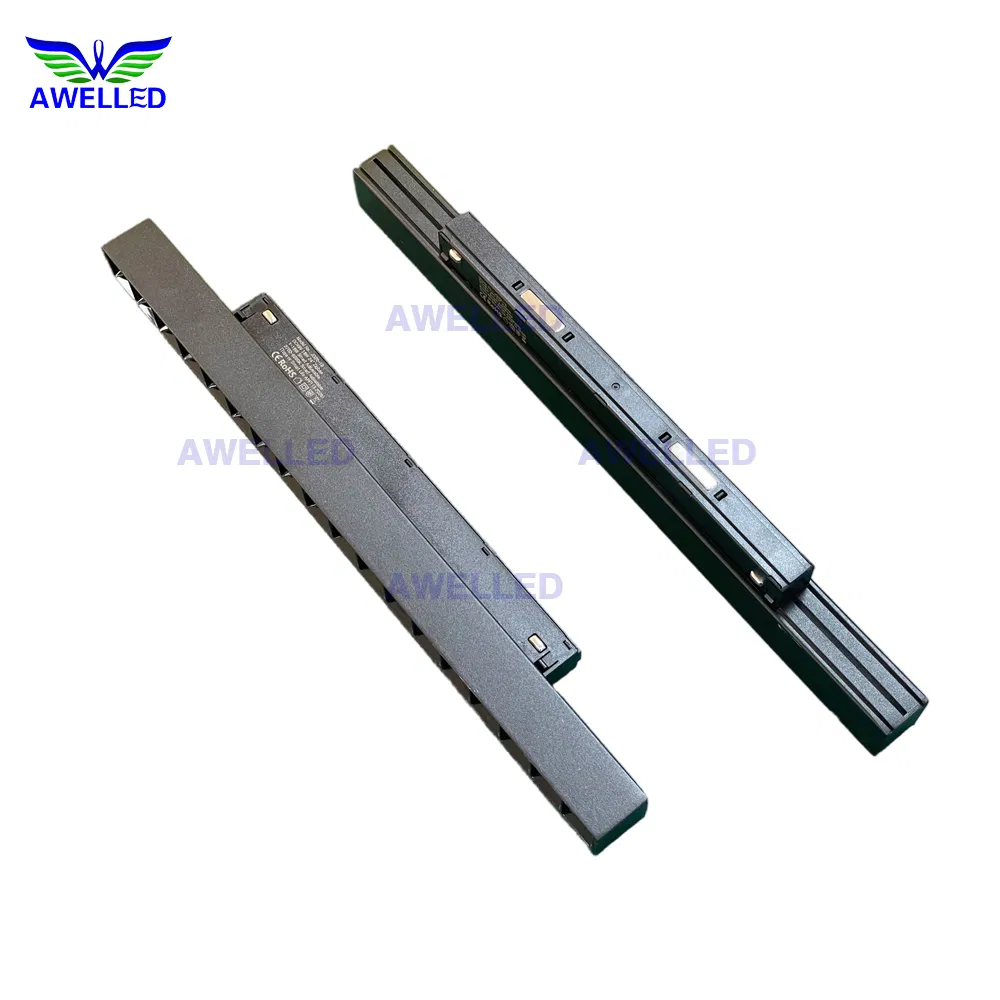

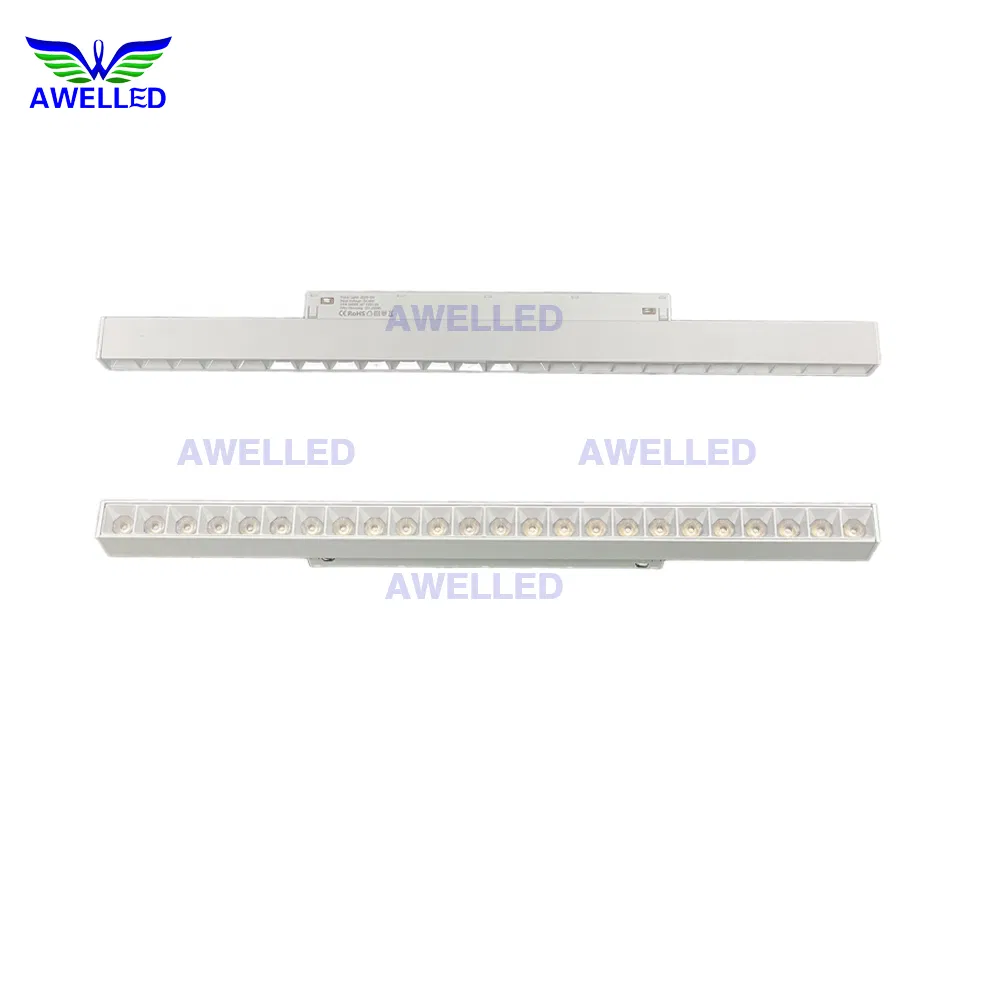

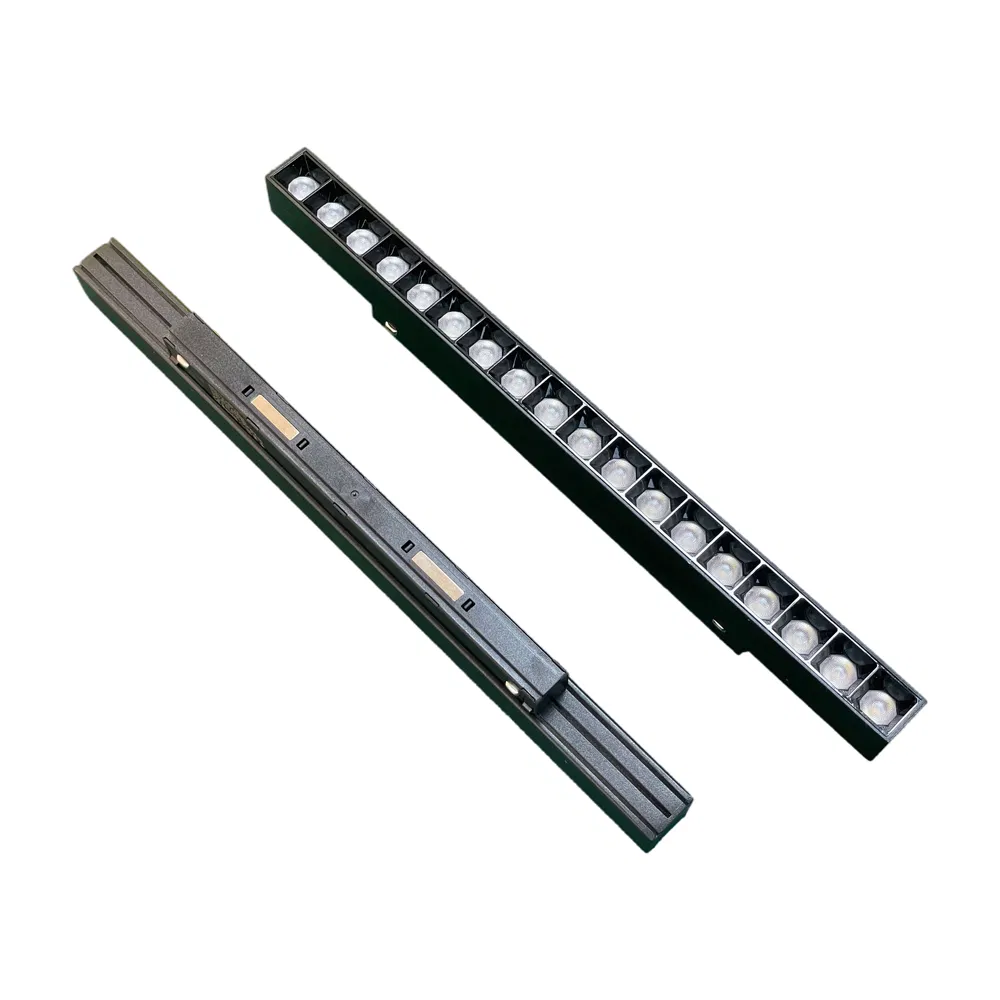

Detail photos

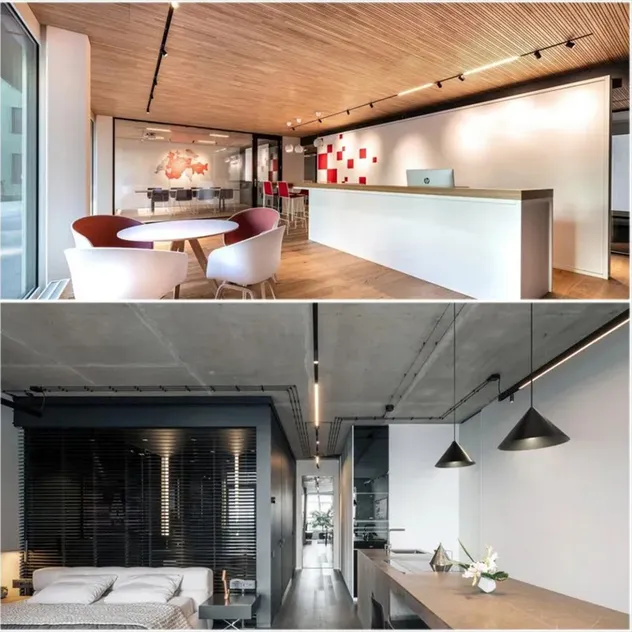

Classic Projects
Company Profile
Frequently Asked Questions
Q1: How to proceed with an order for a magnetic track light?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for the formal order.
Fourthly, we arrange the production.
Finally, we provide you with the tracking number and commercial invoice for shipment.
Q2: What is your MOQ and how fast can you deliver?
We do not have a strict MOQ; 1 sample is available for testing. Delivery takes 3-7 days for samples and 7-15 days for bulk orders.
Q3: What payment methods do you accept?
We accept PayPal for sample orders and T/T (Telegraphic Transfer) for normal bulk orders.
Q4: Can you customize the logo on the products?
Yes, we can put your logo on the stickers for both the lamp and the packaging box. Laser printing and silk printing on the lamp and driver box are also acceptable when the order reaches a certain quantity.
Q5: How do you handle faulty or defective products?
Our products are manufactured under a strict quality control system, maintaining a defective rate of less than 0.3%. If any quality issues arise during the warranty period, we will send necessary replacements or new items to you for free in advance.
Q6: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-7 working days to arrive. Airline and sea shipping options are also available.
